Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Sinotruk HOWO A7 Heavy Truck concrete mixer truck
Main model photos
83 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 336hp / China III / Euro III | ||
| Sinotruk A7 420hp 6X4(10 wheels) Concrete Mixer Truck | 6x4 / 420hp / China III / Euro III | ||
| Sinotruk A7 340 hp 6X4(10 wheels) concrete mixer truck | 6x4 / 340hp / China III / Euro III |

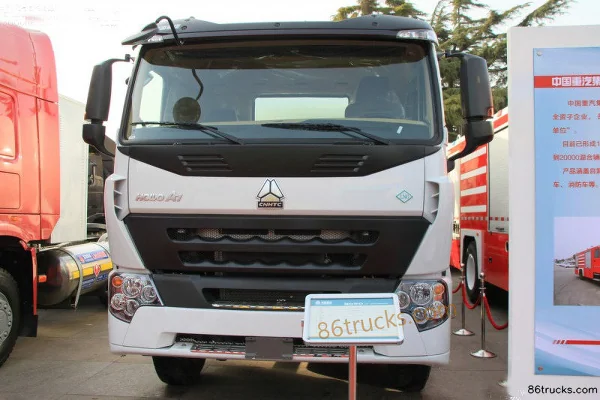

Sinotruk A7 420hp 6X4(10 wheels) Concrete Mixer Truck
EXW
Export quote
Sinotruk A7 340 hp 6X4(10 wheels) concrete mixer truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.005×2.496×3.8 / 8.965×2.496×3.8m
Drive type: 6X4
Truck Type: concrete mixer truck
Front/rear track width: Front track: 2022; Rear track: 1830mm; Rear track: 1830mm / Front track: 2022; Rear track: 2041 / Front: 2022, Rear: 1830/1830
Vehicle origin: Jinan, Shandong
Wheelbase: 4025+1350 / 3625+1350mm
Curb Weight: 14.17 / 13.36ton
Rated payload: 10.7 / 11.51ton
Max. speed: 78km/h
Front/rear suspension: 1.54/3.09 / 1.54/2.45m
Body Parameters
Water tank capacity: 450L
Mixing drum capacity: 5.38 / 5m³
Slump: 40mm
Drum rotation speed: 6-8r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.7%
Filling Rate: 58.5%
water supply method: Air pressure water supply
hydraulic system: Closed hydraulic circuit
Vehicle certification code: ZZ5257GJBN4047N1 / ZZ5257GJBN3647N1
Body Brand: Sinotruk HOWO
Others: Hydraulic pump, motor (Rexroth), ZF reducer
Engine parameters
Engine Model: Sinotruk WD615.95E / Sinotruk WD615 / Sinotruk D12.34--30
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726 / 11.596L
Emission standard: China III / Euro III
Max output power: 247 / 308 / 250kW
Max hp: 336 / 420 / 340Horsepower
Rated speed: 2200rpm
Engine Type: Inline
Chassis Specs
Chassis Series: HOWOA7
Chassis Model: ZZ1257N4047N1 / ZZ1257N3647N1
Front axle description: HF9 (9t front axle)
rear axle description: HC16 (16t double-reduction axle) / Tandem axle
Leaf spring count: 10/12 / 9/12
Transmission Parameters
Number of gears: 10 / 16Gear
Transmission Model: HW19710 / Sinotruk HW20716A / Sinotruk HW18710
Tire
Tire Size: 12.00R20 / 11.00-20，11.00R20，12.00-20，12.00R20
FAQ
What kind of truck is Sinotruk HOWO Sinotruk HOWO A7 Heavy Truck concrete mixer truck?
Sinotruk HOWO Sinotruk HOWO A7 Heavy Truck is an export-oriented concrete mixer truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk HOWO A7 Heavy Truck concrete mixer truck cover?
Sinotruk HOWO A7 Heavy Truck concrete mixer truck mainly covers: Drive: 6x4; Horsepower: 336 hp / 340 hp / 420 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO A7 Heavy Truck concrete mixer truck?
For Sinotruk HOWO A7 Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO A7 Heavy Truck concrete mixer truck include?
Sinotruk HOWO A7 Heavy Truck concrete mixer truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO A7 Heavy Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
