Dongfeng Tesun 150 hp 4X2(6 wheels) 3.3 m³ concrete mixer truck (6-speed)(EQ5165GJBFV1)
EXW
Export quote
Dongfeng Tesun Medium Truck concrete mixer truck
Main model photos
392 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Tesun 150 hp 4X2(6 wheels) 3.3 m³ concrete mixer truck (6-speed)(EQ5165GJBFV1) | 4x2 / 150hp / China V | ||
| Dongfeng Tesun 150 hp 4X2(6 wheels) 3.3 m³ concrete mixer truck (EQ5165GJBFV1) | 4x2 / 150hp / China V | ||
| Dongfeng Teshang 140 hp 4X2(6 wheels) 3.3m³ concrete mixer truck (EQ5165GJBFV1) | 4x2 / 140hp / China V |
Dongfeng Tesun 150 hp 4X2(6 wheels) 3.3 m³ concrete mixer truck (EQ5165GJBFV1)
EXW
Export quote

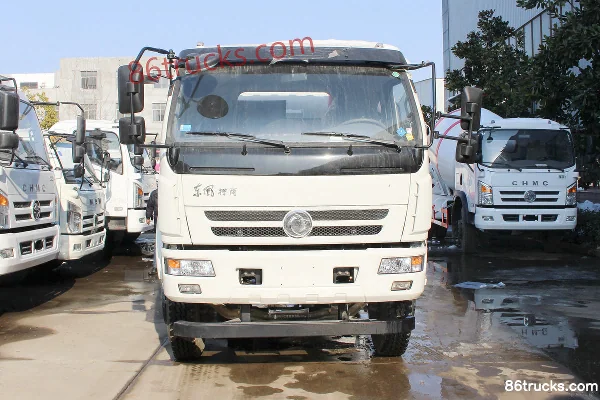

Dongfeng Teshang 140 hp 4X2(6 wheels) 3.3m³ concrete mixer truck (EQ5165GJBFV1)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.52×2.4×3.71 / 7.27×2.4×3.66m
Drive type: 4X2
Truck Type: Concrete mixer truck
Vehicle origin: Shiyan, Hubei
Front/rear track width: Front track: 1760mm; Rear track: 1700mm
Wheelbase: 3900 / 3650mm
Curb Weight: 8.5 / 8.3ton
Rated payload: 7.205 / 7.405ton
Max. speed: 90km/h
Front/rear suspension: 1.25/2.37m
Body Parameters
Mixing drum capacity: 3.3m³
Vehicle certification code: EQ5165GJBFV1
Body Brand: Dongfeng
Engine parameters
Engine Model: YuchaiYC4D150-50 / YuchaiYCD4D4S-140
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214 / 4.2L
Emission standard: China V
Max output power: 110 / 105kW
Max hp: 150 / 140Horsepower
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: Special Commercial
Chassis Model: EQ1165GFVJ
Axle ratio: 6.17
Leaf spring count: 9/10+8
Transmission Parameters
Number of gears: 6 / 8Gear
Transmission Model: WLYWLY6S500 / Fast Gear8JS85E / Fast Gear 8-speed
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is Dongfeng Dongfeng Tesun Medium Truck concrete mixer truck?
Dongfeng Dongfeng Tesun Medium Truck is an export-oriented concrete mixer truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dongfeng Tesun Medium Truck concrete mixer truck cover?
Dongfeng Tesun Medium Truck concrete mixer truck mainly covers: Drive: 4x2; Horsepower: 140 hp / 150 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Tesun Medium Truck concrete mixer truck?
For Dongfeng Tesun Medium Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Tesun Medium Truck concrete mixer truck include?
Dongfeng Tesun Medium Truck concrete mixer truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Tesun Medium Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
