Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 14.17ton
Wheelbase:: 4025+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 10.005×2.496×3.8m
Truck Type:: concrete mixer truck
Rated payload: 10.7ton
Drive 6X4 (10 wheels)
Horsepower 336
Emission China III / Euro III

Overview

The Sinotruk HOWO Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 10.7t payload, 14.17ton GVW, 6X4 (10 wheels) drive and 10.005×2.496×3.8m cab. On the powertrain side, it comes with 336 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.005×2.496×3.8m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4025+1350mm
Front/rear track width: Front track: 2022; Rear track: 1830mm; Rear track: 1830mm
Vehicle origin: Jinan, Shandong
Curb Weight: 14.17ton
Rated payload: 10.7ton
Max. speed: 78km/h
Front/rear suspension: 1.54/3.09m
Body Parameters
Water tank capacity: 450L
Slump: 40mm
Drum rotation speed: 6-8r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.7%
Filling Rate: 58.5%
water supply method: Air pressure water supply
Vehicle certification code: ZZ5257GJBN4047N1
hydraulic system: Closed hydraulic circuit
Body Brand: Sinotruk HOWO
Others: Hydraulic pump, motor (Rexroth), ZF reducer
Engine parameters
Engine Model: Sinotruk WD615.95E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 2200rpm
Engine Type: Inline
Chassis Specs
Chassis Series: HOWOA7
Chassis Model: ZZ1257N4047N1
Front axle description: HF9 (9t front axle)
rear axle description: HC16 (16t double-reduction axle)
Leaf spring count: 10/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: HW19710
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

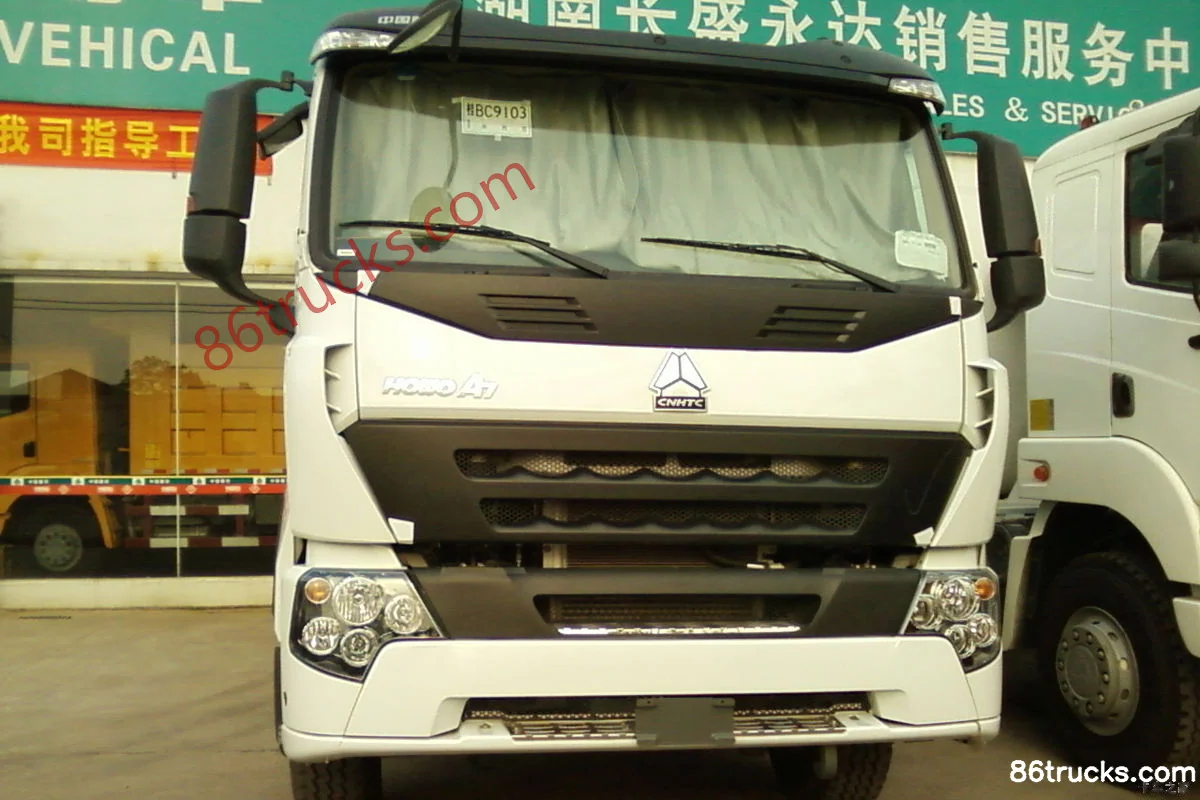

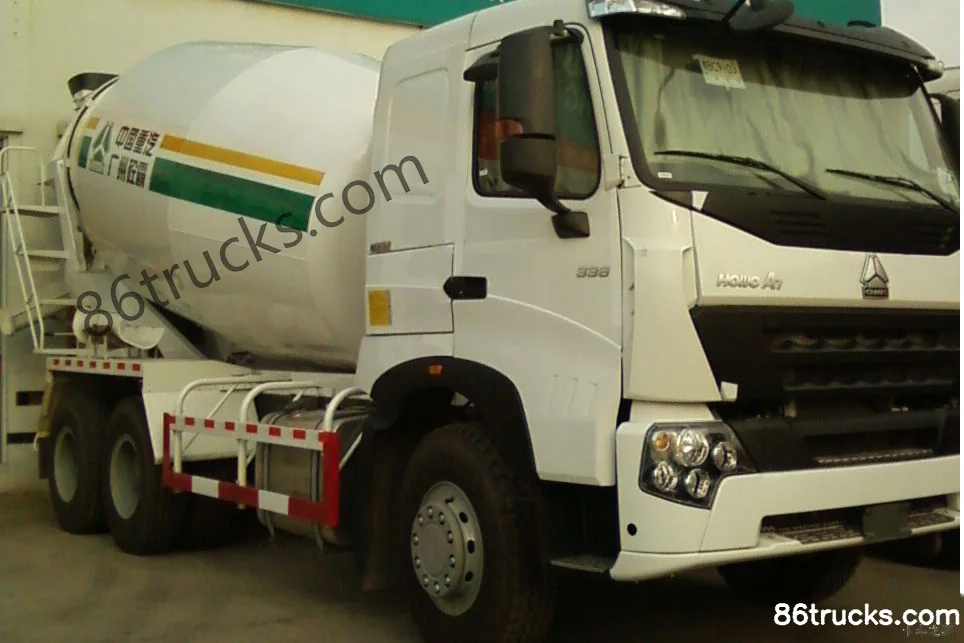

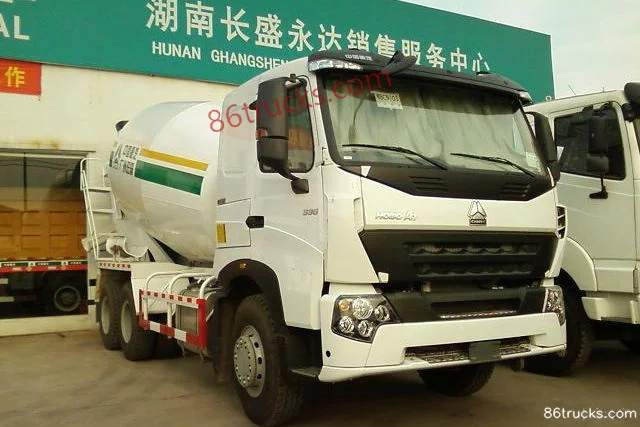

Photos

Exterior3

3 photos

FAQ

What emission standard does Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck suited for?

Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck belongs to Sinotruk HOWO A7 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk A7 336hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
