Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 14.05ton
Wheelbase:: 3650+1350mm
Tire Size:: 11.00-20,11.00R20,12.00-20,12.00R20
Cab dimensions:: 9.65×2.5×3.97m
Truck Type:: Dongfeng Dali Shen concrete mixer truck
Rated payload: 10.82ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China III / Euro III

Overview

The Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand) is a concrete mixer truck featuring 10.82t payload, 14.05ton GVW, 6X4 (10 wheels) drive and 9.65×2.5×3.97m cab. On the powertrain side, it comes with 340 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.65×2.5×3.97m
Drive type: 6X4
Truck Type: Dongfeng Dali Shen concrete mixer truck
Wheelbase: 3650+1350mm
Front/rear track width: Front track: 2027mm; Rear track: 1850/1850mm
Vehicle origin: Hubei
Curb Weight: 14.05ton
Rated payload: 10.82ton
Max. speed: 75km/h
Front/rear suspension: 1.5/2.8m
Body Parameters
Water tank capacity: 500L
Slump: 40mm
Drum rotation speed: 18r/min
Feed rate: 3.5m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.8%
Filling Rate: 58.7%
water supply method: Closed hydraulic circuit
Vehicle certification code: CLW5250GJB3
hydraulic system: Air pressure water supply
Body Brand: Chengliwei
Others: 1. Mixing volume: 5 cubic meters. 2. Since the mass variation caused by the two overall length parameters is less than 3%, only one curb weight is listed. 3. Overall vehicle length (mm) 9170 corresponds to wheelbase (mm) 3800+1350, rear overhang (mm) 2520. Overall vehicle length (mm) 9650 corresponds to wheelbase (mm) 4000+1350, rear overhang (mm) 2800. Rated payload (kg) 10820 corresponds to cab seating capacity 2 persons; rated payload (kg) 10755 corresponds to cab seating capacity 3 persons. Optional cab front lower mirror per chassis.
Engine parameters
Engine Model: Dongfeng ISLe340 30
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.9L
Emission standard: China III / Euro III
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2100rpm
Engine Type: Inline
Chassis Specs
Chassis Series: Dalishen
Chassis Model: DFL5251GJBA1
Front axle description: 7T
rear axle description: 13T single-reduction dual rear axle
Leaf spring count: 9/10
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8JS130T-B
Tire
Tire Size: 11.00-20,11.00R20,12.00-20,12.00R20
Number of tires: 10pcs

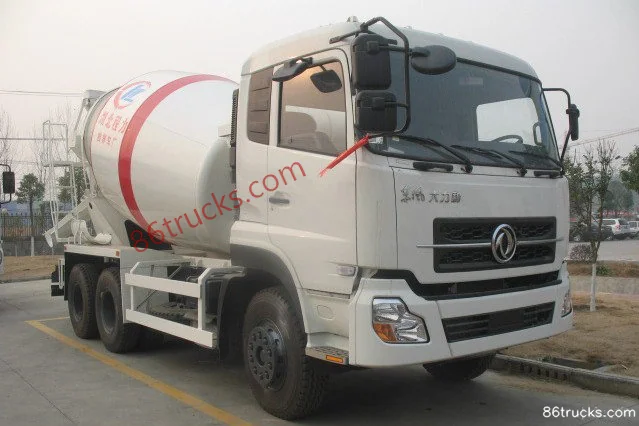

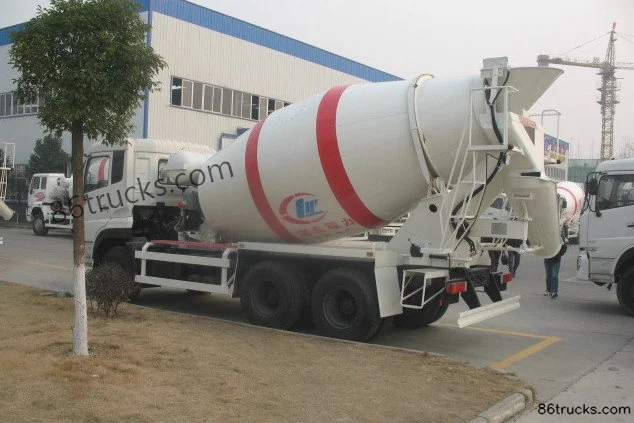

Photos

Exterior2

2 photos

FAQ

What emission standard does Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand)?

Key specs of Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand): Drive: 6x4; Horsepower: 340 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand) suited for?

Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand) differ from other variants in the same series?

Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand) belongs to Chengliwei Dongfeng Commercial Vehicle Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Hercules 340 hp 6X4(10 wheels) Concrete Mixer Truck (Chengliwei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
