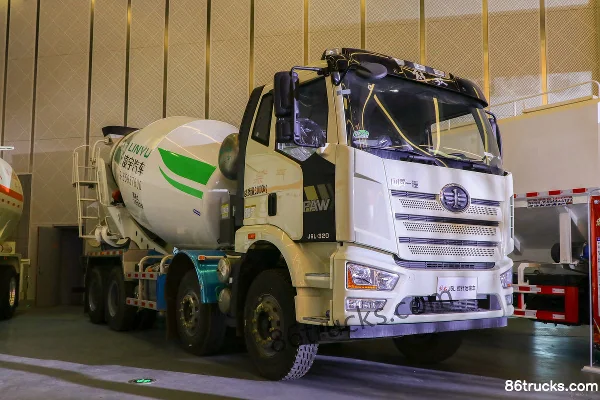

FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand)
EXW
Export quote
CIMC Lingyu FAW Jiefang Chassis concrete mixer truck
Main model photos
133 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand) | 8x4 / 350hp / China VI | ||
| FAW Jiefang J6L 320hp 8X4(12 wheels) 7.95m³ Concrete Mixer Truck (China VI) (Lingyu Brand) | 8x4 / 320hp / China VI | ||
| FAW Jiefang J6P 375hp 8X4(12 wheels) 7.86m³ concrete mixer truck (Lingyu brand) | 8x4 / 375hp / China V | ||
| FAW Jiefang J6P 375 hp 8X4(12 wheels) 7.62m³ Concrete Mixer Truck(Lingyu Brand) | 8x4 / 370hp / China V | ||
| FAW Jiefang J6L 320hp 8X4(12 wheels) 7.95m³ concrete mixer truck | 8x4 / 320hp / China V | From $55,694 |
FAW Jiefang J6L 320hp 8X4(12 wheels) 7.95m³ Concrete Mixer Truck (China VI) (Lingyu Brand)
EXW
Export quote

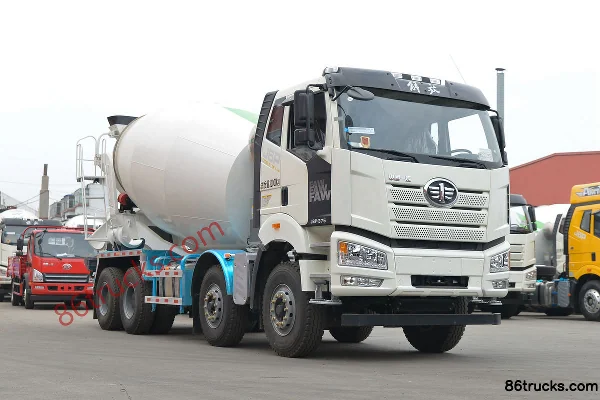

FAW Jiefang J6P 375hp 8X4(12 wheels) 7.86m³ concrete mixer truck (Lingyu brand)
EXW
Export quote

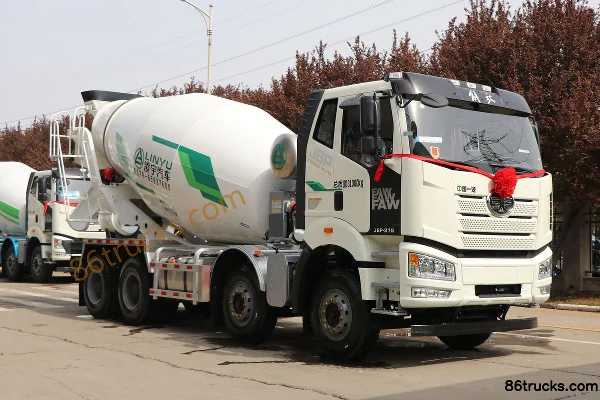

FAW Jiefang J6P 375 hp 8X4(12 wheels) 7.62m³ Concrete Mixer Truck(Lingyu Brand)
EXW
Export quote
FAW Jiefang J6L 320hp 8X4(12 wheels) 7.95m³ concrete mixer truck
EXW
From $55,694
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang New J6P 440hp 8X4(12 wheels) LNG Concrete Mixer Truck (Lingyu Brand) (China VI) | 8x4 / 440hp / China VI | ||
| FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand) | 6x4 / 320hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 9.82×2.55×3.9 / 10.285×2.55×3.995 / 10.6×2.55×3.995 / 10.31×2.55×3.995 / 10.26×2.52×3.995 / 10.07x2.55x3.95 / 9.8×2.55×3.95 / 10.59×2.55×3.99 / 10.07×2.55×3.99 / 10.63×2.55×3.99 / 10.16×2.55×3.96 / 10.65×2.55×3.99 / 9.24×2.55×3.95 / 11.05×2.55×3.99 / 9.08×2.5×3.85m
Truck Type: Concrete mixer truck
Drive type: 8X4 / 6X4
Front/rear track width: Front: 1950/1950mm; Rear: 1878/1878 / Front: 2020/2020mm; Rear: 1878/1878 / Front track: 1928/1928mm; Rear track: 1878/1878 / Front: 1914/1914mm; Rear: 1878/1878 / Front track: 2020mm; Rear track: 1878/1878 / Front: 2020mm; Rear: 1878/1878 / Front track: 2020/2020mm; Rear track: 1878/1878mm / Front: 1987/1987mm; Rear: 1878/1878 / Front track: 1914mm; Rear track: 1860/1860 / Front: 2020/2020mm, Rear: 1878/1878 / Front track: 2020mm; Rear track: 1830/1830mm
Wheelbase: 2000+2850+1350 / 1900+2950+1350 / 1900+3200+1350 / 1950+2900+1350 / 4300+1350 / 4800+1350 / 1950+3100+1350 / 3300+1350 / 2100+3600+1350 / 3600+1350mm
Vehicle origin: Luoyang, Henan / Changchun, Qingdao, Chengdu / Changchun, Jilin
Curb Weight: 11.7 / 13.5 / 31 / 14.5 / 13.75 / 16.685 / 16.7 / 16.1 / 13 / 13.88 / 11.65 / 15.45 / 13.66ton
Rated payload: 19.17 / 17.37 / 14.97 / 17.07 / 16.305 / 17.12 / 8.185 / 8.17 / 14.77 / 17.87 / 10.99 / 13.155 / 15.355 / 11.154ton
Max. speed: 89 / 84 / 79 / 80 / 81 / 86km/h
Front/rear suspension: 1.4/2.22 / 1.4/2.685 / 1.47/2.68 / 1.47/2.64 / 1.4/2.66 / 1.4/2.47 / 1.4/2.2 / 1.47/3.47 / 1.5/2.92 / 1.5/2.73 / 1.4/2.56 / 1.47/2.95 / 1.4/2.69 / 1.47/2.53 / 1.418/2.712m
Body Parameters
Water tank capacity: 450L
Drum geometric volume: 12 / 9.7m³
Mixing drum capacity: 8 / 7.95 / 6.86 / 7.62 / 7.3 / 7.8 / 3.7 / 6.7 / 5.02 / 6 / 5.2m³
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.5%
water supply method: Air pressure water supply
Vehicle certification code: CLY5315GJB28E62 / CLY5315GJB29E61 / CLY5315GJB32E51 / CLY5315GJB29E57 / CLY5315GJB29E51 / CLY5315GJB29E5 / CLY5315GJB29E6 / CLY5255GJB43E5 / CLY5255GJB43E6N / CA5310GJBP66M25L1T4E6 / CA5310GJBP62K2T4E5 / CLY5255GJB43E5B / CLY5255GJB38E5 / CLY5315GJB36E5 / CLY5255GJB2
Body Brand: Lingyu / CIMC Lingyu
Engine parameters
Engine Model: DachaiCA6DK2-35E65 / DachaiCA6DK1-32E6 / XichaiCA6DL3-37E5 / XichaiCA6DL1-32E5 / CA6DK1-32E6 / XichaiCA6DL2-35E5 / XichaiCA6SM3-44E6N / XichaiCA6DM2-39E51 / Xichai CA6DL1-32E3
Number of cylinders: 6cylinder
fuel type: Diesel / LNG (liquefied natural gas)
Displacement: 7.751 / 7.2 / 8.6 / 7.7 / 12.52 / 13 / 8.57 / 11.05L
Emission standard: China VI / China V / China III / Euro III
Max output power: 257 / 235 / 279 / 238 / 258 / 309 / 323 / 261 / 287 / 228kW
Max hp: 350 / 320 / 375 / 370 / 440 / 390Horsepower
Rated speed: 2100 / 2300 / 1900rpm
Engine Type: DOC+DPF+HI+SCR / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, direct injection, turbocharged intercooled, high-pressure common rail / BOSCH common rail + SCR, low-mount PTO / EGR+DOC+DPF+SCR gas drive, low-position PTO / Inline, 4-stroke, water-cooled, 4-valve, turbocharged intercooled / Inline / Inline, electronic, common rail, turbocharged, air intercooled
Chassis Specs
Chassis Series: J6L / J6P / FAW JiefangJ6L / FAW JiefangJ6P / FAW Jiefang Aowei
Chassis Model: CA5311GJBP62K1T4E6 / CA5310GJBP62K1T4E6 / CA5310GJBP66K2L1T4E5 / CA5310GJBP62K2T4E5 / CA5250GJBP66K2L2T1E5 / CA5250GJBP66M25L2T1E6 / CA5310GJBP66M25L1T4E6 / CA5250GJBP62K1T1E5 / CA5310GJBP66K24T4E5 / CA1252P2K2T1S2E
Front axle description: F4N front axle / 1928 front axle / F7N-1928 / 2020 / 2020 front axle
Frame Dimensions: 270×75×(7+5) / 300×80×(8+5) / 300×80×(8+8+5)mm
rear axle description: ф425Q axle / 290 / 457 stamped-welded axle / φ290 wheel reduction axle (auto adjust arm, domestic ABS, 2-hole V-rod) / Φ457 cast steel axle (auto slack adjuster, domestic ABS, 1878 track, 2-hole V-rod) / Φ300 cast wheel reduction axle / Φ300 cast iron wheel reduction axle / 290 stamped-welded wheel reduction axle / 290 stamped-welded axle / 300 hub reduction axle
Axle ratio: 4.875 / 5.263 / 5.286 / 5.571 / 5.769
Leaf spring count: 12/12/10,4/4/10 / 12/11/10 / 10/10/12 / 11/10/10 / 8/8/11 / 11/11/10 / 10/10/11,8/8/11,3/3/11,9/9/11,11/11/10 / 11/12 / 7/10
Transmission Parameters
Number of gears: 10 / 9 / 12Gear
Transmission Model: FAW JiefangCA10TAX130F / FAW JiefangCA10TA130M / FAW10-speed transmission / CA10TA160M2 / FAWCA10TA130M / FAWCA9TB160M / FAWCA10TA160M2 / FAWCA12TA160M / FAWCA12TA210M / FAWCA10TA190M2 / FAWCA10TA / FAWCA10TAX190M2
Cab parameters
Cab: New J6P Full-Floating Flat Roof Half-Sleeper / J6L full-floating flat roof small half sleeper / J6L Semi-floating Flat Roof with Extended Cab / 2017 J6P Full-floating Flat Roof Small Half-row / New J6P Full-Floating Flat Roof Half-Sleeper Cab / 2017 semi-floating flat roof cab with single-row bunk / Full-floating flat roof small crew cab
Tire
Tire Size: 12R22.5 18PR / 11.00R20 18PR / 12.00R20 18PR / 11.00R20 / 12R22.5 / 12.00R20 16PR / 10.00R20 / 11.00R20,12.00R20 16PR / 11.00R20，12.00R20 16PR / 11.00-20，11.00R20 / 11.00R20,12.00R20 18PR / 11.00R20，11.00-20，12.00R20，12.00-20
Number of tires: 12 / 10pcs
FAQ
What kind of truck is CIMC Lingyu CIMC Lingyu FAW Jiefang Chassis concrete mixer truck?
CIMC Lingyu CIMC Lingyu FAW Jiefang Chassis is an export-oriented concrete mixer truck lineup with about 25 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for CIMC Lingyu FAW Jiefang Chassis concrete mixer truck?
CIMC Lingyu FAW Jiefang Chassis concrete mixer truck export reference is about $37,042 – $61,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does CIMC Lingyu FAW Jiefang Chassis concrete mixer truck cover?
CIMC Lingyu FAW Jiefang Chassis concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 320 hp / 350 hp / 370 hp / 375 hp / 440 hp; Emission: China III / Euro III / China V / China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC Lingyu FAW Jiefang Chassis concrete mixer truck?
For CIMC Lingyu FAW Jiefang Chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does CIMC Lingyu FAW Jiefang Chassis concrete mixer truck include?
CIMC Lingyu FAW Jiefang Chassis concrete mixer truck currently lists about 25 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC Lingyu FAW Jiefang Chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
