FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 11.7ton
Wheelbase:: 2000+2850+1350mm
Tire Size:: 12R22.5 18PR
Cab dimensions:: 9.82×2.55×3.9m
Truck Type:: Concrete mixer truck
Rated payload: 19.17ton
Drive 8X4 (12 wheels)
Horsepower 350
Emission China VI

Overview

The CIMC Lingyu FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand) is a concrete mixer truck featuring 19.17t payload, 11.7ton GVW, 8X4 (12 wheels) drive and 9.82×2.55×3.9m cab. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.82×2.55×3.9m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 2000+2850+1350mm
Vehicle origin: Luoyang, Henan
Front/rear track width: Front: 1950/1950mm; Rear: 1878/1878
Curb Weight: 11.7ton
Rated payload: 19.17ton
Max. speed: 89km/h
Front/rear suspension: 1.4/2.22m
Body Parameters
Mixing drum capacity: 8m³
Vehicle certification code: CLY5315GJB28E62
Body Brand: Lingyu
Engine parameters
Engine Model: DachaiCA6DK2-35E65
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.751L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 2100rpm
Engine Type: DOC+DPF+HI+SCR
Chassis Specs
Chassis Series: J6L
Chassis Model: CA5311GJBP62K1T4E6
Front axle description: F4N front axle
Frame Dimensions: 270×75×(7+5)mm
rear axle description: ф425Q axle
Axle ratio: 4.875
Leaf spring count: 12/12/10,4/4/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAW JiefangCA10TAX130F
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs

Photos

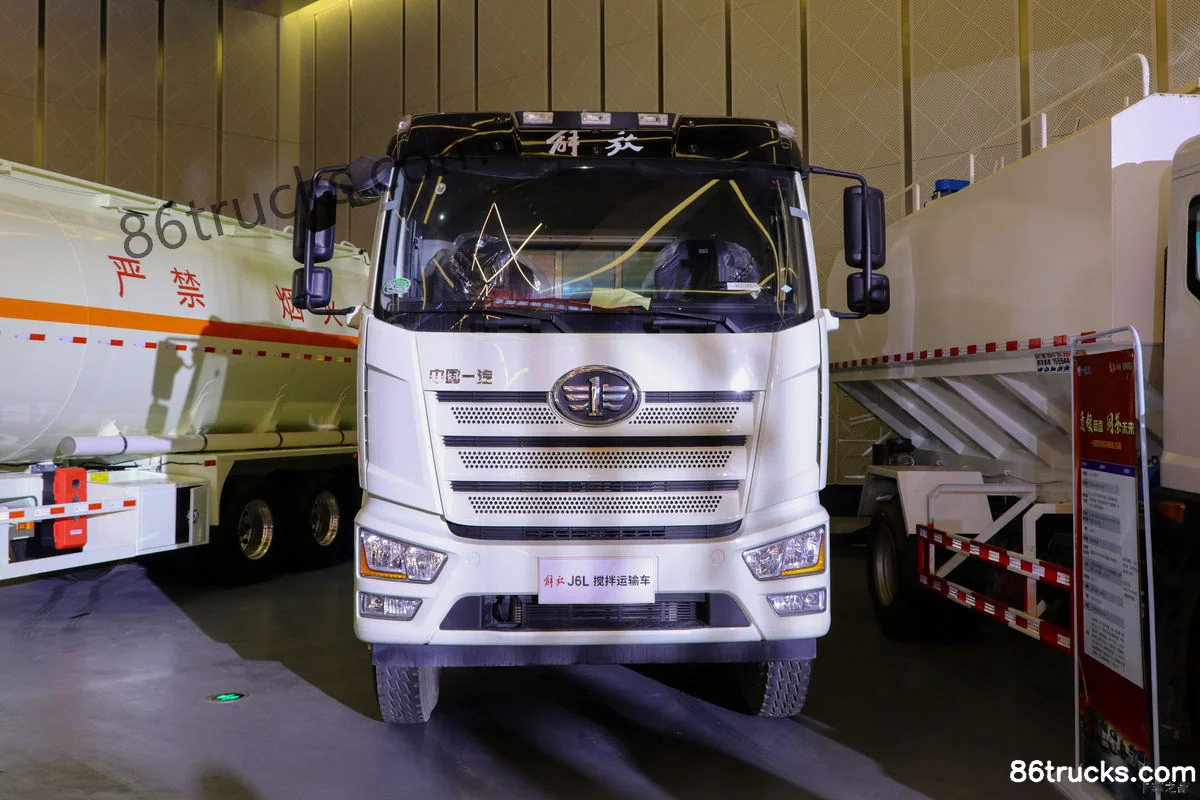

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand)?

Key specs of FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand) suited for?

FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand) differ from other variants in the same series?

FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand) belongs to CIMC Lingyu FAW Jiefang Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L 350hp 8X4(12 wheels) 8m³ concrete mixer truck (Lingyu brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
