FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.66ton
Wheelbase:: 3600+1350mm
Tire Size:: 11.00R20,11.00-20,12.00R20,12.00-20
Cab dimensions:: 9.08×2.5×3.85m
Truck Type:: concrete mixer truck
Rated payload: 11.154ton
Drive 6X4 (10 wheels)
Horsepower 320
Emission China III / Euro III

Overview

The CIMC Lingyu FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand) is a concrete mixer truck featuring 11.154t payload, 13.66ton GVW, 6X4 (10 wheels) drive and 9.08×2.5×3.85m cab. On the powertrain side, it comes with 320 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 320 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.08×2.5×3.85m
Truck Type: concrete mixer truck
Drive type: 6X4
Wheelbase: 3600+1350mm
Front/rear track width: Front track: 2020mm; Rear track: 1830/1830mm
Curb Weight: 13.66ton
Rated payload: 11.154ton
Max. speed: 80km/h
Front/rear suspension: 1.418/2.712m
Body Parameters

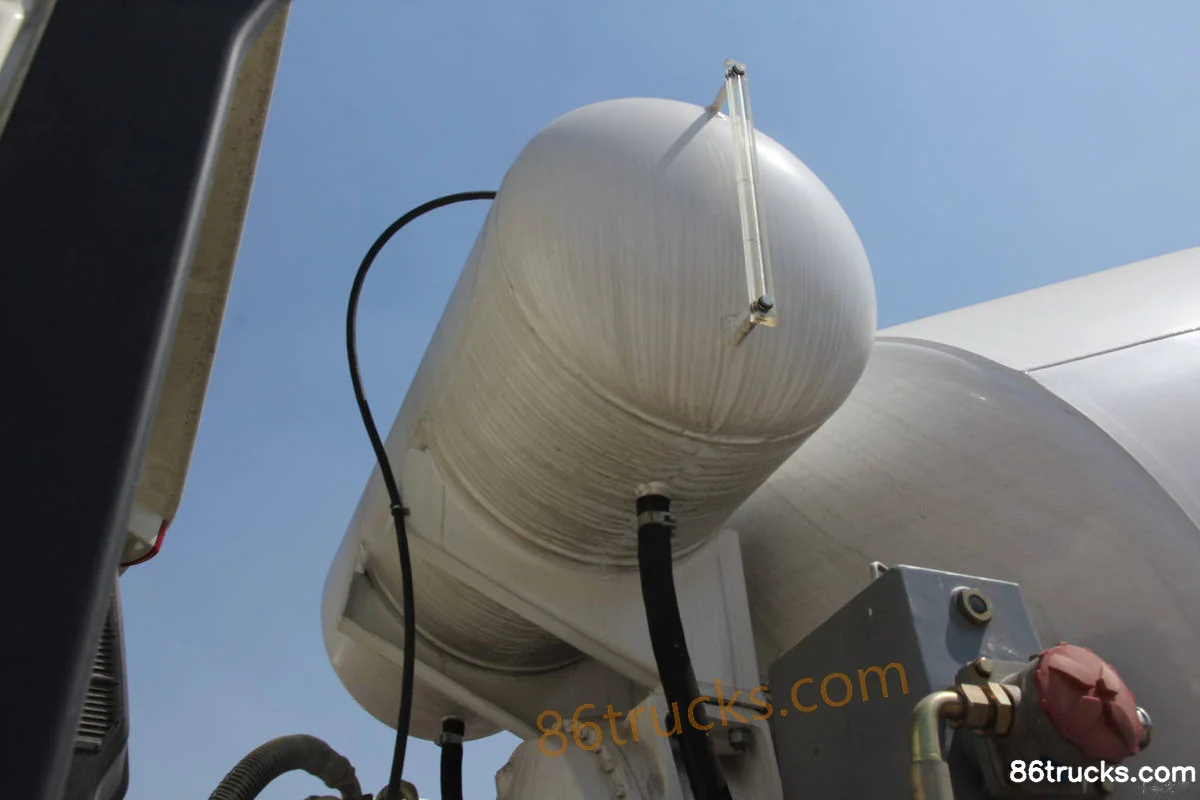

Water tank capacity: 450L
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.5%
water supply method: Air pressure water supply
Vehicle certification code: CLY5255GJB2
Body Brand: Lingyu
Engine parameters
Engine Model: Xichai CA6DL1-32E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China III / Euro III
Max output power: 228kW
Max hp: 320Horsepower
Rated speed: 2300rpm
Engine Type: Inline, electronic, common rail, turbocharged, air intercooled
Chassis Specs
Chassis Series: FAW Jiefang Aowei
Chassis Model: CA1252P2K2T1S2E
Leaf spring count: 11/12
Tire

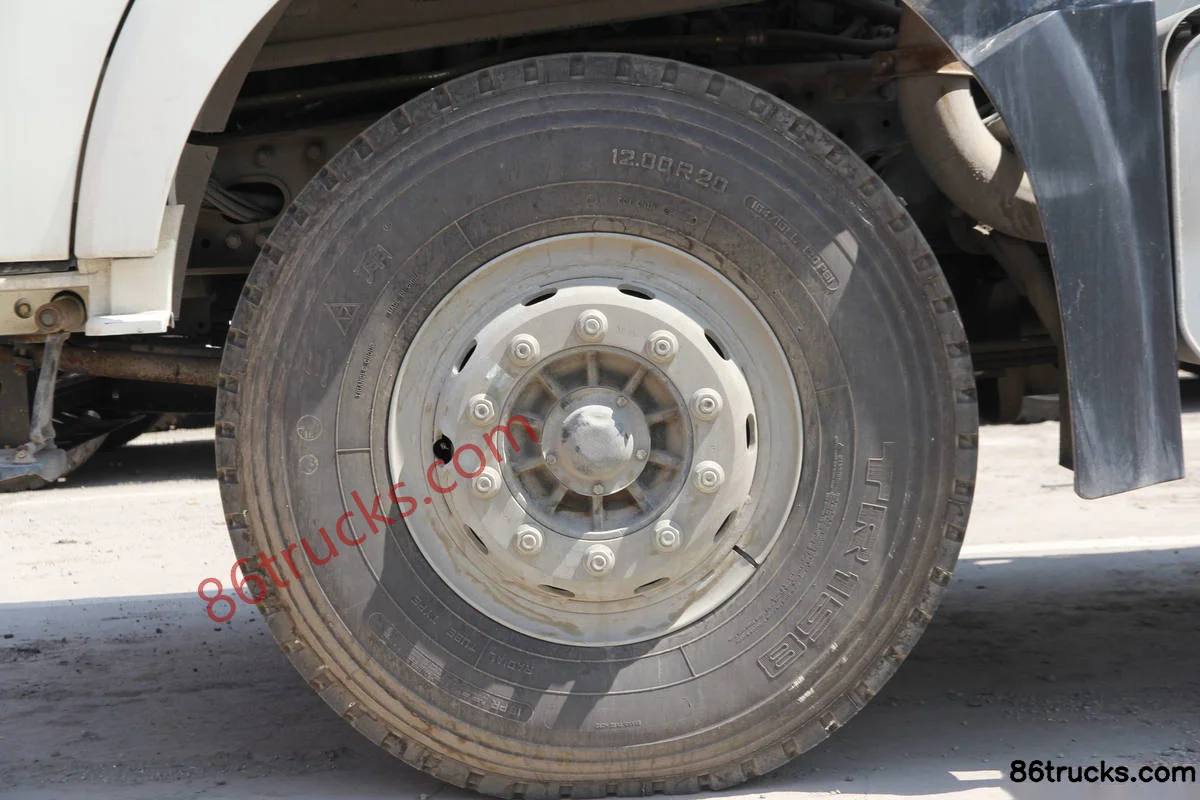

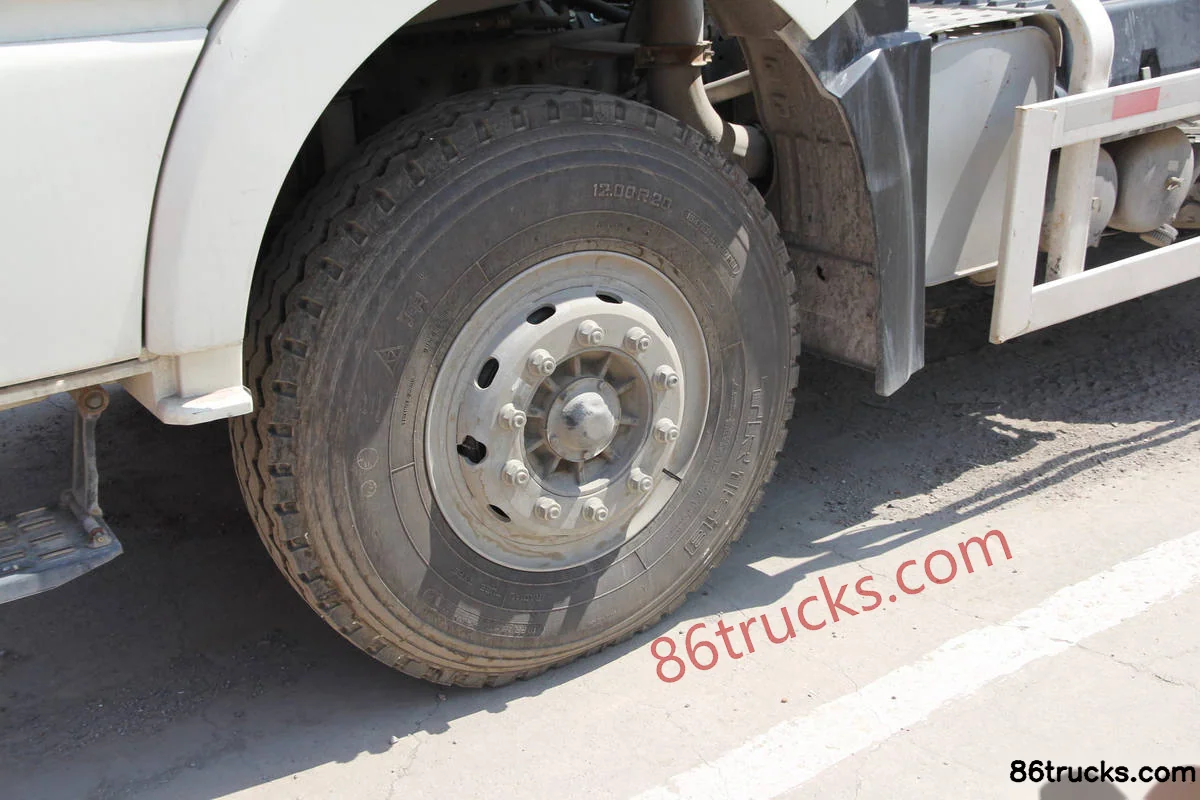

Tire Size: 11.00R20,11.00-20,12.00R20,12.00-20
Number of tires: 10pcs

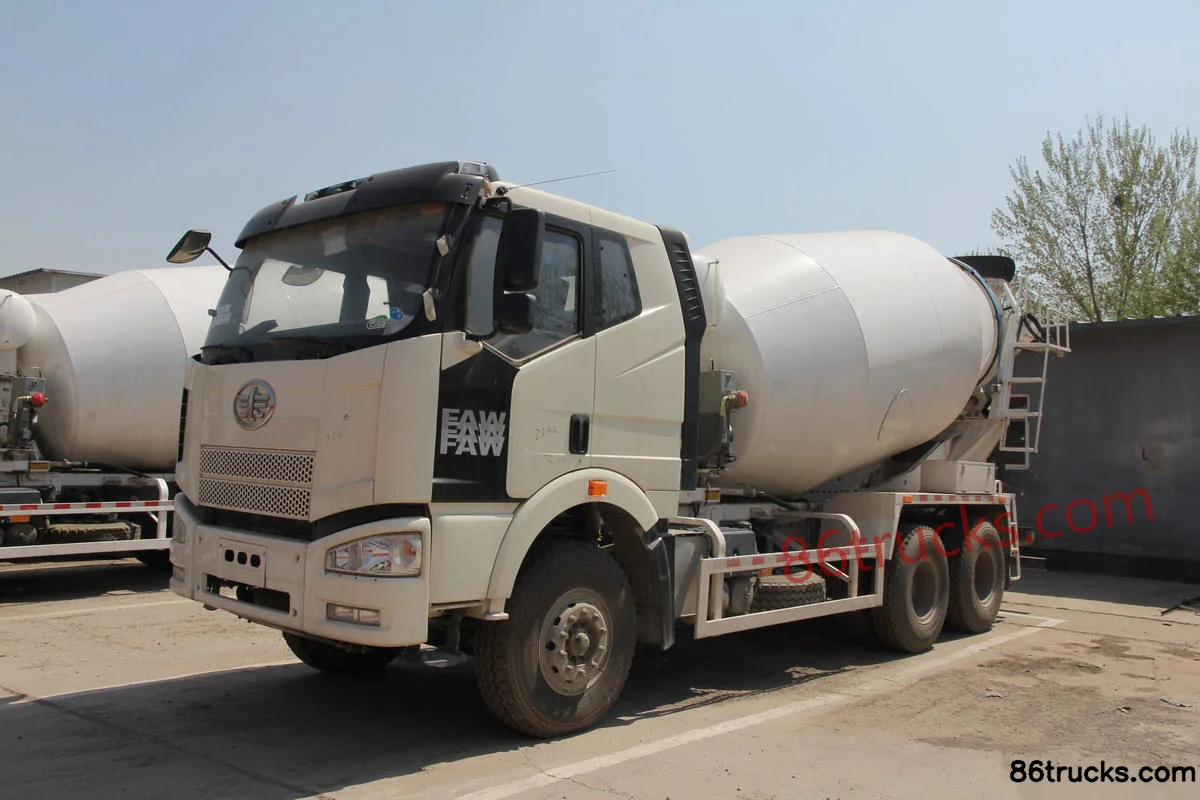

Photos

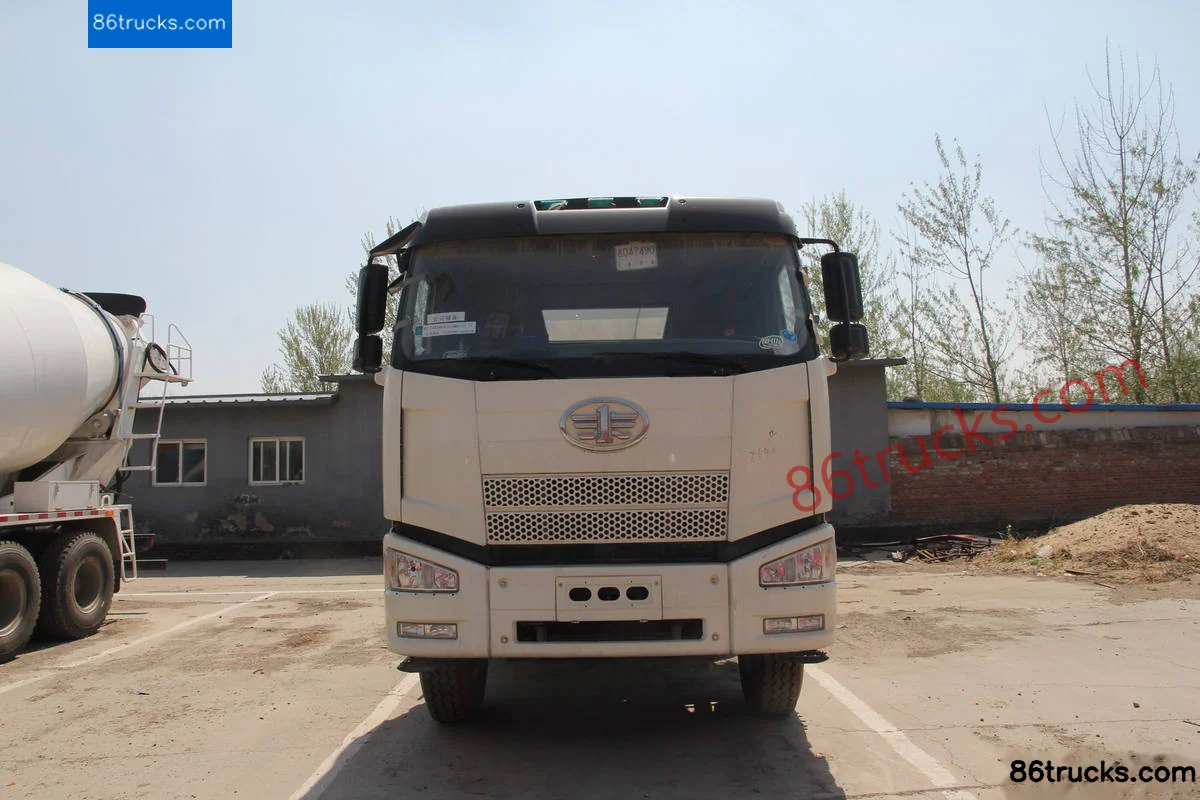

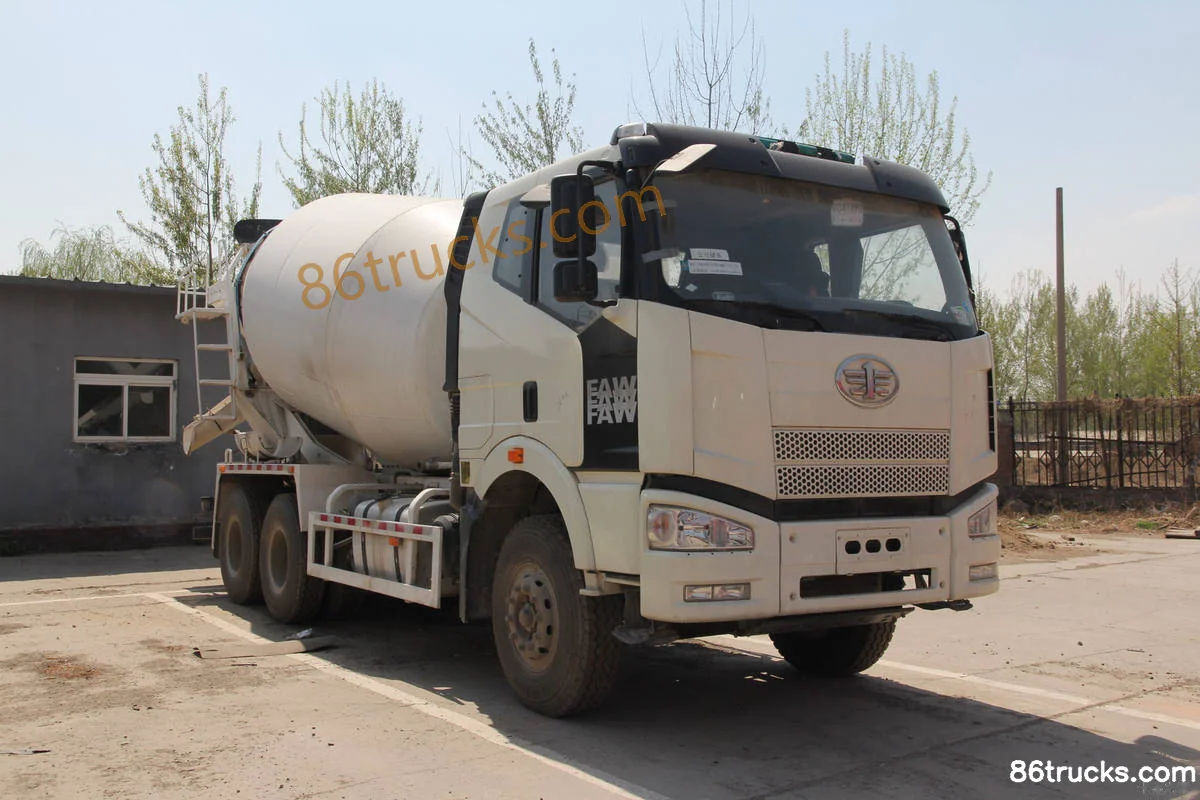

Exterior3

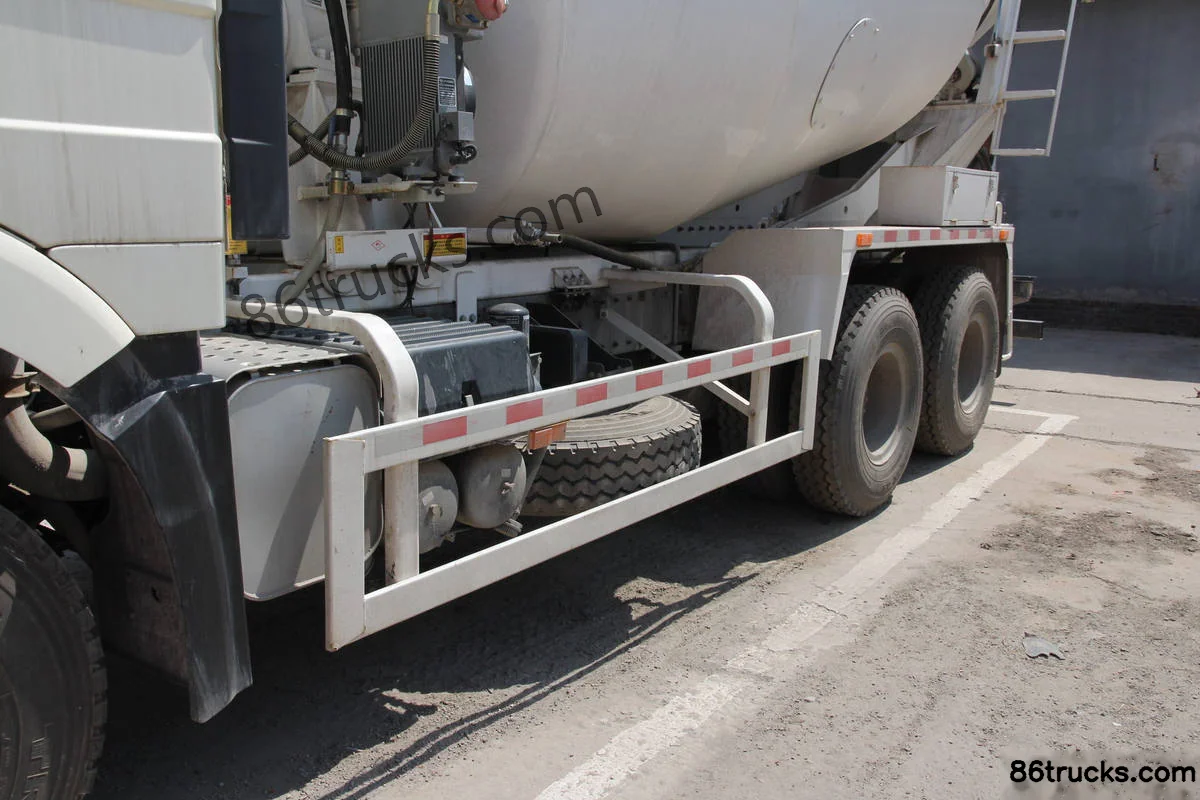

Chassis3

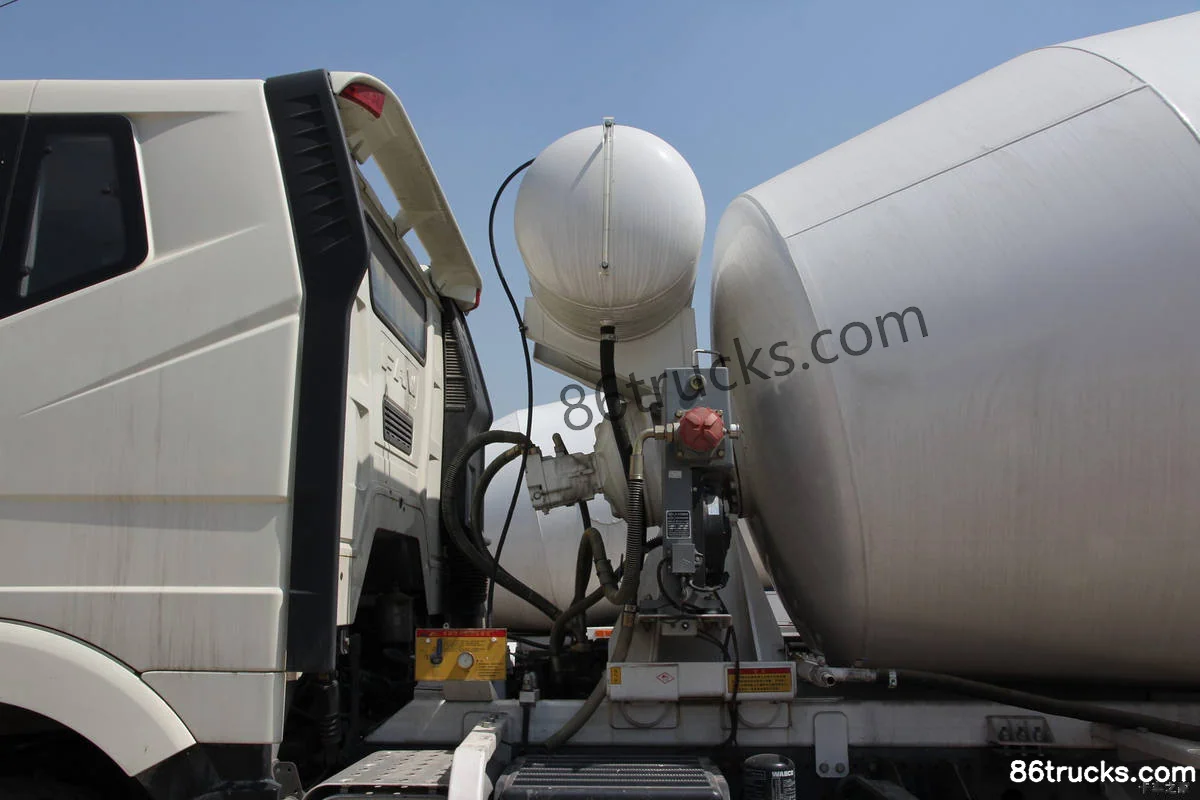

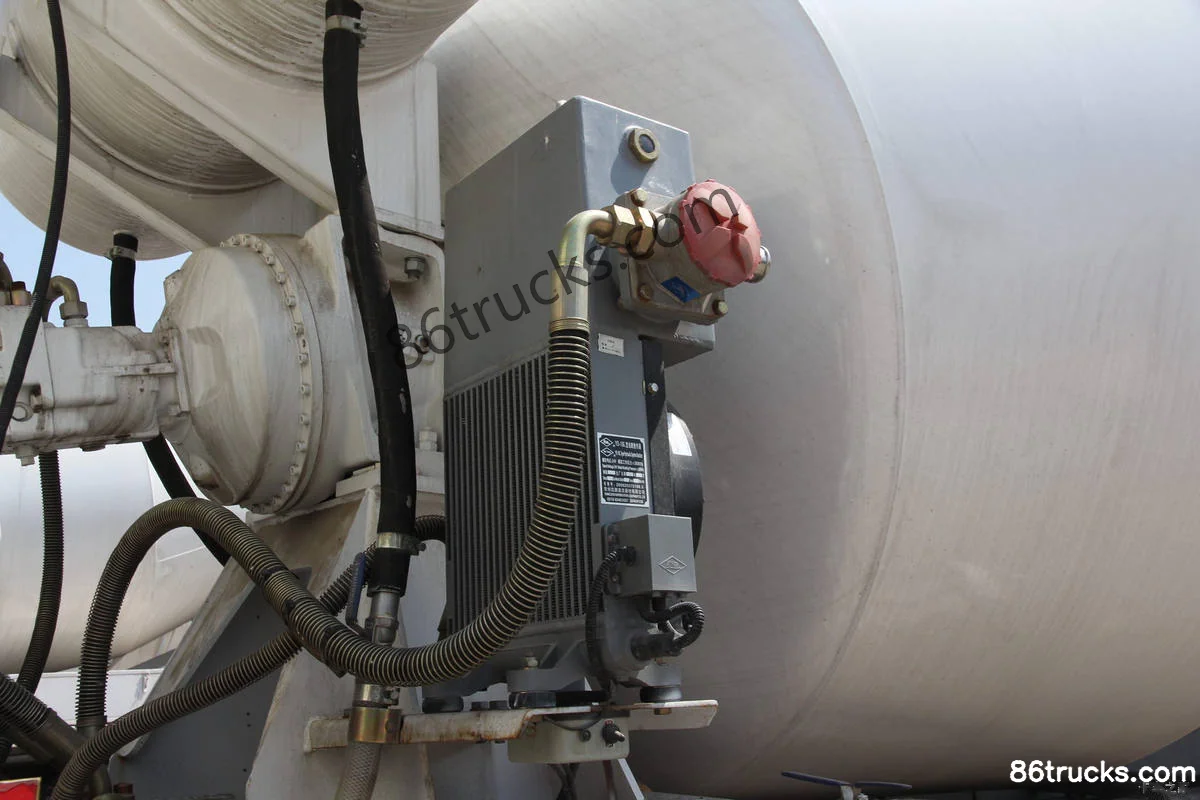

Body3

9 photos

FAQ

What emission standard does FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand)?

Key specs of FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand): Drive: 6x4; Horsepower: 320 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand) suited for?

FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand) differ from other variants in the same series?

FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand) belongs to CIMC Lingyu FAW Jiefang Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Aowei 320hp 6X4(10 wheels) Concrete Mixer Truck (Lingyu Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
