SHACMAN Delong M3000S concrete mixer truck

Main model photos

SHACMAN Delong M3000S 8X4(12 wheels) 6.86 m³ Pure Electric Concrete Mixer Truck (Zoomlion Brand) 350.07 kWh Exterior

341 photos

Models

On sale

Model Drive / HP / Emission EXW Export quote
SHACMAN Delong M3000S 8X4(12 wheels) 6.86 m³ Pure Electric Concrete Mixer Truck (Zoomlion Brand) 350.07 kWh 8x4
SHACMAN Delong M3000S Composite Edition 8X4(12 wheels) 7.15m³ Battery Swap Pure Electric Concrete Mixer Truck 281.91kWh 8x4 From $105,694
SHACMAN Delong M3000S Composite Edition 8X4(12 wheels) 7.22m³ Battery Swap Pure Electric Concrete Mixer Truck 281.91kWh 8x4 From $105,694
SHACMAN Delong M3000S Composite Edition 8X4(12 wheels) 6.95m³ Pure Electric Concrete Mixer Truck 350.07kWh 8x4 From $71,458
SHACMAN Delong M3000S Composite Edition 8X4(12 wheels) 7.15m³ pure electric concrete mixer truck 350.07kWh 8x4 From $71,875

Inventory

Model Drive / HP / Emission EXW Export quote
SHACMAN Delong M3000S Composite Edition 400 hp 8X4(12 wheels) 7.89 m³ concrete mixer truck (China VI) 8x4 / 400hp / China VI
SHACMAN Delong M3000S 400 hp 8X4(12 wheels) 7.89 m³ concrete mixer truck (China VI) 8x4 / 400hp / China VI
SHACMAN Delong M3000S Composite Edition 350 hp 8X4(12 wheels) 7.89 m³ concrete mixer truck (Weichai WP9)(China VI) 8x4 / 350hp / China VI
SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.89 m³ concrete mixer truck (Weichai WP9)(China VI) 8x4 / 350hp / China VI
SHACMAN Delong M3000S Composite Edition 350 hp 8X4(12 wheels) 7.89 m³ Concrete Mixer Truck (Rear Axle 16T) (China VI) 8x4 / 350hp / China VI

Series Specs

Basic Info
Cab dimensions: 10.6×2.525×3.96 / 10.51×2.55×3.99 / 10.08×2.55×3.7 / 10.335×2.55×4 / 10.175×2.55×3.995 / 10.18×2.55×3.99 / 10.1×2.55×3.99 / 10.145×2.55×3.99 / 10.22×2.55×3.99m
Truck Type: electric concrete mixer transport truck / Battery swap electric concrete mixer truck / Concrete mixer truck
Drive type: 8X4
Vehicle origin: Yiyang, Hunan / Xi'an, Shaanxi
Front/rear track width: Front: 2011/2011; Rear: 1860/1860 / Front track: 2011/2011mm; Rear track: 1860/1860mm / Front: 2011/2011mm; Rear: 1860/1860
Wheelbase: 1800+3400+1400 / 1800+3000+1400 / 1950+2850+1400 / 1800+3100+1400mm
Curb Weight: 15.9 / 15.27 / 15.1 / 15.7 / 13.74 / 13.65 / 13.85 / 14ton
Rated payload: 14.97 / 15.6 / 15.77 / 15.17 / 17.13 / 17.22 / 17.02 / 16.87ton
Max. speed: 89 / 80km/h
Front/rear suspension: 1.525/2.475 / 1.525/2.385 / 1.525/2.355 / 1.525/2.61 / 1.525/2.45 / 1.525/2.455 / 1.525/2.375 / 1.525/2.32m
electric motor
Motor 1 Brand: Xi'an Zhide
Motor 1 Model: TZ400XS023
total rated power: 240kW
Peak power: 360kW
Body Parameters
Mixing drum capacity: 6.86 / 7.15 / 7.22 / 6.95 / 7.85 / 7.89 / 7.8 / 7.7m³
Vehicle certification code: ZLJ5312GJBLBEV / SX5317GJBMF346SEV1 / SX5317GJBMF306BEV1 / SX5317GJBMF306BEV / SX5317GJBMF346BEV1 / SX5319GJBMB3063 / SX5319GJBMB3062 / SX5319GJBMB3061 / SX5319GJBMC326TLF1
Body Brand: ZOOMLION / SHACMAN
Engine parameters
Engine Model: WeichaiWP8.350E61 / WeichaiWP8.350E62 / WeichaiWP10HNG350E60 / WeichaiWP8.350E61A / WeichaiWP10H400E62 / WeichaiWP9H350E62
Number of cylinders: 6cylinder
fuel type: Electric / Diesel / LNG (liquefied natural gas)
Displacement: 7.8 / 9.5 / 8.8L
Emission standard: China VI
Max output power: 257 / 294kW
Max hp: 350 / 400Horsepower
Rated speed: 2100 / 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / SPI+ER+EGR+TWC / Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi+SCR / CR+DOC+DPF+Hi_SCR
Chassis Specs
Chassis Series: Delong M3000S / M3000S
Chassis Model: SX1317MF6EV / SX1317MF6EV1 / SX1319MB6F1 / SX1319MC6TLF1
Front axle description: drum front axle beam / MAN 5.5T drum brake front axle / 5T
Frame Dimensions: 850×300（8+5） / 850×300(8+5) / 850×270(8+4) / （970-850）×300(8+5) / 850×270(8+5)mm
rear axle description: 16T HDS dual reduction cast axle / 11.5T MAN single reduction axle / HDS 16T dual reduction / 11.5T MAN single reduction
Axle ratio: 6.72 / 5.22 / 4.625 / 4.8 / 5.73 / 5.286
Leaf spring count: 5/5/5 / 3/3/5 / 10/10/10,10/10/12 / 14/14/12 / 2/2/4 / 10/10/12 / 3/3/5,14/14/12,10/10/10,10/10/12,3/3/4,2/2/4 / 10/10/12,14/14/12,10/10/10
Transmission Parameters
Number of gears: 10 / 12Gear
Transmission Model: Fast Gear10JSD120T / Fast Gear10JSD160T / Fast Gear 12-speed / Fast Gear 10-Speed
Cab parameters
Cab: M3000S Standard Cab Without Deflector / M3000S Extended Semi-High Roof Cab Without Deflector / M3000S Extended Semi-High Roof Cab
Tire
Tire Size: 12R22.5 18PR / 11.00R20 18PR / 11.00R20
Number of tires: 12pcs

FAQ

What kind of truck is SHACMAN SHACMAN Delong M3000S concrete mixer truck?

SHACMAN SHACMAN Delong M3000S is an export-oriented concrete mixer truck lineup with about 37 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for SHACMAN Delong M3000S concrete mixer truck?

SHACMAN Delong M3000S concrete mixer truck export reference is about $47,236 – $105,694. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does SHACMAN Delong M3000S concrete mixer truck cover?

SHACMAN Delong M3000S concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 350 hp / 400 hp; Emission: China VI; Fuel: Diesel / Electric. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in SHACMAN Delong M3000S concrete mixer truck?

For SHACMAN Delong M3000S concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.

What is concrete mixer truck typically used for?

concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.

How many models does SHACMAN Delong M3000S concrete mixer truck include?

SHACMAN Delong M3000S concrete mixer truck currently lists about 37 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for SHACMAN Delong M3000S concrete mixer truck?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.

Related series

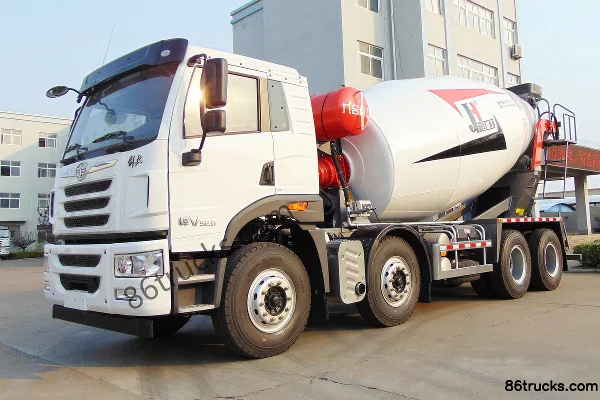

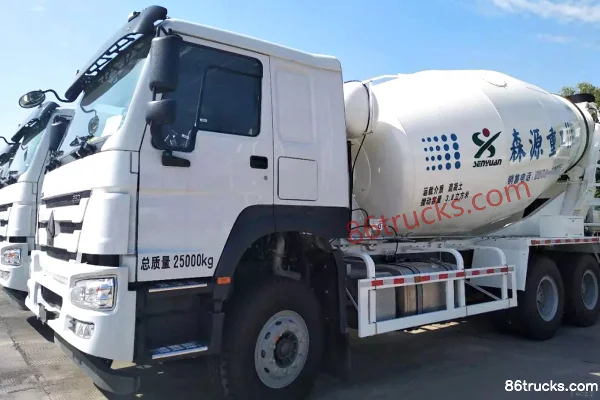

Hongchang Tianma Hongchang Tianma Sinotruk HOWO Chassis concrete mixer truck Hongchang Tianma Sinotruk HOWO Chassis concrete mixer truck Hongchang Tianma · 21 models Senyuan Heavy Industry Senyuan Heavy Industry Sinotruk HOWO chassis concrete mixer truck Senyuan Heavy Industry Sinotruk HOWO chassis concrete mixer truck Senyuan Heavy Industry · 1 models Jiuhe Heavy Industry Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis concrete mixer truck Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis concrete mixer truck Jiuhe Heavy Industry · 1 models Yunli Yunli Sitrak Chassis concrete mixer truck Yunli Sitrak Chassis concrete mixer truck Yunli · 2 models

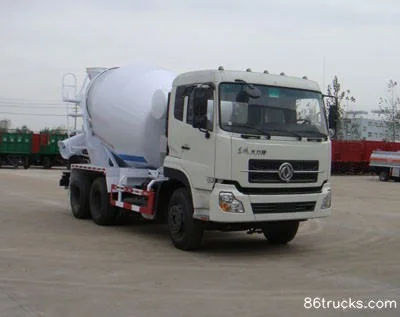

Shenhu Shenhu Dongfeng Commercial Vehicle chassis concrete mixer truck Shenhu Dongfeng Commercial Vehicle chassis concrete mixer truck Shenhu · 2 models
