Foton AumanETX 360 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (China VI) (Rear Axle 13T)
EXW
From $47,486
Export quote

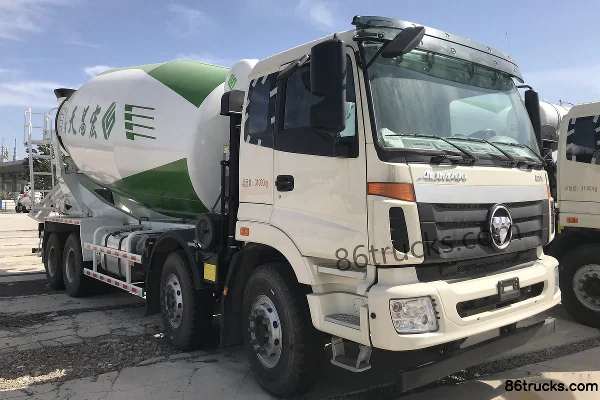

Foton Auman ETX Heavy Truck concrete mixer truck
Main model photos
853 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton AumanETX 360 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (China VI) (Rear Axle 13T) | 8x4 / 360hp / China VI | From $47,486 | |
| Foton AumanETX 350 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (China VI) (Rear Axle 13T) | 8x4 / 350hp / China VI | ||
| Foton AumanETX 360 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (China VI) (Rear Axle 13T) | 8x4 / 360hp / China VI | From $47,486 | |
| Foton AumanETX 350 hp 8X4(12 wheels) 8 m³ Concrete Mixer Truck (China VI) | 8x4 / 350hp / China VI | From $45,125 | |
| Foton AumanETX 360hp 8X4(12 wheels) 7.7m³ Concrete Mixer Truck (China VI) | 8x4 / 360hp / China VI | From $47,208 |
Foton AumanETX 350 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (China VI) (Rear Axle 13T)
EXW
Export quote
Foton AumanETX 360 hp 8X4(12 wheels) 7.7 m³ Concrete Mixer Truck (China VI) (Rear Axle 13T)
EXW
From $47,486
Export quote
Foton AumanETX 350 hp 8X4(12 wheels) 8 m³ Concrete Mixer Truck (China VI)
EXW
From $45,125
Export quote
Foton AumanETX 360hp 8X4(12 wheels) 7.7m³ Concrete Mixer Truck (China VI)
EXW
From $47,208
Export quote
Series Specs
Basic Info
Cab dimensions: 10.2×2.55×3.995 / 10.2×2.53×3.98 / 10.51×2.495×3.969 / 10.28×2.55×4.0 / 10.24×2.5×3.99 / 11.23×2.495×3.99 / 10.51×2.495×3.98 / 9.8×2.495×3.99 / 11.6×2.495×4m
Truck Type: concrete mixer truck
Drive type: 8X4 / 6X4
Vehicle origin: Beijing
Front/rear track width: Front: 2020/2020mm; Rear: 1830/1830 / Front: 2028mm; Rear: 1880/1880 / Front track: 2010/2010mm; Rear track: 1860/1860 / Front: 2028/2028mm; Rear: 1880/1880 / Front: 2005,2028; Rear: 1865/1865,1880/1880 / Front: 2005mm; Rear: 1865/1865 / Front track: 2021mm; Rear track: 1865/1865 / Front track: 2028; Rear track: 1880/1880
Wheelbase: 2100+2750+1350 / 4300+1350 / 1800+3050+1350 / 1800+3850+1350 / 4100+1350 / 2000+3450+1350mm
Curb Weight: 13.7 / 13.4 / 15.035 / 15.3 / 18.2 / 16 / 15 / 18ton
Rated payload: 17.17 / 9.835 / 15.57 / 12.67 / 8.87 / 9.87 / 12.805ton
Max. speed: 80 / 85 / 77km/h
Front/rear suspension: 1.532/2.328 / 1.532/2.468 / 1.532/2.548 / 1.532/2.508 / 1.532/2.898 / 1.532/2.82 / 1.532/2.818 / 1.532/3.068 / 1.532/3.328m
Engine parameters
Local Emission Standard: China V (Beijing)
Injection System: Common Rail (China V)
Engine Model: FotonX11NS6B360 / WeichaiWP8.350E61A / WeichaiWP8.350E61 / WeichaiWP12.375E50 / FotonISGe5-320 / WeichaiWP10.336E53 / FotonISGe5-340
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.5 / 7.8 / 11.596 / 9.726L
Emission standard: China VI / China V (Beijing) / China V
Max output power: 265 / 257 / 276 / 235 / 247 / 250kW
Max hp: 360 / 350 / 375 / 320 / 336 / 340Horsepower
Rated speed: 1900 / 2100 / Fast GearRTD-11509Crpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / Inline / Inline, water-cooled, six-cylinder, air-to-air intercooled
Body Parameters
Mixing drum capacity: 7.7 / 8 / 4.4 / 7.1 / 5.8 / 4.03 / 4.5 / 5.61m³
Slump: 80-220mm
Feed rate: ≥3m³/min
Discharge speed: ≥2m³/min
Discharge residue rate: ≤0.4 / 0.8%
water supply method: Air pressure water supply
Vehicle certification code: BJ5313GJBY6GRL-05 / BJ5313GJBY6GRL-02 / BJ5313GJBY6GRL-06 / BJ5253GJB-XL / WL5311GJBBJ31 / BJ5313GJB-AB / BJ5253GJB-AC / BJ5253GJB-AB / BJ5313GJB-XL / BJ5313GJB-AA
Body Brand: FotonAuman
Others: AM steering gear; 230L aluminum fuel tank; desert air filter
Chassis Specs
Chassis Series: AumanETX
Front axle description: 6.5T / 9T drum
Frame Dimensions: 320×(8+7) / 320mm
rear axle description: 13T Steyr / 10T 440 / 10T / 16T / 16TMercedes-Benz / 16T Mercedes-Benz axle
Steering gear: Imported / Domestic
Axle ratio: 4.38 / 5.571 / 4.444 / 4.76 / 5.26 / 4.8 / 5.262
Leaf spring count: 3/3/5 / 10/10/12 / 3/3/4 / 10/12 / 13/14/12 / L14/R13 / L14/R13 / 12, L14/R13 / L14/R13 / 14, 13/14/12, 3/3/5, 3/3/4, 10/10/12 / 9/12 / 10/12,11/14,9/12,3/5,3/-,3/4,2/4 / 14/13/12
Transmission Parameters
Number of gears: 12 / 10 / 9Gear
Transmission Model: Fast Gear12JSD180 / Fast Gear10JSD140 / Fast Gear 12JSD180 Iron / Fast GearRTD-11509C / Fast Gear 9-speed / Fast Gear9JSD180 / Fast Gear / 10JSD160
Cab parameters
Cab: ETX-2490 flat roof / 2490 flat roof / Flat roof
FAQ
What kind of truck is Auman Foton Auman ETX Heavy Truck concrete mixer truck?
Auman Foton Auman ETX Heavy Truck is an export-oriented concrete mixer truck lineup with about 17 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Auman ETX Heavy Truck concrete mixer truck?
Foton Auman ETX Heavy Truck concrete mixer truck export reference is about $42,319 – $67,361. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Auman ETX Heavy Truck concrete mixer truck cover?
Foton Auman ETX Heavy Truck concrete mixer truck mainly covers: Drive: 8x4; Horsepower: 350 hp / 360 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Auman ETX Heavy Truck concrete mixer truck?
For Foton Auman ETX Heavy Truck concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Auman ETX Heavy Truck concrete mixer truck include?
Foton Auman ETX Heavy Truck concrete mixer truck currently lists about 17 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Auman ETX Heavy Truck concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
