Foton Auman 336hp 6X4(10 wheels) concrete mixer truck (Chengliwei brand)
EXW
Export quote
Chengliwei Foton Auman chassis concrete mixer truck
Main model photos
46 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman 336hp 6X4(10 wheels) concrete mixer truck (Chengliwei brand) | 6x4 / 336hp / China III / Euro III | ||
| Foton Auman 120hp 4X2(6 wheels) Concrete Mixer Truck (Chengliwei Brand) | 4x2 / 120hp / China III / Euro III |

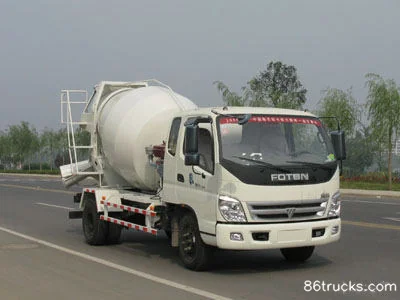

Foton Auman 120hp 4X2(6 wheels) Concrete Mixer Truck (Chengliwei Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.05×2.5×3.96 / 6.725×2.1×2.33m
Drive type: 6X4 / 4X2
Truck Type: concrete mixer truck
Wheelbase: 3575+1350 / 3800mm
Front/rear track width: Front track: 2038mm; Rear track: 1850mm / Front track: 1710mm; Rear track: 1620mm
Vehicle origin: Suizhou, Hubei / Beijing
Curb Weight: 14.005 / 5.755ton
Rated payload: 10.8 / 3.25ton
Max. speed: 90km/h
Front/rear suspension: 1.465/2.66 / 1.12/1.805m
Body Parameters
Water tank capacity: 400L
Drum geometric volume: 6m³
Mixing drum capacity: 1.5-3m³
Drum rotation speed: 3r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate:
Filling Rate: 80%
water supply method: Air pressure
hydraulic system: Imported system
Vehicle certification code: CLW5250GJBB3 / CLW5090GJB3
Body Brand: Chengliwei
Engine parameters
Engine Model: Weichai WP10.336NE31 / Dachai CA4DC2-12E3
Number of cylinders: 6 / 4cylinder
fuel type: Diesel
Displacement: 10 / 3.168L
Emission standard: China III / Euro III
Max output power: 247 / 88kW
Max hp: 336 / 120Horsepower
Rated speed: 1900 / 3200rpm
Engine Type: Inline / 4-cylinder inline, electronic common rail
Chassis Specs
Chassis Series: BJ5257GMPJB-S
Chassis Model: BJ1091VGPFA-S
Front axle description: 7T
rear axle description: 13T single-reduction dual rear axle
Leaf spring count: 9/13 / 9/8+7
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS1
Tire
Tire Size: 12.00-20 / 8.25-16，8.25R16
Number of tires: 10 / 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei Foton Auman chassis concrete mixer truck?
Chengliwei Chengliwei Foton Auman chassis is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chengliwei Foton Auman chassis concrete mixer truck cover?
Chengliwei Foton Auman chassis concrete mixer truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 120 hp / 336 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Foton Auman chassis concrete mixer truck?
For Chengliwei Foton Auman chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Chengliwei Foton Auman chassis concrete mixer truck include?
Chengliwei Foton Auman chassis concrete mixer truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Foton Auman chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
