Foton AumanGTL 350hp 8X4(12 wheels) 7.2cbm concrete mixer truck (Yate Heavy Industry brand)
EXW
From $56,306
Export quote
Yate Heavy Industry Foton Auman Chassis concrete
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton AumanGTL 350hp 8X4(12 wheels) 7.2cbm concrete mixer truck (Yate Heavy Industry brand) | 8x4 / 350hp / China V | From $56,306 | |
| Foton AumanETX 360hp 8X4(12 wheels) 7.5m³ Concrete Mixer Truck (Yate Heavy Industry Brand) | 8x4 / 360hp / China V | From $67,361 | |
| Foton Auman ETX 375 hp 8X4(12 wheels) 5.61 m³ Concrete Mixer Truck (Yate Heavy Industry Brand) | 8x4 / 375hp / China V | From $67,361 |
Foton AumanETX 360hp 8X4(12 wheels) 7.5m³ Concrete Mixer Truck (Yate Heavy Industry Brand)
EXW
From $67,361
Export quote

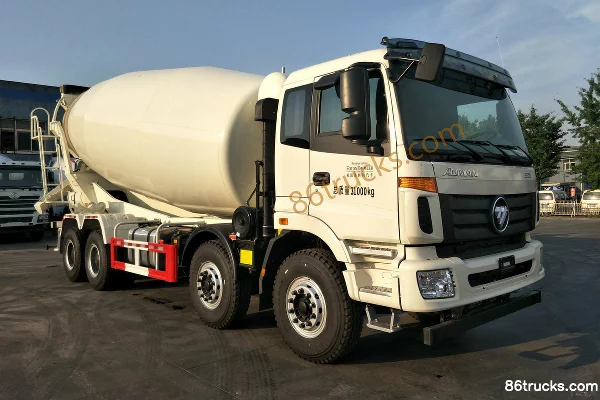

Foton Auman ETX 375 hp 8X4(12 wheels) 5.61 m³ Concrete Mixer Truck (Yate Heavy Industry Brand)
EXW
From $67,361
Export quote
Series Specs
Basic Info
Cab dimensions: 11.09×2.55×3.98 / 10.45×2.495×3.96 / 11.6×2.495×4m
Truck Type: concrete mixer truck
Drive type: 8X4
Front/rear track width: Front: 2020/2020mm; Rear: 1830/1830 / Front: 2010/2010mm; Rear: 1860/1860 / Front: 2028/2028mm; Rear: 1880/1880
Wheelbase: 2100+3350+1350 / 1800+3050+1350 / 2000+3450+1350mm
Vehicle origin: Tangshan, Hebei / Tangshan / Beijing
Curb Weight: 15.15 / 14.49 / 18ton
Rated payload: 15.72 / 16.38 / 12.805ton
Max. speed: 80 / 77km/h
Front/rear suspension: 1.46/2.83 / 1.532/2.718 / 1.532/3.068m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP10HNG350E60 / FotonISGe5-360 / WeichaiWP12.375E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.5 / 11.8 / 11.596L
Emission standard: China V
Max output power: 257 / 265 / 276kW
Max hp: 350 / 360 / 375Horsepower
Rated speed: 1900rpm
Engine Type: SPI+ER+EGR+TWC / Inline
Body Parameters
Mixing drum capacity: 7.2 / 7.5 / 5.61m³
Vehicle certification code: TZ5319GJBBJCFL / TZ5313GJBB8EAA
Body Brand: Yate Heavy Industry Brand
Others: 375L aluminum fuel tank; desert air filter
Chassis Specs
Chassis Series: AumanGTL / AumanETX / Auman ETX 9 Series
Chassis Model: BJ5319GJBL6GRS-01 / BJ5313GJB-AA / BJ5313GJB-XL
Frame Dimensions: 320mm
Steering gear: Domestic
rear axle description: 13T Steyr
Axle ratio: 4.38 / 5.262
Leaf spring count: 10/10/12 / 14/13/12
clutch: Φ430
Transmission Parameters
Number of gears: 12 / 10Gear
Transmission Model: Fast Gear12JSD180 / Fast Gear10JSD160 / 10JSD160
Cab parameters
Cab: GTL Mid-Length Cab Flat Roof / ETX-2490 flat roof
Tire
Tire Size: 11.00R20 18PR / 12.00R20
Number of tires: 12pcs
FAQ
What kind of truck is Yate Heavy Industry Yate Heavy Industry Foton Auman Chassis concrete mixer truck?
Yate Heavy Industry Yate Heavy Industry Foton Auman Chassis is an export-oriented concrete mixer truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Yate Heavy Industry Foton Auman Chassis concrete?
Yate Heavy Industry Foton Auman Chassis concrete export reference is about $56,306 – $67,361. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Yate Heavy Industry Foton Auman Chassis concrete cover?
Yate Heavy Industry Foton Auman Chassis concrete mainly covers: Drive: 8x4; Horsepower: 350 hp / 360 hp / 375 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yate Heavy Industry Foton Auman Chassis concrete?
For Yate Heavy Industry Foton Auman Chassis concrete: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Yate Heavy Industry Foton Auman Chassis concrete include?
Yate Heavy Industry Foton Auman Chassis concrete currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yate Heavy Industry Foton Auman Chassis concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
