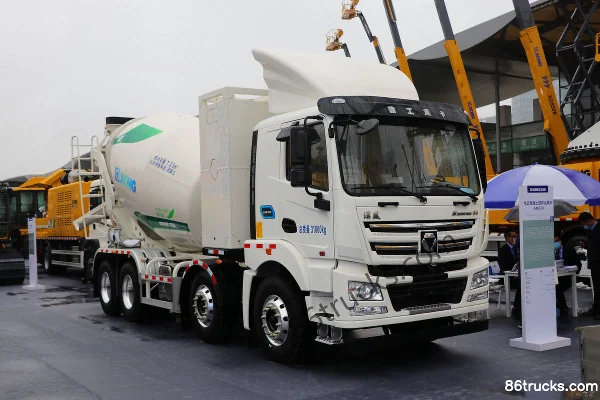

XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (10t rear axle)
EXW
Export quote
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy
Main model photos
306 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (10t rear axle) | 8x4 / 350hp / China VI | ||
| XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (China VI) | 8x4 / 350hp / China VI | ||
| XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (10t rear axle) | 8x4 / 350hp / China VI | ||
| XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (China VI) | 8x4 / 350hp / China VI | ||
| XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 8m³ concrete mixer truck (10t rear axle) | 8x4 / 350hp / China VI |
XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (China VI)
EXW
Export quote
XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (10t rear axle)
EXW
Export quote
XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 7.99m³ concrete mixer truck (China VI)
EXW
Export quote
XCMG Hanfeng G5N Standard Load Edition 350hp 8X4(12 wheels) 8m³ concrete mixer truck (10t rear axle)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.1×2.55×3.9 / 10.1×2.55×3.965 / 10.3×2.55×3.99 / 10x2.55x3.95 / 10.3×2.55×3.9 / 10.265×2.52×3.99 / 10.25×2.525×3.965 / 10.05×2.52×3.85 / 8.44×2.52×3.92m
Truck Type: concrete mixer truck
Drive type: 8X4 / 6X4
Wheelbase: 1950+2900+1350 / 3400+1350mm
Vehicle origin: Xuzhou, Jiangsu / Nanjing
Front/rear track width: Front: 2060/2060mm; Rear: 1860/1860 / Front track: 2020/2020; Rear track: 1860/1860 / Front: 2040/2040mm; Rear: 2060/2060 / Front: 2040/2040mm; Rear: 1860/1860 / Front: 1980; Rear: 1860/1860
Curb Weight: 13.435 / 12.4 / 13.6 / 13.4 / 15.05 / 13 / 15.3 / 11.5ton
Rated payload: 17.435 / 18.47 / 17.27 / 17.47 / 17.805 / 15.505 / 13.305ton
Max. speed: 80 / 31km/h
Front/rear suspension: 1.44/2.46 / 1.485/2.615 / 1.44/2.36 / 1.485/2.415 / 1.485/2.365 / 1.485/2.205m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP8.350E62 / WeichaiWP8.350E61 / WeichaiWP10.350E53 / WeichaiWP8.340E51 / WeichaiWP7.300E51
Number of cylinders: 6cylinder
fuel type: Diesel / Electric
Displacement: 7.8 / 9.726 / 7.47L
Emission standard: China VI / China V
Max output power: 257 / 250 / 220kW
Max hp: 350 / 340 / 300Horsepower
Rated speed: 2100 / 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / High-pressure common rail+EGR
Body Parameters
Mixing drum capacity: 7.99 / 8 / 7.88 / 7.25 / 7.1 / 6m³
Vehicle certification code: XGA5310GJBD6SEB / XGA5310GJBD6SEA / XGA5310GJBD6NE / XGA5310GJBD6SED / XGA5310GJBN5 / XGA5310GJBN5A / NXG5310GJBN5A / NXG5310GJBN5 / NXG5251GJBN5
Body Brand: XCMG Truck
Chassis Specs
Chassis Series: Hanfeng G5 / Hanfeng G5 N Series
Chassis Model: XGA3310D6SEX / XGA3310D6NEX / NXG3310D5NEMX / XGA3313BEVNEX / NXG3251D5NCX
Front axle description: 5.5t front axle / 6.5t front axle / 5.5T / 6.5t
Frame Dimensions: 280×80×(8+4) / 300×80×(8+5) / 280×80×(8+5) / 300×80×（8+5） / 300×80×（8+6）mm
rear axle description: 10t single reduction axle / 11.5t single-reduction axle / 16t double reduction axle (MAN) / 13t single reduction / 13t dual reduction (Steyr) / 425/435 / 457 / 457 rear axle / 13T rear axle / 425 rear axle / 435
Axle ratio: 5.286 / 5.262 / 5.571 / 5.143
Leaf spring count: 3/3/3,3/3/4,9/9/10 / 9/9/13 / 4/4/5,9/9/10 / 3/3/4 / 9/9/10 / 3/3/4,9/9/13 / 3/4,9/13,10/13 / 3/4,9/13
Transmission Parameters
Number of gears: 10 / 8Gear
Transmission Model: Fast Gear10JSD140T / Fast Gear10JSD140TB / Fast Gear10JSD160T / Fast Gear8JS125T / Fast Gear10JSD160 / Fast Gear8JS118
Cab parameters
Cab: G5NSD / G5PLM / G5LM / G5SD Cab / G5
Tire
Tire Size: 11R22.5 18PR,11.00R20 18PR,12R22.5 18PR / 11.00R20 18PR,12R22.5 18PR,12.00R20 18PR / 11.00R20 18PR,12R22.5 18PR,11R22.5 18PR / 12R22.5 18PR / 11.00R20 18PR / 11.00R20 / 11.00R20-16PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is XCMG Truck XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck concrete mixer truck?
XCMG Truck XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck is an export-oriented concrete mixer truck lineup with about 19 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy?
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy export reference is about $53,611 – $68,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy cover?
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy mainly covers: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy?
For XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy include?
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy currently lists about 19 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
