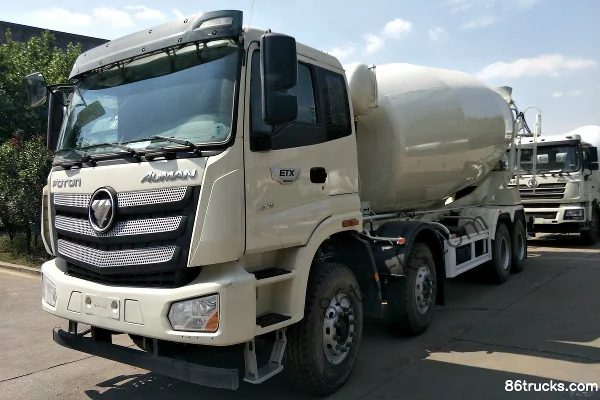

Foton Auman New ETX Heavy-Duty 375hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck (12-speed)(Tonghua Brand)
EXW
From $49,222
Export quote
CIMC Tonghua Foton Auman Chassis concrete mixer
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman New ETX Heavy-Duty 375hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck (12-speed)(Tonghua Brand) | 8x4 / 375hp / China V | From $49,222 | |
| Foton Auman New ETX Heavy-Duty 375hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck (Tonghua Brand) | 8x4 / 375hp / China V | From $48,944 | |
| Foton Auman ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (Long Wheelbase) (Tonghua Brand) | 8x4 / 320hp / China V | From $43,736 | |
| Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) | 8x4 / 320hp / China V | From $44,569 |
Foton Auman New ETX Heavy-Duty 375hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck (Tonghua Brand)
EXW
From $48,944
Export quote
Foton Auman ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (Long Wheelbase) (Tonghua Brand)
EXW
From $43,736
Export quote
Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand)
EXW
From $44,569
Export quote
Series Specs
Basic Info
Cab dimensions: 11.58×2.55×4 / 10.28×2.55×4.0m
Truck Type: concrete mixer truck
Drive type: 8X4
Wheelbase: 2000+3650+1350 / 1800+3050+1350mm
Vehicle origin: Yangzhou, Jiangsu / Beijing
Front/rear track width: Front track: 2028/2028mm; Rear track: 1880/1880 / Front track: 2010/2010mm; Rear track: 1860/1860
Curb Weight: 18.7 / 15.3ton
Rated payload: 12.17 / 15.57ton
Max. speed: 77 / 80km/h
Front/rear suspension: 1.532/3.048 / 1.532/2.548m
Body Parameters
Mixing drum capacity: 5.5 / 7.1m³
Vehicle certification code: THT5315GJB13A / WL5311GJBBJ31
Body Brand: Tonghua Brand
Others: AM steering gear; 350L aluminum fuel tank; desert air filter; optional ratio 4.76 / AM steering gear; 350L aluminum fuel tank; desert air filter / AM steering gear; 260L aluminum fuel tank; desert air filter
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP12.375E50 / FotonISGe5-320
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596 / 10.5L
Emission standard: China V
Max output power: 276 / 235kW
Max hp: 375 / 320Horsepower
Chassis Specs
Chassis Series: Auman New ETX / AumanETX
Chassis Model: BJ5313GJB-XL / BJ5313GJB-AA
Front axle description: 9T / 5T / 6.5T
rear axle description: 16TMercedes-Benz / 440 axle / 13T Steyr
Axle ratio: 5.26 / 4.444 / 4.38
Leaf spring count: 13/14/12 / 3/3/5
Transmission Parameters
Number of gears: 12 / 9 / 10Gear
Transmission Model: Fast Gear12JSD180 / Fast Gear9JSD180 / SinotrukHW15710
Cab parameters
Cab: New ETX-2490 Flat Roof / 2490 flat roof
Tire
Tire Size: 12.00R20 / 11.00R20
Number of tires: 12pcs
FAQ
What kind of truck is CIMC Tonghua CIMC Tonghua Foton Auman Chassis concrete mixer truck?
CIMC Tonghua CIMC Tonghua Foton Auman Chassis is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for CIMC Tonghua Foton Auman Chassis concrete mixer?
CIMC Tonghua Foton Auman Chassis concrete mixer export reference is about $43,736 – $49,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does CIMC Tonghua Foton Auman Chassis concrete mixer cover?
CIMC Tonghua Foton Auman Chassis concrete mixer mainly covers: Drive: 8x4; Horsepower: 320 hp / 375 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC Tonghua Foton Auman Chassis concrete mixer?
For CIMC Tonghua Foton Auman Chassis concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does CIMC Tonghua Foton Auman Chassis concrete mixer include?
CIMC Tonghua Foton Auman Chassis concrete mixer currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC Tonghua Foton Auman Chassis concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
