Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand)

Export reference
From $44,569
MSRP ¥32.09M CNY
Fuel: Diesel
Curb Weight:: 15.3ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 10.28×2.55×4.0m
Truck Type:: concrete mixer truck
Rated payload: 15.57ton
Drive 8X4 (12 wheels)
Horsepower 320
Emission China V

Overview

The CIMC Tonghua Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) is a concrete mixer truck featuring 15.57t payload, 15.3ton GVW, 8X4 (12 wheels) drive and 2490 flat roof cab. On the powertrain side, it comes with 320 hp, China V emissions and Diesel fuel.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.28×2.55×4.0m
Truck Type: concrete mixer truck
Drive type: 8X4
Wheelbase: 1800+3050+1350mm
Vehicle origin: Beijing
Front/rear track width: Front track: 2010/2010mm; Rear track: 1860/1860
Curb Weight: 15.3ton
Rated payload: 15.57ton
Max. speed: 80km/h
Front/rear suspension: 1.532/2.548m
Body Parameters
Mixing drum capacity: 7.1m³
Vehicle certification code: WL5311GJBBJ31
Body Brand: Tonghua Brand
Others: AM steering gear; 260L aluminum fuel tank; desert air filter
Engine parameters
Injection System: Common Rail (China V)
Engine Model: FotonISGe5-320
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.5L
Emission standard: China V
Max output power: 235kW
Max hp: 320Horsepower
Chassis Specs
Chassis Series: Auman New ETX
Chassis Model: BJ5313GJB-AA
Front axle description: 6.5T
rear axle description: 13T Steyr
Axle ratio: 4.38
Leaf spring count: 13/14/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710
Cab parameters
Cab: 2490 flat roof
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

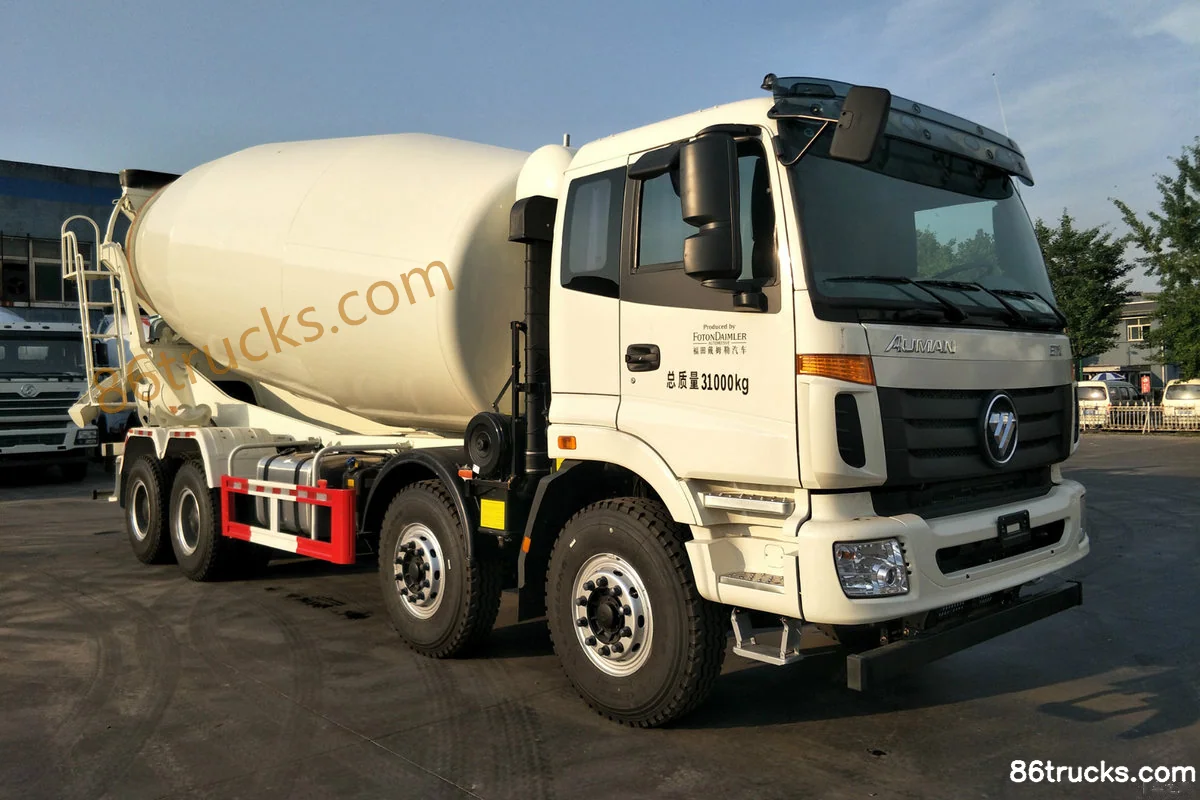

Exterior1

1 photos

FAQ

What is the export price of Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand), and what does it include?

Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) export reference is about From $44,569; MSRP is ¥32.09M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand)?

Key specs of Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand): Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) suited for?

Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) differ from other variants in the same series?

Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand) belongs to CIMC Tonghua Foton Auman Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman New ETX Composite 320hp 8X4(12 wheels) 7.1m³ Concrete Mixer Truck (10-speed) (Tonghua Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
