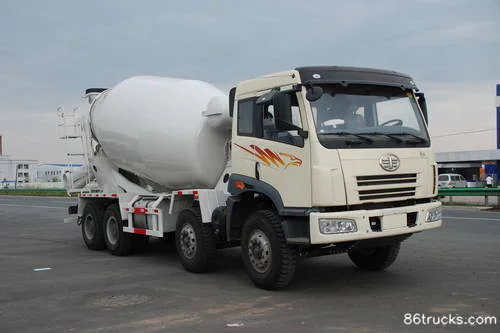

FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 15.48ton
Wheelbase:: 2000+3100+1350mm
Tire Size:: 12.00-20,12.00R20,11.00-20,11.00R20
Cab dimensions:: 10.26×2.5×3.95m
Truck Type:: concrete mixer truck
Rated payload: 15.325ton
Drive 8X4 (12 wheels)
Horsepower 320
Emission China III / Euro III

Overview

The FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 15.325t payload, 15.48ton GVW, 8X4 (12 wheels) drive and 10.26×2.5×3.95m cab. On the powertrain side, it comes with 320 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.26×2.5×3.95m
Drive type: 8X4
Truck Type: concrete mixer truck
Wheelbase: 2000+3100+1350mm
Vehicle origin: Changchun
Front/rear track width: Front track: 2020/2020mm; Rear track: 1830/1830mm
Curb Weight: 15.48ton
Rated payload: 15.325ton
Max. speed: 75km/h
Front/rear suspension: 1.418/2.4m
Body Parameters
Mixing drum capacity: 7m³
Vehicle certification code: CA5312GJBP2K2T4E
Body Brand: FAW Jiefang
Engine parameters
Engine Model: Xichai CA6DL1-32E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.6L
Emission standard: China III / Euro III
Max output power: 231kW
Max hp: 320Horsepower
Rated speed: 2300rpm
Engine Type: Inline, electronic, common rail, turbocharged
Chassis Specs
Chassis Series: FAW Jiefang Aowei (J5P)
Chassis Model: CA1312P2K2T4S2E
rear axle description: FAW Jiefang axle 13t
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear RT11509C
Tire
Tire Size: 12.00-20,12.00R20,11.00-20,11.00R20
Number of tires: 12pcs

Photos

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck?

Key specs of FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck: Drive: 8x4; Horsepower: 320 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck suited for?

FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck differ from other variants in the same series?

FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck belongs to FAW Jiefang Aowei J5P Heavy-duty Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Aowei (J5P) 320hp 8X4(12 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
