FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Curb Weight:: 12.3ton
Wheelbase:: 3800+1350mm
Tire Size:: 12.00-20,12.00R20,11.00-20,11.00R20,
Cab dimensions:: 8.96×2.496×3.76m
Truck Type:: concrete mixer truck
Vehicle origin:: Qingdao
Rated payload: 12.505ton
Drive 6X4 (10 wheels)
Horsepower 336
Emission China III / Euro III

Overview

The FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 12.505t payload, 12.3ton GVW, 6X4 (10 wheels) drive and 8.96×2.496×3.76m cab. On the powertrain side, it comes with 336 hp and China III / Euro III emissions.

China III / Euro III 336 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.96×2.496×3.76m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3800+1350mm
Vehicle origin: Qingdao
Front/rear track width: 1939;1840/1840mm
Curb Weight: 12.3ton
Rated payload: 12.505ton
Max. speed: 78km/h
Front/rear suspension: 1.493/2.317m
Body Parameters
Mixing drum capacity: 5.5m³
Vehicle certification code: CA5250GJBEA80
Body Brand: FAW Jiefang
Others: Optional cab; optional modified front lights and front grille cab.
Engine parameters
Engine Model: WeichaiWP10.336
Number of cylinders: 6cylinder
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Series: FAW Jiefang Aowei (J5P)
Chassis Model: CA1250P2K15T1S2EA80
Leaf spring count: 10/12
Tire
Tire Size: 12.00-20,12.00R20,11.00-20,11.00R20,
Number of tires: 10pcs

Photos

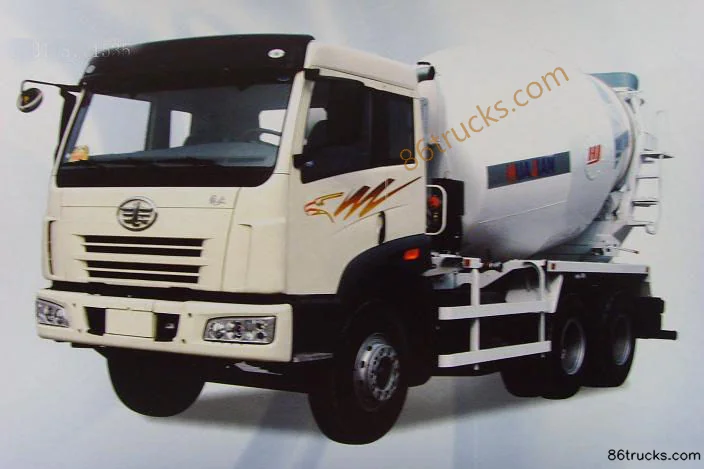

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck suited for?

FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck belongs to FAW Jiefang Aowei J5P Heavy-duty Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Aowei (J5P) 336 hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
