FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.96ton
Wheelbase:: 1900+2950+1350mm
Tire Size:: 11.00R20 18PR,11.00R20 16PR
Cab dimensions:: 10.25x2.55x3.99m
Truck Type:: Concrete mixer truck
Rated payload: 16.91ton
Drive 8x4 (12 wheels)
Horsepower 350
Emission China VI

Overview

The FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand) is a concrete mixer truck featuring 16.91t payload, 13.96ton GVW, 8x4 (12 wheels) drive and 10.25x2.55x3.99m cab. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 8x4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.25x2.55x3.99m
Truck Type: Concrete mixer truck
Drive type: 8x4
Vehicle origin: Wuhu, Anhui
Wheelbase: 1900+2950+1350mm
Front/rear track width: Front: 2020/2020; Rear: 1878/1878mm
Curb Weight: 13.96ton
Rated payload: 16.91ton
Max. speed: 89km/h
Front/rear suspension: 1.495/2.555m
Body Parameters
Mixing drum capacity: 7.75m³
Vehicle certification code: WL5316GJBCAG6BF
Body Brand: Ruijiang
Engine parameters
Engine Model: WeichaiWP8.350E61A
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 2100rpm
Chassis Specs
Chassis Series: JH6
Chassis Model: CA1311P27K15L1T4BE6A81
Leaf spring count: 10/10/10
Tire
Tire Size: 11.00R20 18PR,11.00R20 16PR
Number of tires: 12pcs

Photos

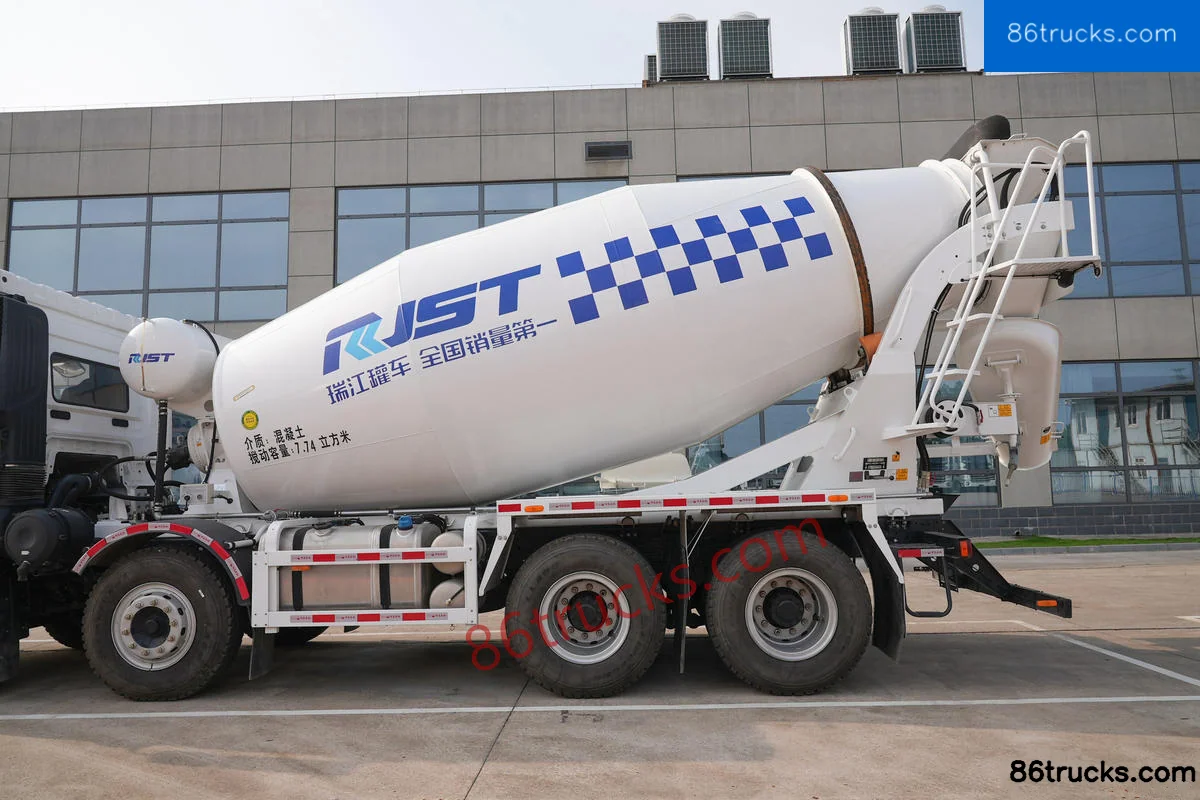

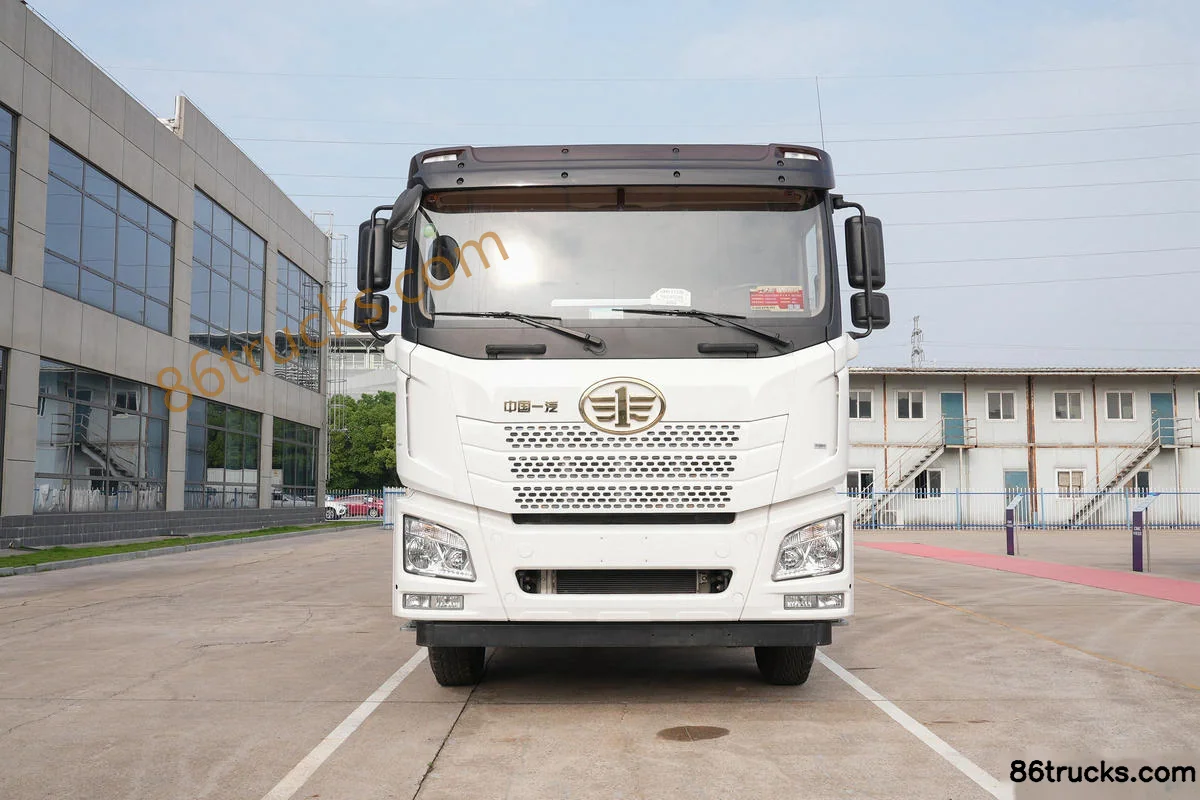

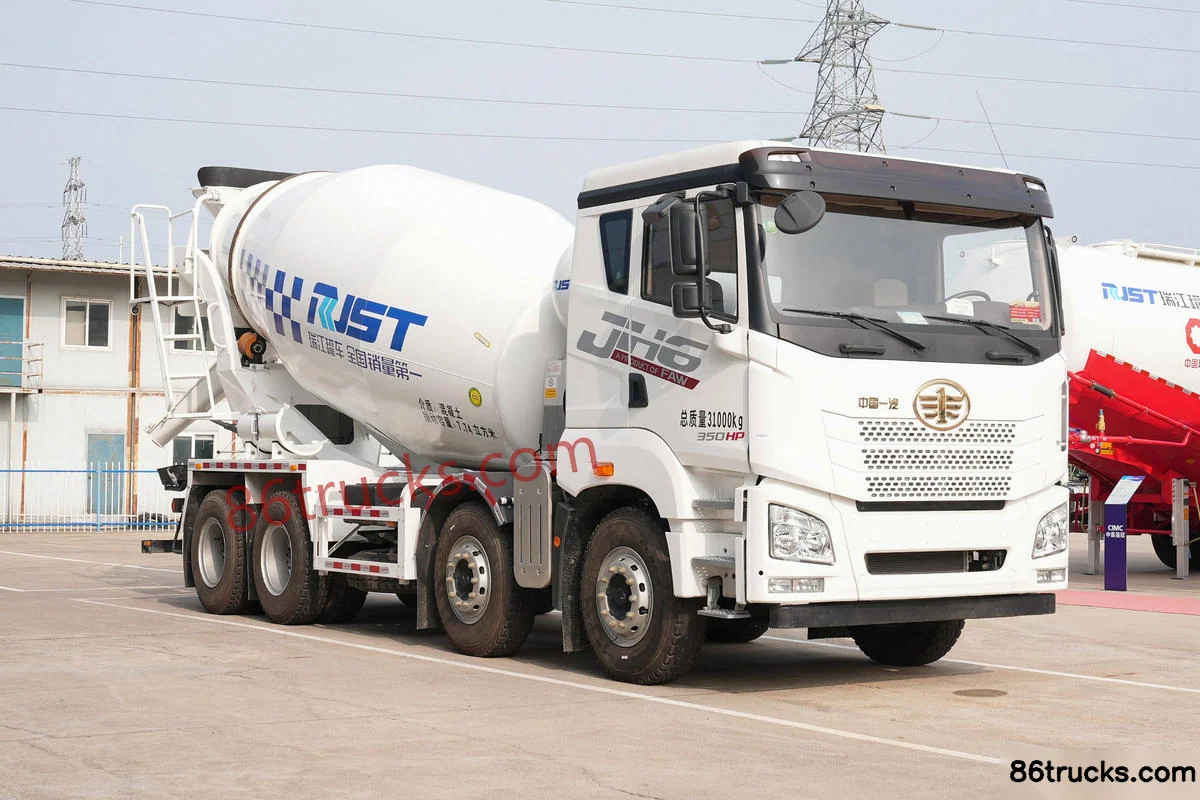

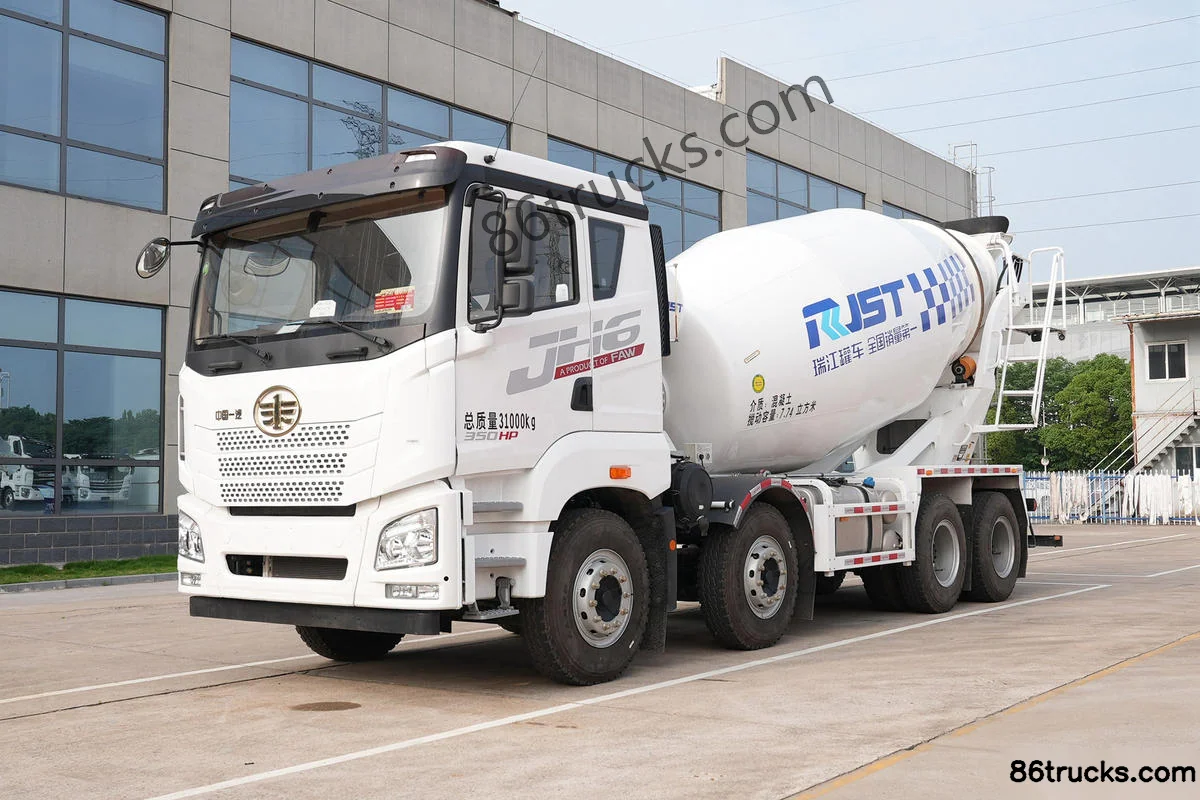

Exterior3

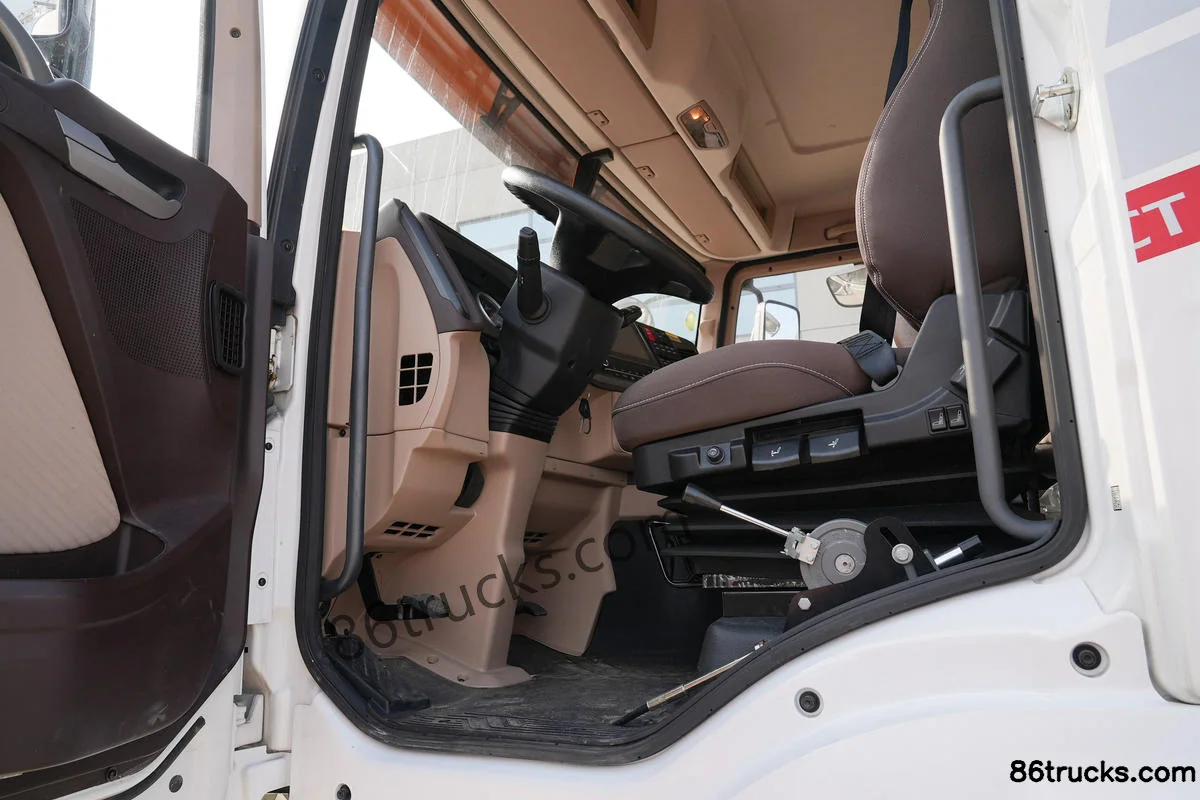

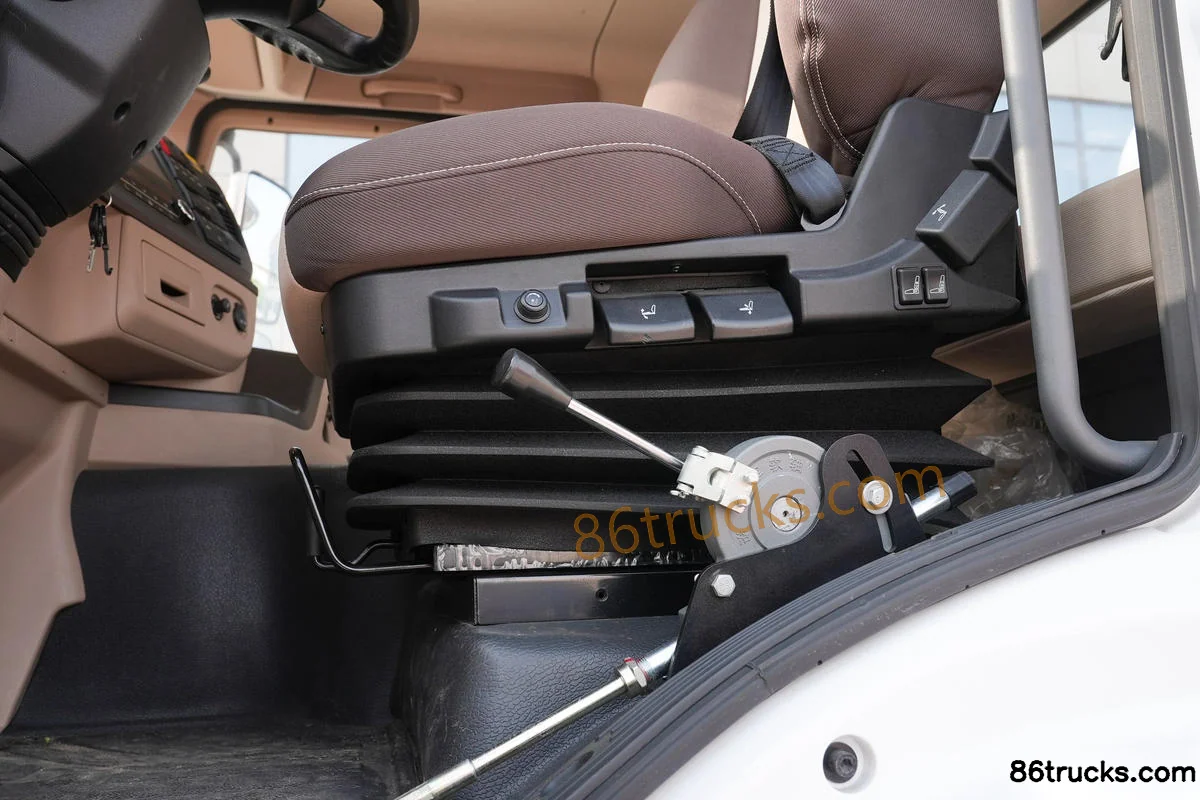

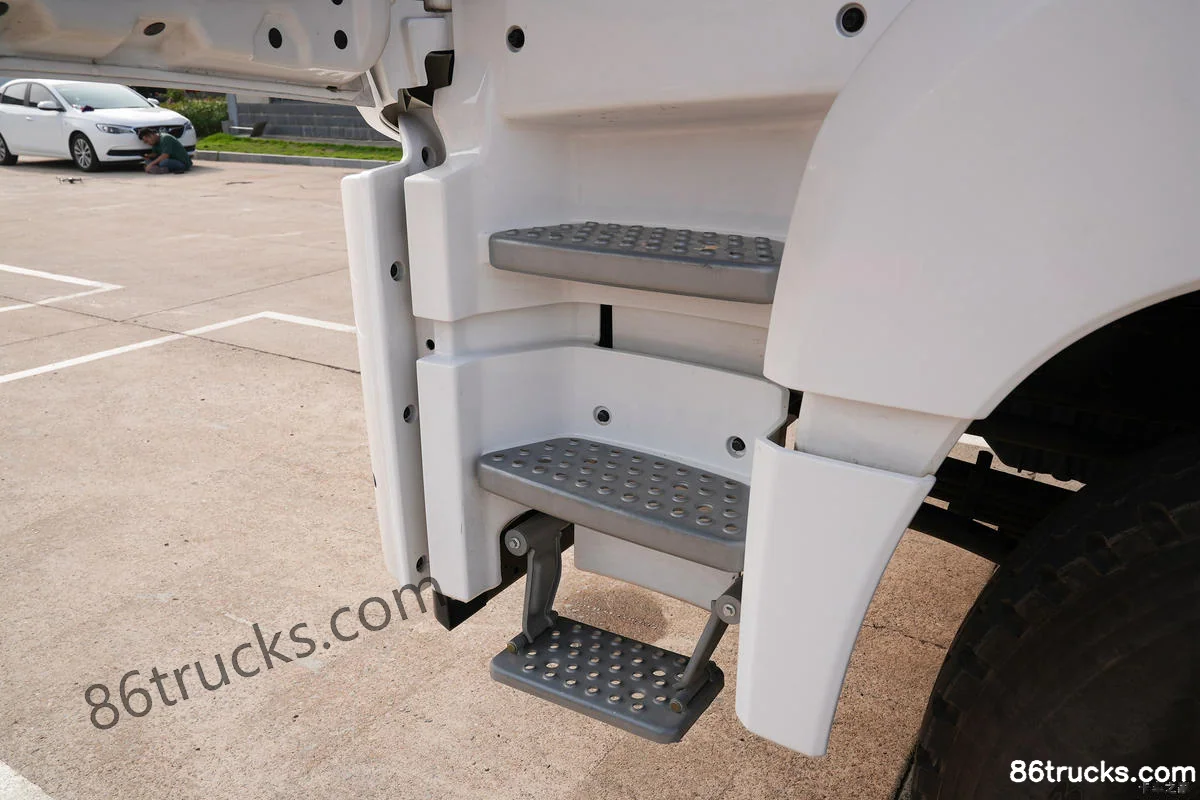

Cab3

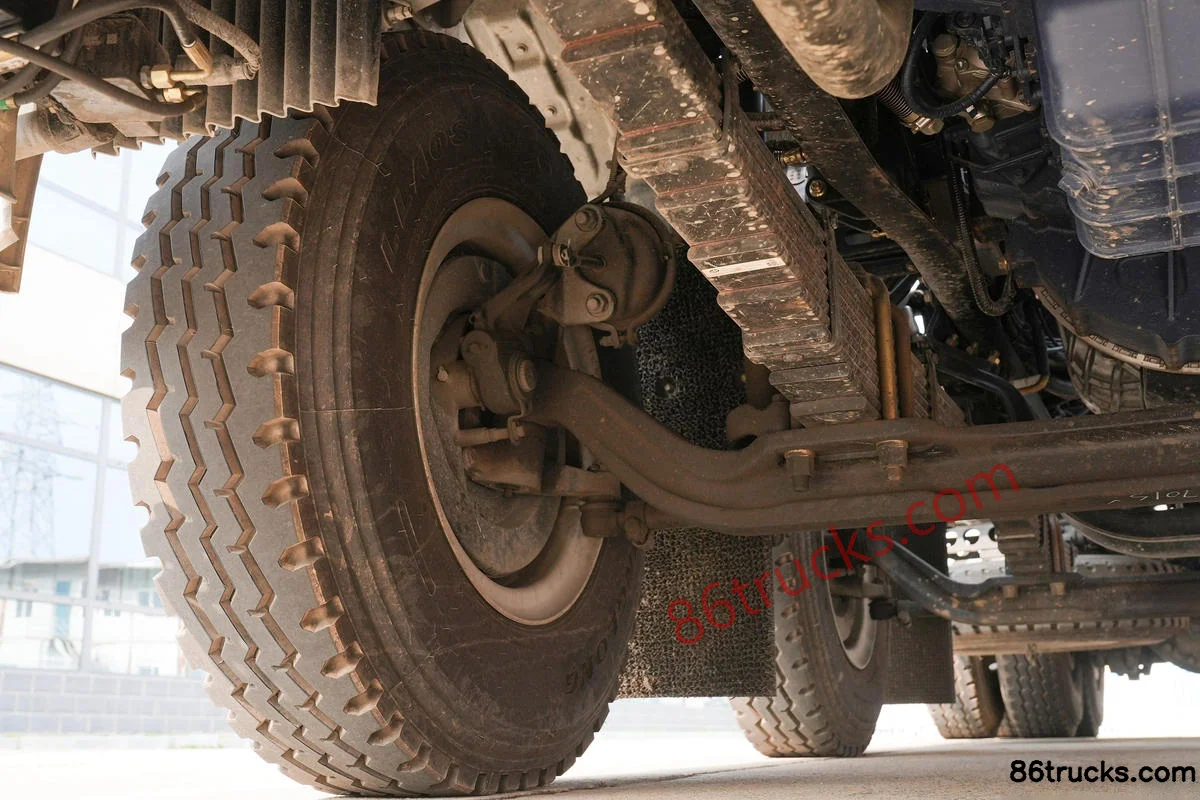

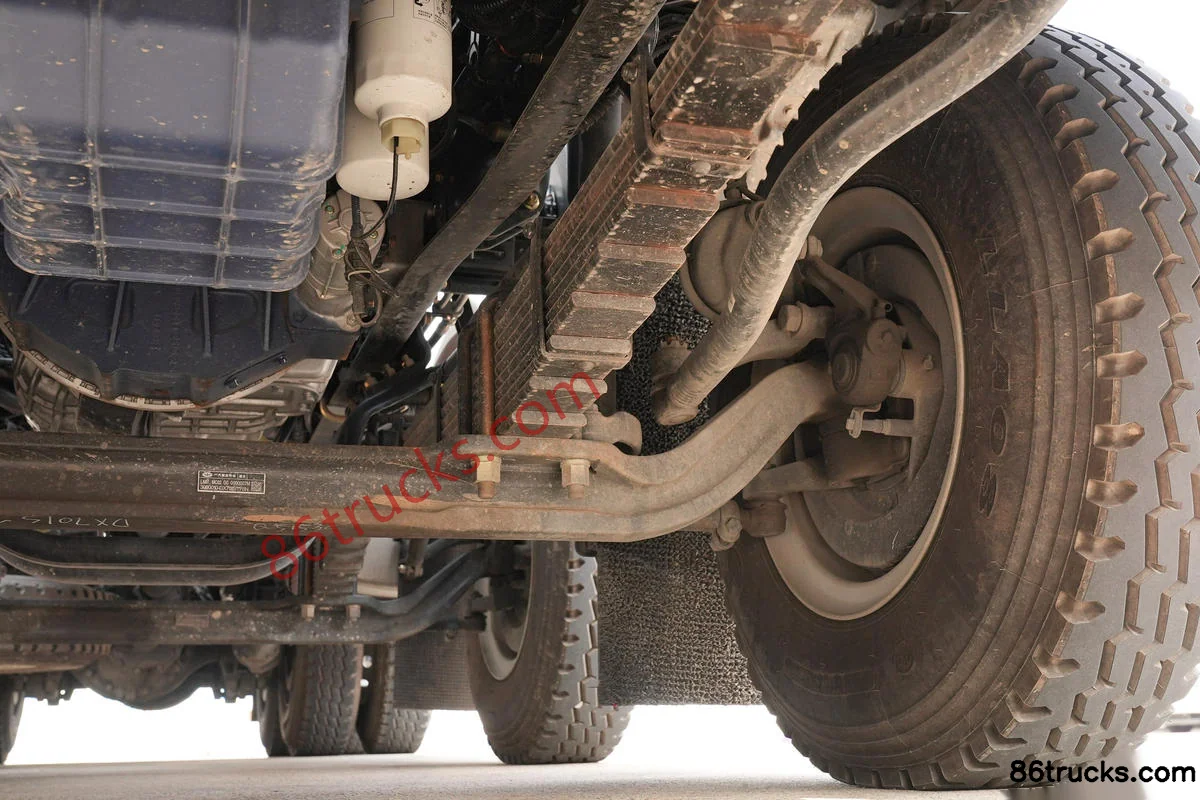

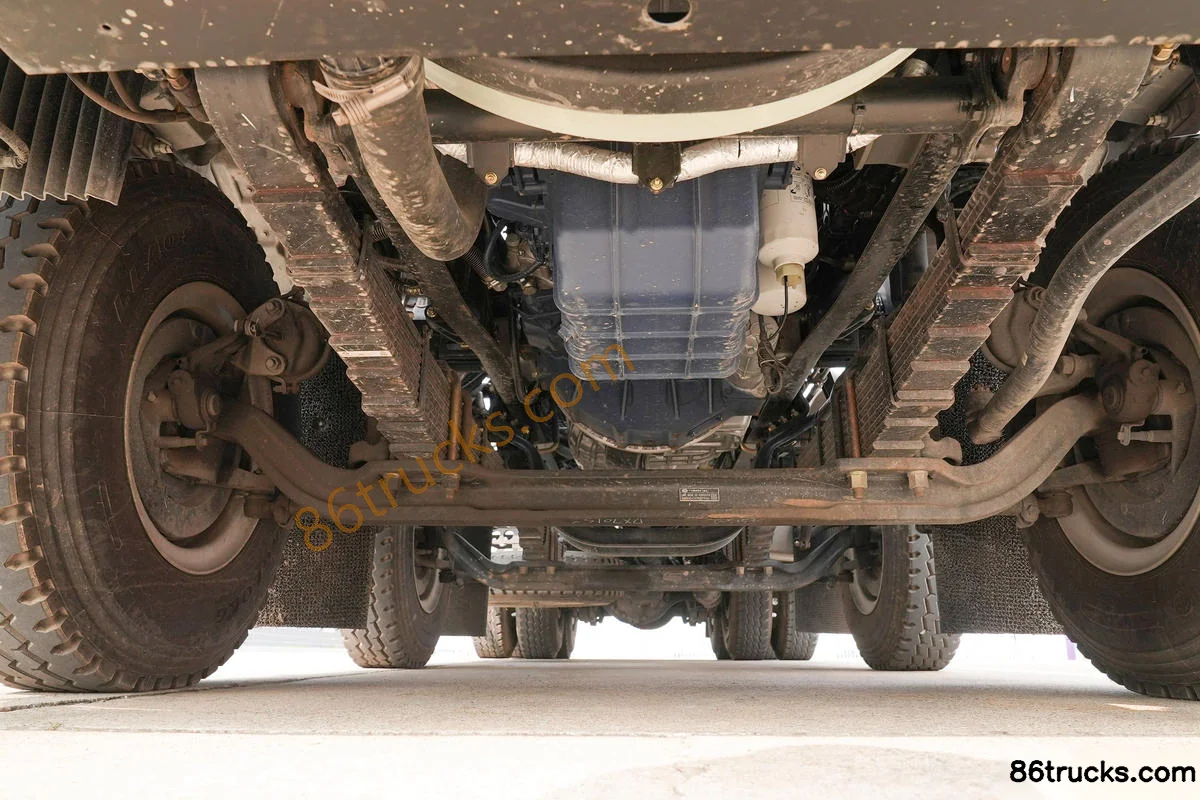

Chassis3

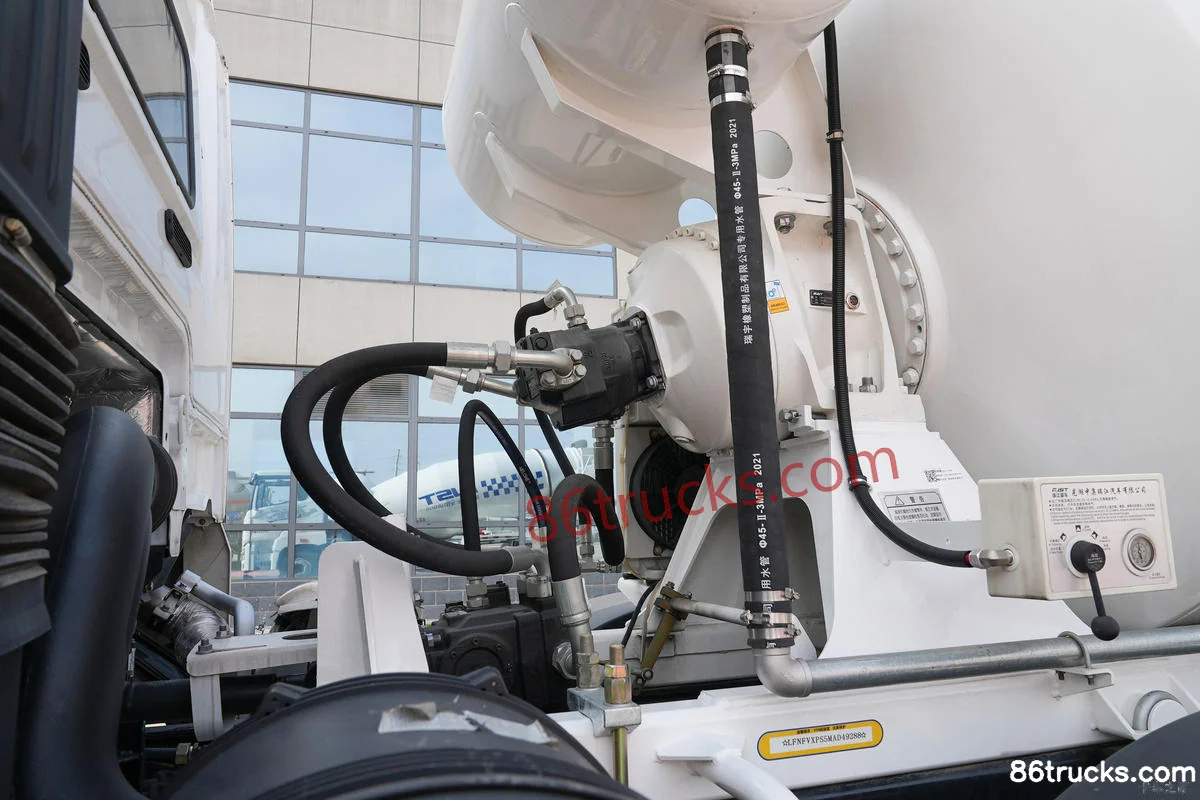

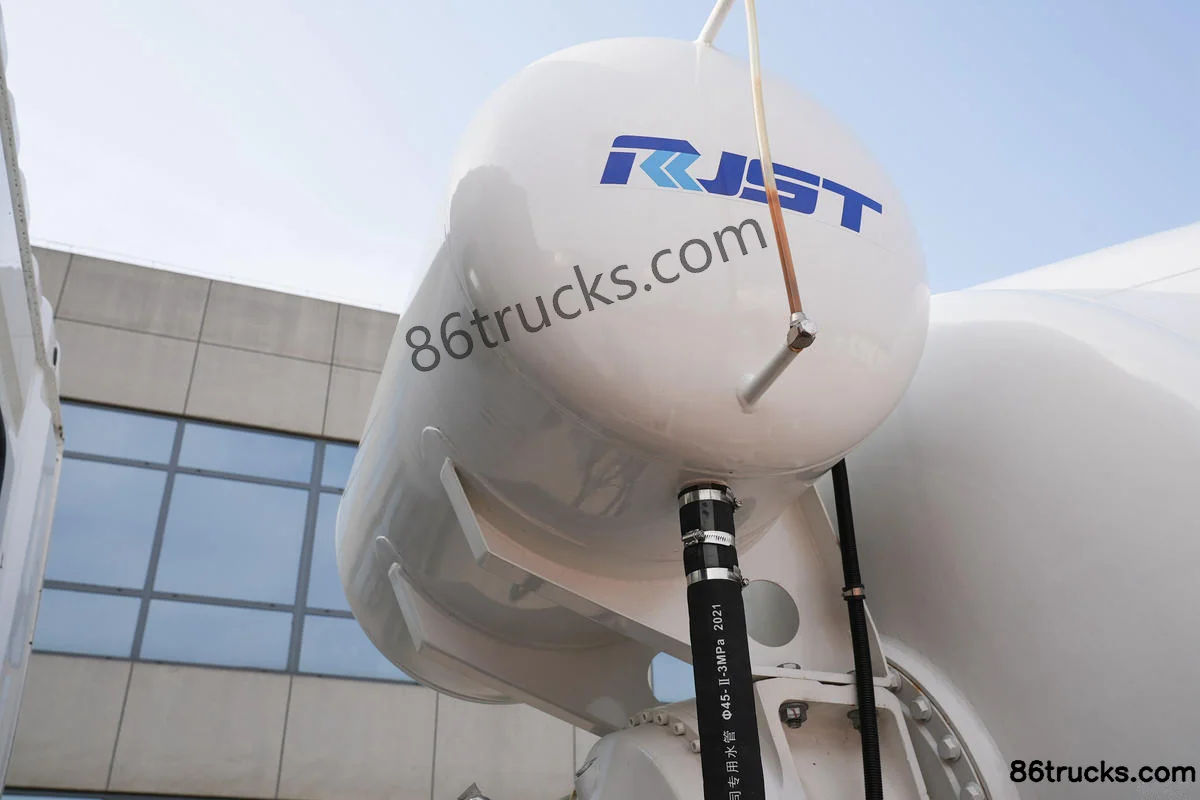

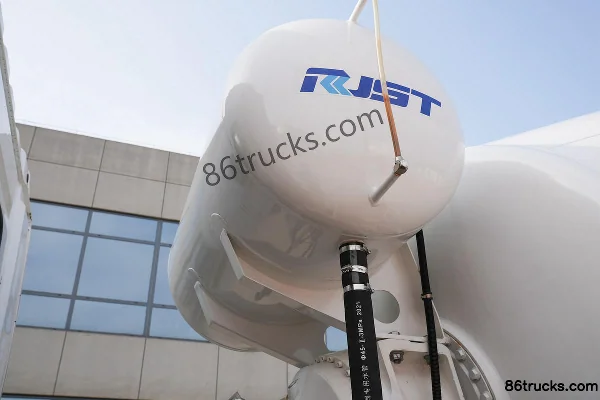

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand)?

Key specs of FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand) suited for?

FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand) differ from other variants in the same series?

FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand) belongs to FAW Jiefang Qingdao JH6 heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 350 hp 8X4(12 wheels) 7.74 m³ Concrete Mixer Truck (Ruijiang Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
