Foton 260hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 12.8ton
Wheelbase:: 3700+1300mm
Tire Size:: 11.00-20 16PR
Cab dimensions:: 8.623×2.5×3.85m
Front/rear track width:: Front track: 1963mm; Rear track: 1860mm
Rated payload: 12.005ton
Drive 6X4 (10 wheels)
Horsepower 260
Emission China IV

Overview

The Foton 260hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 12.005t payload, 12.8ton GVW, 6X4 (10 wheels) drive and 8.623×2.5×3.85m cab. On the powertrain side, it comes with 260 hp, China IV emissions and Diesel fuel.

China IV 260 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.623×2.5×3.85m
Drive type: 6X4
Front/rear track width: Front track: 1963mm; Rear track: 1860mm
Wheelbase: 3700+1300mm
Curb Weight: 12.8ton
Rated payload: 12.005ton
Max. speed: 80km/h
Body Parameters
Mixing drum capacity: 5m³
Feed rate: 3m³/min
Discharge speed: 2m³/min
Vehicle certification code: BJ5252GJB-G2
Engine parameters
Engine Model: YuchaiYC6A260-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.255L
Emission standard: China IV
Max output power: 191kW
Max hp: 260Horsepower
Rated speed: 2300rpm
Engine Type: BOSCH high-pressure common rail SCR
Chassis Specs
Chassis Series: Foton
Chassis Model: BJ5252GJB-G2
rear axle description: 435S air brake
Leaf spring count: 10/11
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD120
Tire
Tire Size: 11.00-20 16PR
Number of tires: 10pcs

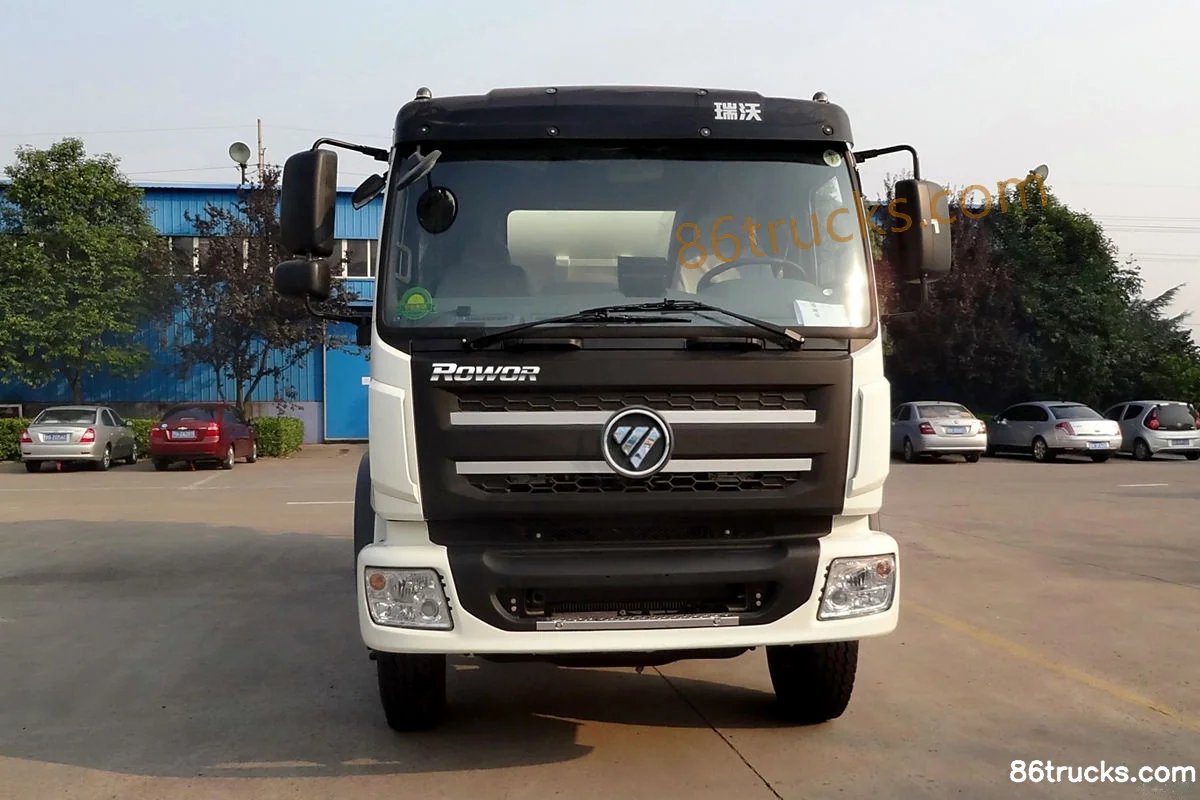

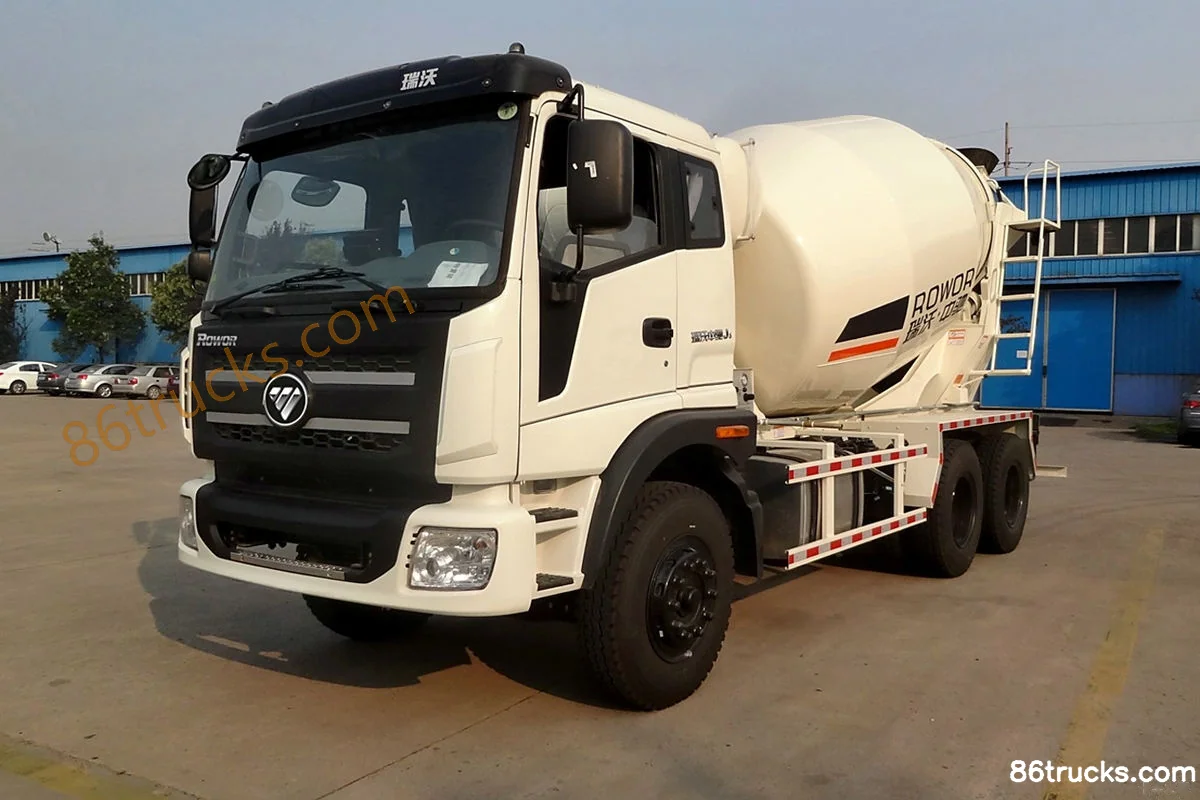

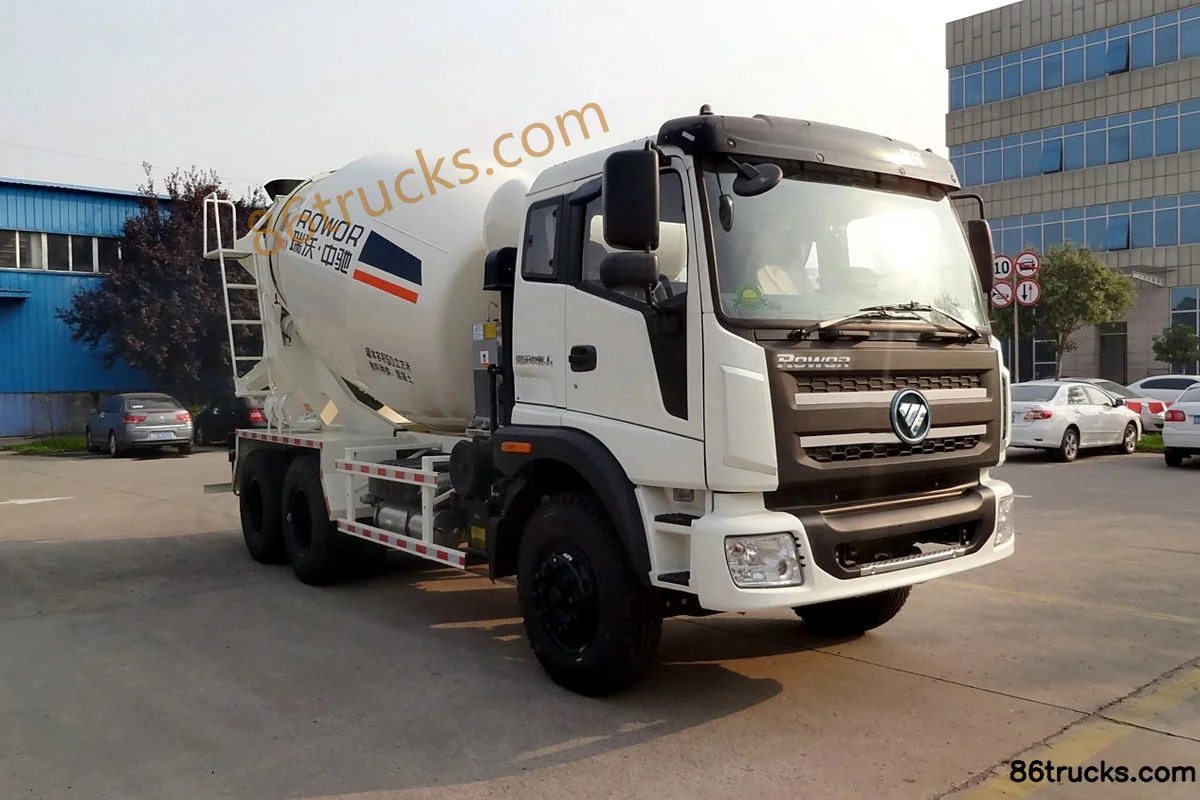

Photos

Exterior3

3 photos

FAQ

What emission standard does Foton 260hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton 260hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of Foton 260hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 260 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton 260hp 6X4(10 wheels) Concrete Mixer Truck suited for?

Foton 260hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton 260hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

Foton 260hp 6X4(10 wheels) Concrete Mixer Truck belongs to FotonQ5 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton 260hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton 260hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
