Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck

Export reference
From $25,806
MSRP ¥18.58M CNY
Fuel: Diesel
Curb Weight:: 6.8ton
Wheelbase:: 3700mm
Tire Size:: 9.00R20 16PR
Cab dimensions:: 7.025×2.32×3.7m
Truck Type:: concrete mixer truck
Rated payload: 8.805ton
Drive 4X2 (6 wheels)
Horsepower 140
Emission China V

Overview

The Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck is a concrete mixer truck featuring 8.805t payload, 6.8ton GVW, 4X2 (6 wheels) drive and 7.025×2.32×3.7m cab. On the powertrain side, it comes with 140 hp, China V emissions and Diesel fuel.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.025×2.32×3.7m
Truck Type: concrete mixer truck
Drive type: 4X2
Wheelbase: 3700mm
Curb Weight: 6.8ton
Rated payload: 8.805ton
Max. speed: 85km/h
Front/rear suspension: 1.29/2.035m
Body Parameters
Mixing drum capacity: 4m³
Vehicle certification code: BJ5163GJB-FA
Body Brand: Foton
Engine parameters
Engine Model: YuchaiYC4S140-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.767L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: Foton Ruiwo Q5
Chassis Model: BJ3163DJPEA-FB
rear axle description: 1098
Axle ratio: 5.286
Leaf spring count: 10/12+9
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs

Photos

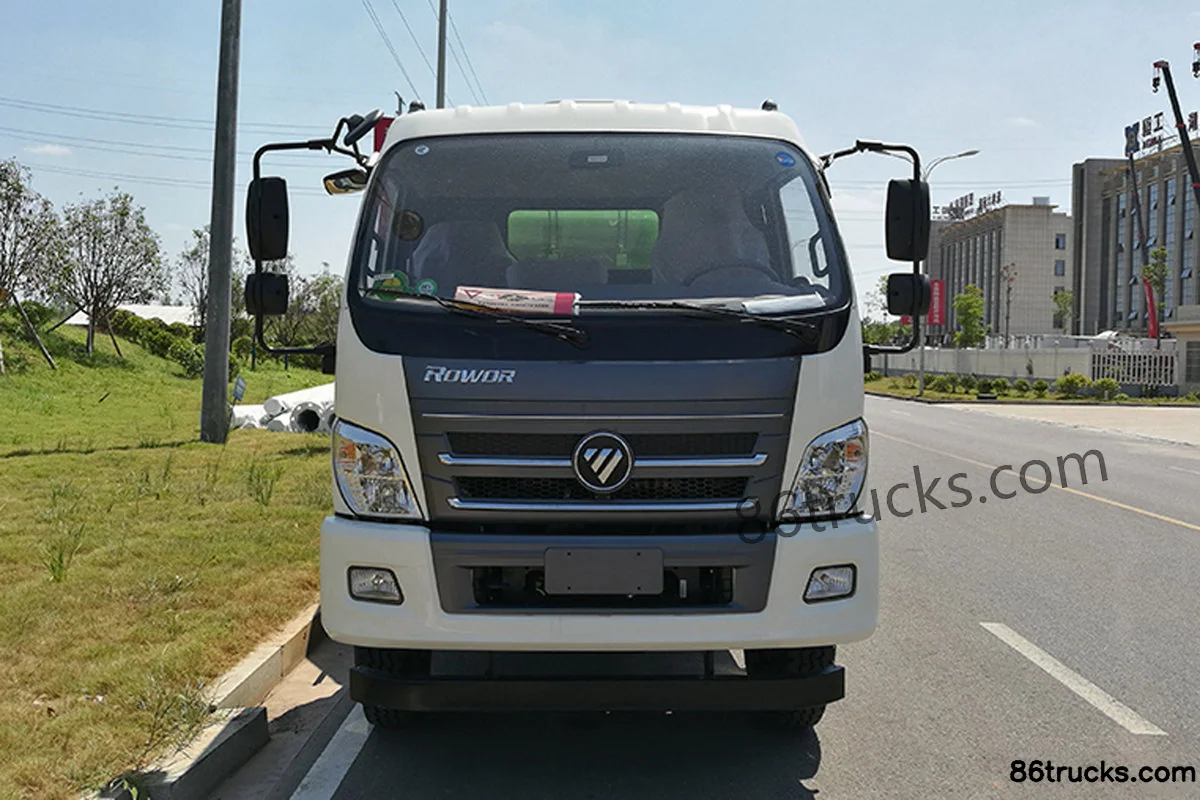

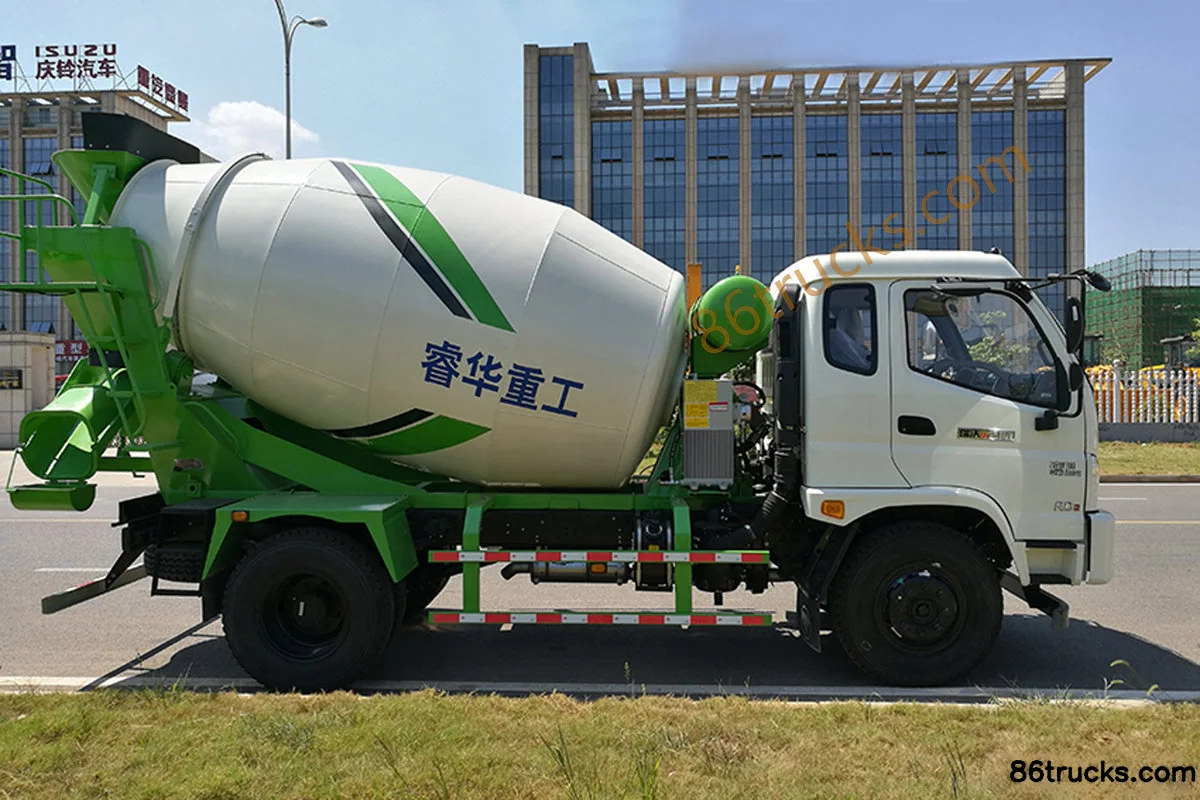

Exterior3

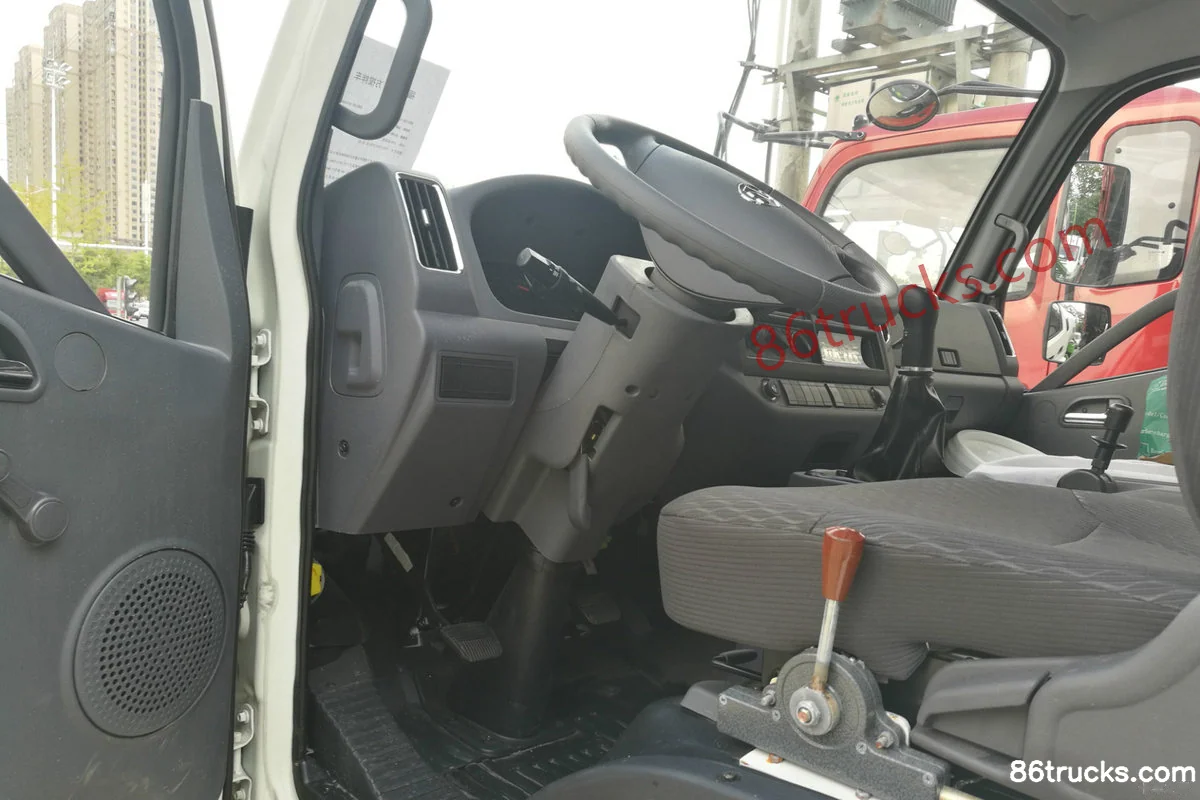

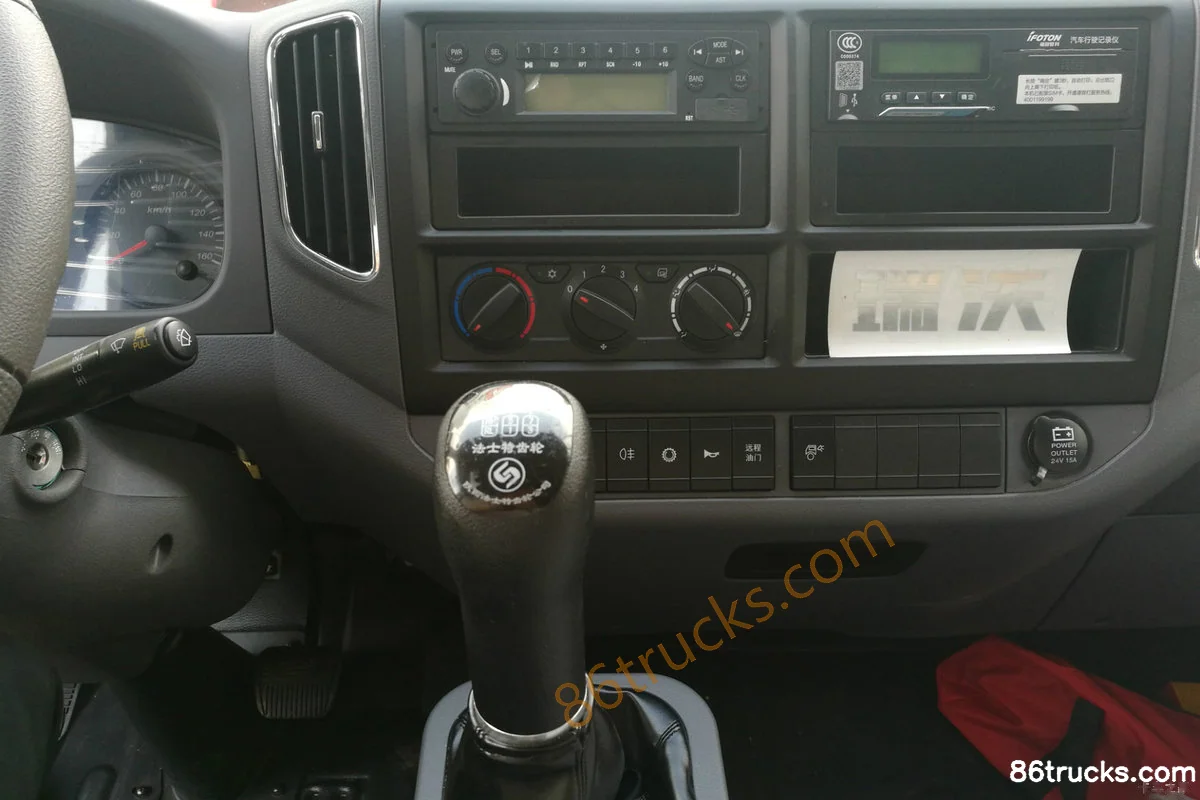

Cab2

5 photos

FAQ

What is the export price of Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck, and what does it include?

Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck export reference is about From $25,806; MSRP is ¥18.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck?

Key specs of Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck suited for?

Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck differ from other variants in the same series?

Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck belongs to FotonQ5 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruiwo Q5 140 hp 4X2(6 wheels) 4 cubic meter concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
