Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.73 cbm Concrete Mixer Truck
EXW
From $53,056
Export quote
Sinotruk HOWO T5G medium-duty truck concrete mixer
Main model photos
606 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.73 cbm Concrete Mixer Truck | 8x4 / 340hp / China V | From $53,056 | |
| Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck | 6x4 / 340hp / China V | From $55,556 | |
| Sinotruk HOWO T5G Regulation Edition 340 hp 8X4(12 wheels) Concrete Mixer Truck (China VI) | 8x4 / 340hp / China VI | ||
| Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck | 8x4 / 340hp / China V | ||
| Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis | 8x4 / 340hp / China V |

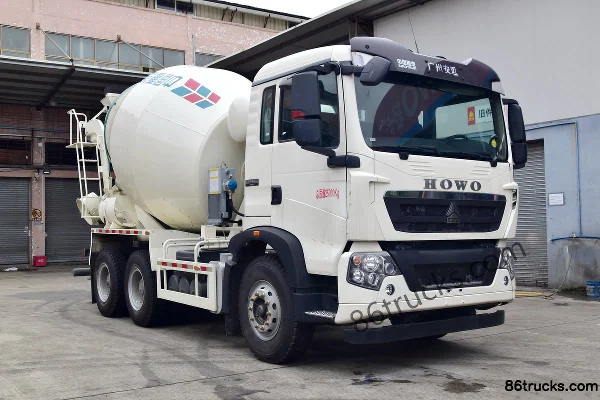

Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck
EXW
From $55,556
Export quote

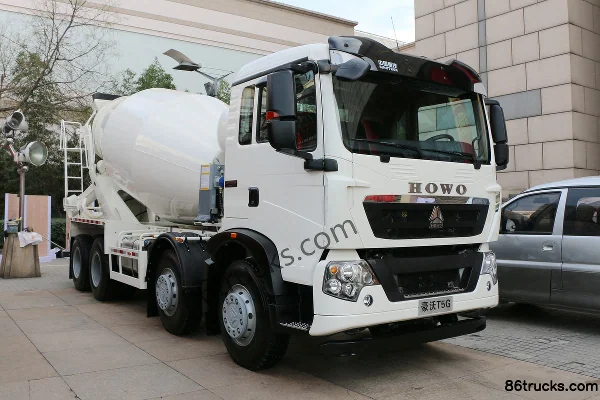

Sinotruk HOWO T5G Regulation Edition 340 hp 8X4(12 wheels) Concrete Mixer Truck (China VI)
EXW
Export quote

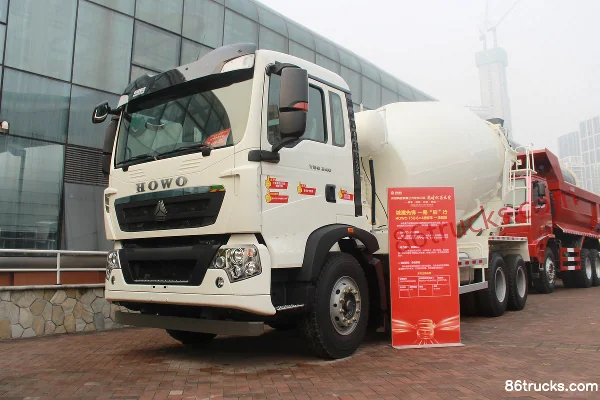

Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck
EXW
Export quote
Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.22×2.55×3.995 / 8.335×2.496×3.85 / 9.83×2.496×3.85 / 8.955×2.496×3.035 / 9.925×2.496×3.98m
Drive type: 8X4 / 6X4
Truck Type: Concrete mixer truck
Vehicle origin: Tangshan, Hebei / Jinan, Shandong
Front/rear track width: Front: 2035/2035mm; Rear: 1850/1850 / Front track: 2015/2015mm; Rear track: 1850/1850mm
Wheelbase: 1800+3050+1350 / 3175+1400 / 1800+3025+1400mm
Curb Weight: 13.99 / 11.78 / 13.42 / 8.9 / 14.2ton
Rated payload: 16.88 / 13.09 / 17.45 / 16.67ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.59 / 1.43/2.33 / 1.43/2.2 / 1.43/1.3 / 1.43/2.295m
Body Parameters
Mixing drum capacity: 7.73 / 5.99 / 7.99 / 7.7m³
Vehicle certification code: TZ5317GJBZGDE1 / ZZ5317GJBN306GE1 / ZZ5317GJBN306GD1
Body Brand: Yate Heavy Industry Brand / Sinotruk HOWO
Engine parameters
Engine Model: SinotrukMC07.34-50 / SinotrukMC07.34-60 / Sinotruk MC07.34-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V / China VI / China IV
Max output power: 248 / 250kW
Max hp: 340Horsepower
Rated speed: 2300 / 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / Inline, water-cooled, 4-stroke, turbocharged with intercooler / Water-cooled, 4-stroke, turbocharged intercooled
Chassis Specs
Chassis Series: HOWOT5G
Chassis Model: ZZ1317N306GE1 / ZZ1317N306GD1
Front axle description: H153 / HF7
Frame Dimensions: (8+5/300) / 8+5/300mm
rear axle description: ST16 self-adjusting arm dual rear axle / ST16 / ST16 axle
Axle ratio: 5.73
Leaf spring count: 11/11/10 / 11/11/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk 10-speed / SinotrukHW15710L / SinotrukHW13710L / Sinotruk HW10
Cab parameters
Cab: MAN TGS cab
Tire
Tire Size: 11.00R20 / 12R22.5,11.00R20
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Sinotruk HOWO Sinotruk HOWO T5G medium-duty truck concrete mixer truck?
Sinotruk HOWO Sinotruk HOWO T5G medium-duty truck is an export-oriented concrete mixer truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk HOWO T5G medium-duty truck concrete mixer?
Sinotruk HOWO T5G medium-duty truck concrete mixer export reference is about $53,056 – $55,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk HOWO T5G medium-duty truck concrete mixer cover?
Sinotruk HOWO T5G medium-duty truck concrete mixer mainly covers: Drive: 6x4 / 8x4; Horsepower: 340 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO T5G medium-duty truck concrete mixer?
For Sinotruk HOWO T5G medium-duty truck concrete mixer: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO T5G medium-duty truck concrete mixer include?
Sinotruk HOWO T5G medium-duty truck concrete mixer currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO T5G medium-duty truck concrete mixer?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
