Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck

Export reference
From $55,556
MSRP ¥40M CNY
Fuel: Diesel
Curb Weight:: 11.78ton
Wheelbase:: 3175+1400mm
Tire Size:: 11.00R20
Cab dimensions:: 8.335×2.496×3.85m
Truck Type:: concrete mixer truck
Rated payload: 13.09ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck is a concrete mixer truck featuring 13.09t payload, 11.78ton GVW, 6X4 (10 wheels) drive and 8.335×2.496×3.85m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.335×2.496×3.85m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3175+1400mm
Vehicle origin: Jinan, Shandong
Front/rear track width: Front track: 2015/2015mm; Rear track: 1850/1850mm
Curb Weight: 11.78ton
Rated payload: 13.09ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.33m
Body Parameters
Mixing drum capacity: 5.99m³
Vehicle certification code: ZZ5317GJBN306GE1
Body Brand: Sinotruk HOWO
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: HOWOT5G
Chassis Model: ZZ1317N306GE1
Front axle description: H153
Frame Dimensions: (8+5/300)mm
rear axle description: ST16 self-adjusting arm dual rear axle
Axle ratio: 5.73
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

Photos

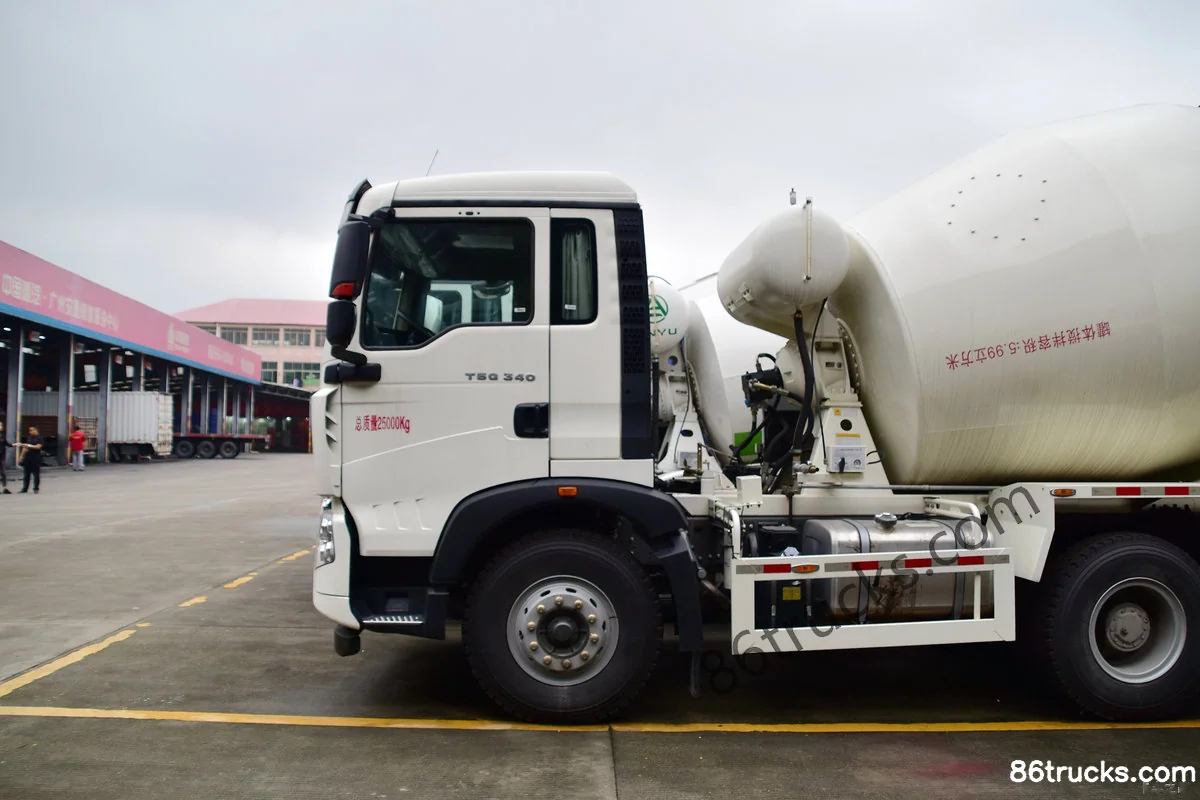

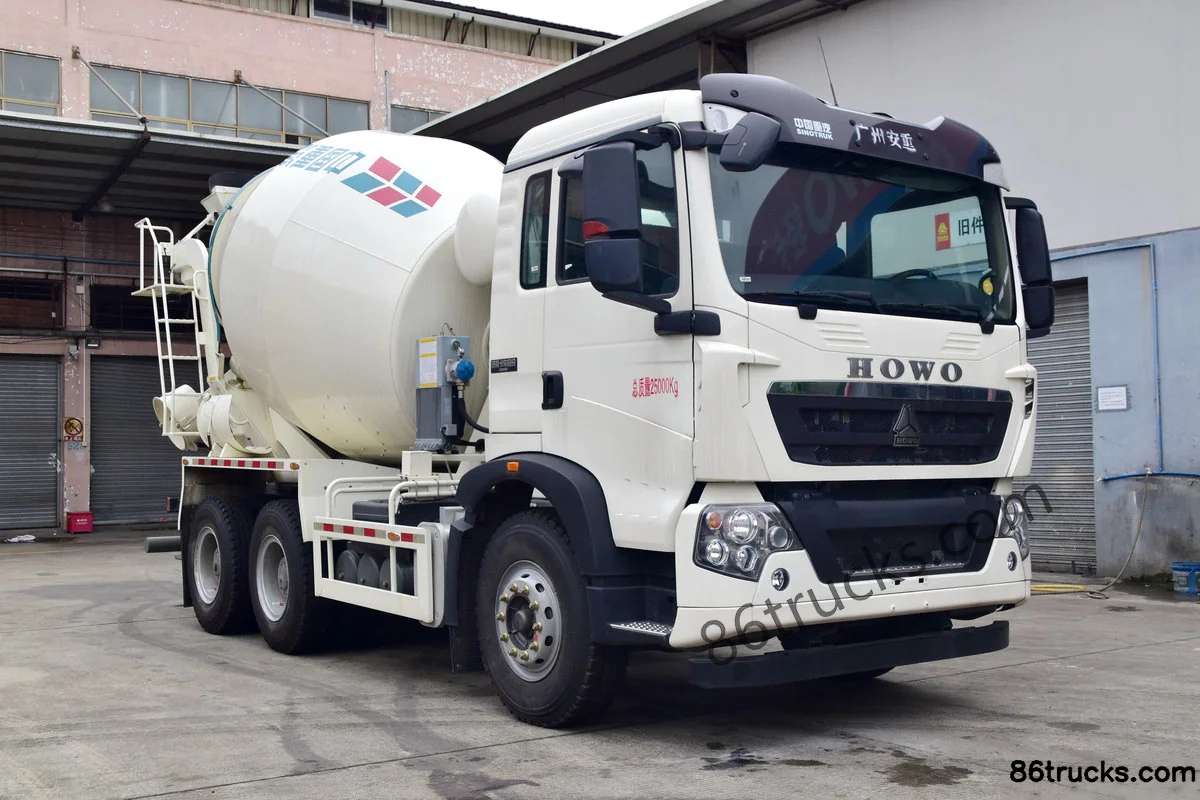

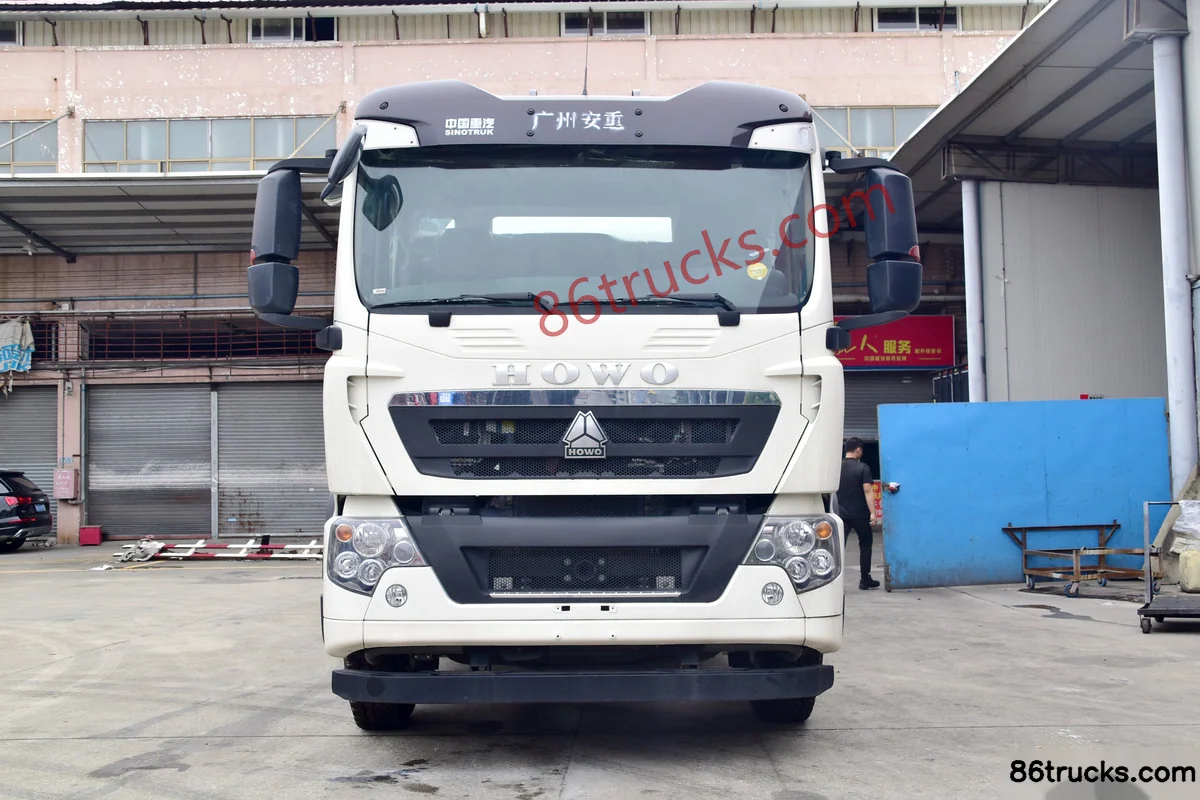

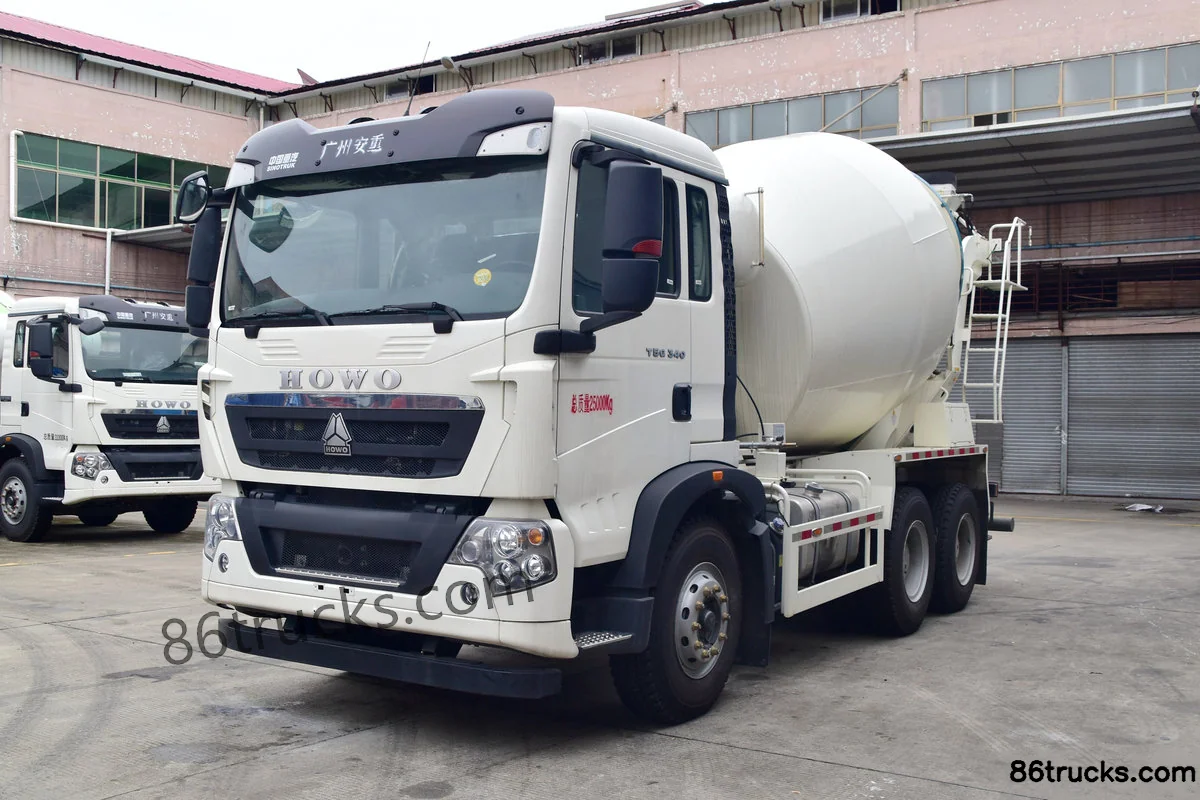

Exterior3

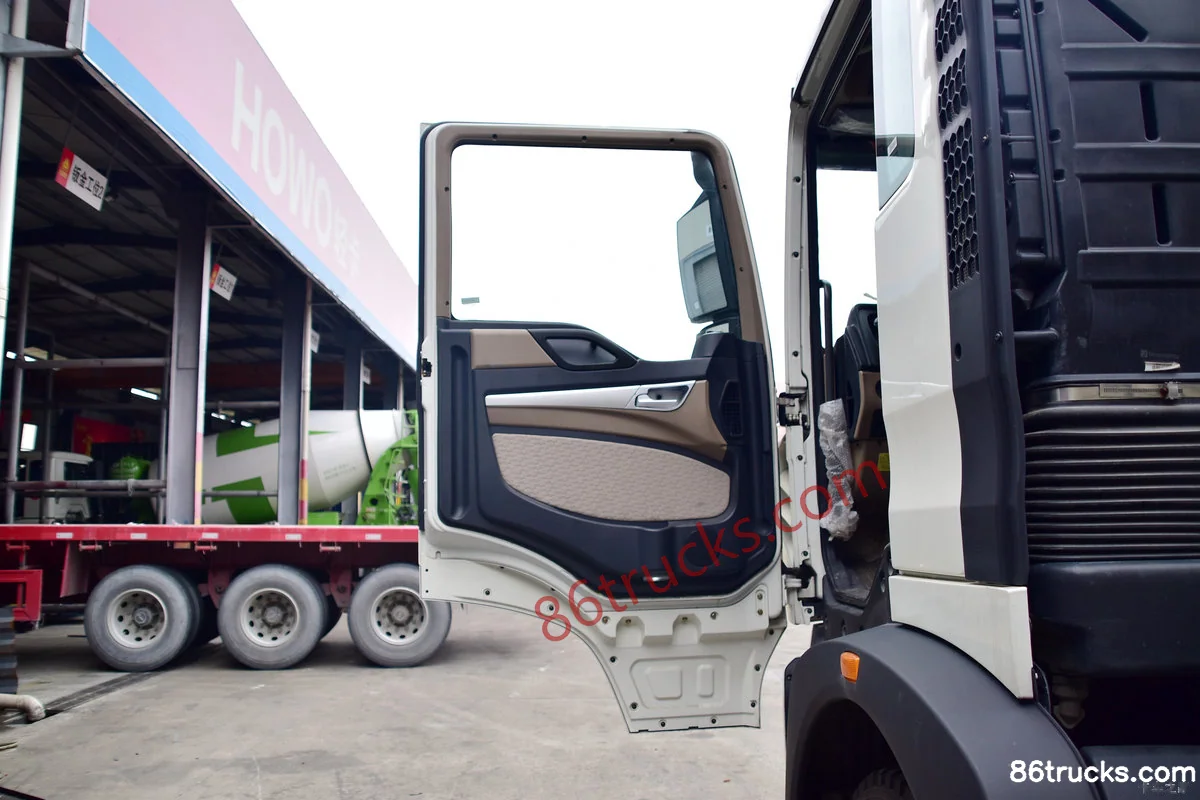

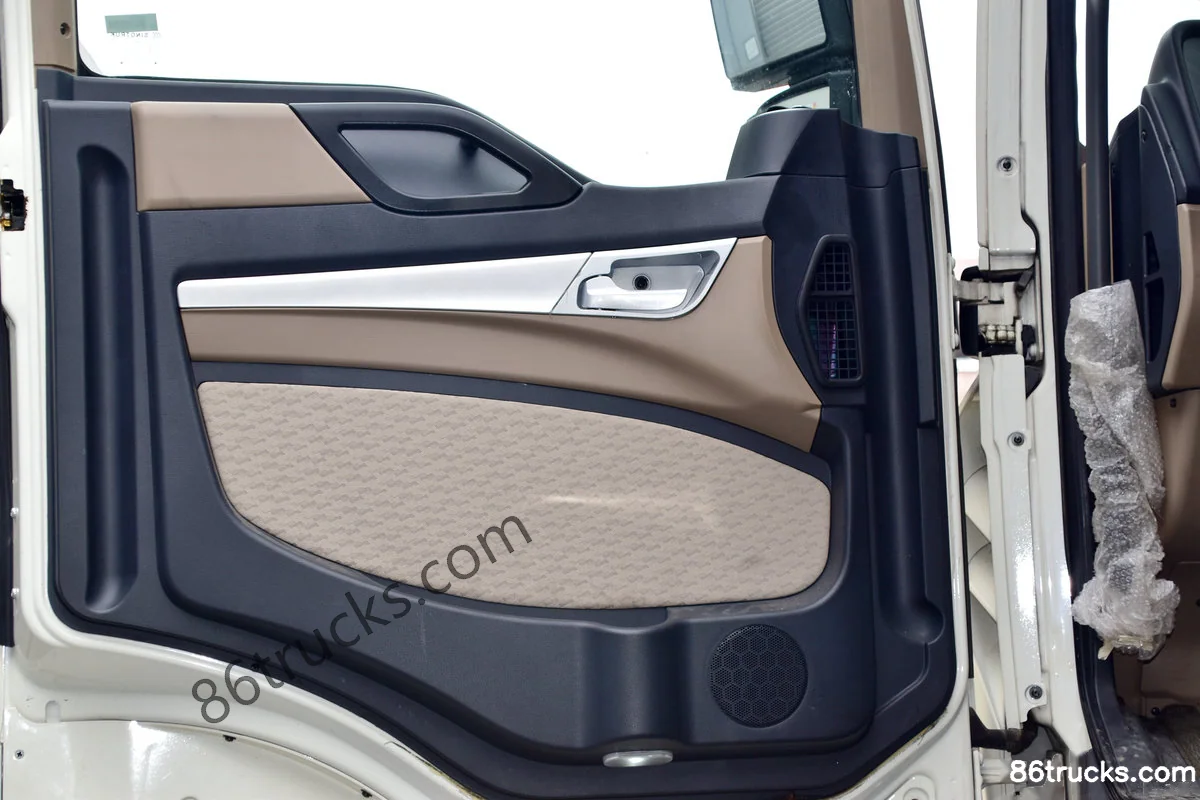

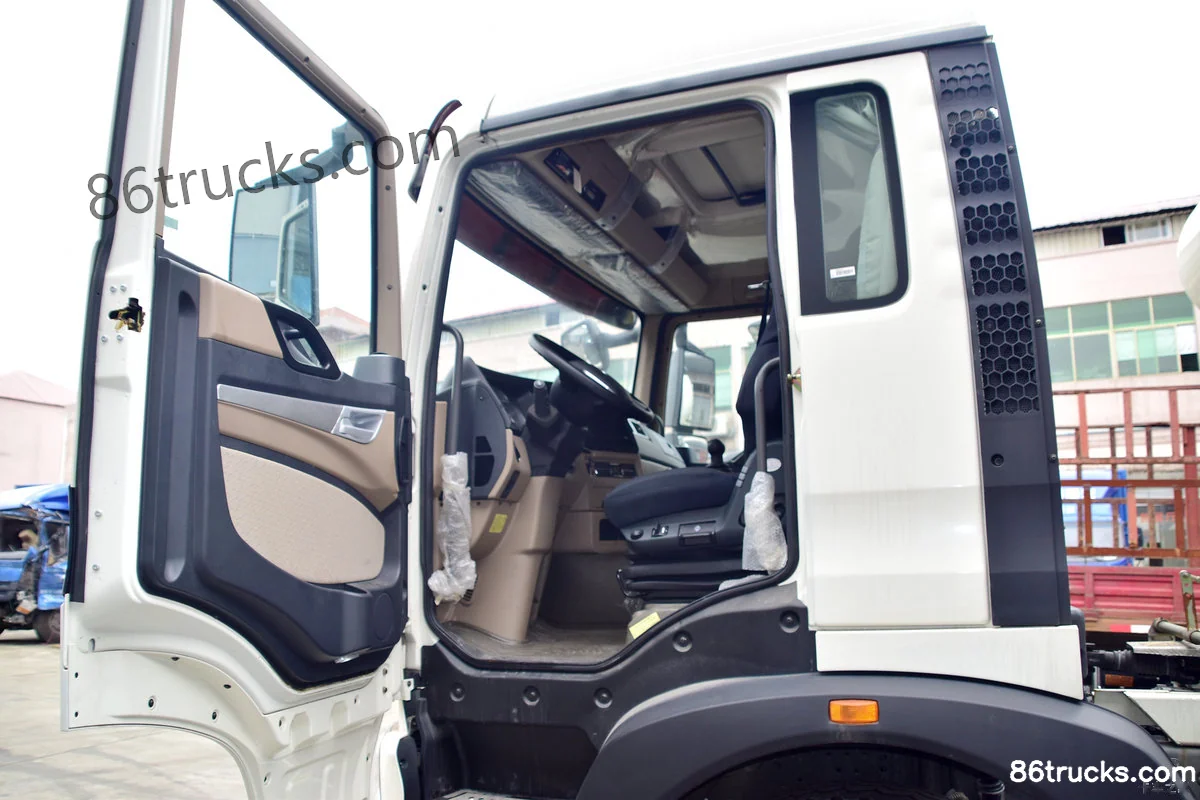

Cab3

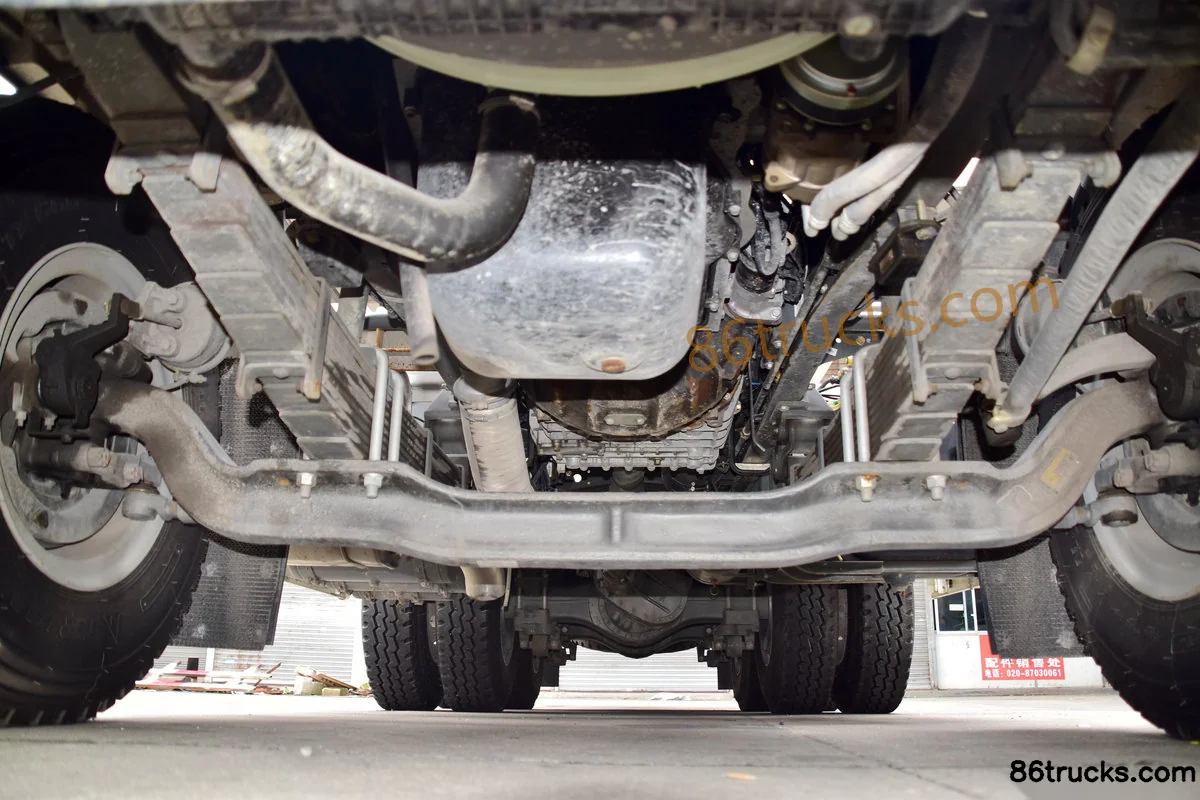

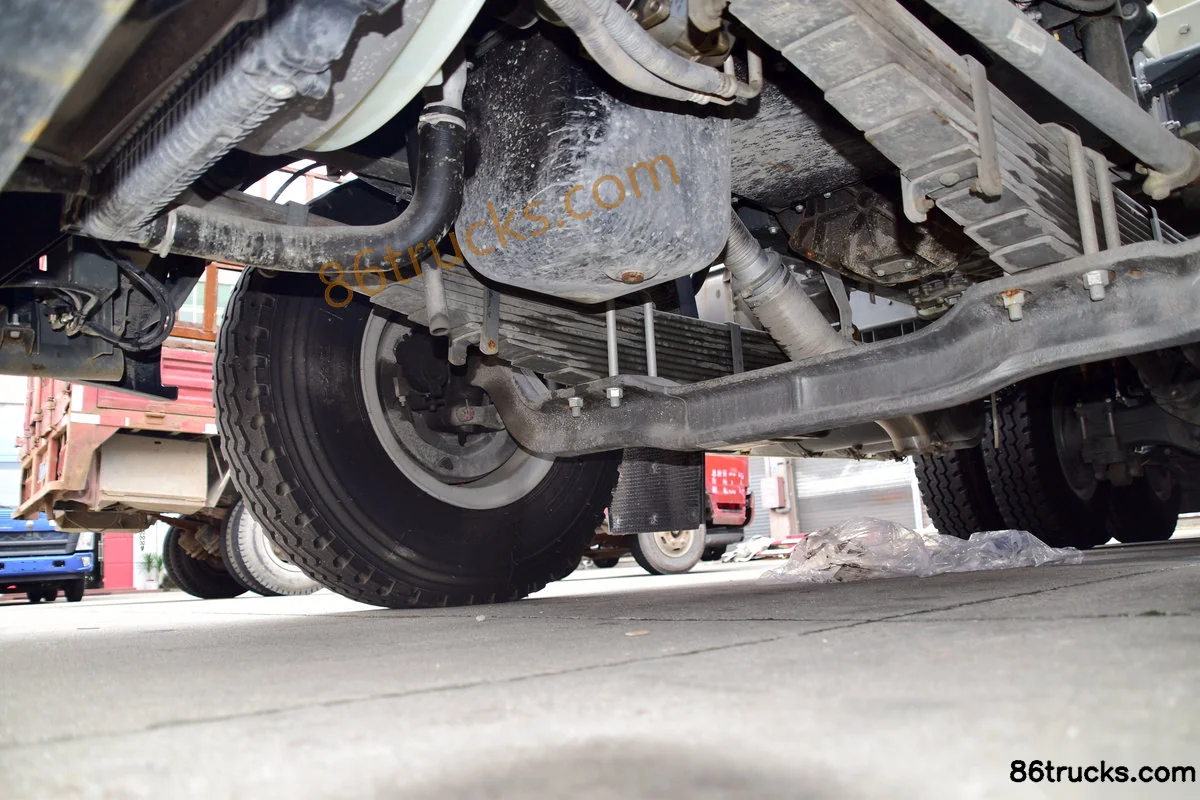

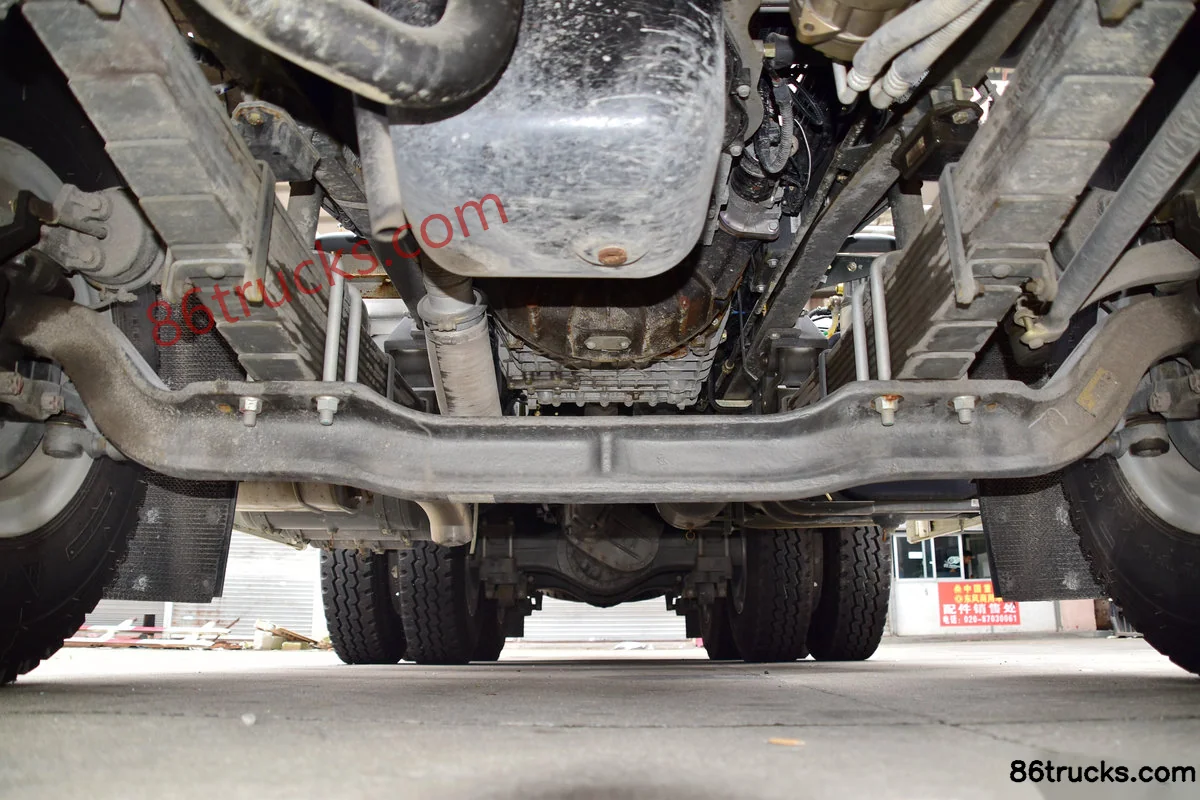

Chassis3

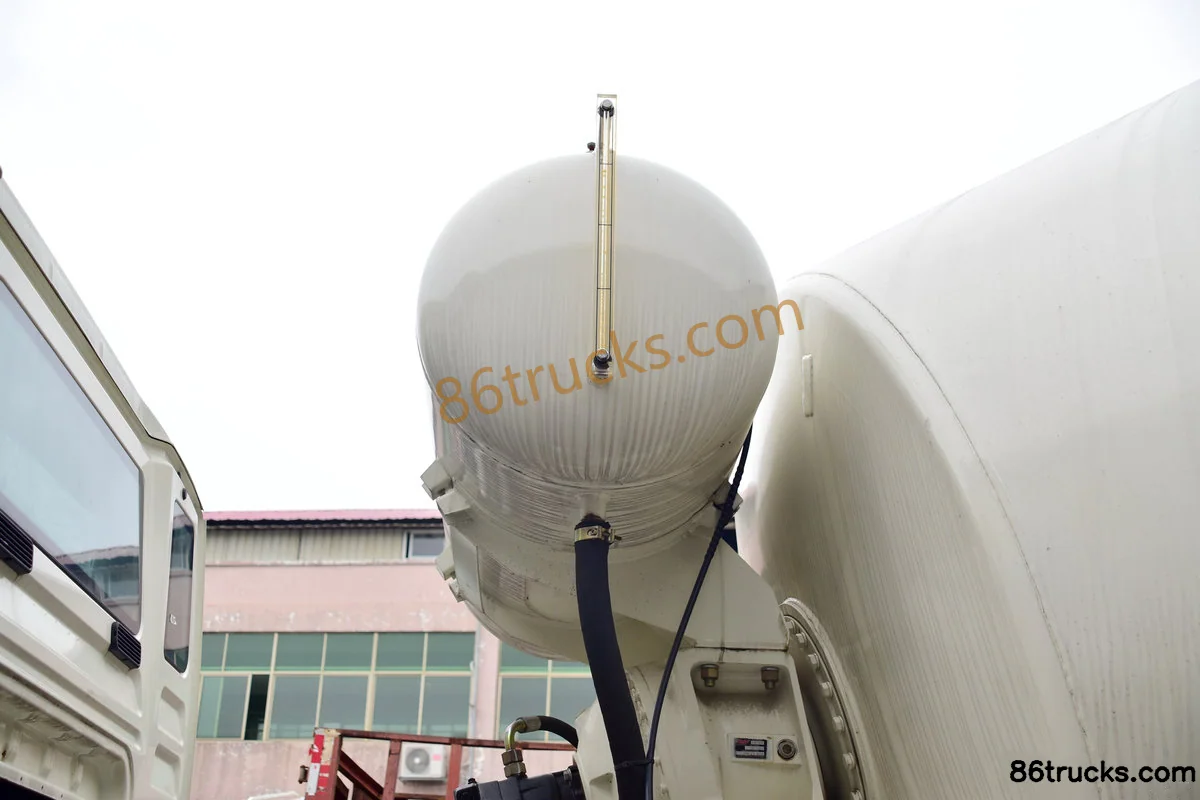

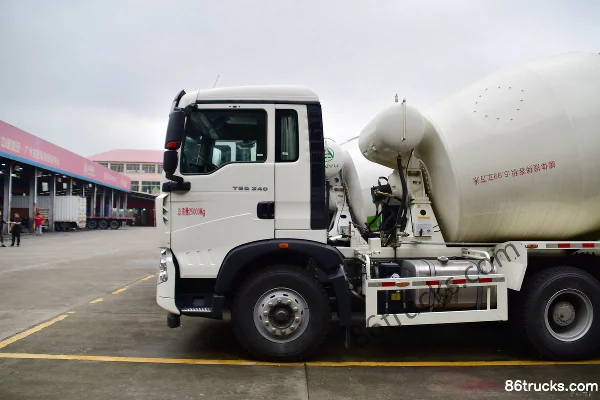

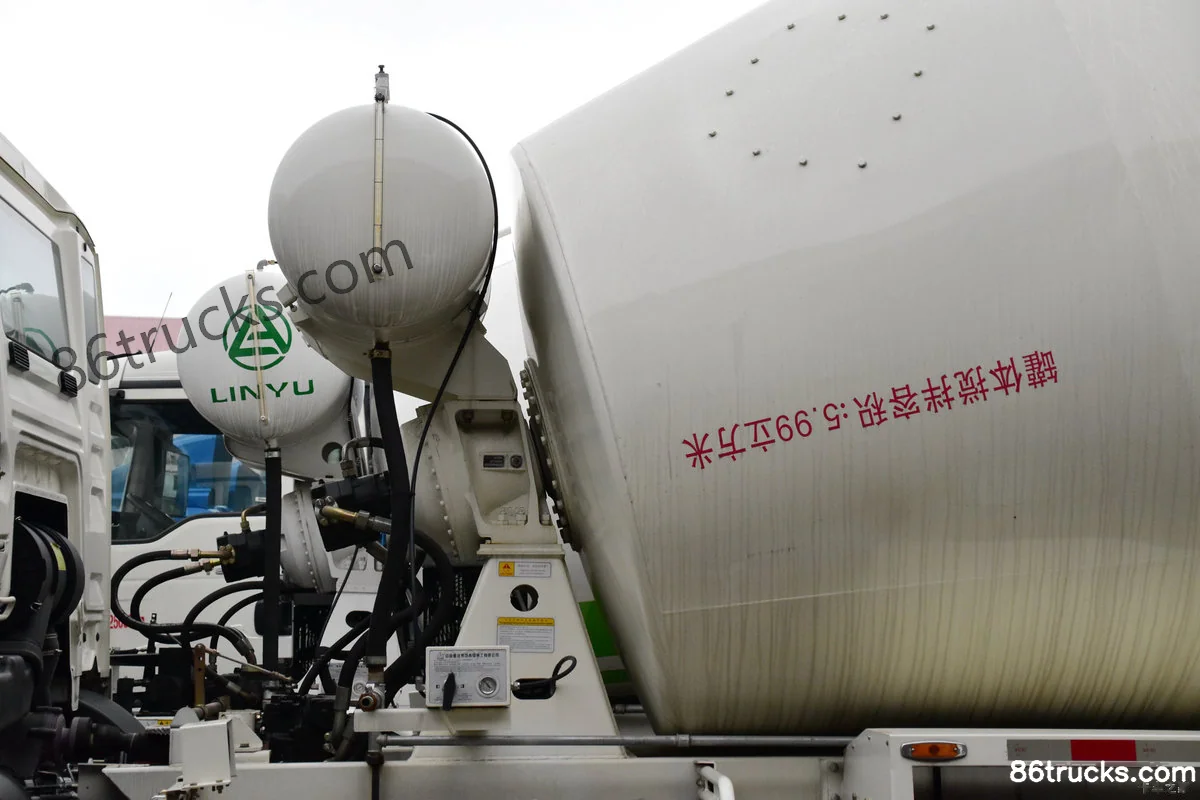

Body3

12 photos

FAQ

What is the export price of Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck, and what does it include?

Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck export reference is about From $55,556; MSRP is ¥40M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck?

Key specs of Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck: Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck suited for?

Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck differ from other variants in the same series?

Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck belongs to Sinotruk HOWO T5G medium-duty truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 340 hp 6X4(10 wheels) 5.99m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
