Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis

Export reference
MSRP N/A
Curb Weight:: 8.9ton
Wheelbase:: 1800+3025+1400mm
Tire Size:: 11.00R20
Cab dimensions:: 8.955×2.496×3.035m
Truck Type:: Concrete mixer truck
Front/rear track width:: Front track: 2015/2015mm; Rear track: 1850/1850mm
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V
Fuel Diesel

Overview

The Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis is a concrete mixer truck featuring 8.9ton GVW, 8X4 (12 wheels) drive and 8.955×2.496×3.035m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.955×2.496×3.035m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3025+1400mm
Front/rear track width: Front track: 2015/2015mm; Rear track: 1850/1850mm
Curb Weight: 8.9ton
Max. speed: 82km/h
Front/rear suspension: 1.43/1.3m
Body Parameters
Mixing drum capacity: 7.99m³
Vehicle certification code: ZZ5317GJBN306GE1
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: HOWOT5G
Chassis Model: ZZ1317N306GE1
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW10
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

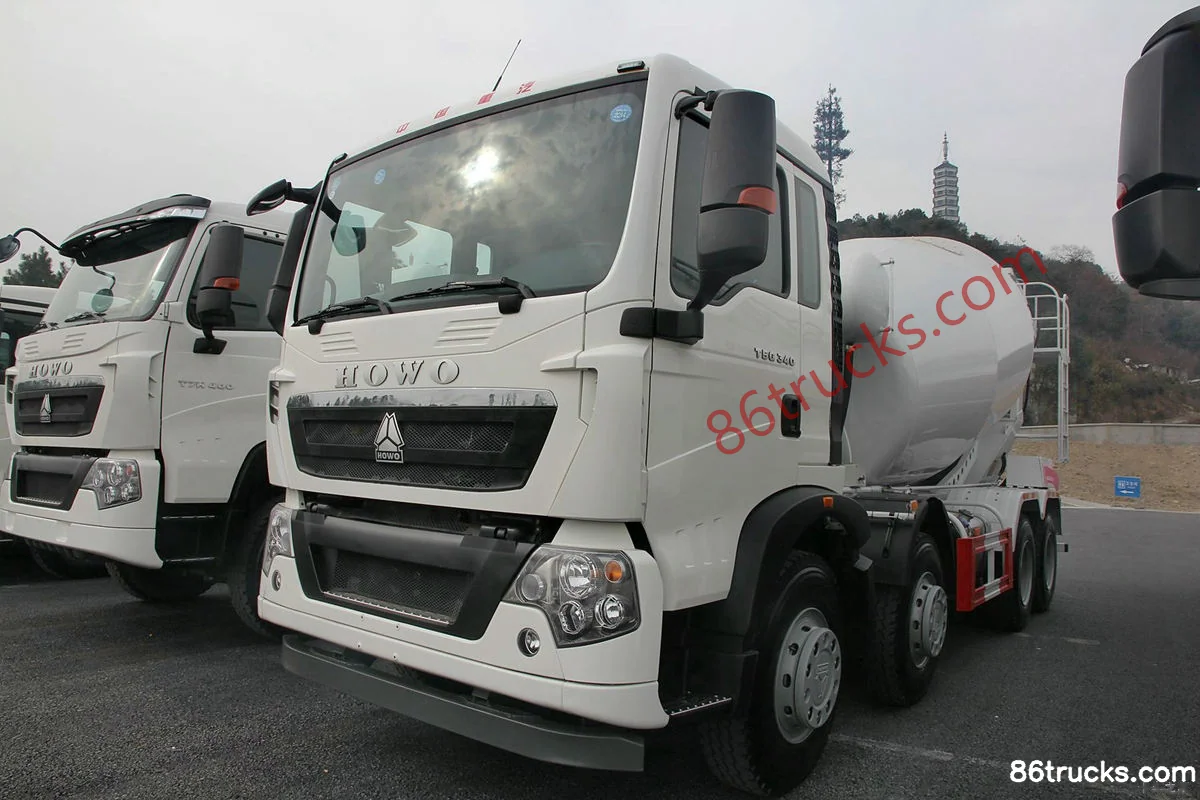

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis?

Key specs of Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis suited for?

Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis differ from other variants in the same series?

Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis belongs to Sinotruk HOWO T5G medium-duty truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.99m³ concrete mixer truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
