Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.42ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 12R22.5,11.00R20
Cab dimensions:: 9.83×2.496×3.85m
Truck Type:: concrete mixer truck
Rated payload: 17.45ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck is a concrete mixer truck featuring 17.45t payload, 13.42ton GVW, 8X4 (12 wheels) drive and MAN TGS cab cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.83×2.496×3.85m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Jinan, Shandong
Front/rear track width: Front track: 2015/2015mm; Rear track: 1850/1850mm
Wheelbase: 1800+3050+1350mm
Curb Weight: 13.42ton
Rated payload: 17.45ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.2m
Body Parameters
Mixing drum capacity: 7.99m³
Vehicle certification code: ZZ5317GJBN306GE1
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Chassis Specs
Chassis Series: HOWOT5G
Chassis Model: ZZ1317N306GE1
Front axle description: H153
Frame Dimensions: 8+5/300mm
rear axle description: ST16
Axle ratio: 5.73
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW13710L
Cab parameters
Cab: MAN TGS cab
Tire
Tire Size: 12R22.5,11.00R20
Number of tires: 12pcs

Photos

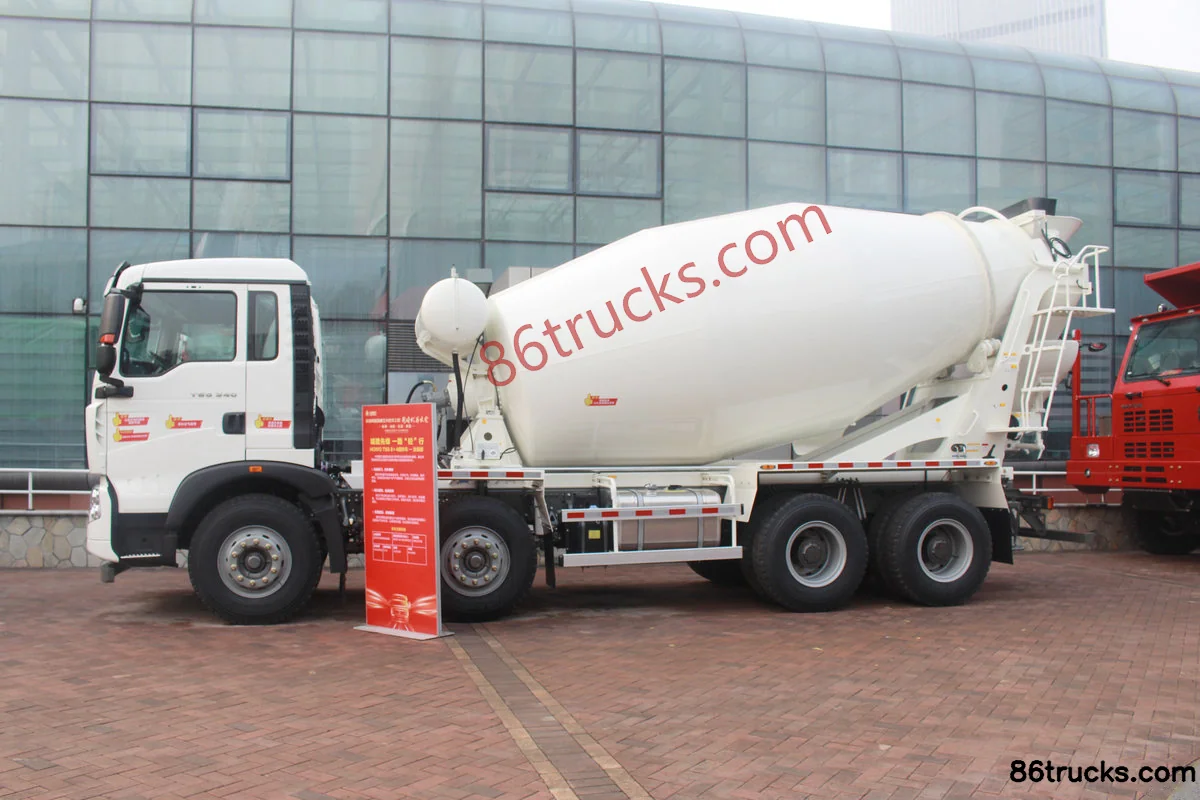

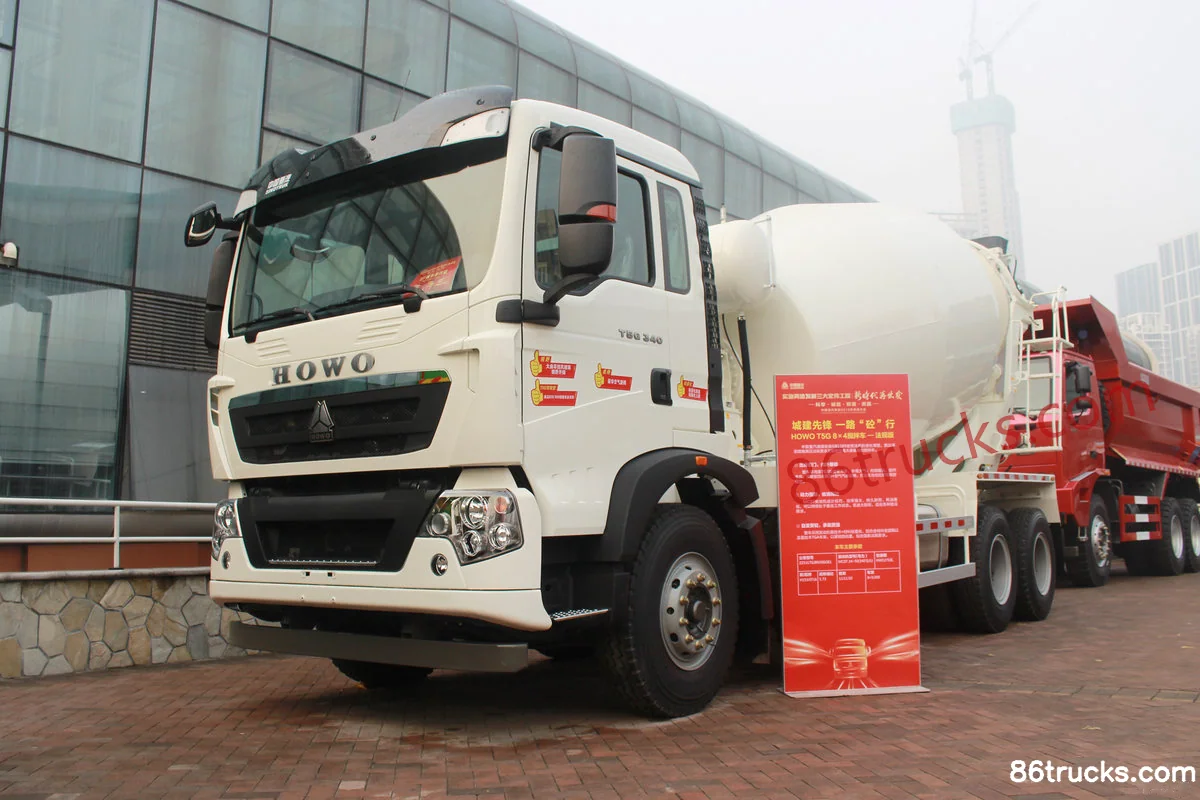

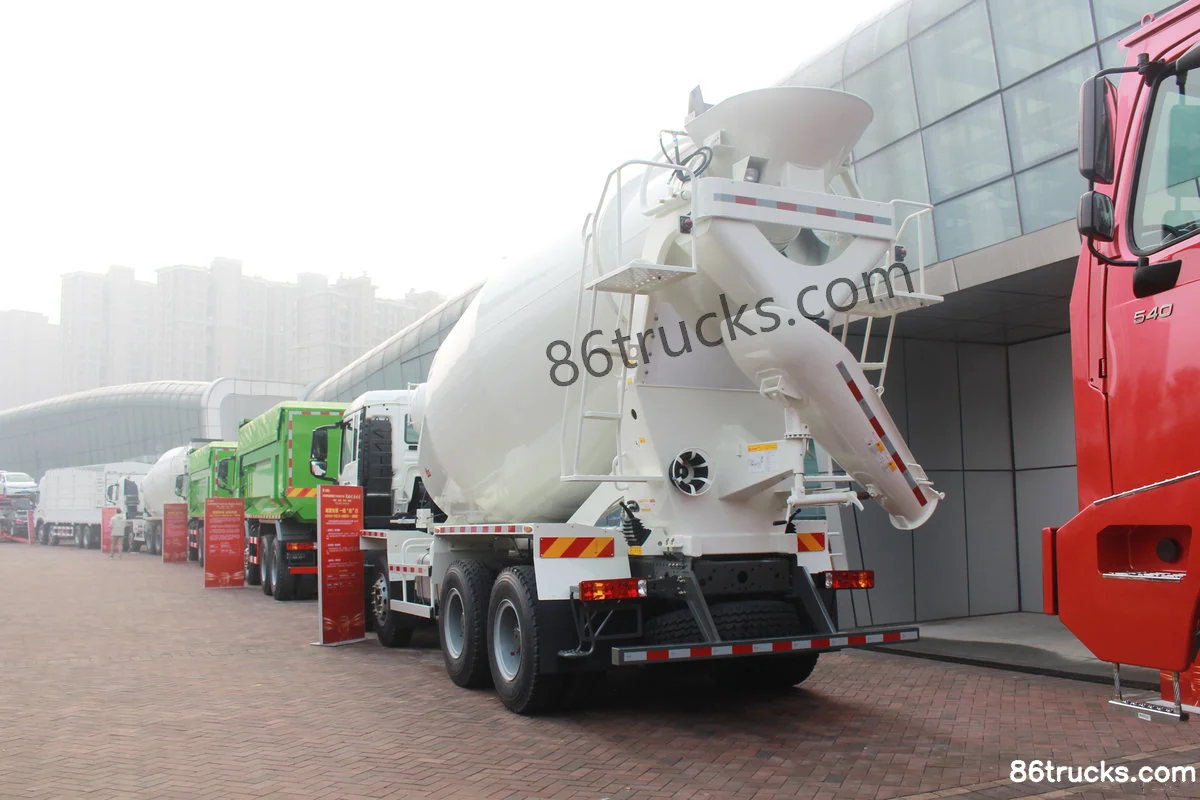

Exterior3

Cab3

6 photos

FAQ

What emission standard does Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck?

Key specs of Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck suited for?

Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck differ from other variants in the same series?

Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck belongs to Sinotruk HOWO T5G medium-duty truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G Regulation Edition 340hp 8X4(12 wheels) 7.99m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
