SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.87ton
Wheelbase:: 1800+3000+1400mm
Tire Size:: 12R22.5 18PR
Cab dimensions:: 10.32×2.550×3.995m
Truck Type:: Concrete mixer truck
Rated payload: 17ton
Drive 8X4 (12 wheels)
Horsepower 350
Emission China VI

Overview

The CIMC Lingyu SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand) is a concrete mixer truck featuring 17t payload, 13.87ton GVW, 8X4 (12 wheels) drive and M3000S cab. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.32×2.550×3.995m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Luoyang, Henan
Front/rear track width: Front: 2036/2036mm; Rear: 1860/1860
Wheelbase: 1800+3000+1400mm
Curb Weight: 13.87ton
Rated payload: 17ton
Max. speed: 89km/h
Front/rear suspension: 1.525/2.595m
Body Parameters
Mixing drum capacity: 7.79m³
Vehicle certification code: CLY5314GJB30E66
Body Brand: CIMC Lingyu
Engine parameters
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Chassis Specs
Chassis Series: Delong M3000S
Chassis Model: SX1319MB6F1
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear 10-Speed
Cab parameters
Cab: M3000S
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs

Photos

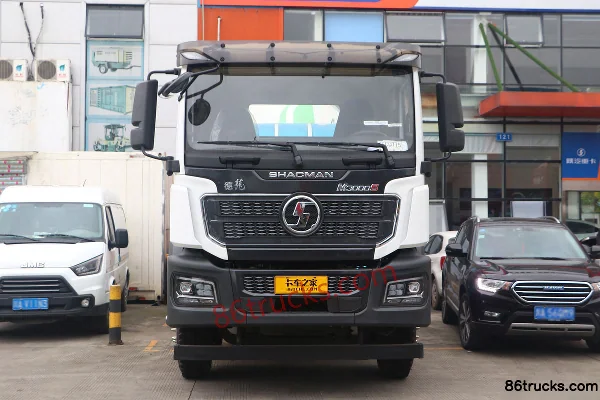

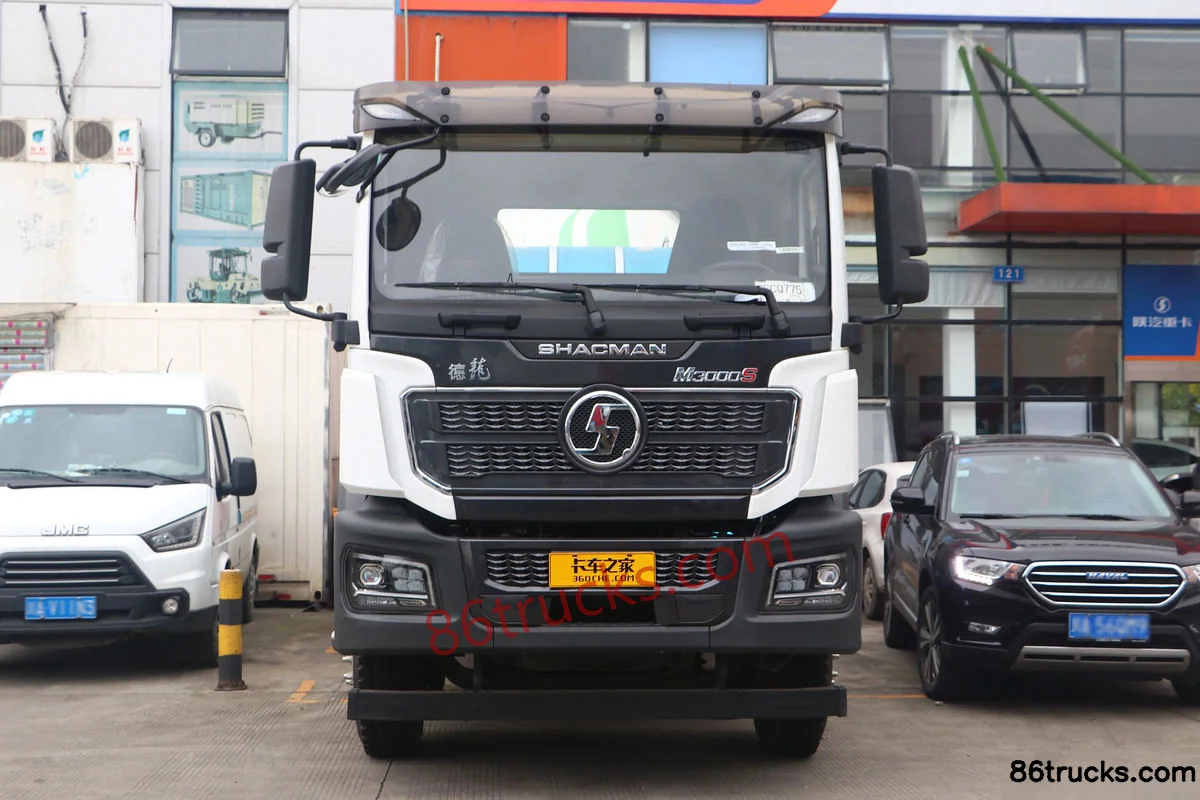

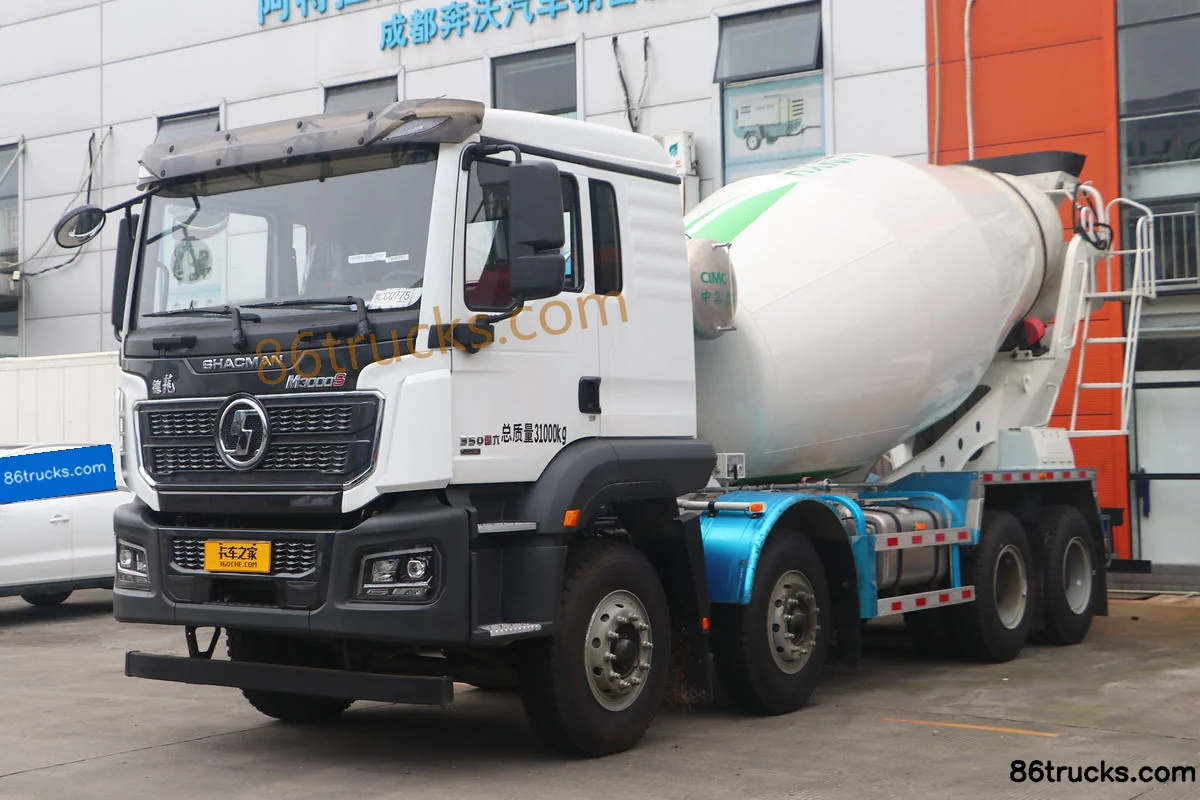

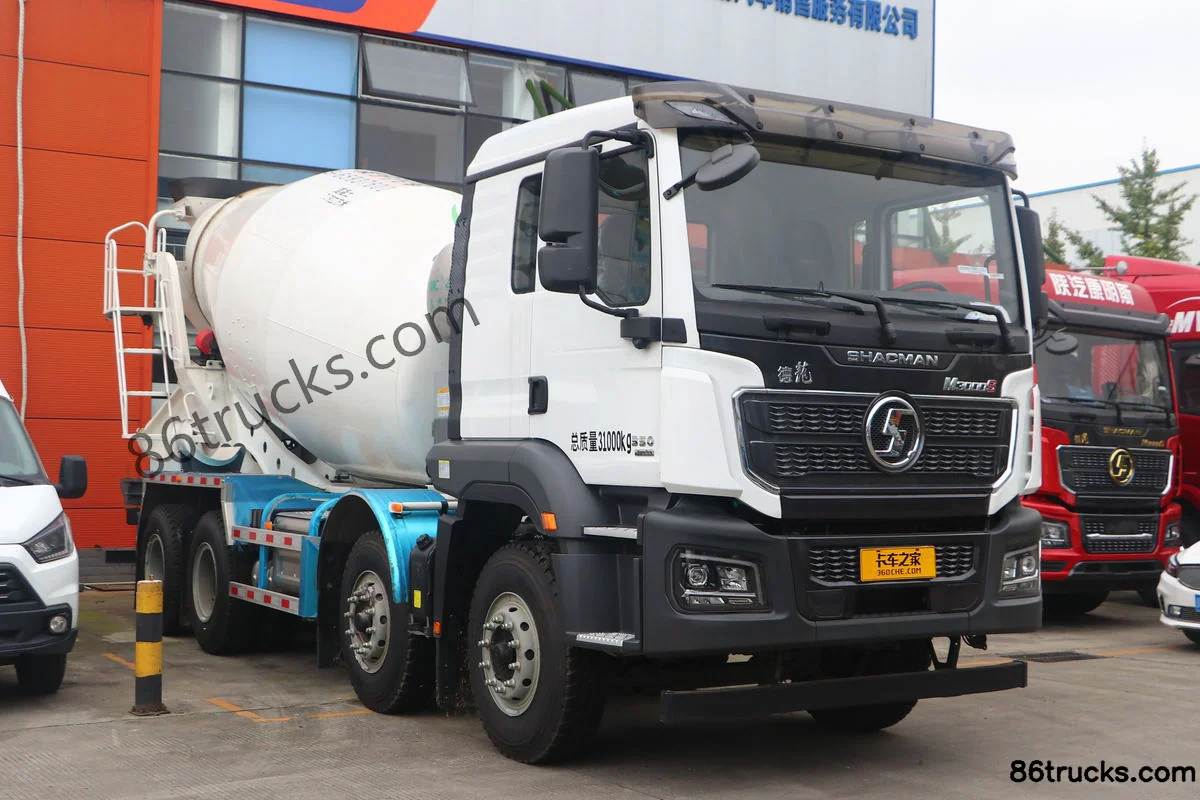

Exterior3

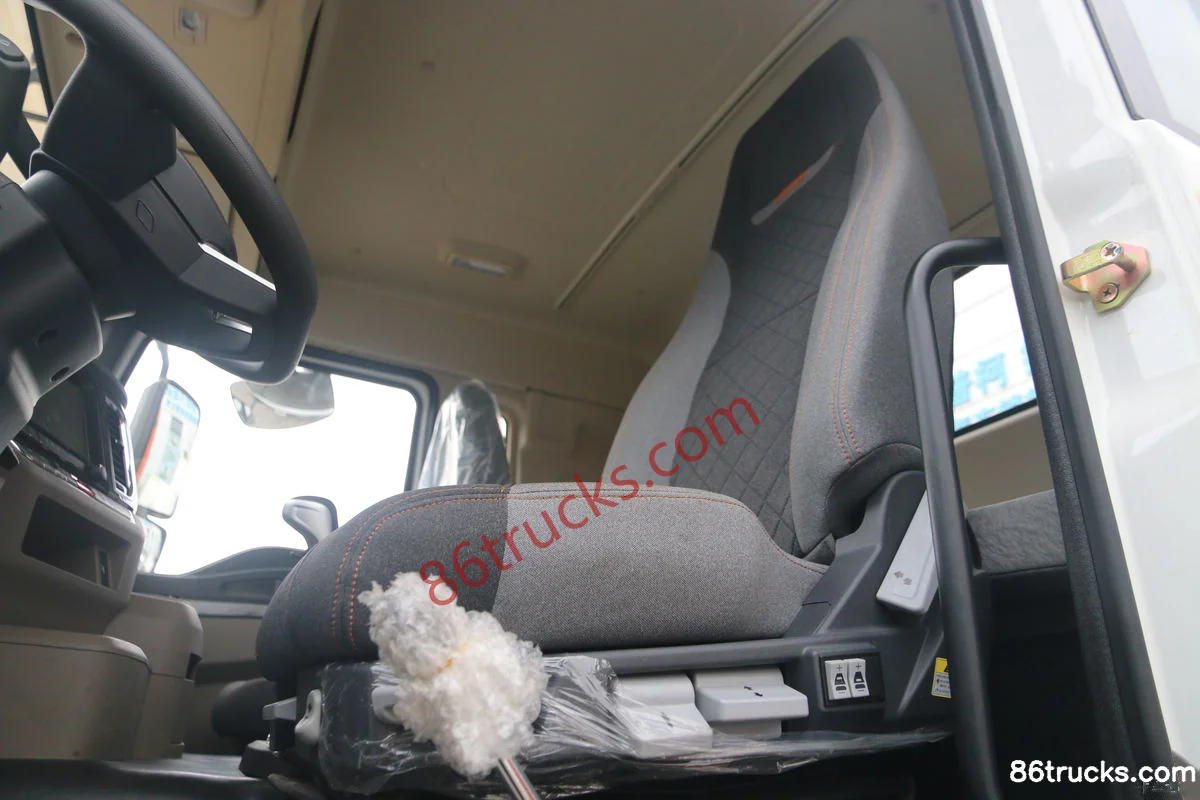

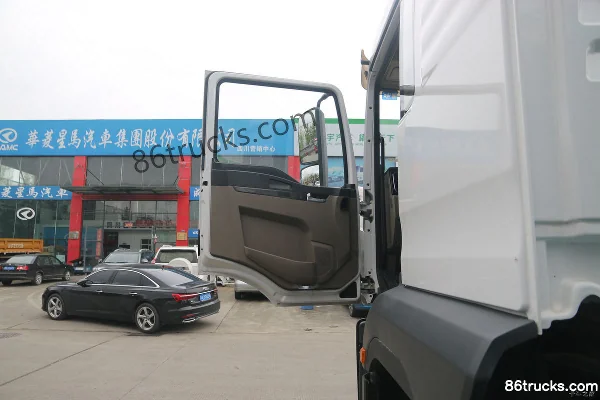

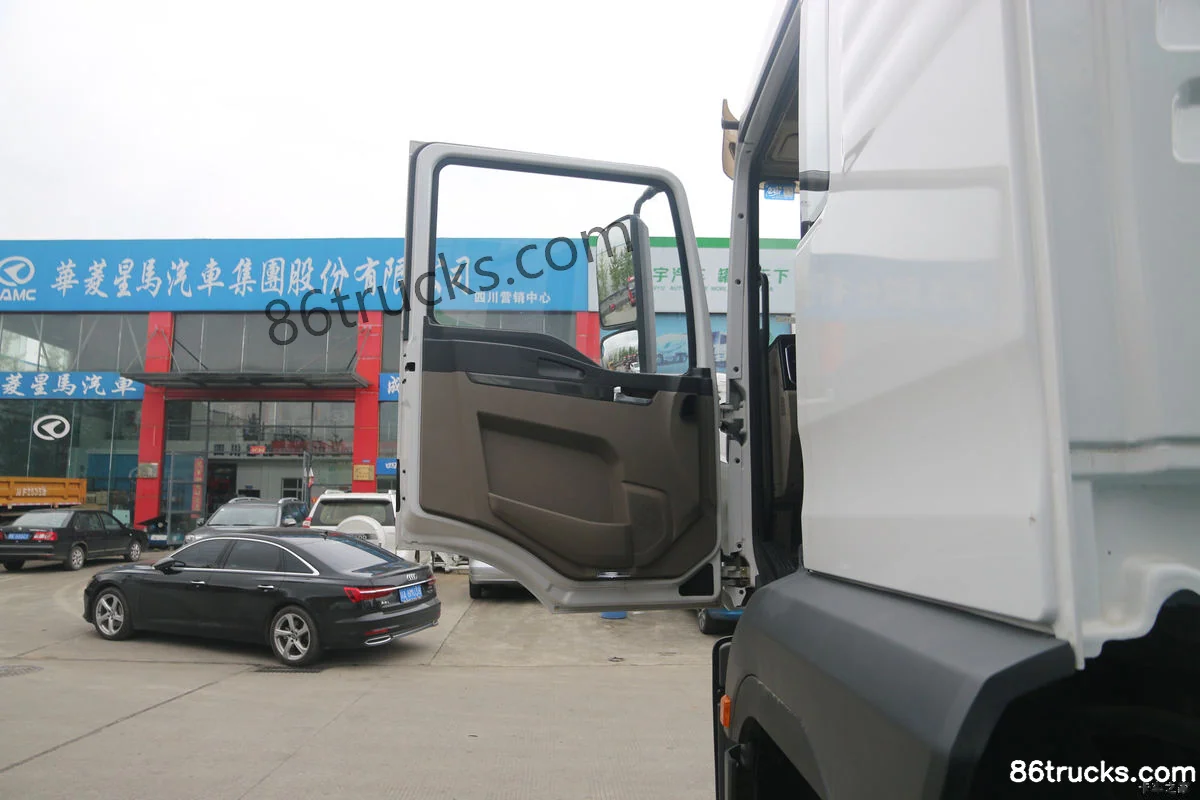

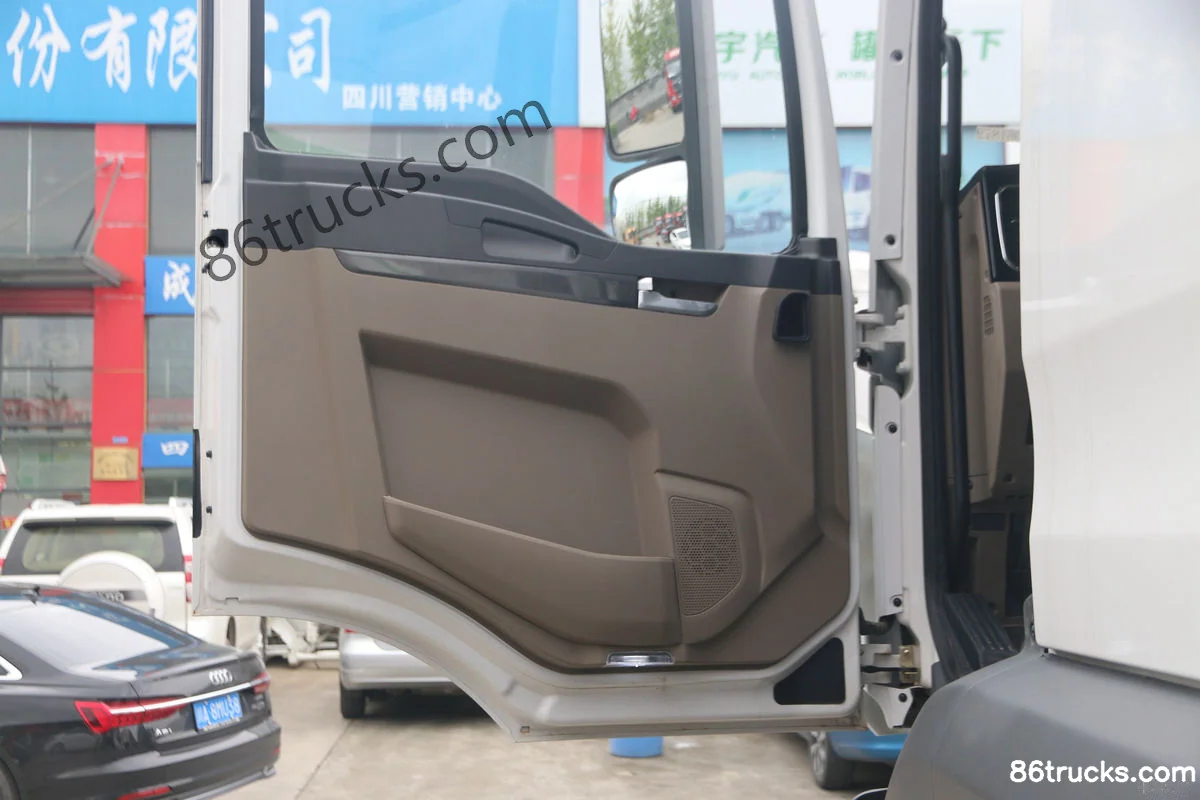

Cab3

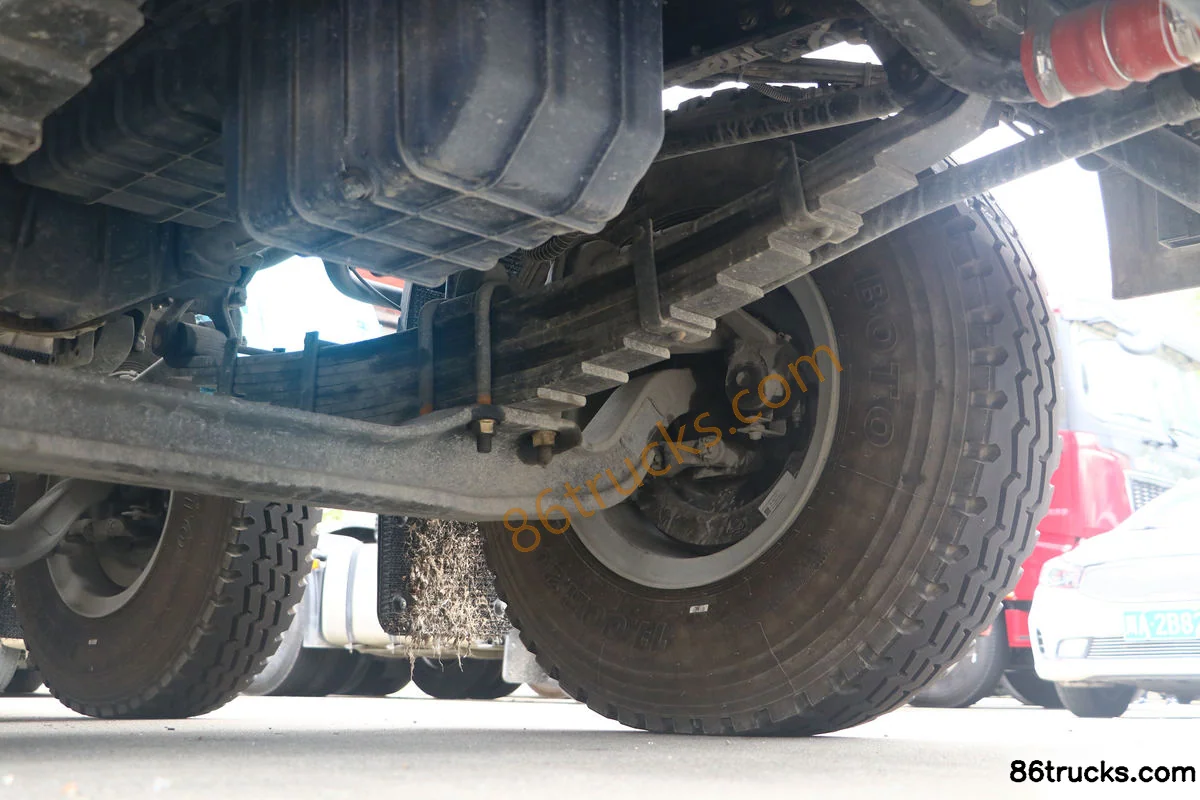

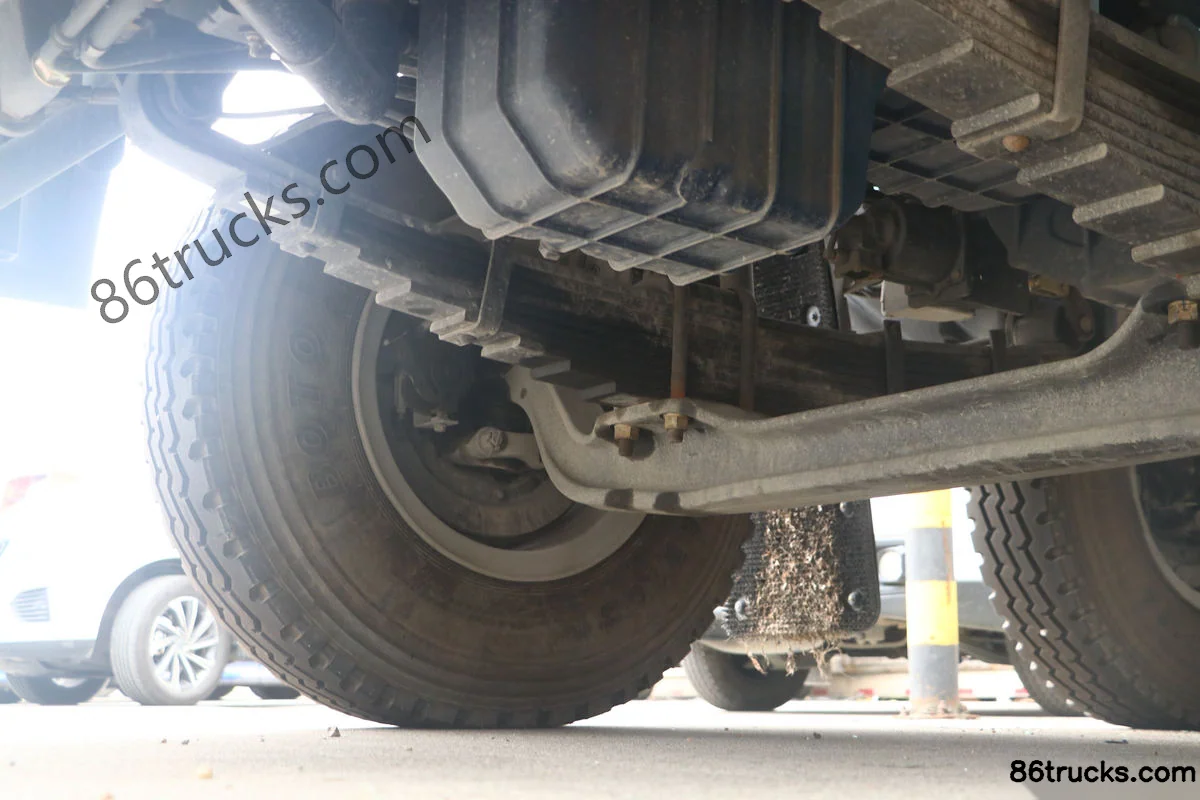

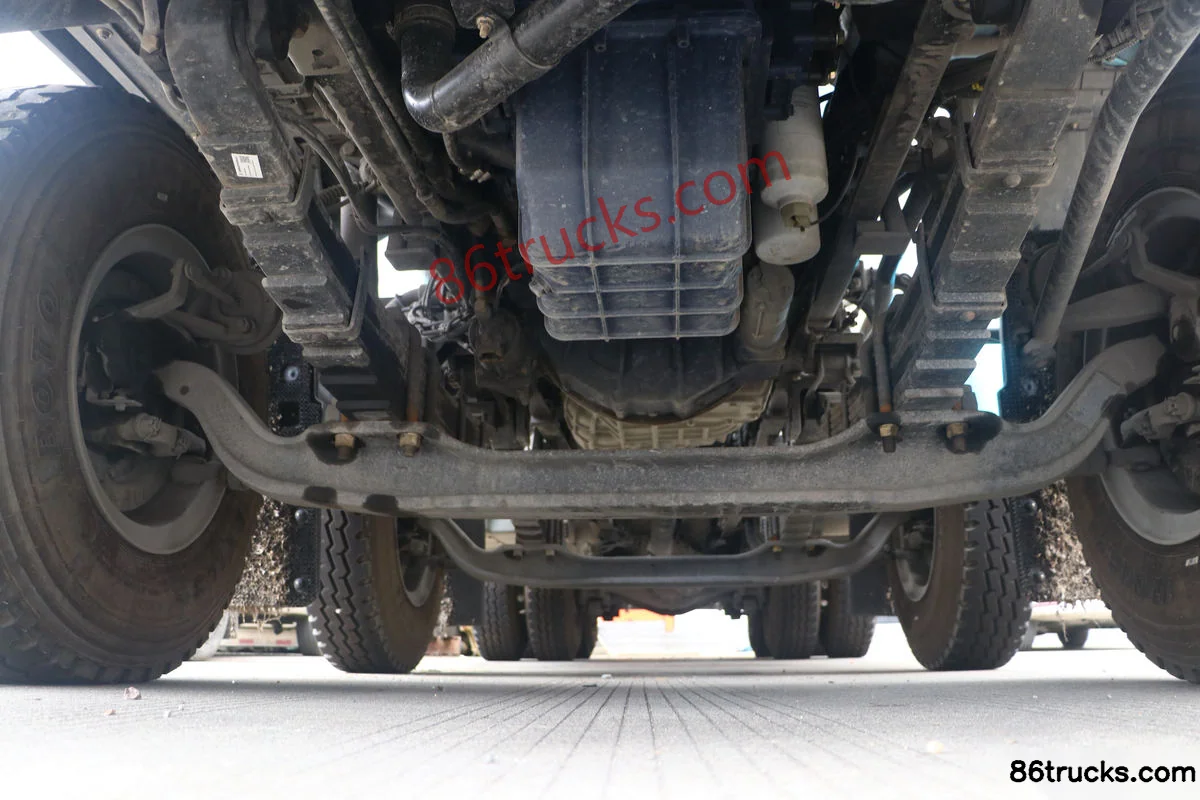

Chassis3

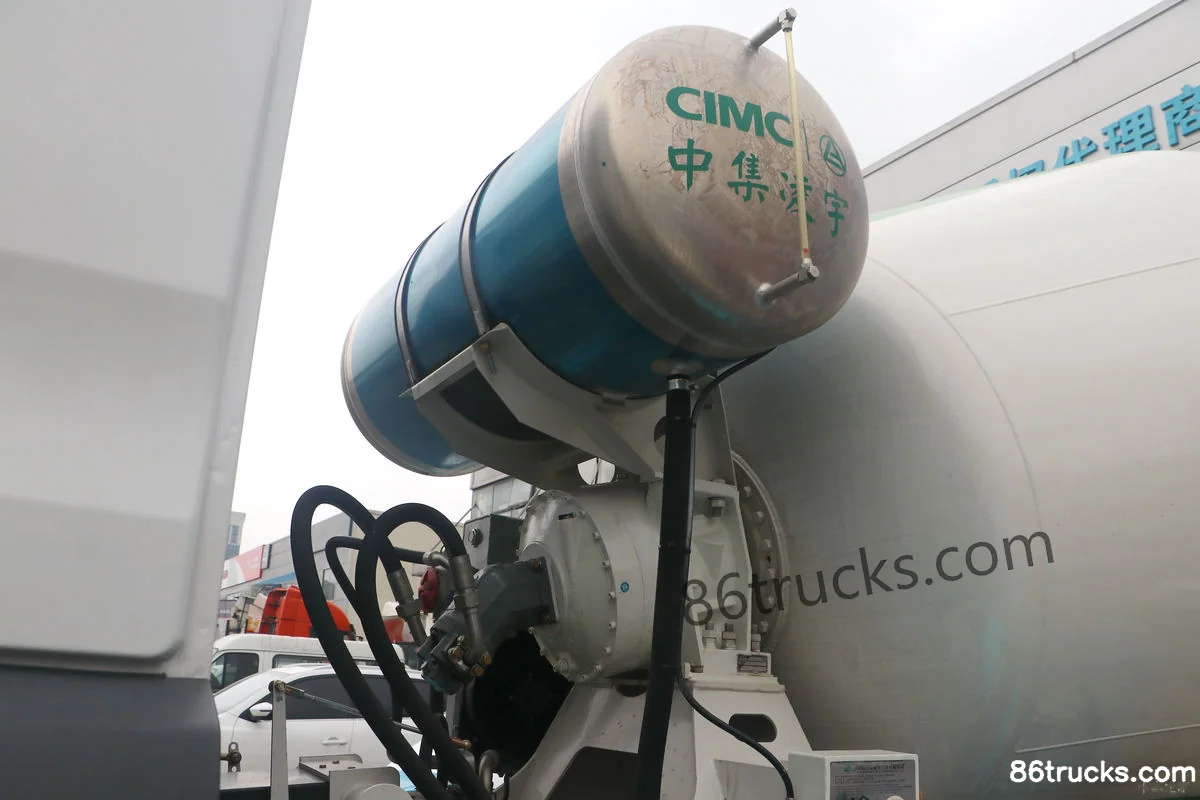

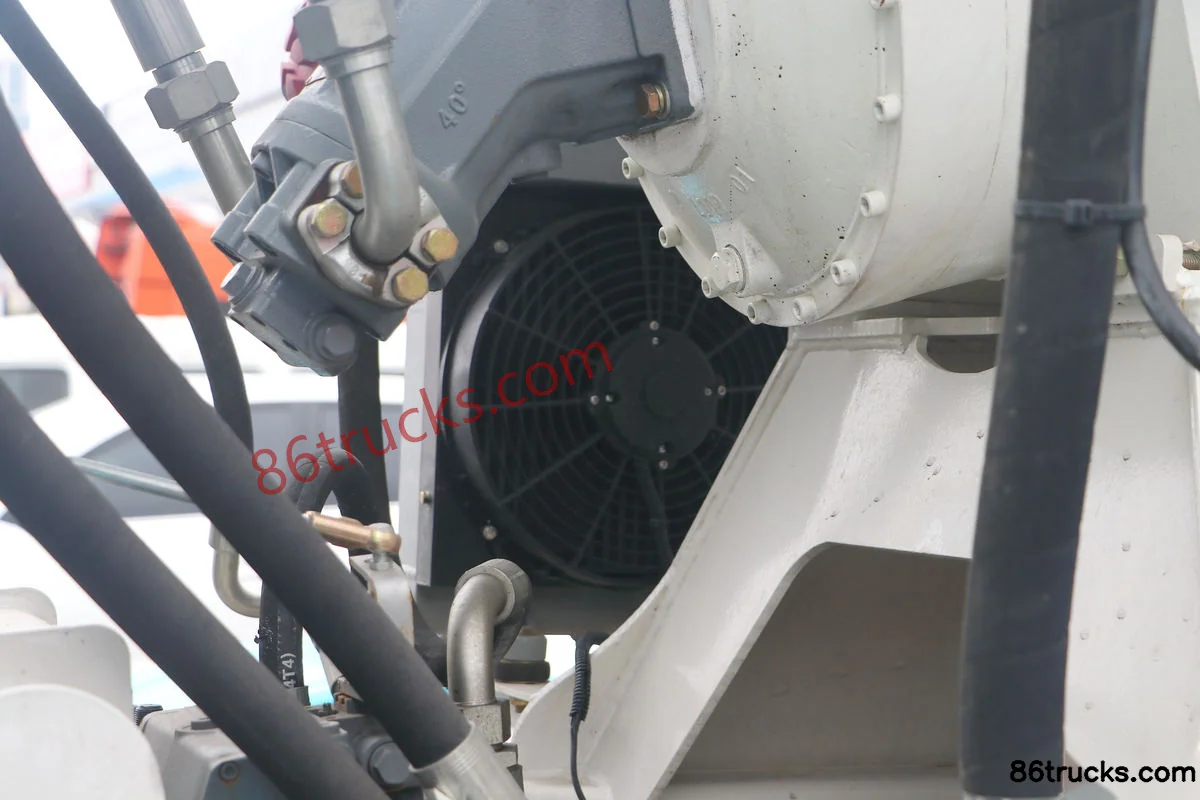

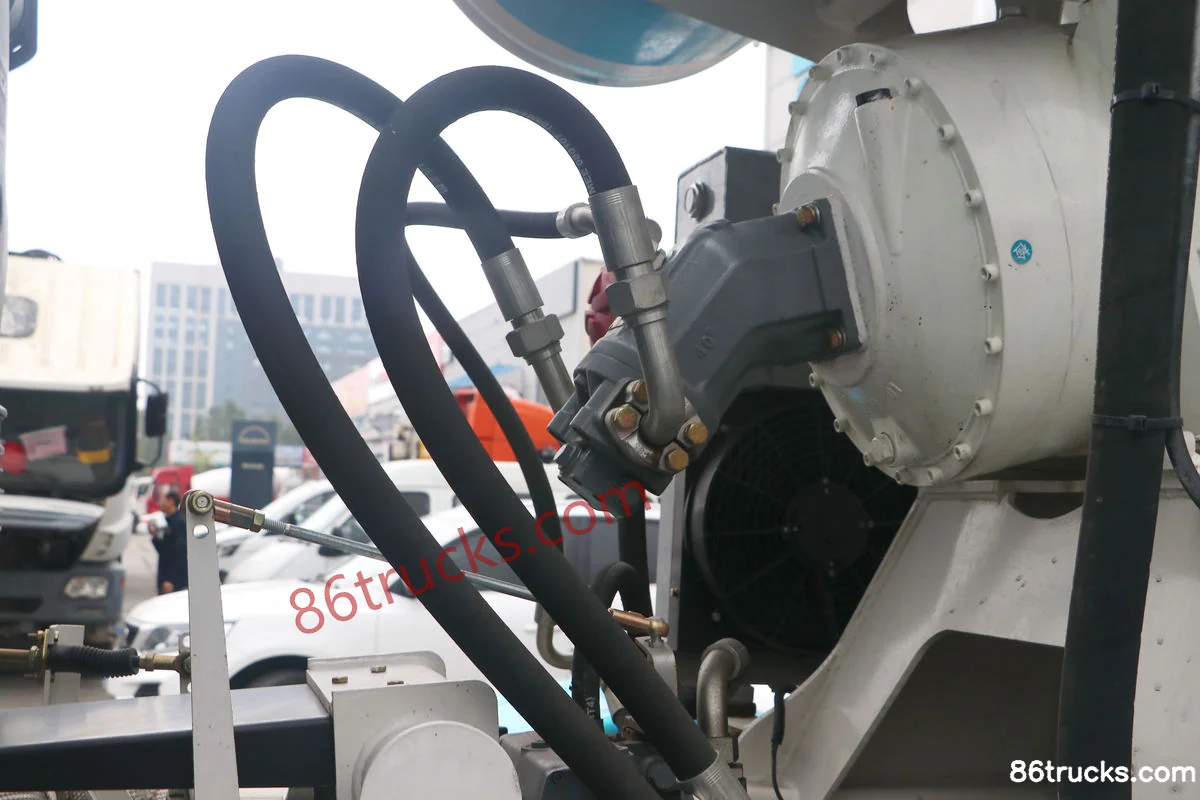

Body3

12 photos

FAQ

What emission standard does SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand)?

Key specs of SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand) suited for?

SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand) differ from other variants in the same series?

SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand) belongs to CIMC Lingyu SHACMAN Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000S 350 hp 8X4(12 wheels) 7.79 m³ concrete mixer truck (China VI) (Lingyu brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
