Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.6ton
Wheelbase:: 3300mm
Tire Size:: 7.50-16 6PR
Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck exterior
View more photos (6)
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Rear-dump body

Overview

The Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD1 engine, 129 hp, China IV emissions and WLY transmission.

China IV 129 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJ3041VEDCNZ
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYN38CRD1
transmission: WLYWLY530HF with overdrive
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.5m
Front track width: 1650mm
rear track: 1485mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 21°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Transmission Parameters
Transmission Model: WLYWLY530HF with overdrive
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.2m
Cargo box width: 2m
Cargo box height: 0.45m
Body Parameters
Lifting type: 90 dual lift
Chassis Specs
Front axle allowable load: 1716kg
Frame Dimensions: 20# Double-Layer Framemm
rear axle description: 7T Grade (1080A)
rear axle allowable load: 2574kg
Leaf spring count: 8/10+6
Tire
Tire Size: 7.50-16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

Exterior3

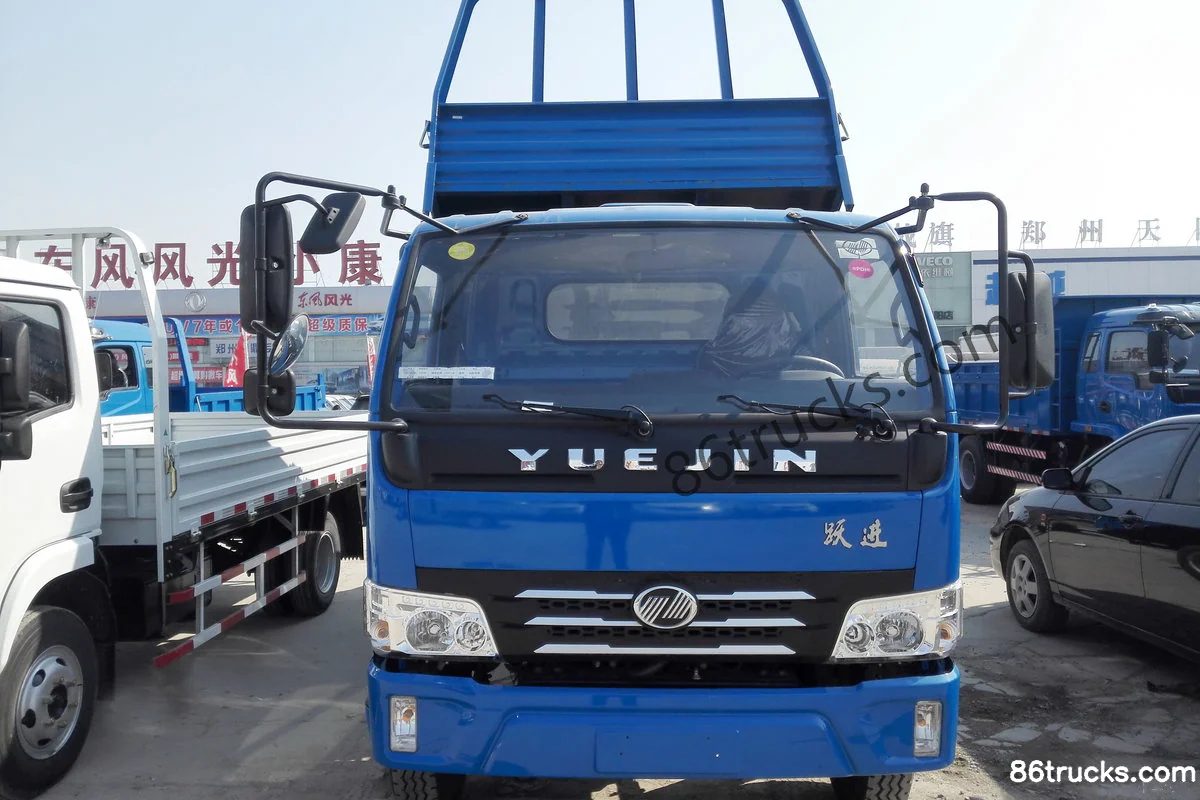

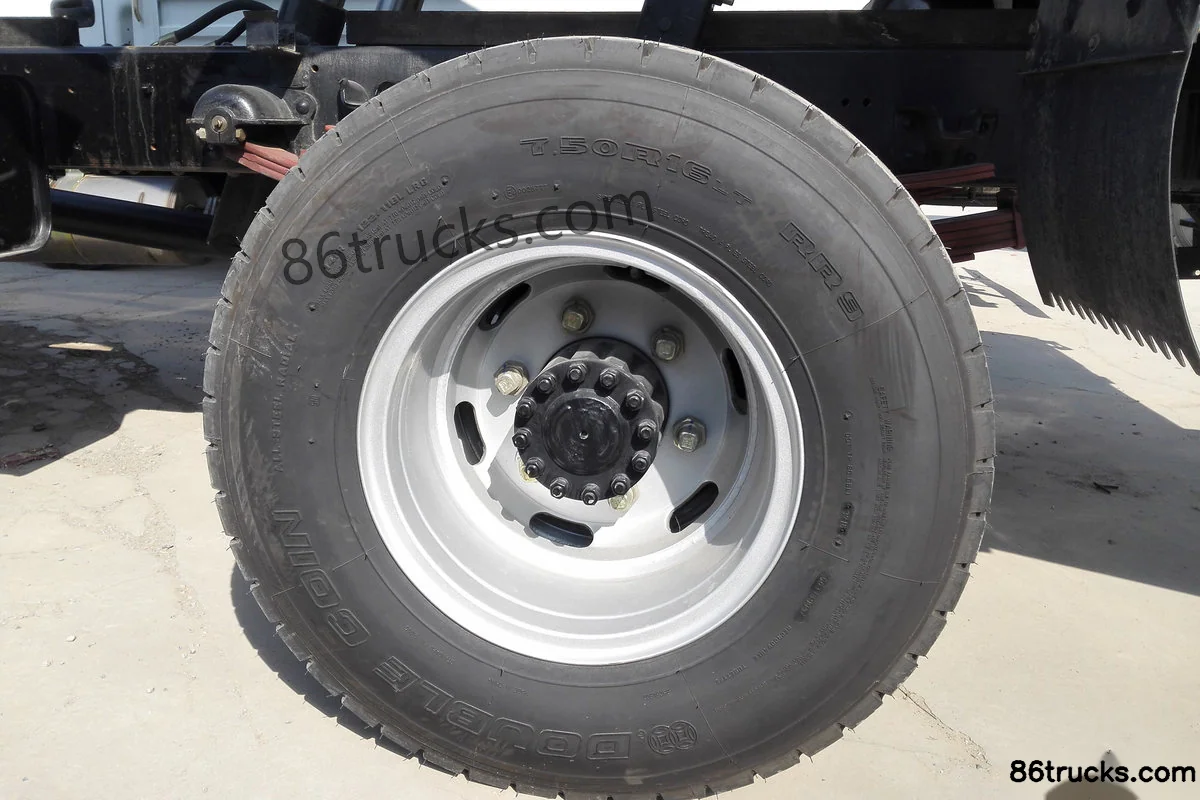

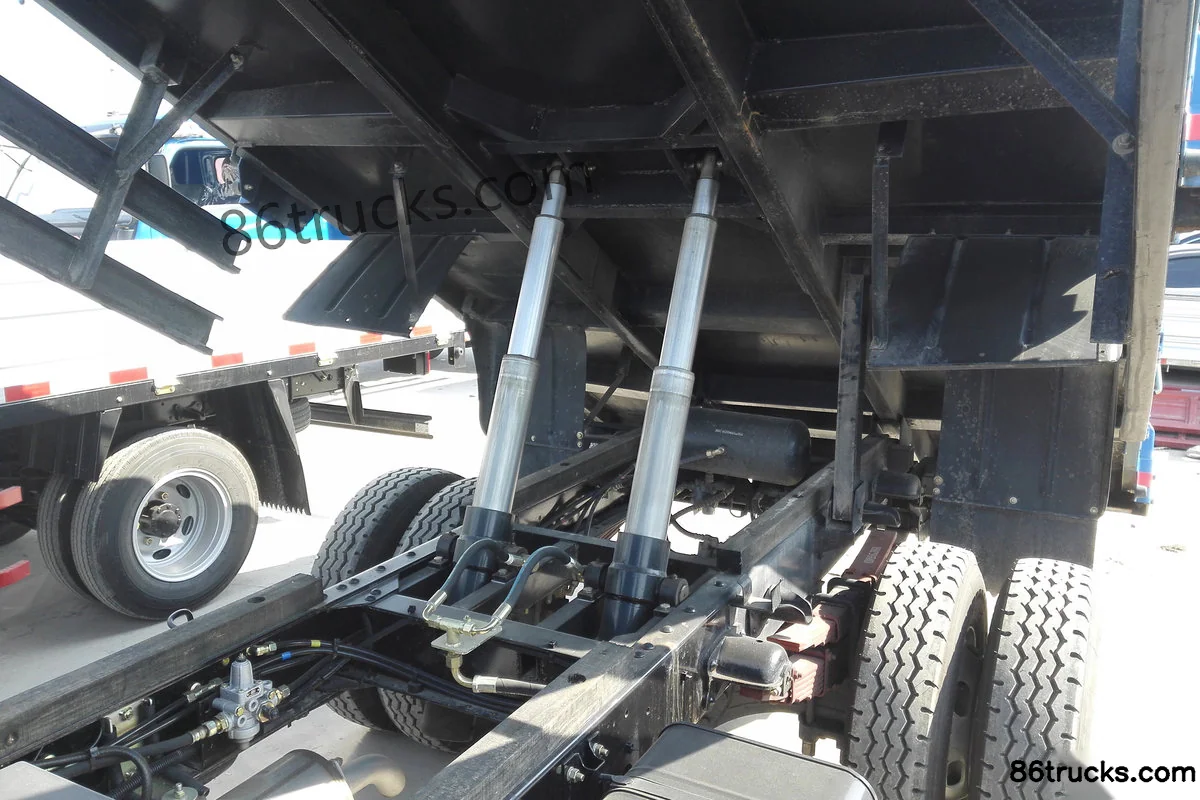

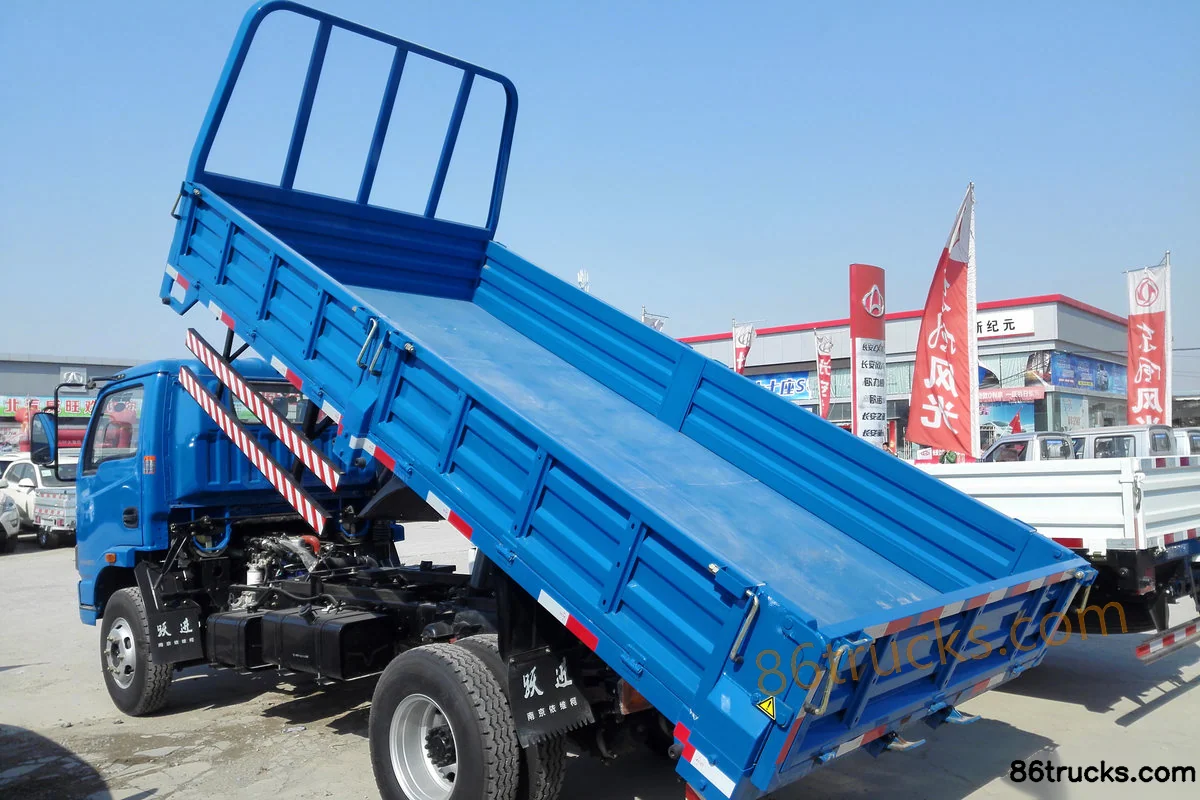

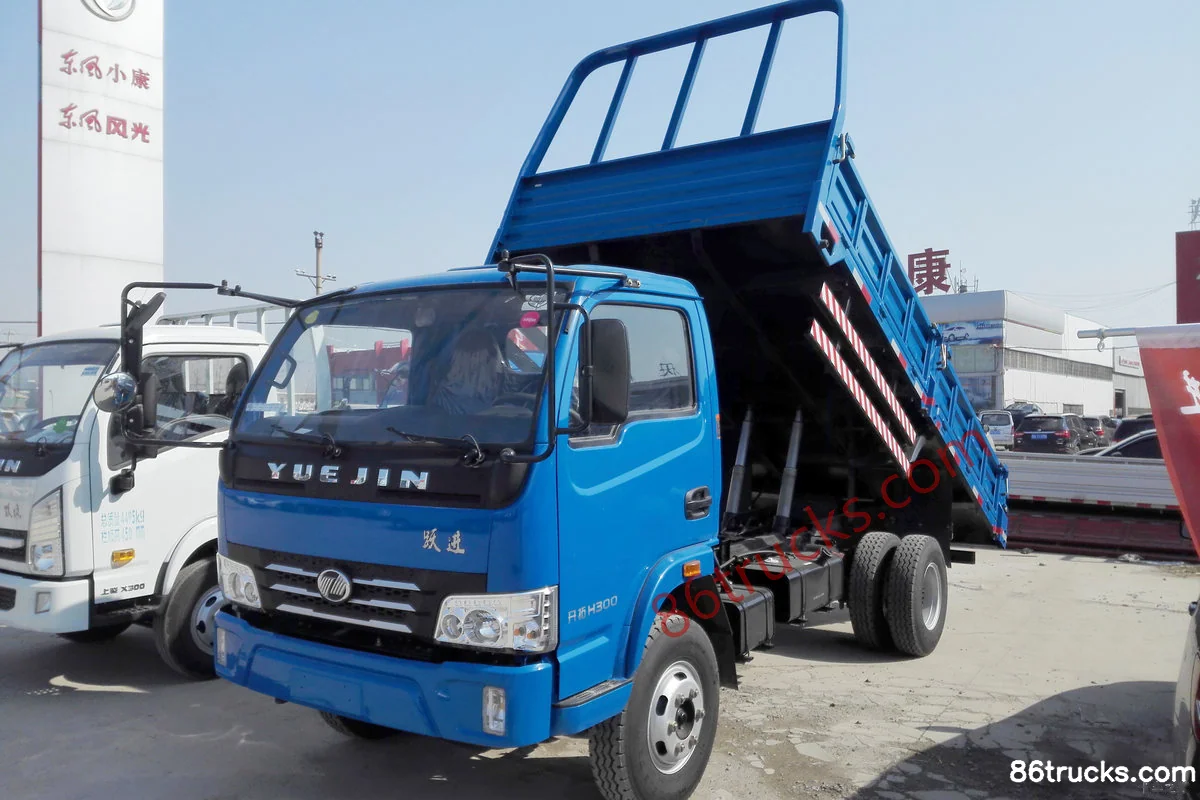

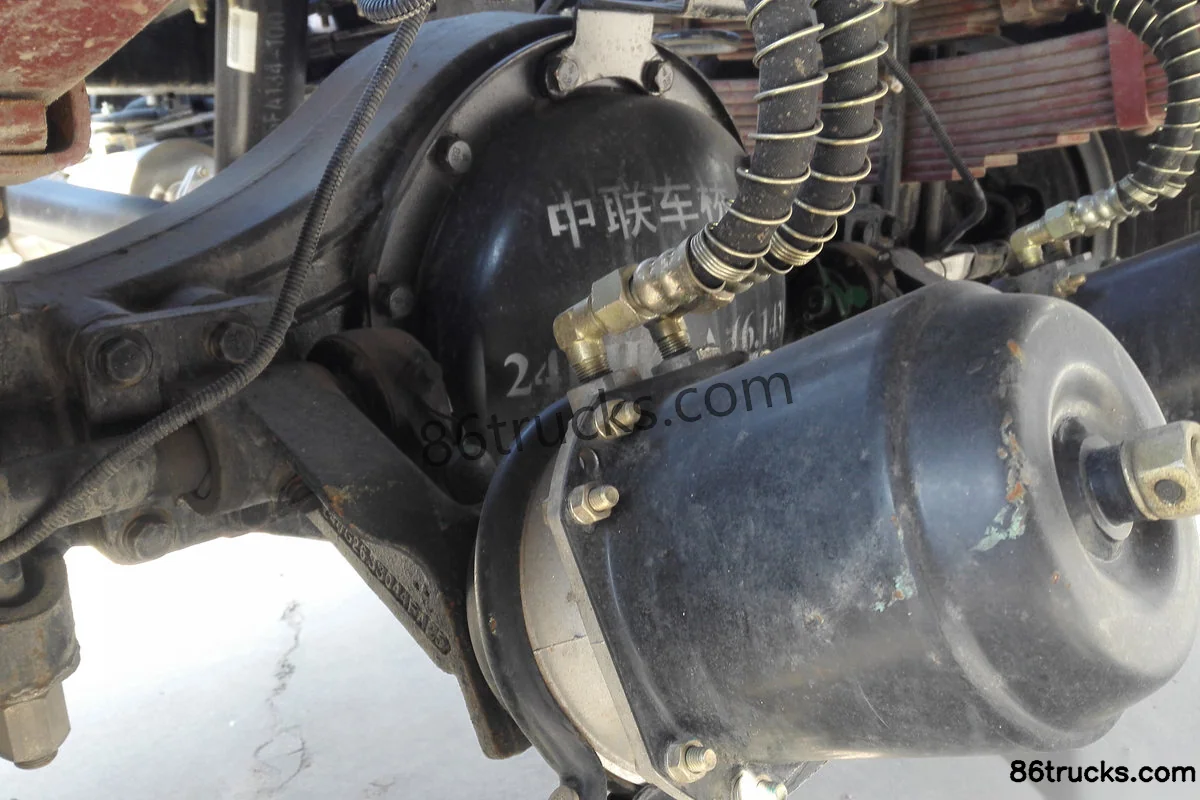

Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck Exterior (1) | 86Trucks Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck Exterior (2) | 86Trucks Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck Exterior (3) | 86Trucks

Cab3

Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck Cab (1) | 86Trucks Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck Cab (2) | 86Trucks Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck Cab (3) | 86Trucks

6 photos

FAQ

What emission standard does Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck?

Key specs of Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck: Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck suited for?

Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck differ from other variants in the same series?

Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck belongs to Yuejin Kaituo H300 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Kaituo H300 129hp 4X2(6 wheels) 4.2m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
