Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)

Export reference
MSRP N/A
Curb Weight:: 4.995ton
Emission: China VI
Fuel: Diesel
Wheelbase:: 3280mm
Cab dimensions:: 6.02×2.3×2.585m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 3.25×1.915×1.315m
Rated payload: 6.075ton
Drive 4X2 (6 wheels)
Horsepower 170

Overview

The Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) is a water sprinkler truck featuring 3.25×1.915×1.315m tank capacity, 6.075t payload, 6.3m³ volume and 4.995ton GVW. On the powertrain side, it comes with 170 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.02×2.3×2.585m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 3280mm
Vehicle origin: Shandong Zhangqiu
Front track width: 1776mm
rear track: 1595mm
Curb Weight: 4.995ton
Rated payload: 6.075ton
Max. speed: 95km/h
Front/rear suspension: 1.18/1.56m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 3.25×1.915×1.315m
Vehicle certification code: JYJ5117GSSF
Body Brand: Luye Brand
Engine parameters
Engine Model: Yunnei PowerD30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Cargo box parameters
Box volume: 6.3m³
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Wang
Chassis Model: ZZ1117G3315F1
Leaf spring count: 3/3+2,2/2+1,2/2+2,3/4+3,2/3+2,1/1+1,11/9+7,11/11+7,3/5+3
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Sinotruk 6-speed
Tire
Tire Size: 8.25R16LT,8.25R20,9R22.5
Number of tires: 6pcs

Photos

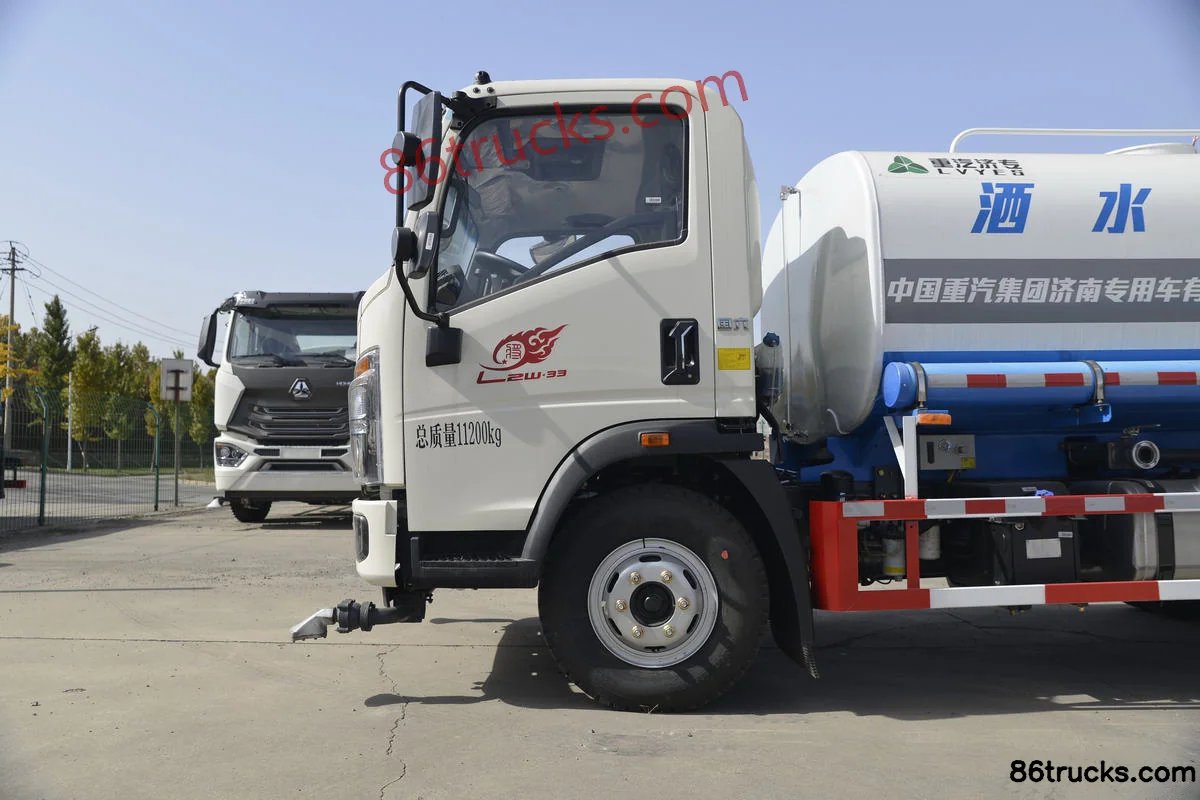

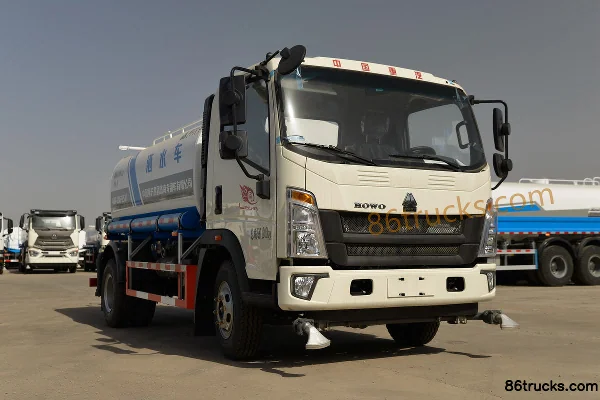

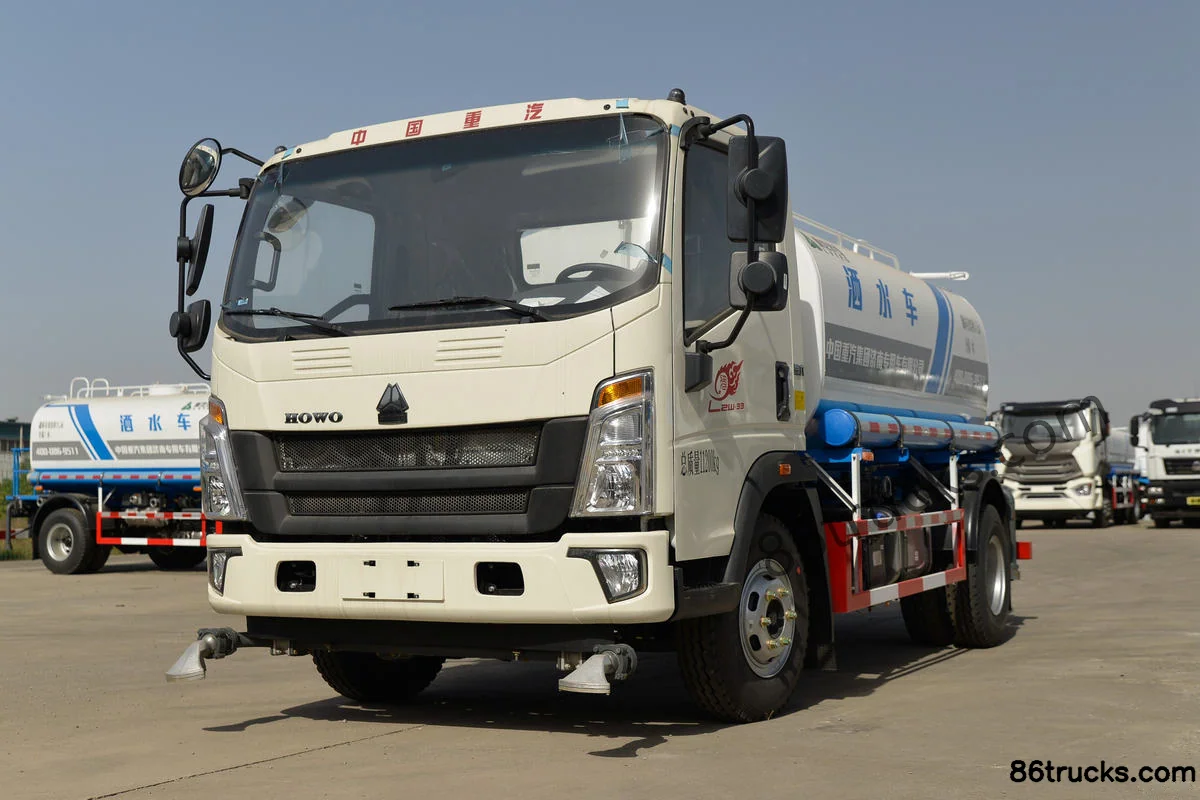

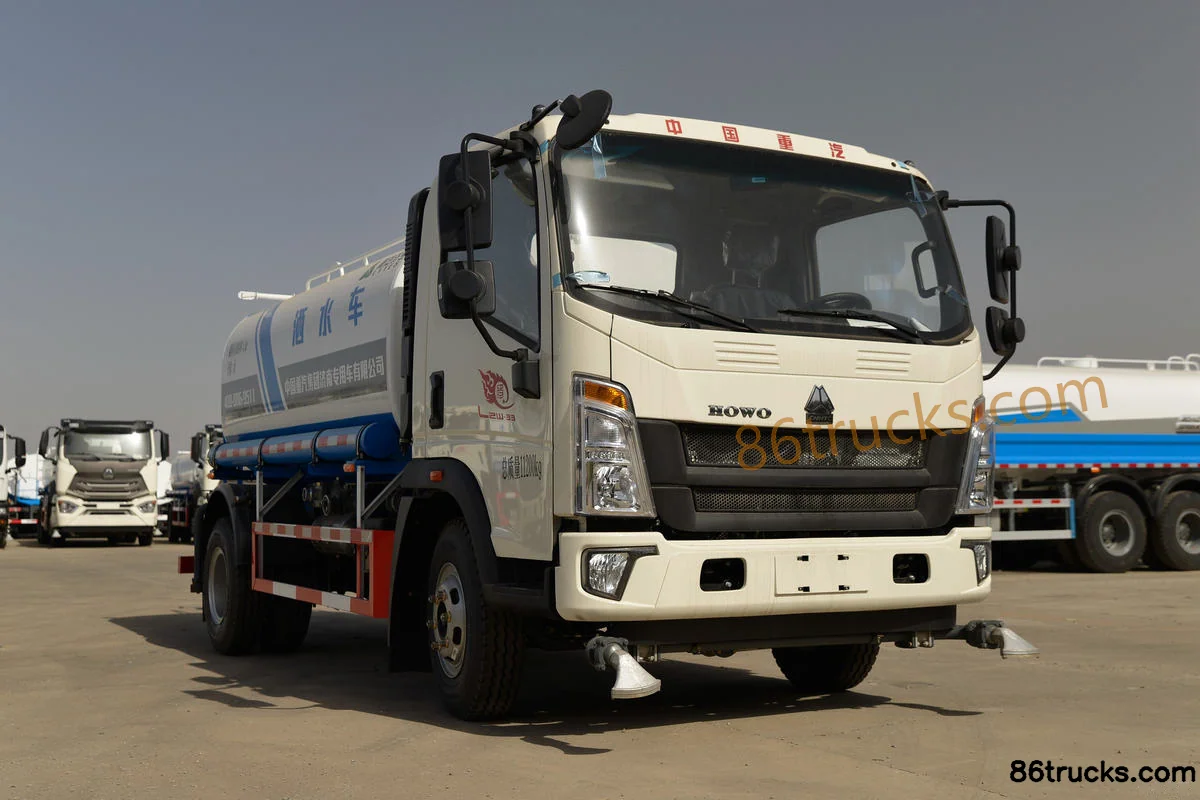

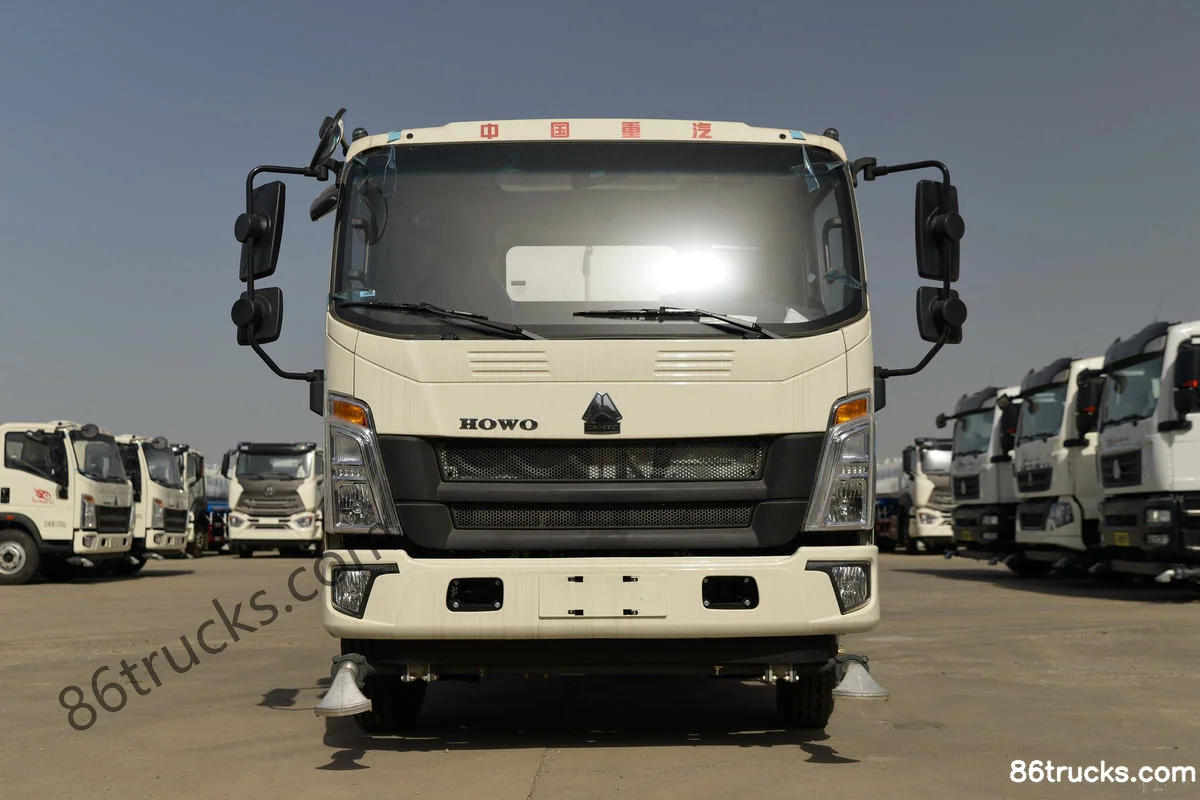

Exterior3

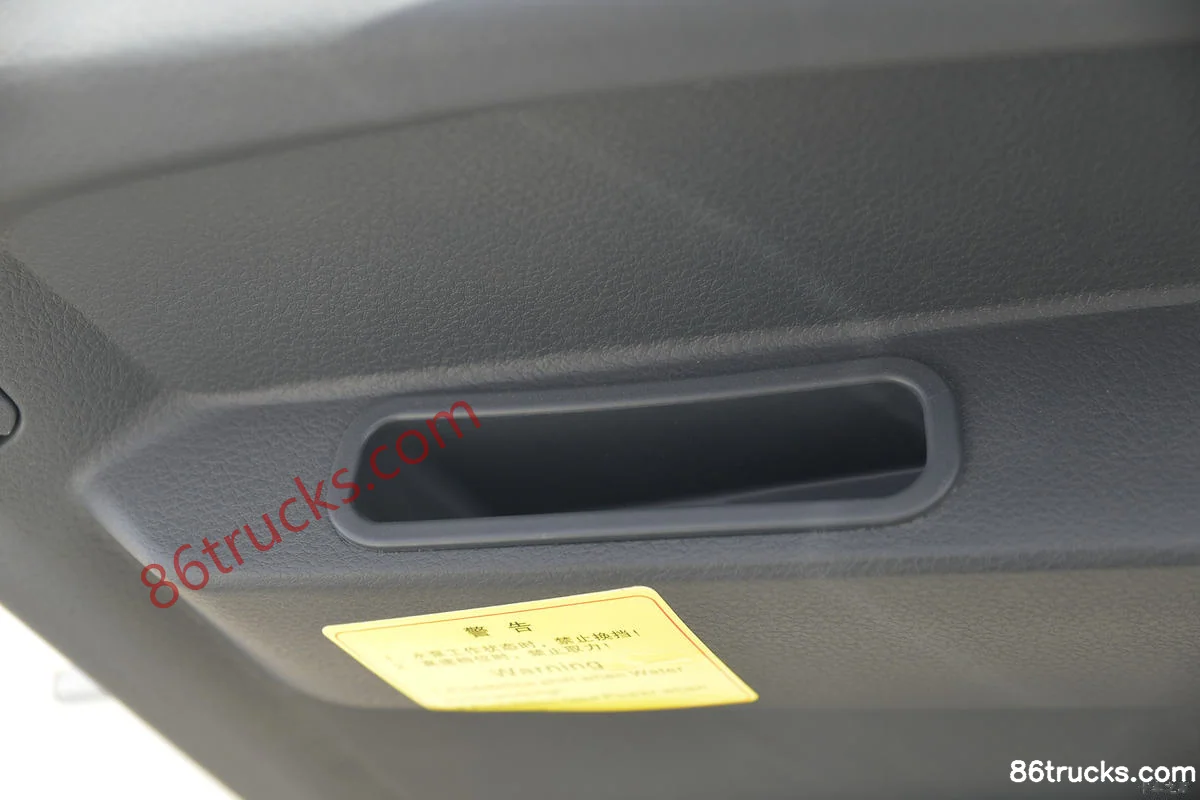

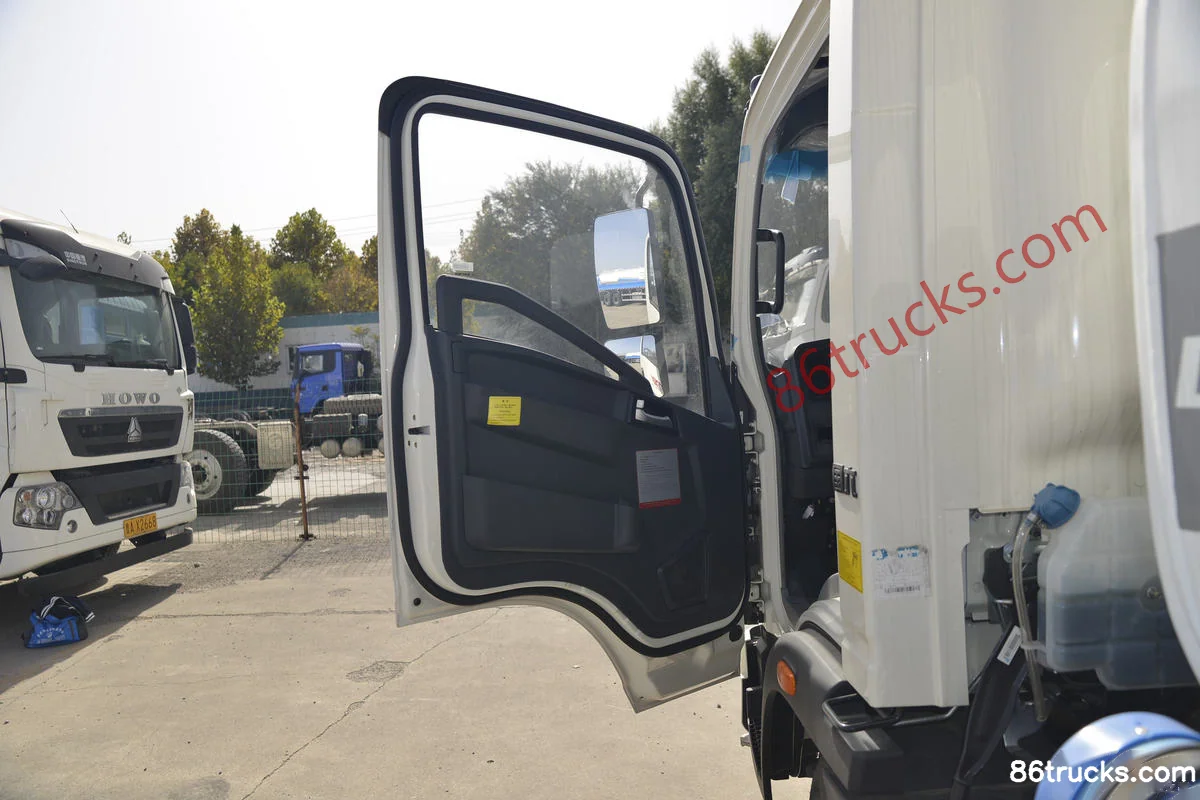

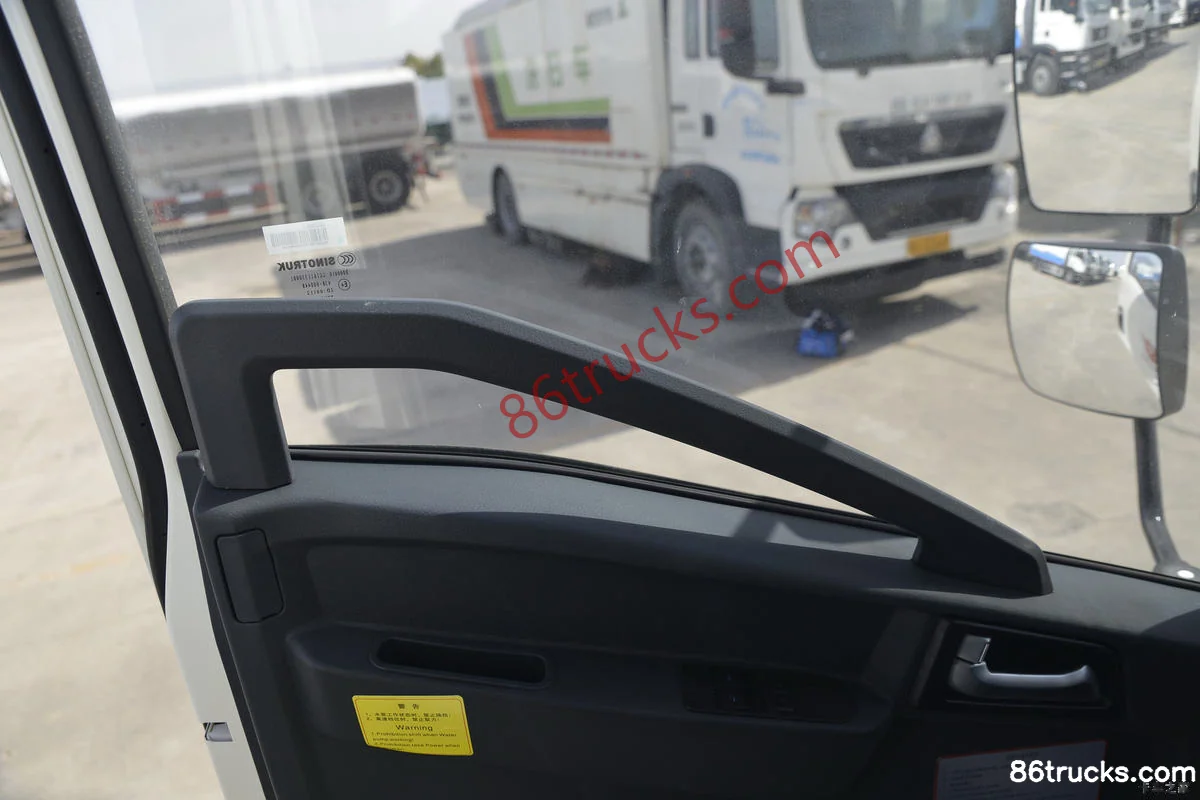

Cab3

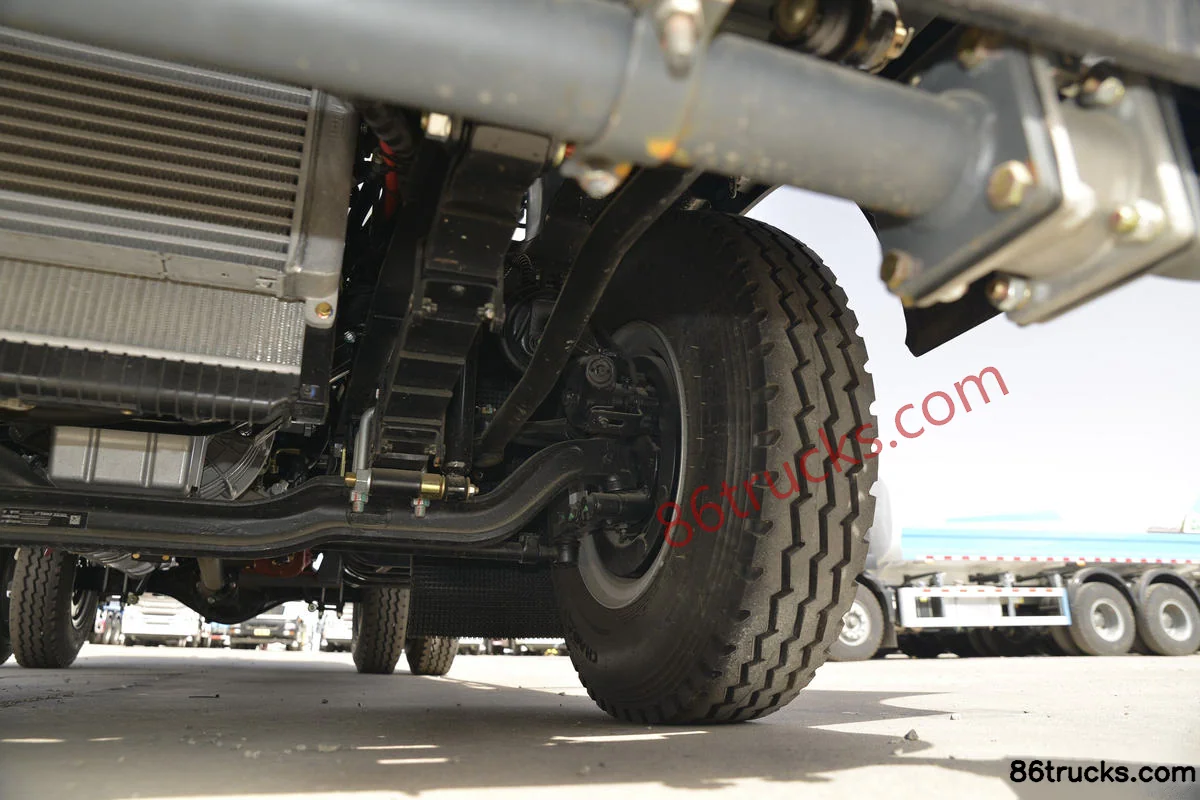

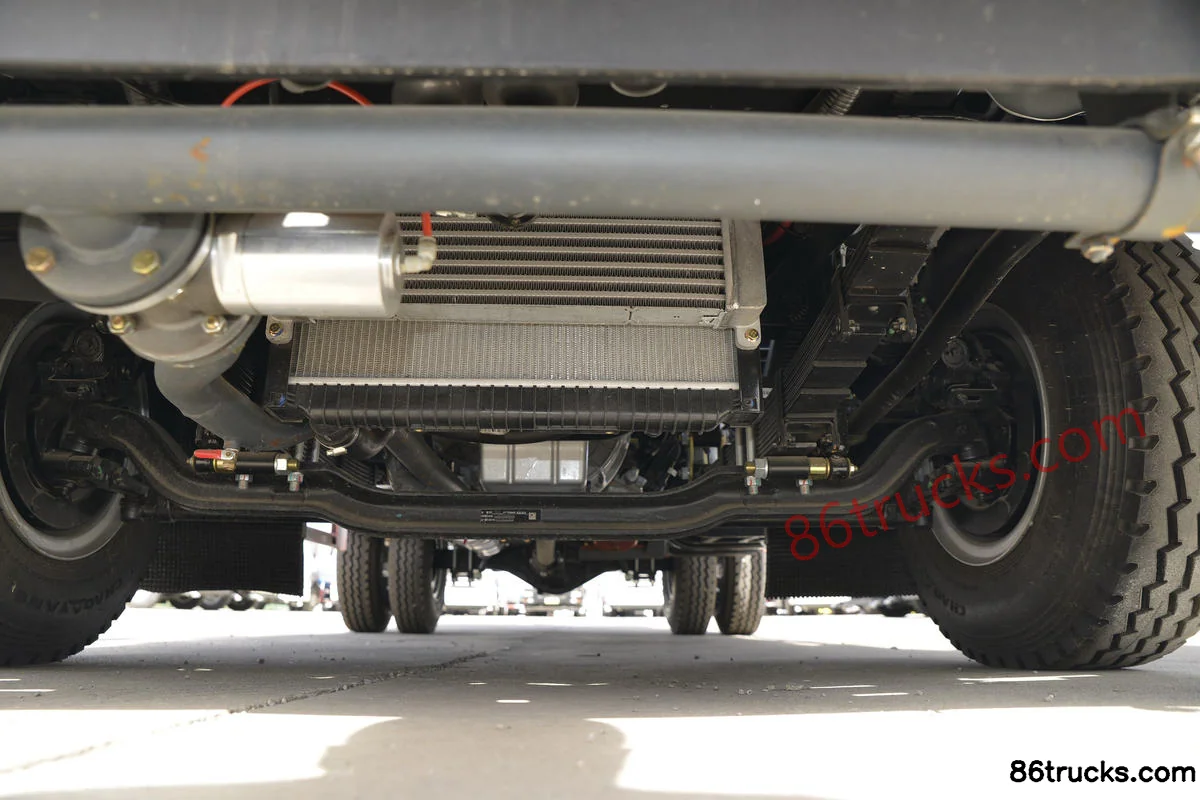

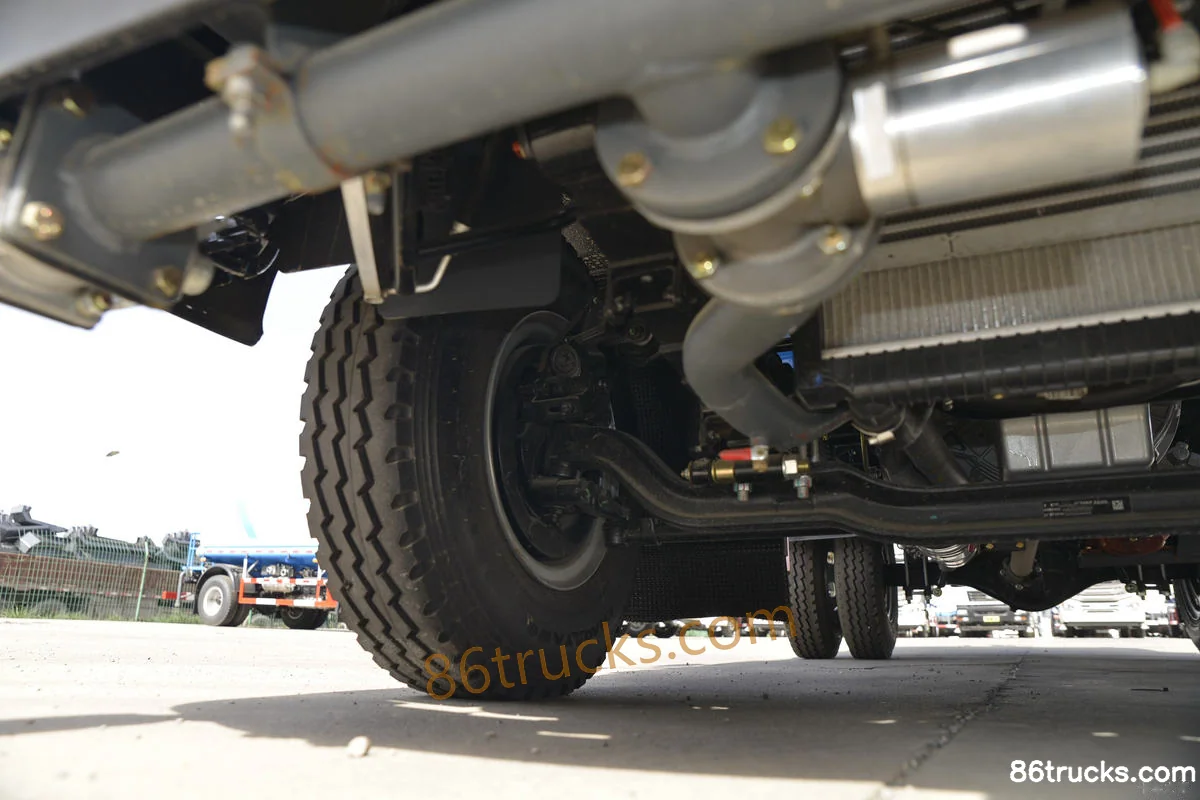

Chassis3

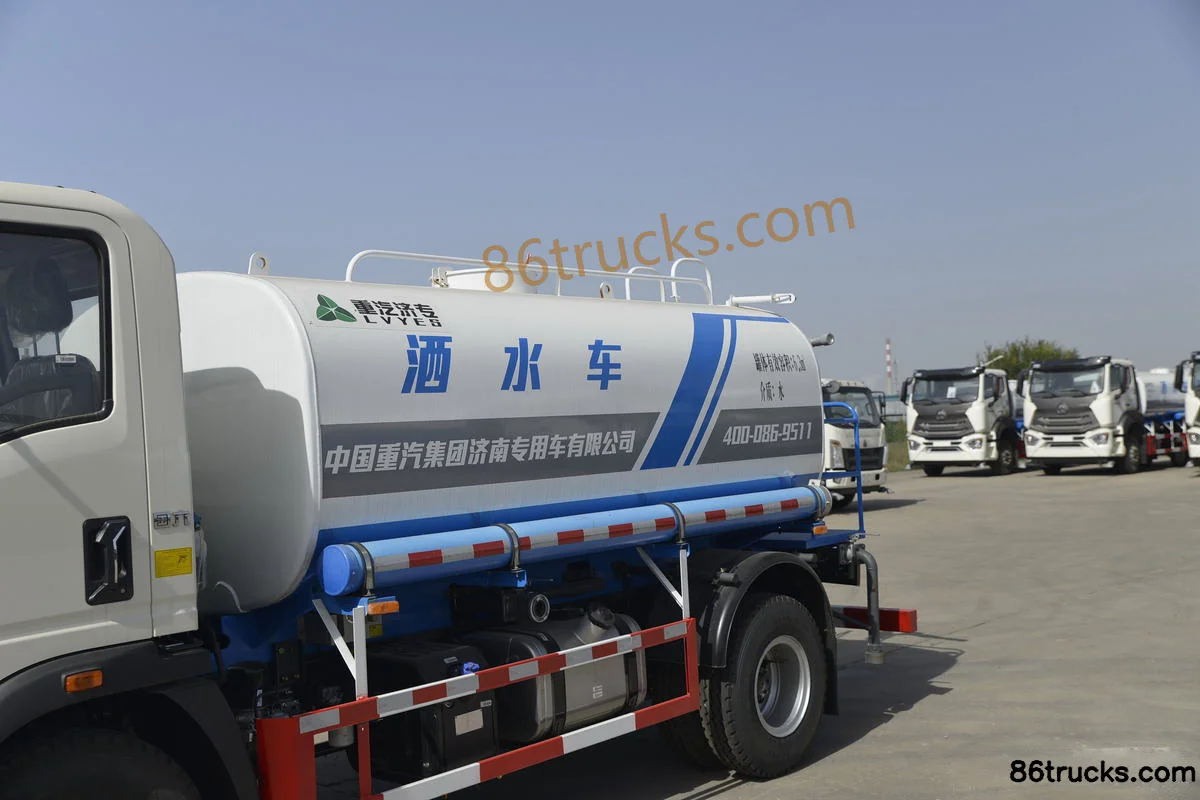

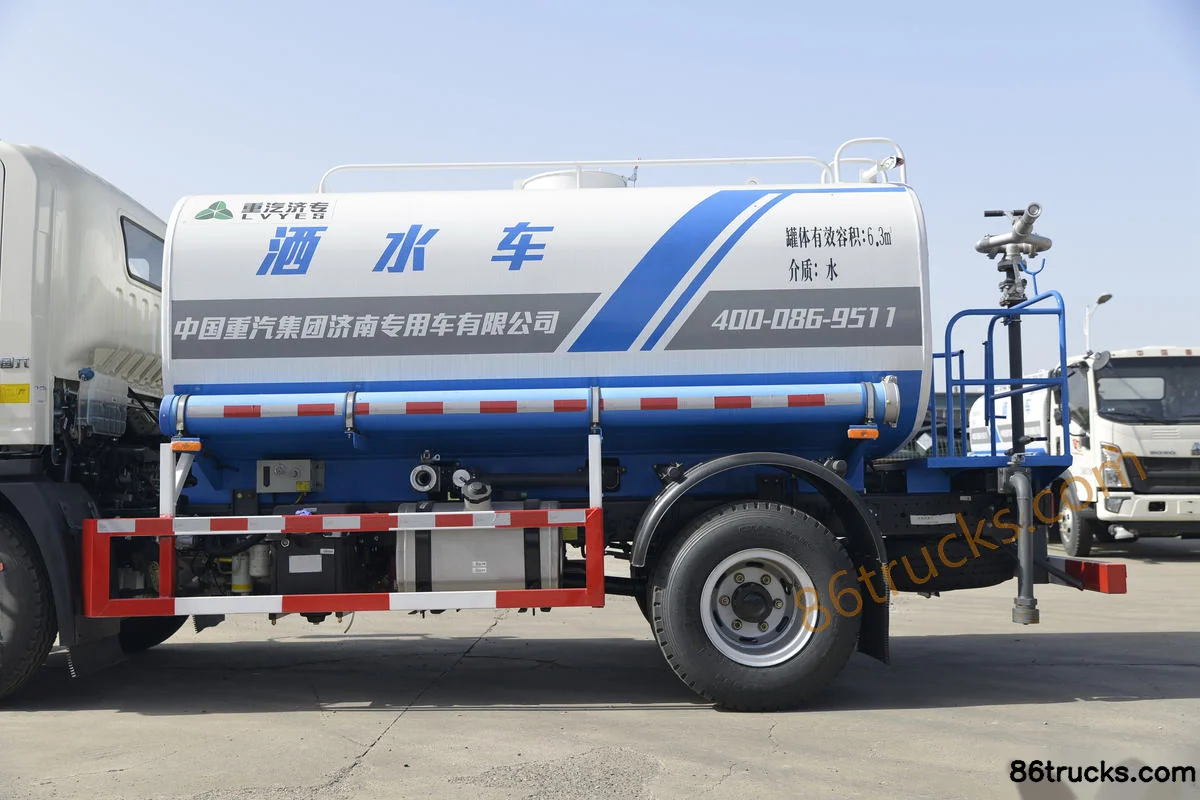

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)?

Key specs of Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand): Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) suited for?

Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand) belongs to Jinan Sinotruk (Lvye Brand) Jinan Sinotruk (Lvye Brand) (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 170 hp 4X2(6 wheels) Water Sprinkler Truck (Lvye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
