FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Water Sprinkler Truck (Chengliwei Brand) (Xichai)
EXW
From $25,278
Export quote
Chengliwei FAW Jiefang Qingdao chassis water
Main model photos
88 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Water Sprinkler Truck (Chengliwei Brand) (Xichai) | 4x2 / 180hp / China V | From $25,278 | |
| FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Water Sprinkler Truck (Chengliwei Brand) | 4x2 / 180hp / China V | From $25,278 | |
| FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Green Spraying Truck (Chengliwei Brand) | 4x2 / 180hp / China V | From $19,028 | |
| FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Green Spraying Truck (Chengliwei Brand) | 4x2 / 180hp / China V | From $19,028 |
FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Water Sprinkler Truck (Chengliwei Brand)
EXW
From $25,278
Export quote

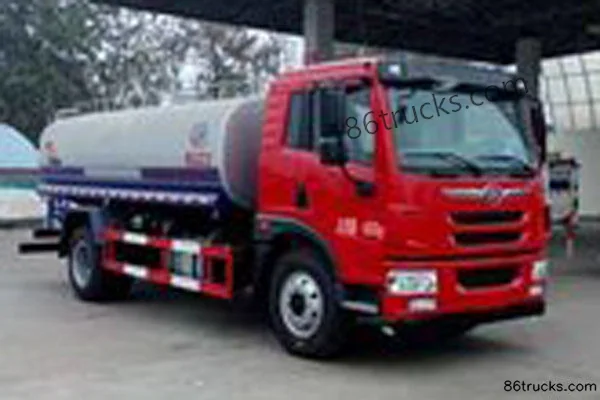

FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Green Spraying Truck (Chengliwei Brand)
EXW
From $19,028
Export quote
FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Green Spraying Truck (Chengliwei Brand)
EXW
From $19,028
Export quote
Series Specs
Basic Info
Cab dimensions: 8.132×2.5×2.95 / 8.45×2.5×3.16 / 7.3×2.49×2.94m
Truck Type: landscaping sprinkler truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei
Wheelbase: 4500mm
Front track width: 1860 / 1800;1914mm
rear track: 1914 / 1800;1860mm
Curb Weight: 7.2 / 6.3 / 7.25ton
Rated payload: 10.605 / 9.57 / 9.12ton
Max. speed: 79 / 98km/h
Front/rear suspension: 1.332/2.3 / 1.332/2.618 / 1.332/2.668m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 4.7×2.35×1.55 / 4.8×2.2×1.35 / 4.8×2.16×1.34m
Vehicle certification code: CLW5180GPSC5 / HNY5167GPSC5 / CLW5160GPSC5
Body Brand: Chengliwei
Engine parameters
Engine Model: XichaiCA6DLD-18E5 / XichaiCA4DLD-18E5
Number of cylinders: 6 / 4cylinder
Displacement: 6.6 / 4.4L
Emission standard: China V
Max output power: 134kW
Max hp: 180Horsepower
Rated speed: 2300 / 2500rpm
Cargo box parameters
Box volume: 11.7 / 9.98 / 9.45m³
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Long V
Chassis Model: CA1180PK2BE5A80 / CA1167PK2BE5A80
Frame Dimensions: 237*75*7mm
rear axle description: 385 improved cast axle
Axle ratio: 4.875
Leaf spring count: 3/4+3 / 7/10+3,7/7+3,3/4+3
clutch: Φ395
Transmission Parameters
Number of gears: 8 / 6Gear
Transmission Model: Fast Gear8JS75C / FAWCA6TBX075M
Cab parameters
Cab: Long V mid-roof semi-floating
Tire
Tire Size: 10.00R20 / 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei FAW Jiefang Qingdao chassis water sprinkler truck?
Chengliwei Chengliwei FAW Jiefang Qingdao chassis is an export-oriented water sprinkler truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei FAW Jiefang Qingdao chassis water?
Chengliwei FAW Jiefang Qingdao chassis water export reference is about $19,028 – $25,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei FAW Jiefang Qingdao chassis water cover?
Chengliwei FAW Jiefang Qingdao chassis water mainly covers: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei FAW Jiefang Qingdao chassis water?
For Chengliwei FAW Jiefang Qingdao chassis water: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei FAW Jiefang Qingdao chassis water include?
Chengliwei FAW Jiefang Qingdao chassis water currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei FAW Jiefang Qingdao chassis water?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
