Dongfeng DF701S 7-ton steering axle

Export reference
MSRP N/A
Applicable Tire:: 10.00-20
Front/rear track width:: 1967-2101mm
Brake:: Air brake actuator
Axle Model: 7-ton steering axle
Brake size: Φ400×150
Axle Type: Steering axle

Overview

The Dongfeng DF701S 7-ton steering axle is a parts product with spec 7-ton steering axle and Φ400×150 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: 7-ton steering axle
Axle Type: Steering axle
Applicable Tire: 10.00-20
Rated axle load: 7000ton
Front/rear track width: 1967-2101mm
Brake: Air brake actuator
Brake size: Φ400×150
Rim Used: 7.5-20inch
Wheel Bolts: Φ335-10×M22mm
Remarks: I-beam; kingpin inclination 7°, camber 1°, inner wheel turning angle 45°, outer wheel turning angle 35.5°

Photos

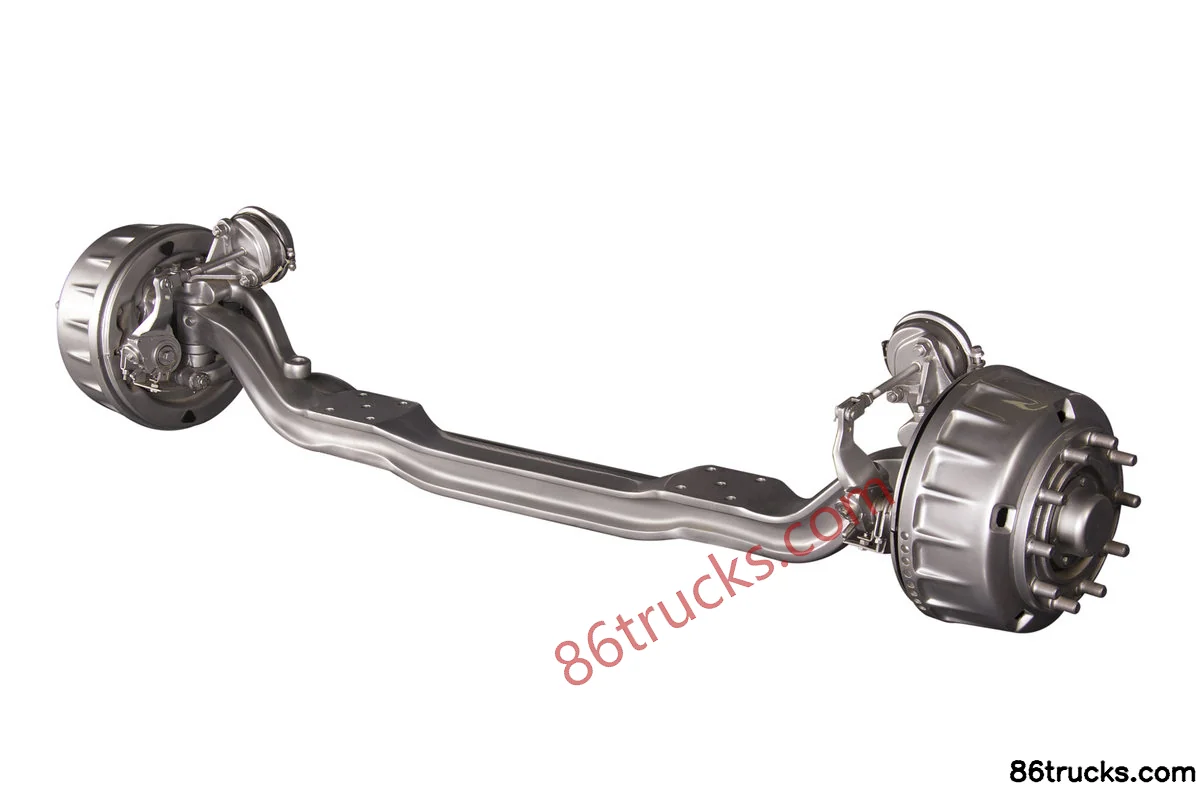

Exterior1

1 photos

FAQ

What transport jobs is Dongfeng DF701S 7-ton steering axle suited for?

Match Dongfeng DF701S 7-ton steering axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dongfeng DF701S 7-ton steering axle differ from other variants in the same series?

Dongfeng DF701S 7-ton steering axle belongs to Dongfeng Steering Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng DF701S 7-ton steering axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng DF701S 7-ton steering axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
