Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift)

Export reference
MSRP N/A
Horsepower: 310
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: ZF
Curb Weight:: 5.8ton
seating capacity: 2Personnel
Rated payload: 9.35ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift) is a Heavy-duty cargo trucks featuring Van body cargo body, 2Personnel volume, 9.35t payload and C5H-M cab. On the powertrain side, it comes with a SinotrukMAN7L engine, 310 hp, 4X2 (6 wheels) drive and China V emissions.

China V 310 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5176XXYM561GE1
Type: Chassis
Drive type: 4X2
Wheelbase: 5800mm
engine: SinotrukMC07.31-50
transmission: ZFZF9S1310TO
Rear Axle Ratio: 4.11
Cab length: 10m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2035mm
rear track: 1816mm
Curb Weight: 5.8ton
Rated payload: 9.35ton
GVWR: 17ton
Max. speed: 110km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle: 17°
Remarks: ZF8198 steering gear
Front/rear suspension: 1.43/2.97m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.31-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1230N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: ZFZF9S1310TO
Transmission Brand: ZF
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cab parameters
Cab: C5H-M
Cab suspension: 4-point mechanical suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: VPD060QB
Front axle allowable load: 6000kg
Frame Dimensions: 7+4/280mm
rear axle description: MCY11 single rear axle
rear axle allowable load: 11000kg
Axle ratio: 4.11
Leaf spring count: 3/-
Suspension (front/rear): front leaf spring, rear air suspension
Tire
Tire brand: Doublestar
Tire Size: 275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

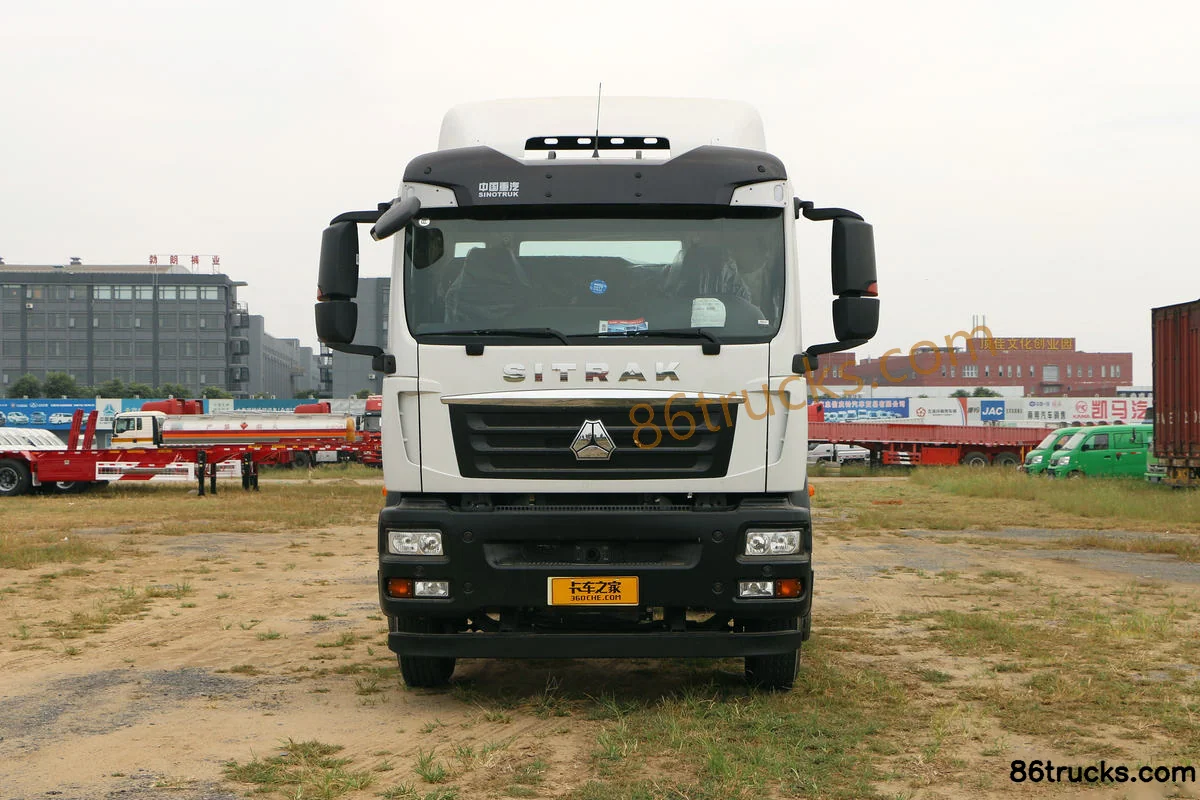

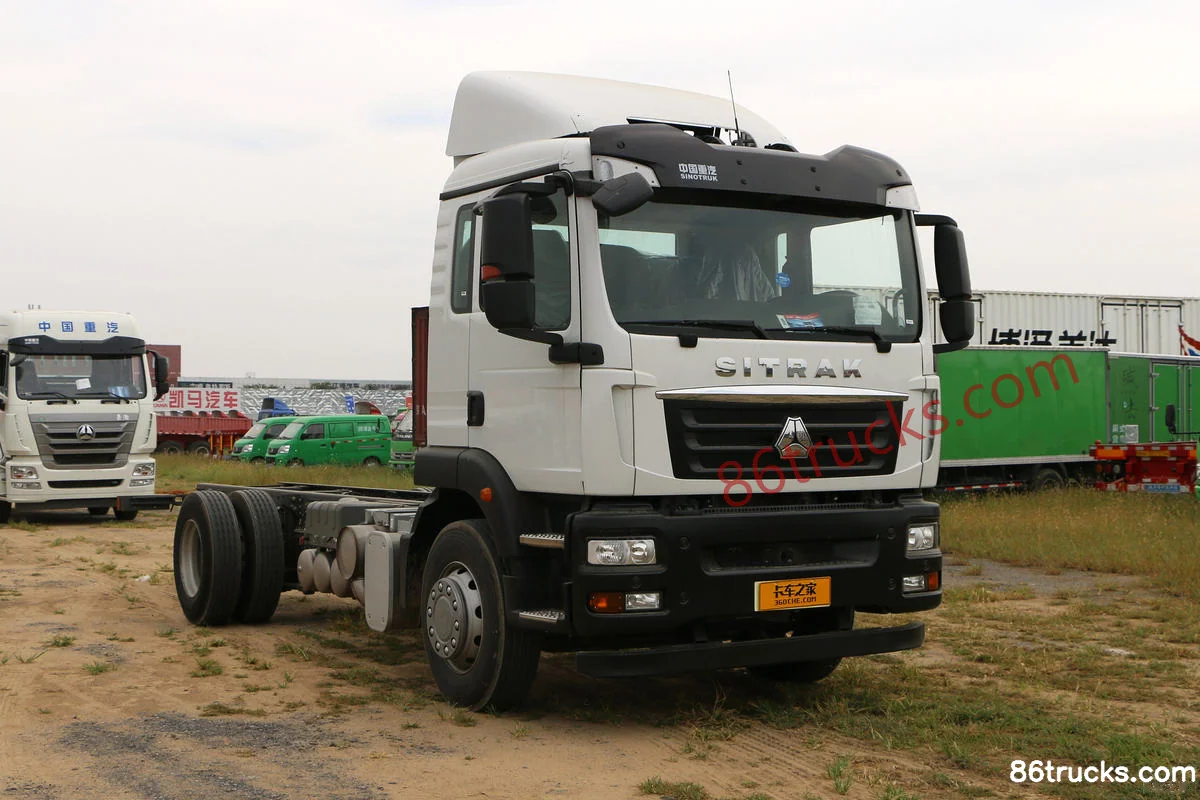

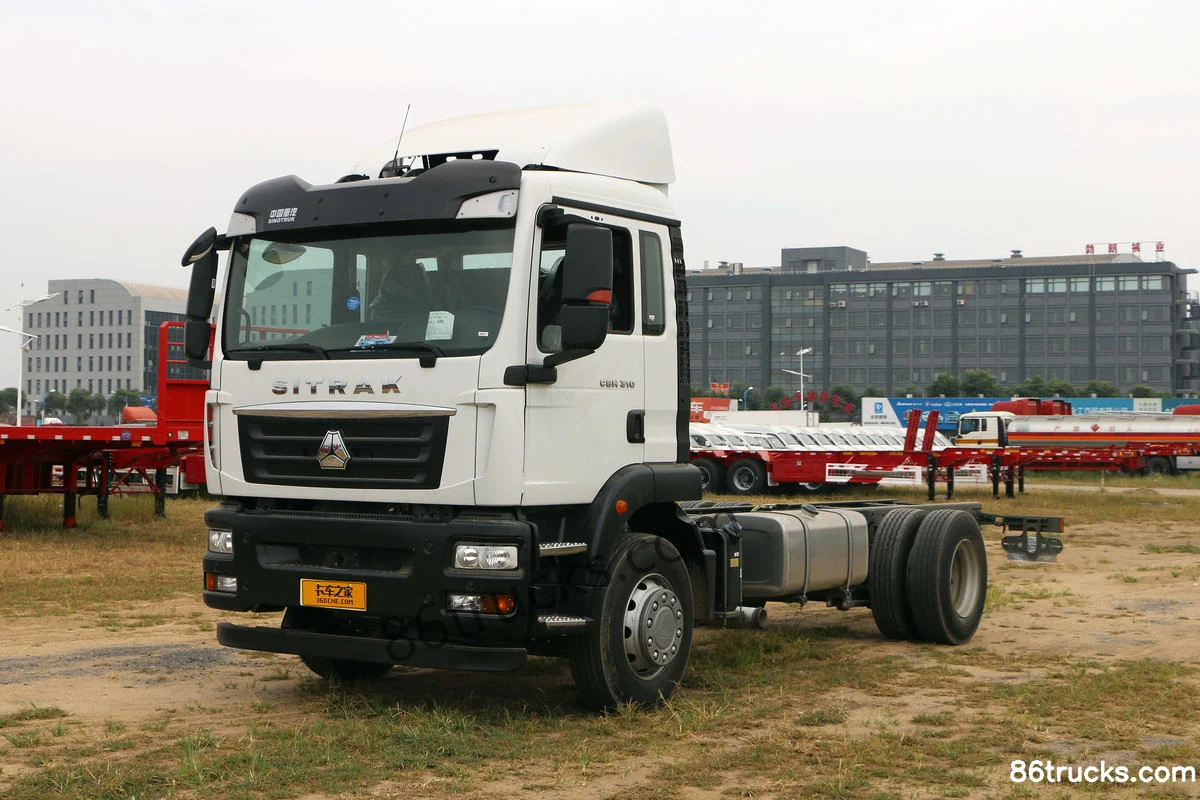

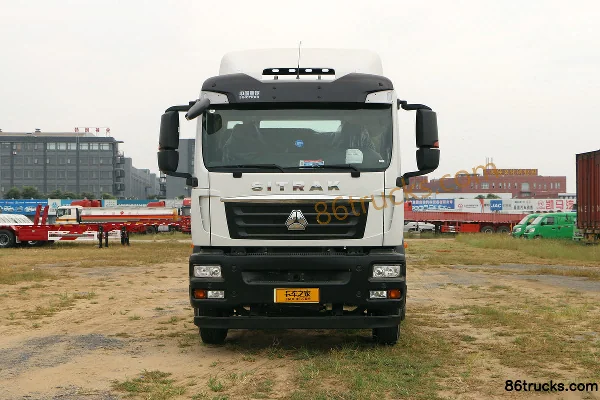

Exterior3

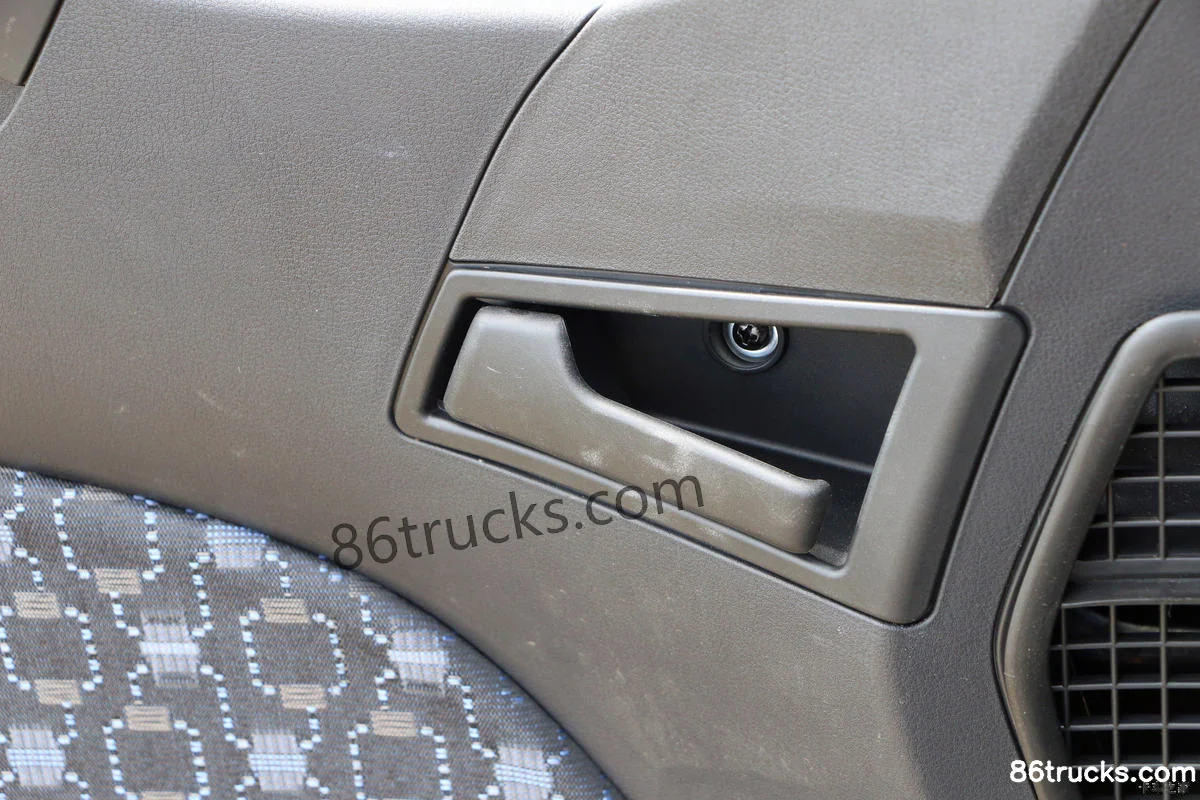

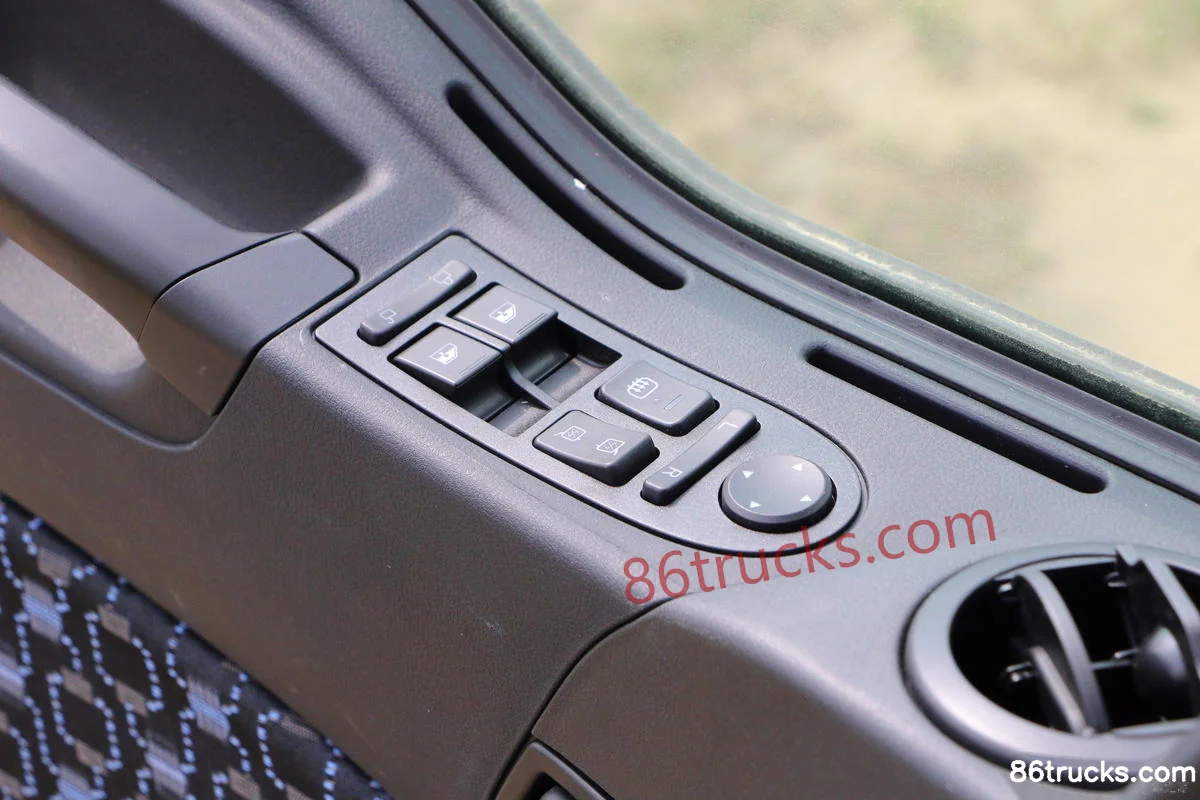

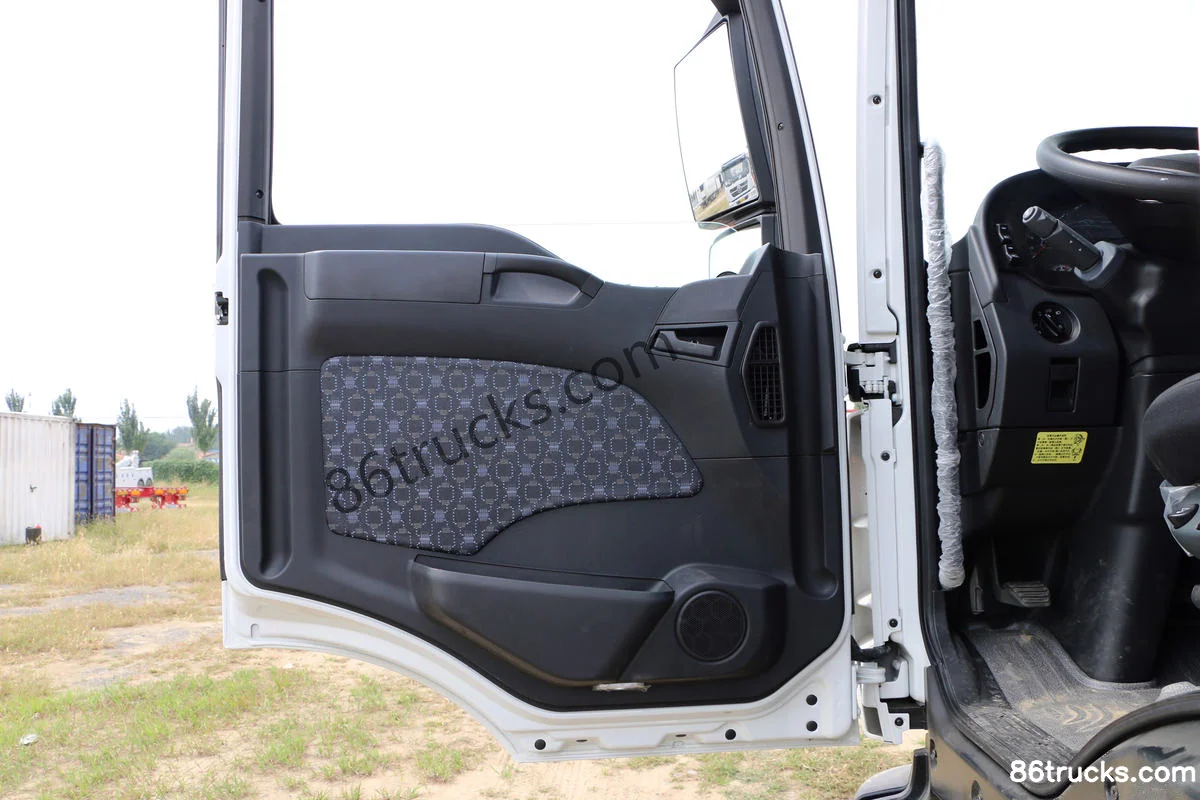

Cab3

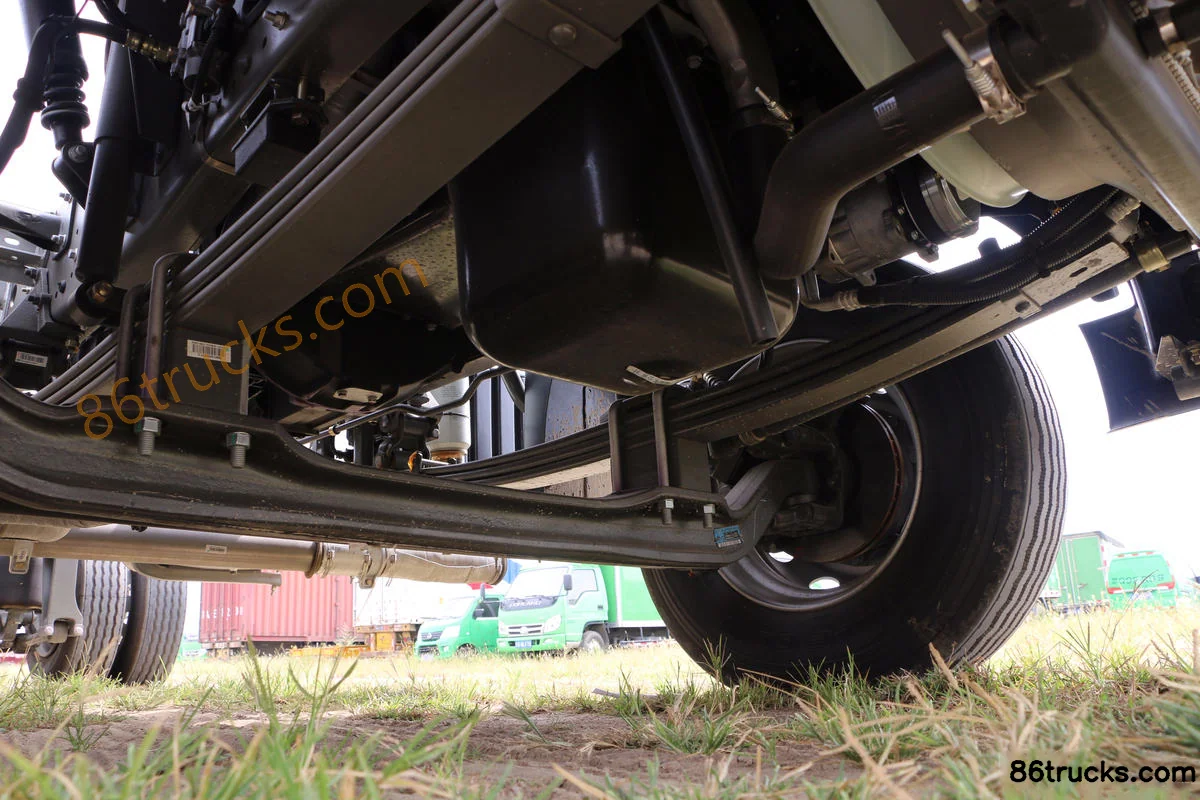

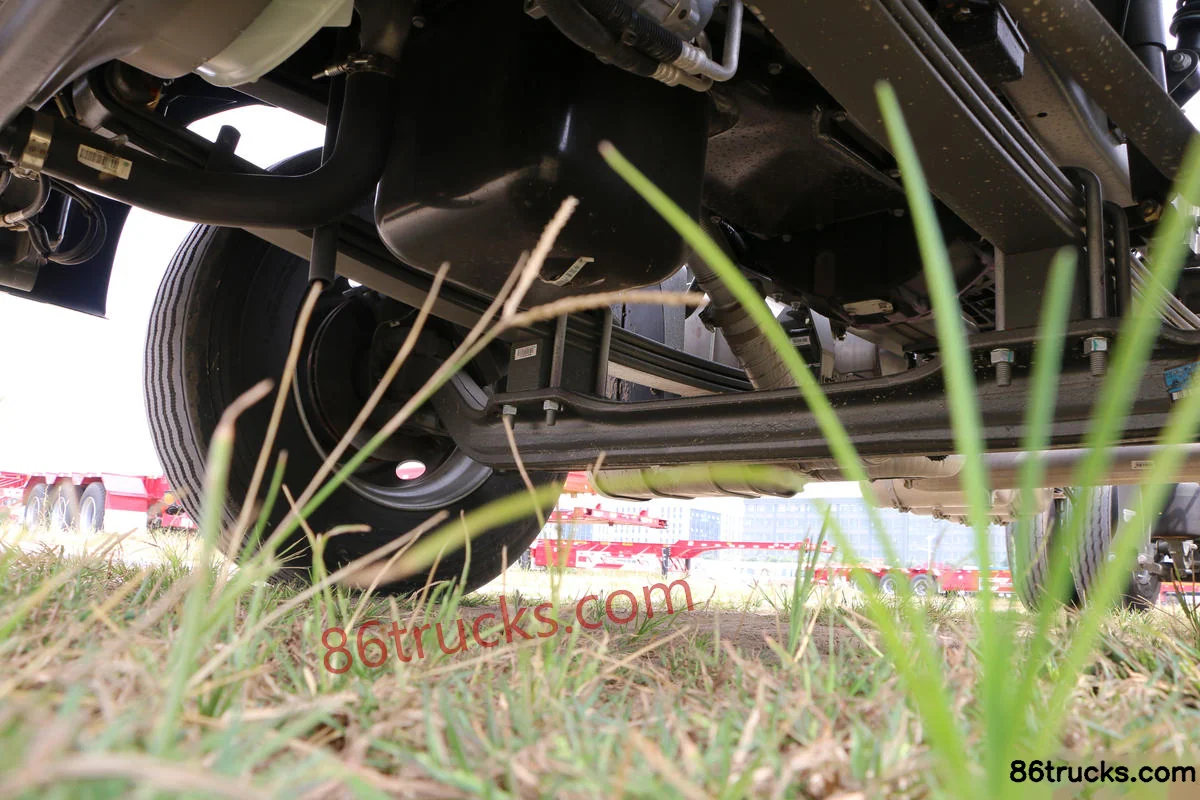

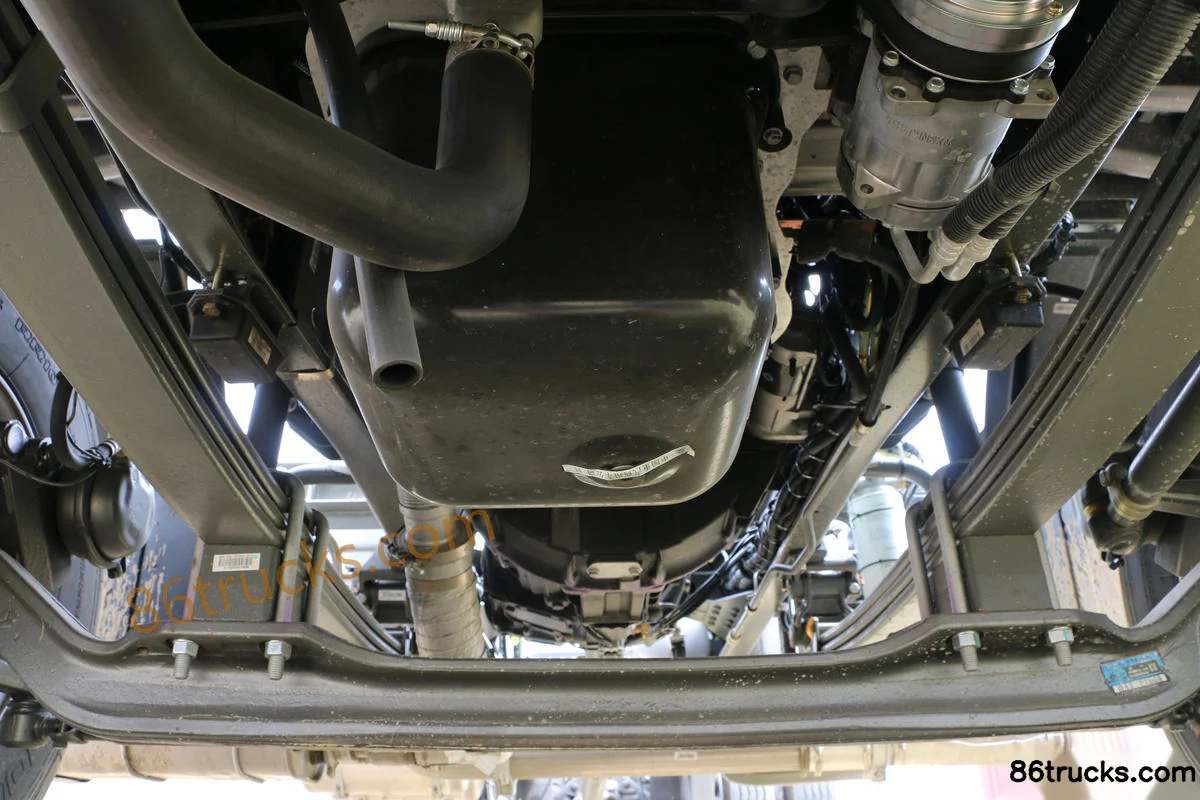

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift)?

Key specs of Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift): Drive: 4x2; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift) suited for?

Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift) differ from other variants in the same series?

Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift) belongs to Sitrak C5H heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C5H heavy truck 310hp 4X2(6 wheels) box cargo truck chassis (air suspension lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
