Loxa Heavy Machinery 25 ton truck crane (FTC25X5)

Export reference
MSRP N/A
Max travel speed:: 90km/h
Max gradeability:: 50%
Min turning radius:: 11m
Min ground clearance:: 245cm
Rated lifting capacity:: 25ton
Min working radius:: 3m

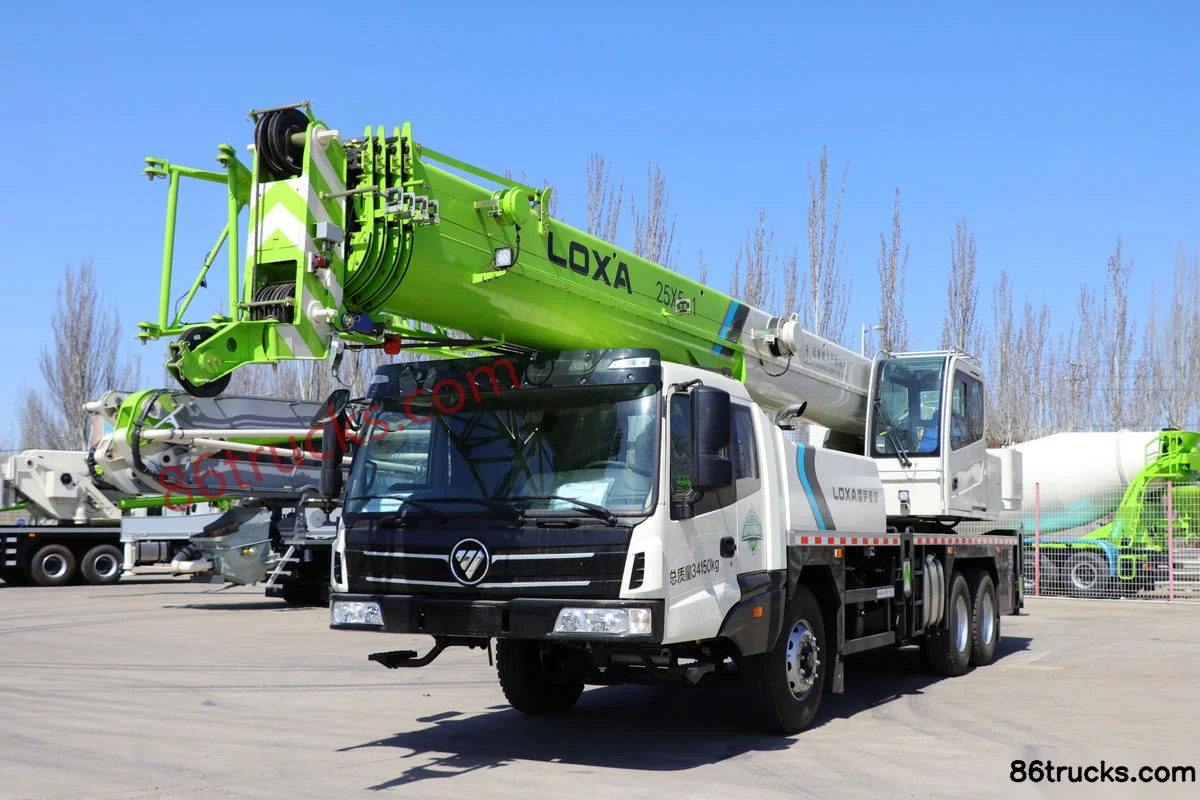

Loxa Heavy Machinery 25 ton truck crane (FTC25X5) exterior
View more photos (12)
total counterweight: 34.15ton
Max output power: 220kW
Machine dimensions: L×W×H: 13.18×2.575×3.64m
Model: FTC25X5

Overview

The Loxa Heavy Machinery 25 ton truck crane (FTC25X5) is a crane truck featuring 34.15ton GVW and 220kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 13.18×2.575×3.64m
Model: FTC25X5
total counterweight: 34.15ton
Max travel speed: 90km/h
Max gradeability: 50%
Min turning radius: 11m
Min ground clearance: 245cm
Lifting capacity
Rated lifting capacity: 25ton
Min working radius: 3m
Max lift height - base boom: 11.5m
Max lift height: 43m
Max lifting height - main boom + jib: 51.3m
Boom length - main boom: 11m
Boom length - fully extended: 43m
Operating Parameters
Max hoisting speed of main winch: 135m/min
Auxiliary winch max lift speed: 135m/min
Outrigger span: longitudinal × lateral: 5.45×6.4m
Engine parameters
Engine Model: WeichaiWP7.300E61
Max output power: 220kW
Rated speed: 2100rpm

Photos

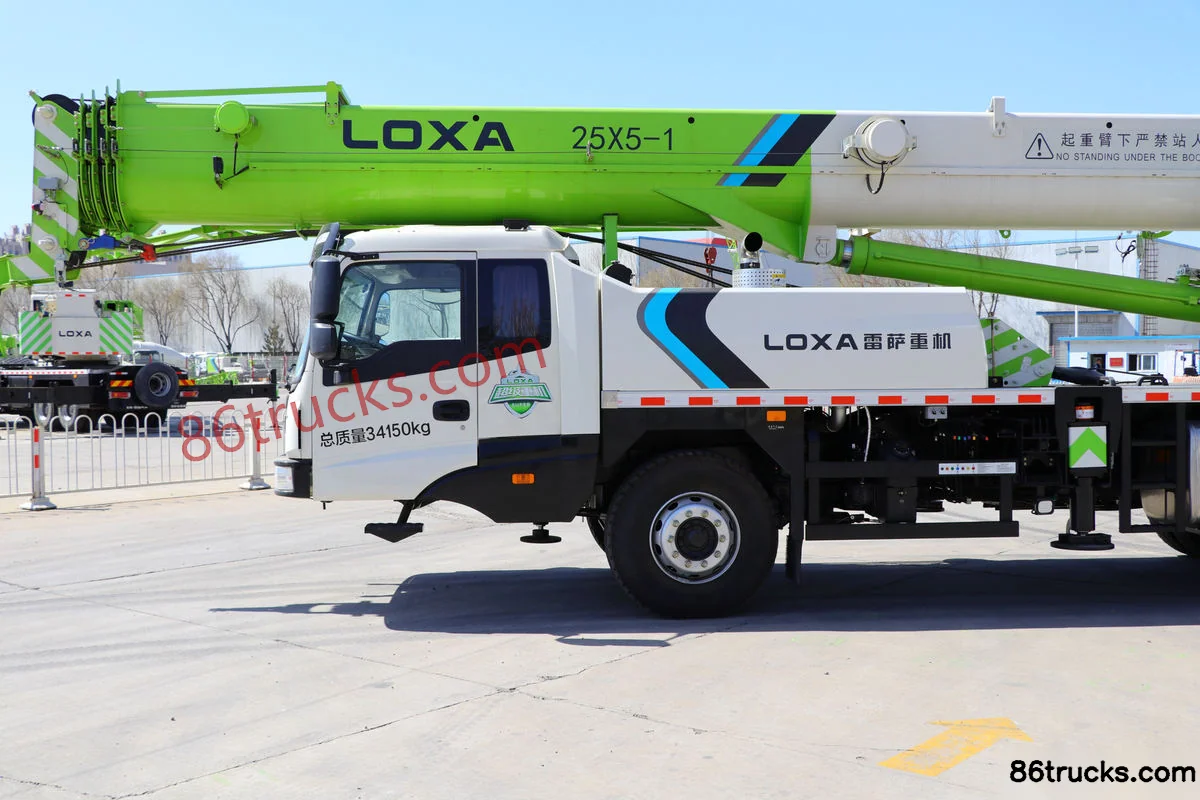

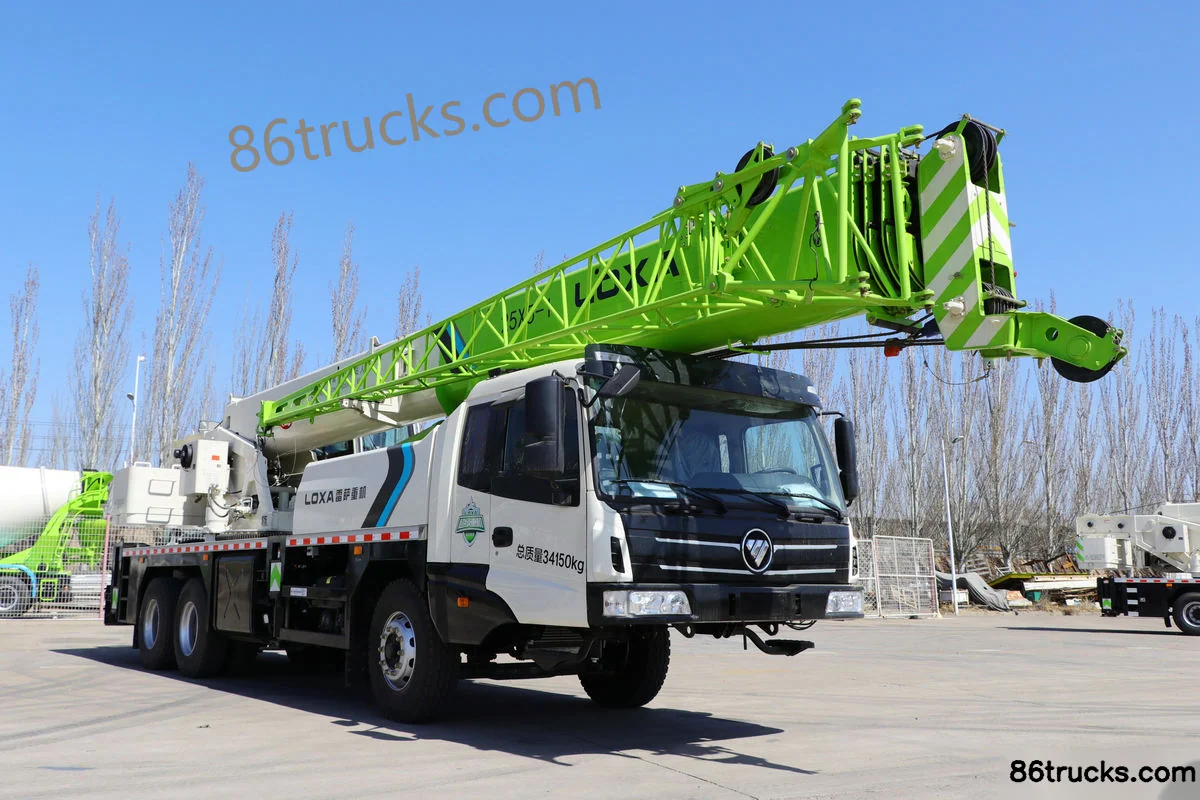

Exterior3

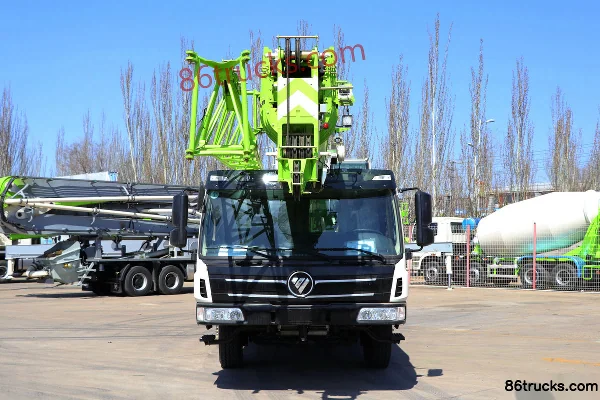

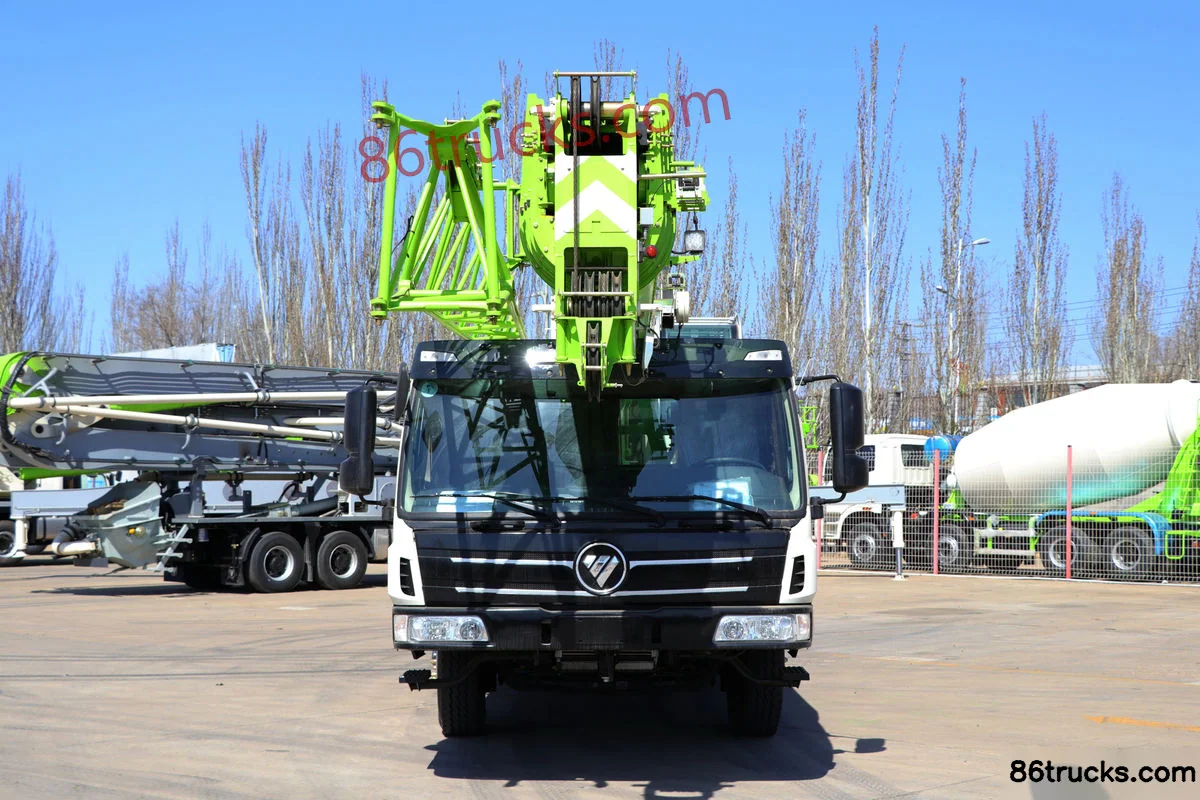

Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Exterior (1) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Exterior (2) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Exterior (3) | 86Trucks

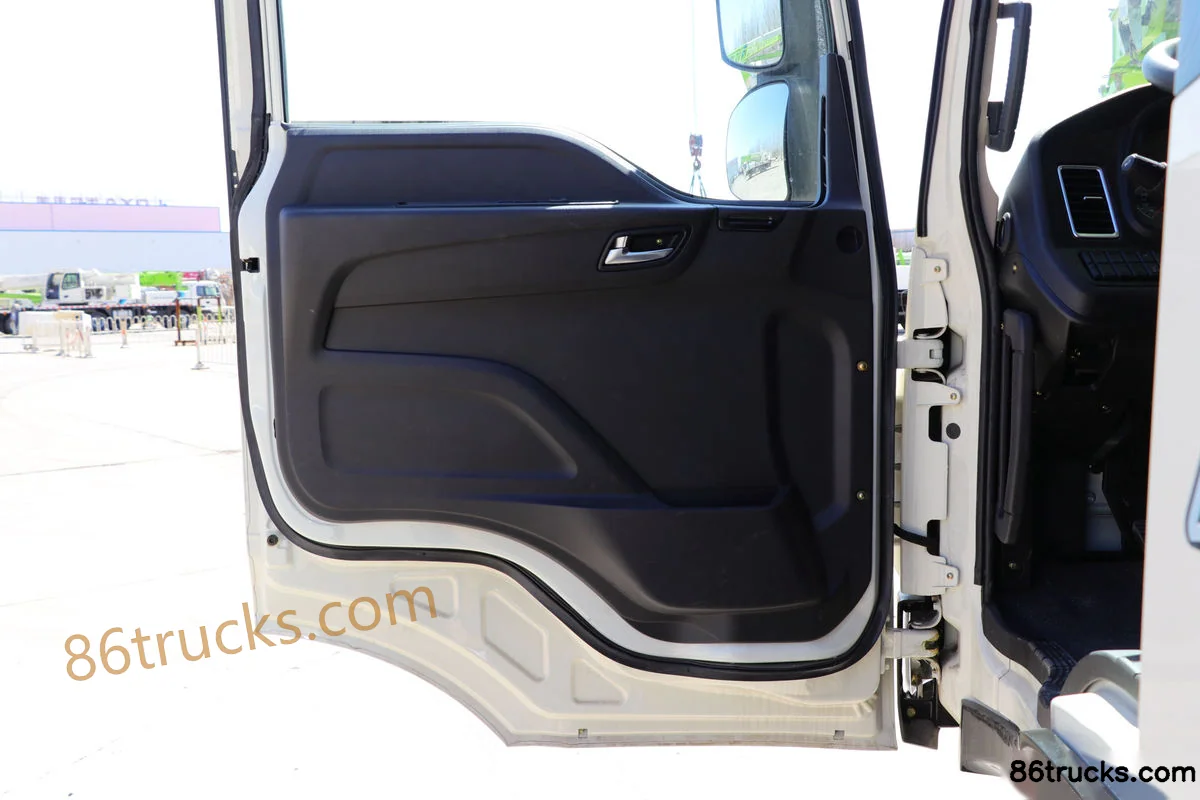

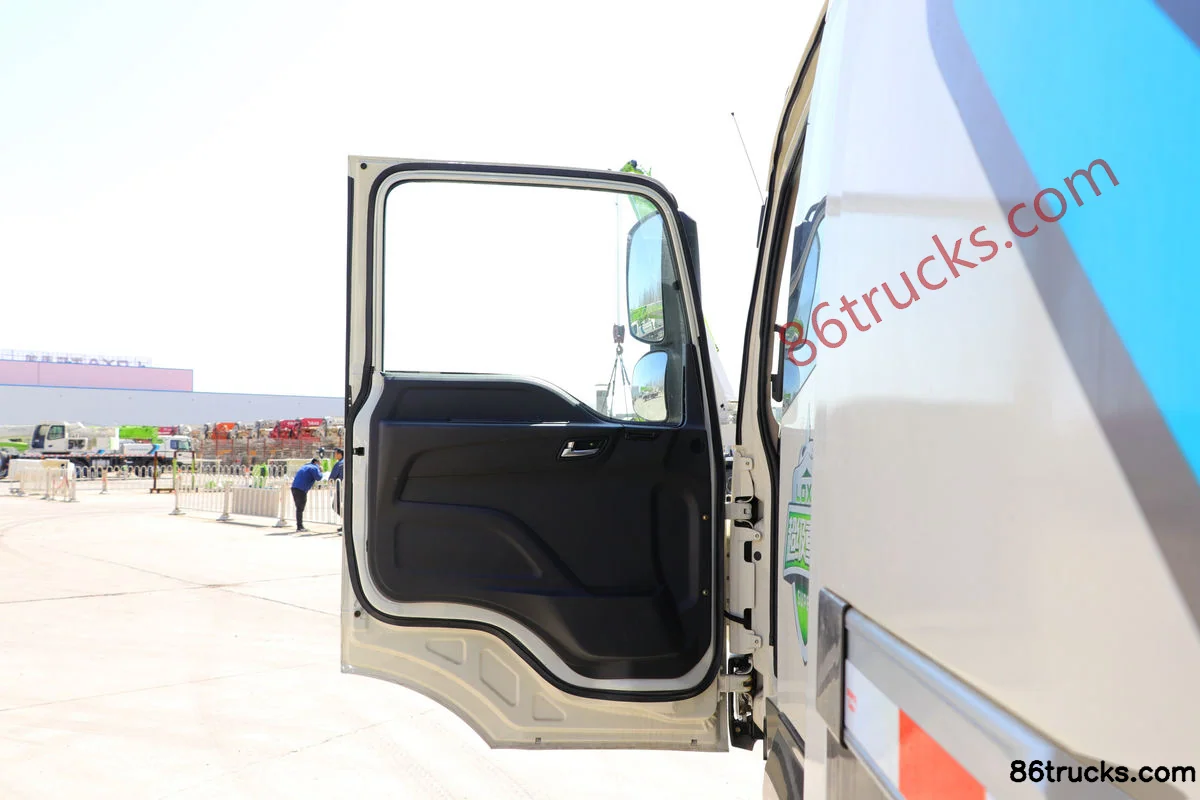

Cab3

Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Cab (1) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Cab (2) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Cab (3) | 86Trucks

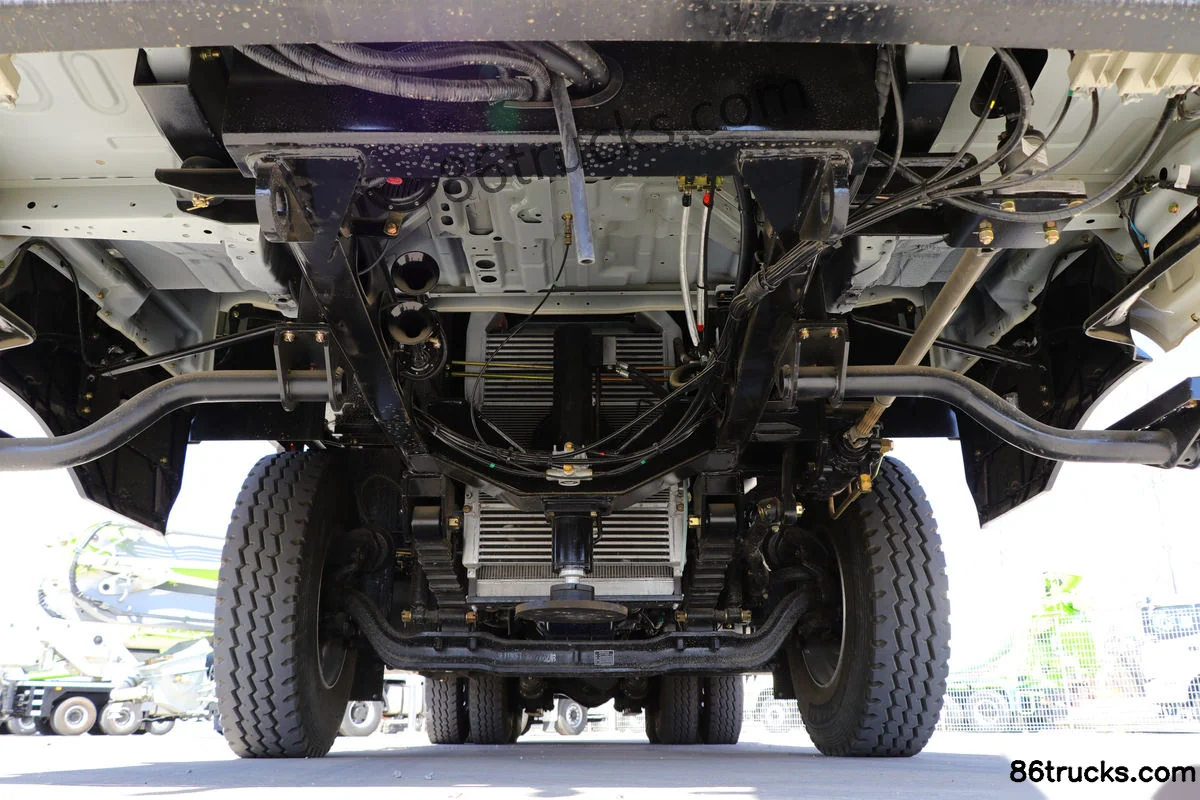

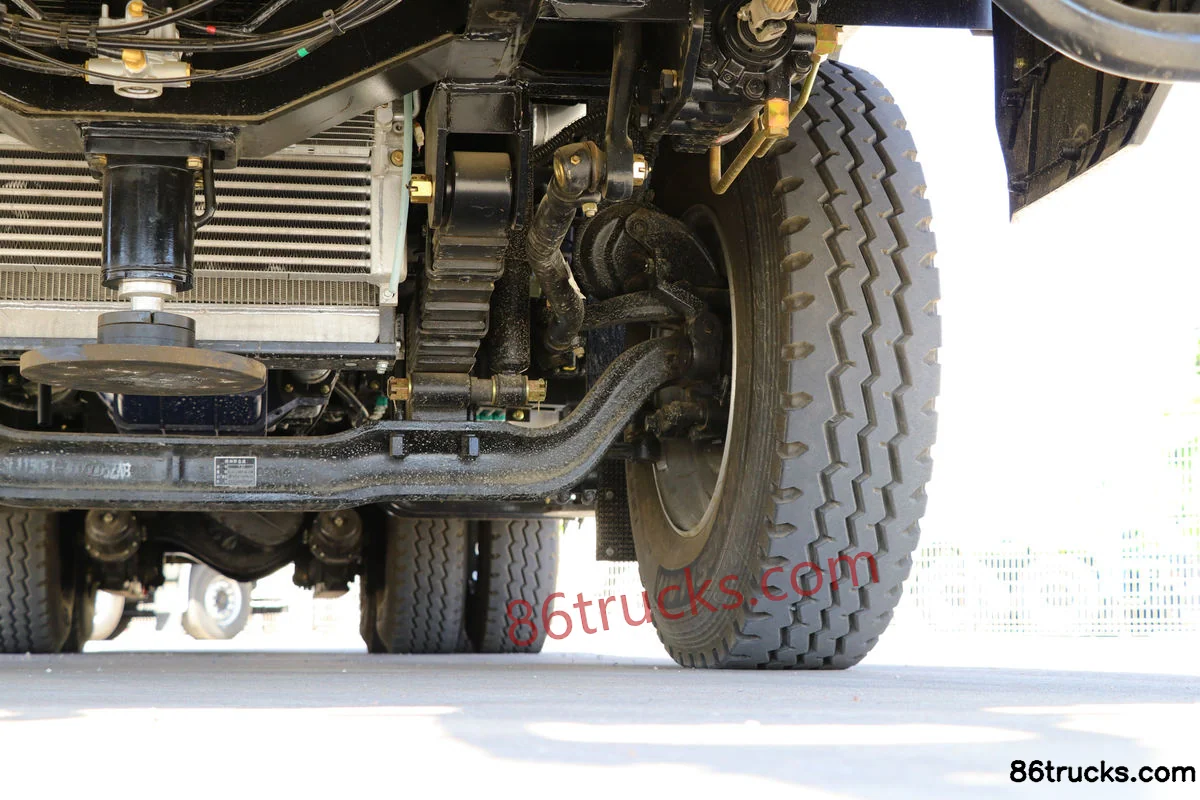

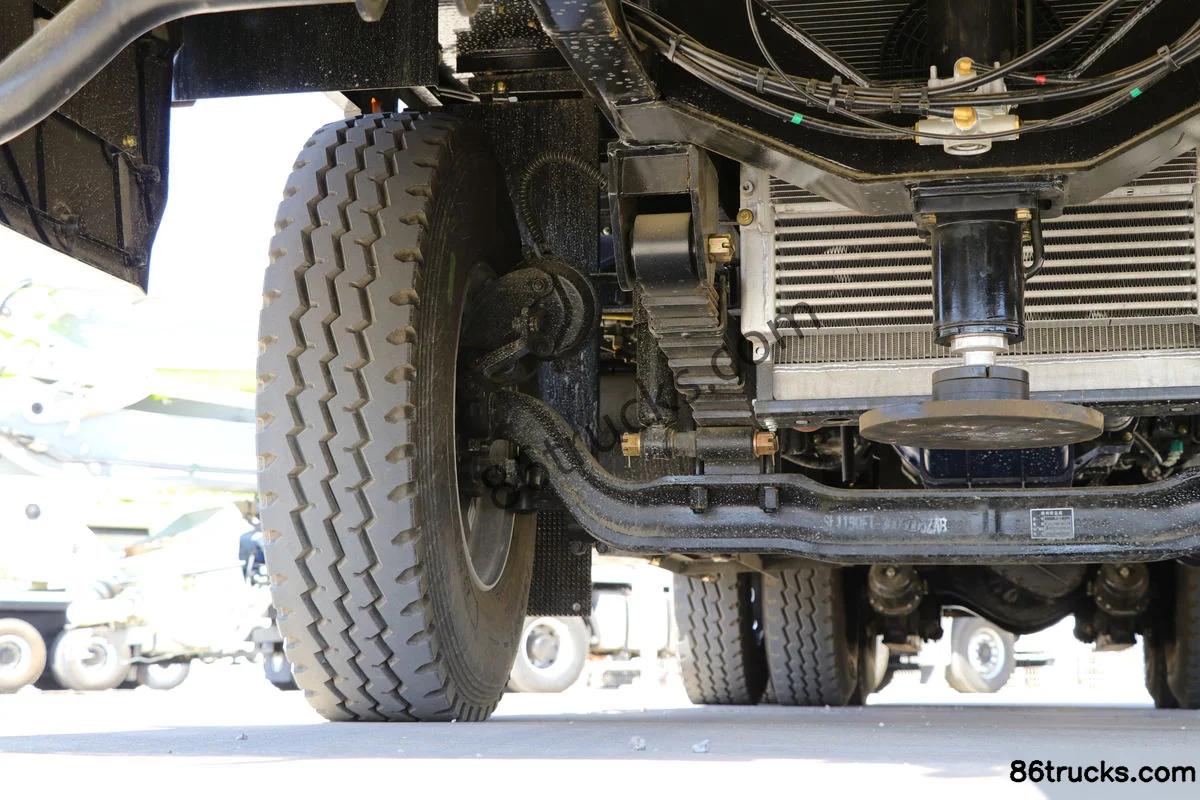

Chassis3

Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Chassis (1) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Chassis (2) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Chassis (3) | 86Trucks

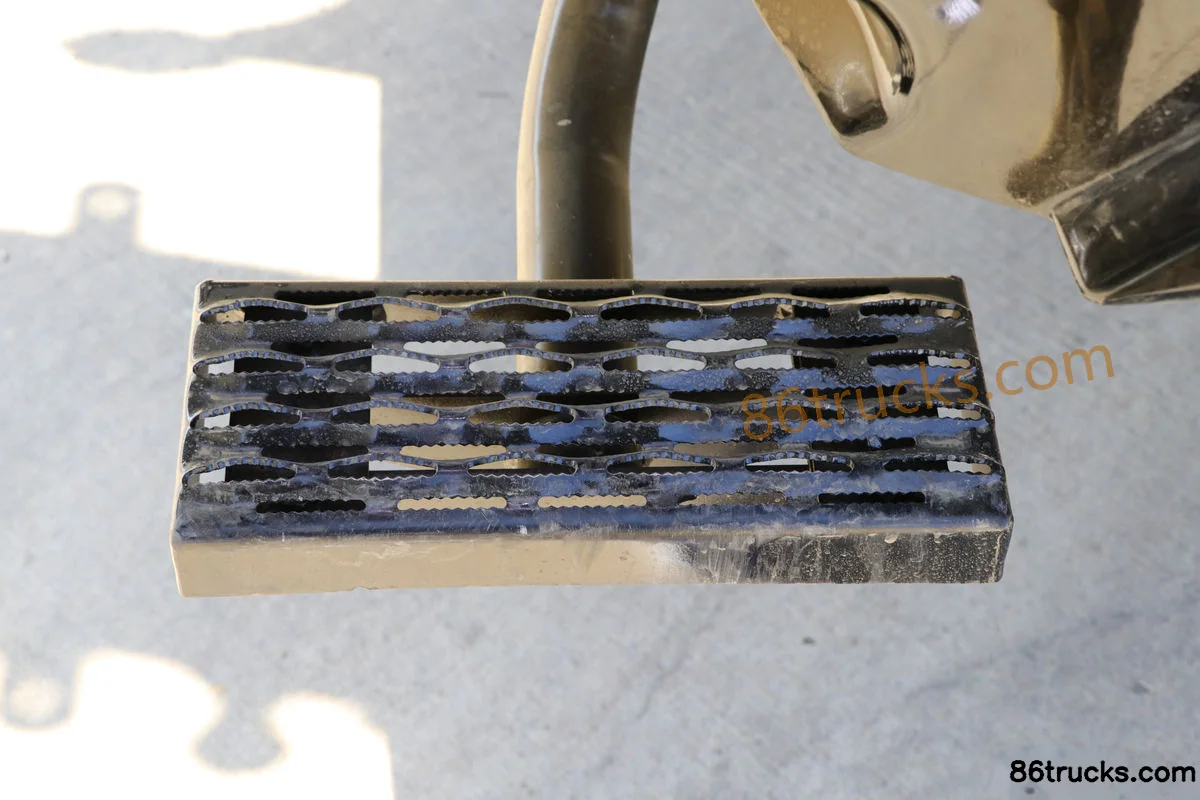

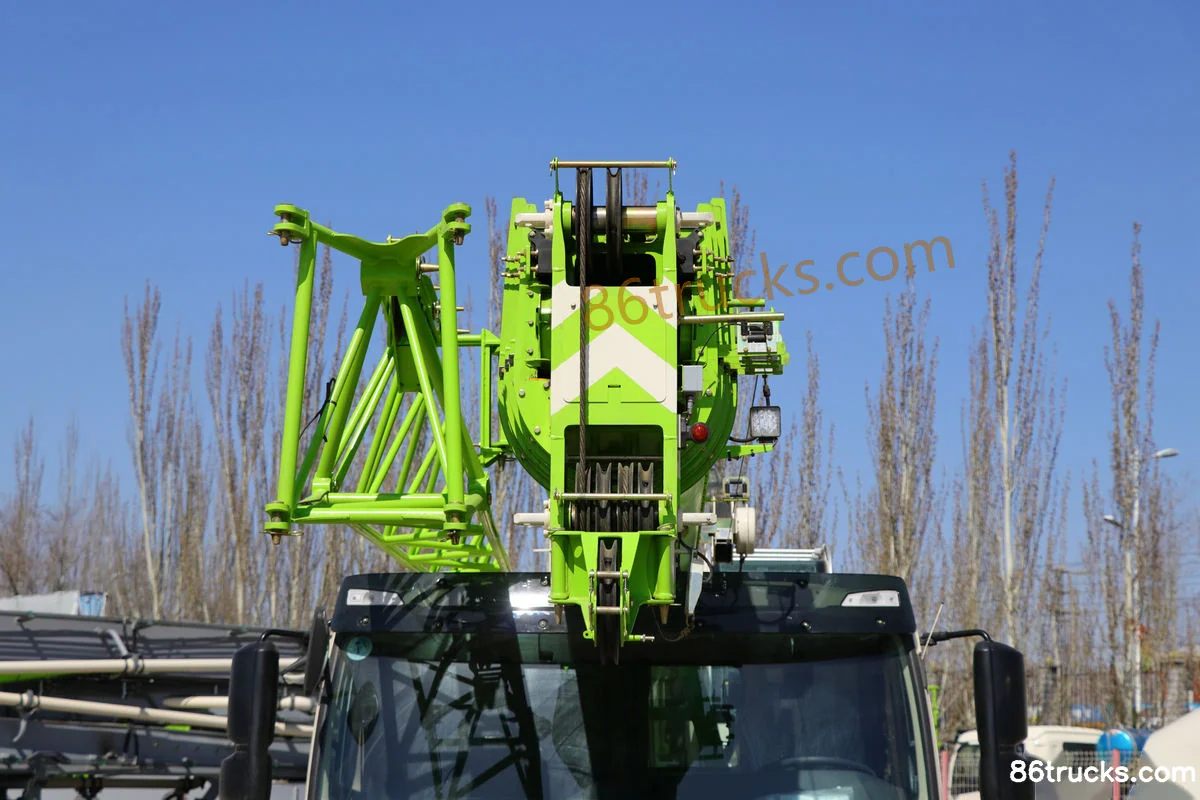

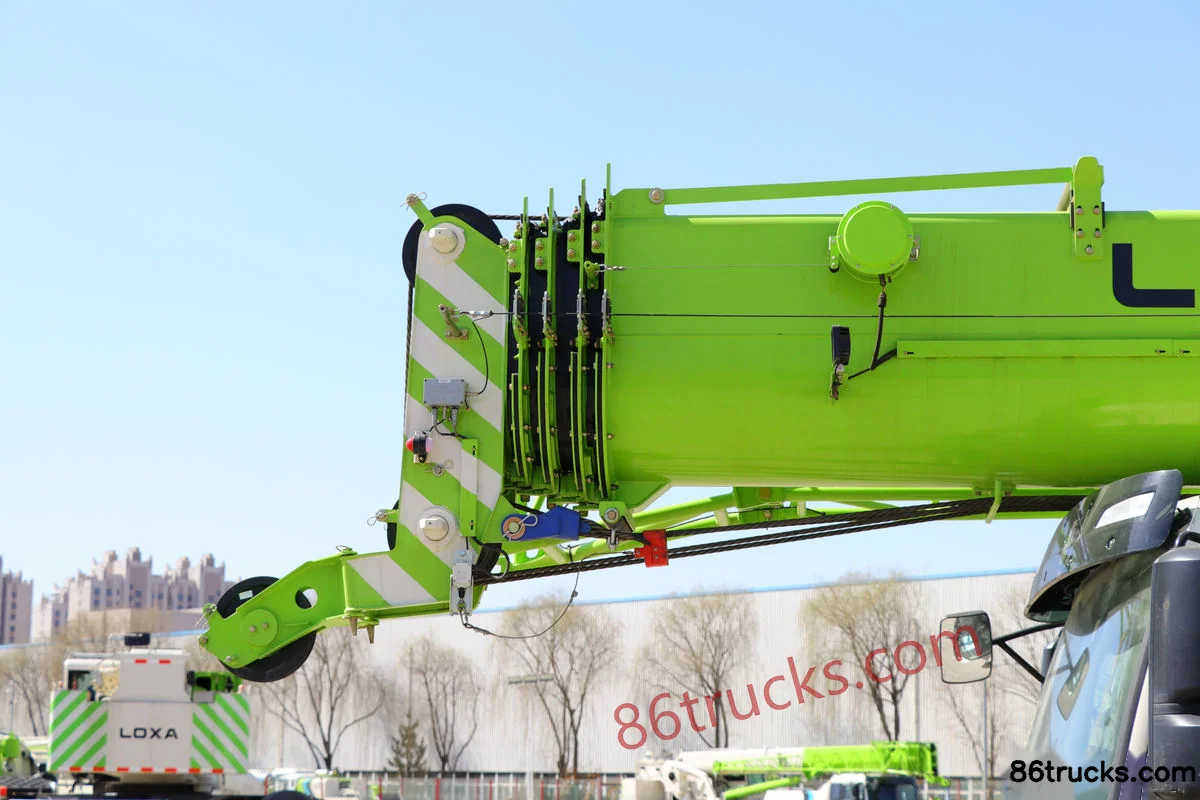

Body3

Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Body (1) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Body (2) | 86Trucks Loxa Heavy Machinery 25 ton truck crane (FTC25X5) Body (3) | 86Trucks

12 photos

FAQ

What transport jobs is Loxa Heavy Machinery 25 ton truck crane (FTC25X5) suited for?

Loxa Heavy Machinery 25 ton truck crane (FTC25X5) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Loxa Heavy Machinery 25 ton truck crane (FTC25X5) differ from other variants in the same series?

Loxa Heavy Machinery 25 ton truck crane (FTC25X5) belongs to Loxa Heavy Machinery Loxa (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Loxa Heavy Machinery 25 ton truck crane (FTC25X5)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Loxa Heavy Machinery 25 ton truck crane (FTC25X5)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
