Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck

Export reference
MSRP N/A
Horsepower: 490
Emission: China VI
Fuel: Diesel
Curb Weight:: 14.1ton
Wheelbase:: 1950+4600+1400mm
Tire Size:: 12R22.5 18PR
Fuel tank capacity: 800L
Rated payload: 17.77ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.45×2.45×2.5m

Overview

The Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck is a Refrigerated Truck featuring 9.45×2.45×2.5m cargo body, 800L volume, 17.77t payload and 12×2.6×3.98m cab. On the powertrain side, it comes with 490 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 490 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×3.98m
Truck Type: Refrigerated Truck
Drive type: 8X4
Vehicle origin: Shandong Zhangqiu
Wheelbase: 1950+4600+1400mm
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 14.1ton
Rated payload: 17.77ton
GVWR: 32ton
Max. speed: 89km/h
Remarks: Bosch steering gear, 4-way camera.
Front/rear suspension: 1.492/2.558m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC11H.49-61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.05L
Emission standard: China VI
Max output power: 363kW
Max hp: 490Horsepower
Cargo box parameters
Cargo box dimensions: 9.45×2.45×2.5m
Cargo box width: 2.45m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: ZZ5326XLCV466HF1K
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK G7S
Chassis Model: ZZ1326V466HF1K
Leaf spring count: 3/3/-/-
Transmission Parameters
Number of gears: 16Gear
Transmission Model: SinotrukHW25716XAL
fuel tank
Fuel tank capacity: 800L
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Air deflector: Yes
Multimedia features
Center Console Color Screen:
lighting configuration
Headlight height adjustment:
smart configuration
Forward Collision Warning (FCW):

Photos

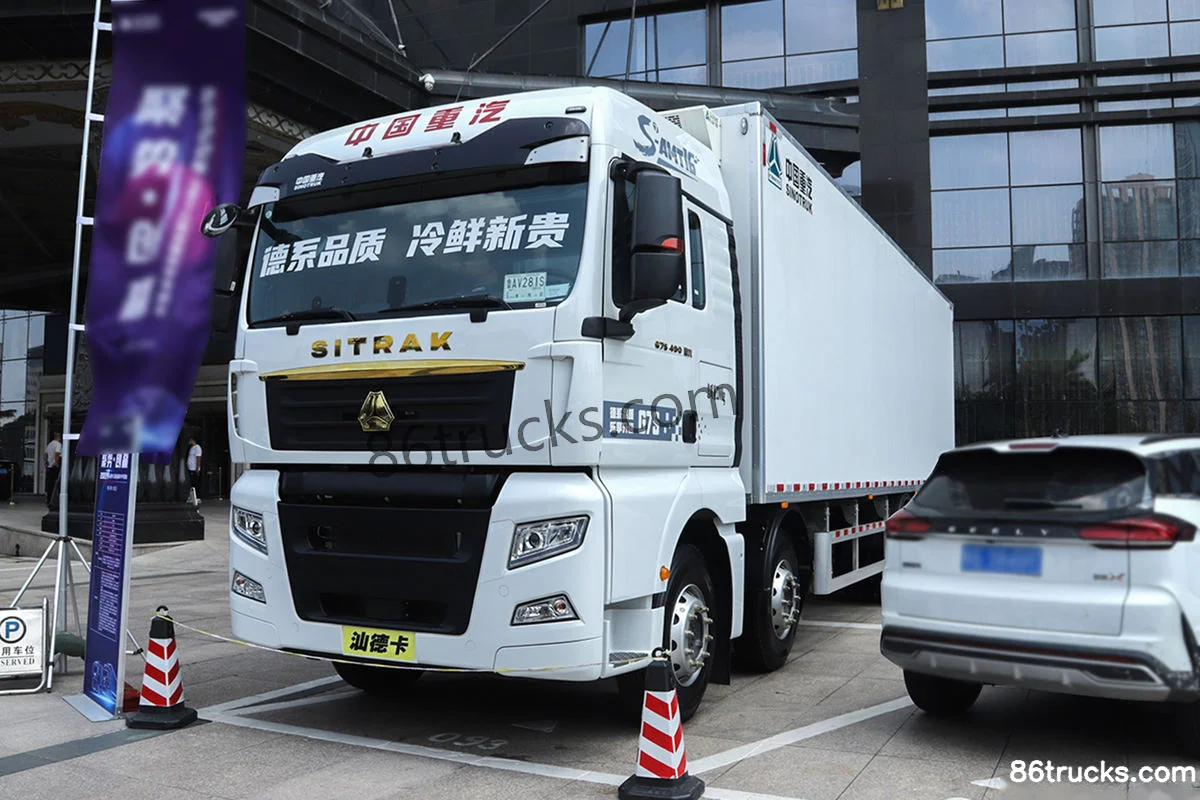

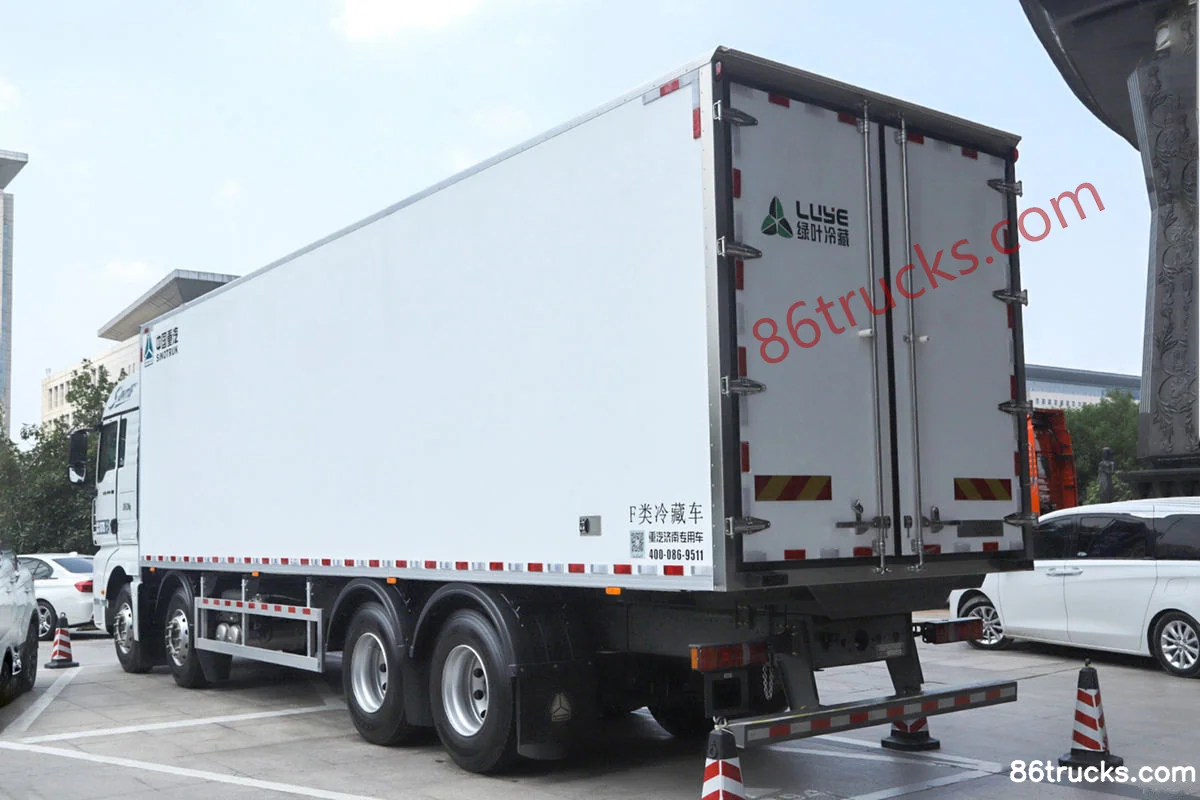

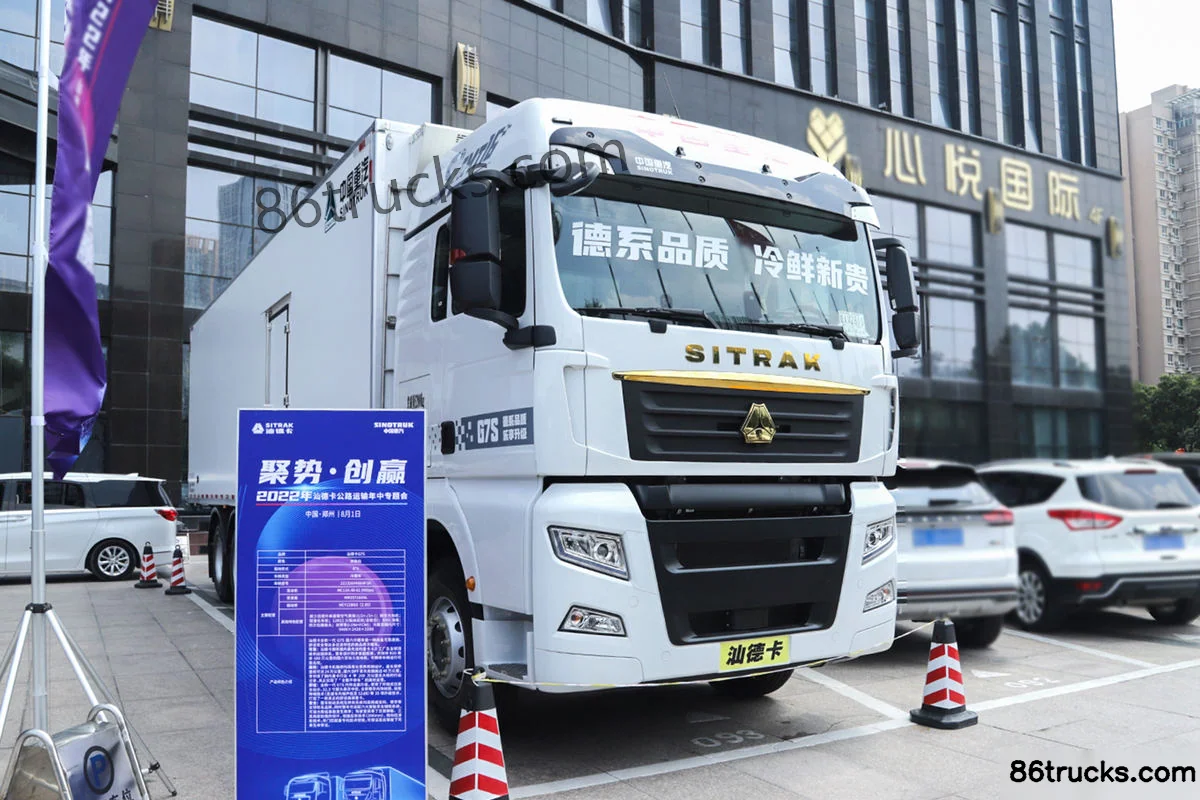

Exterior3

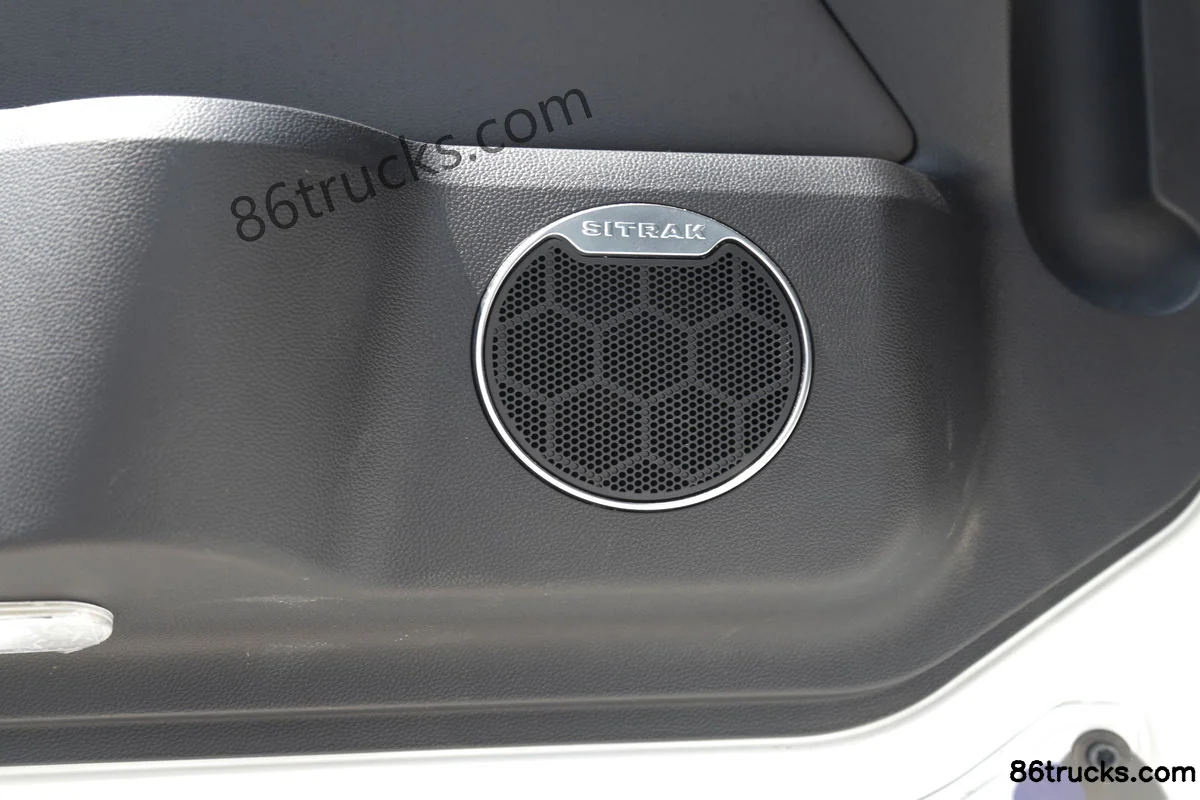

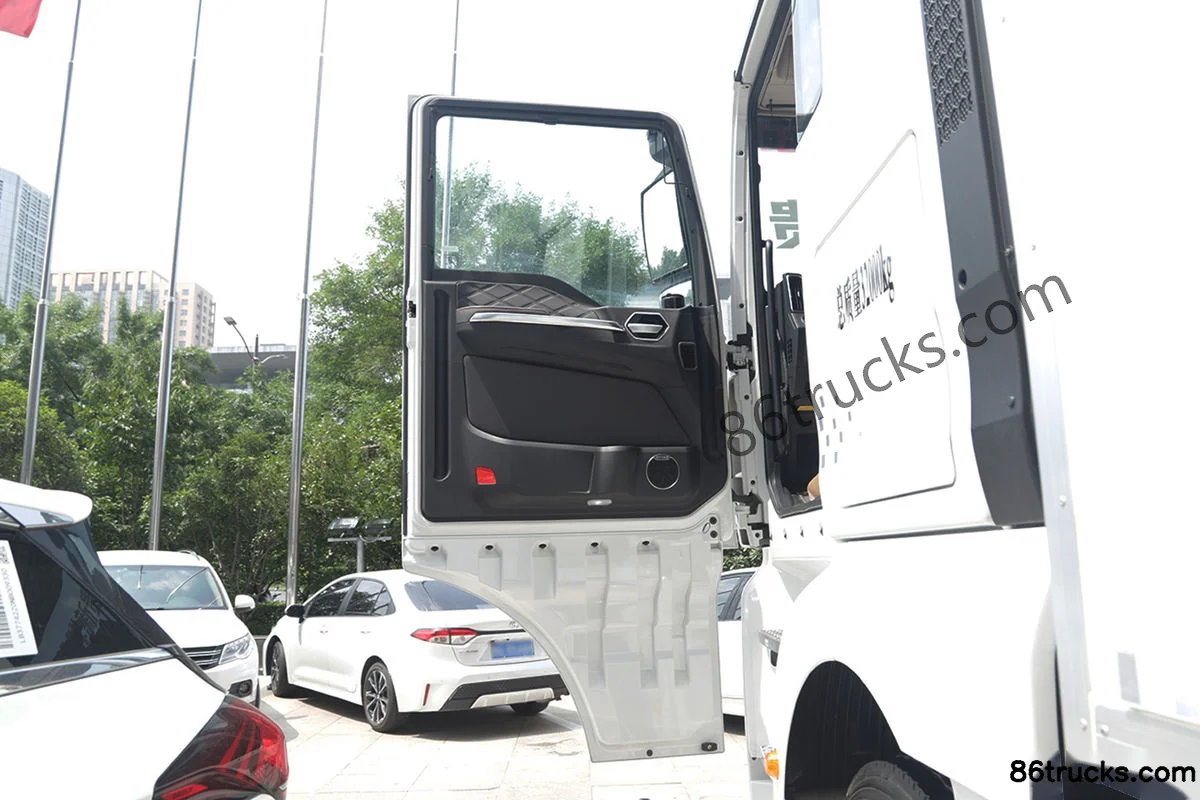

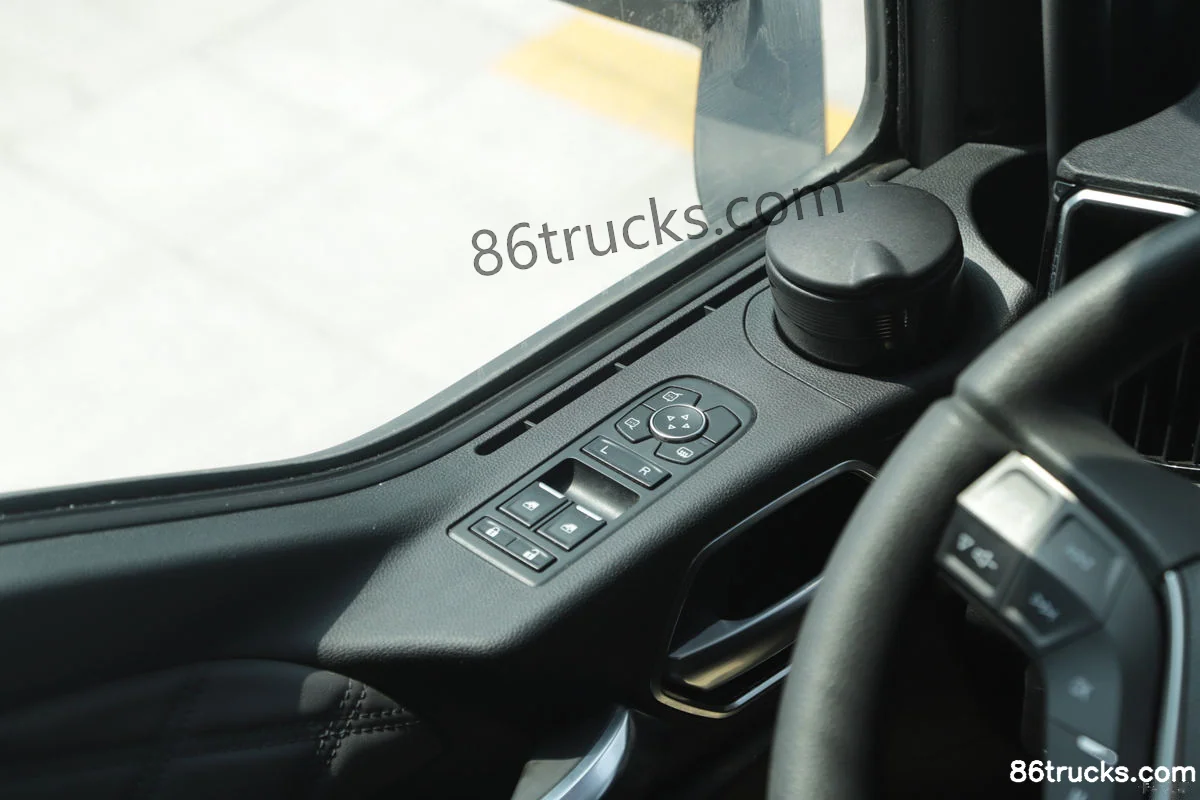

Cab3

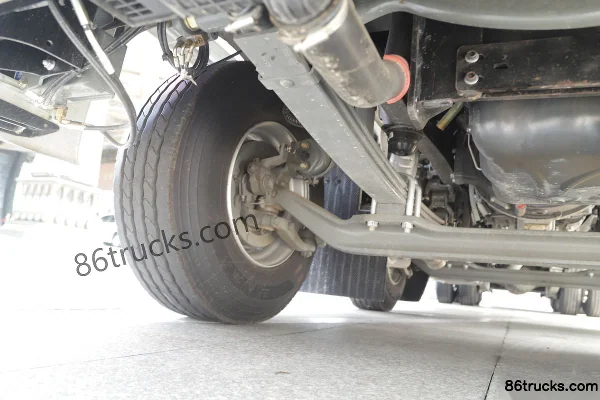

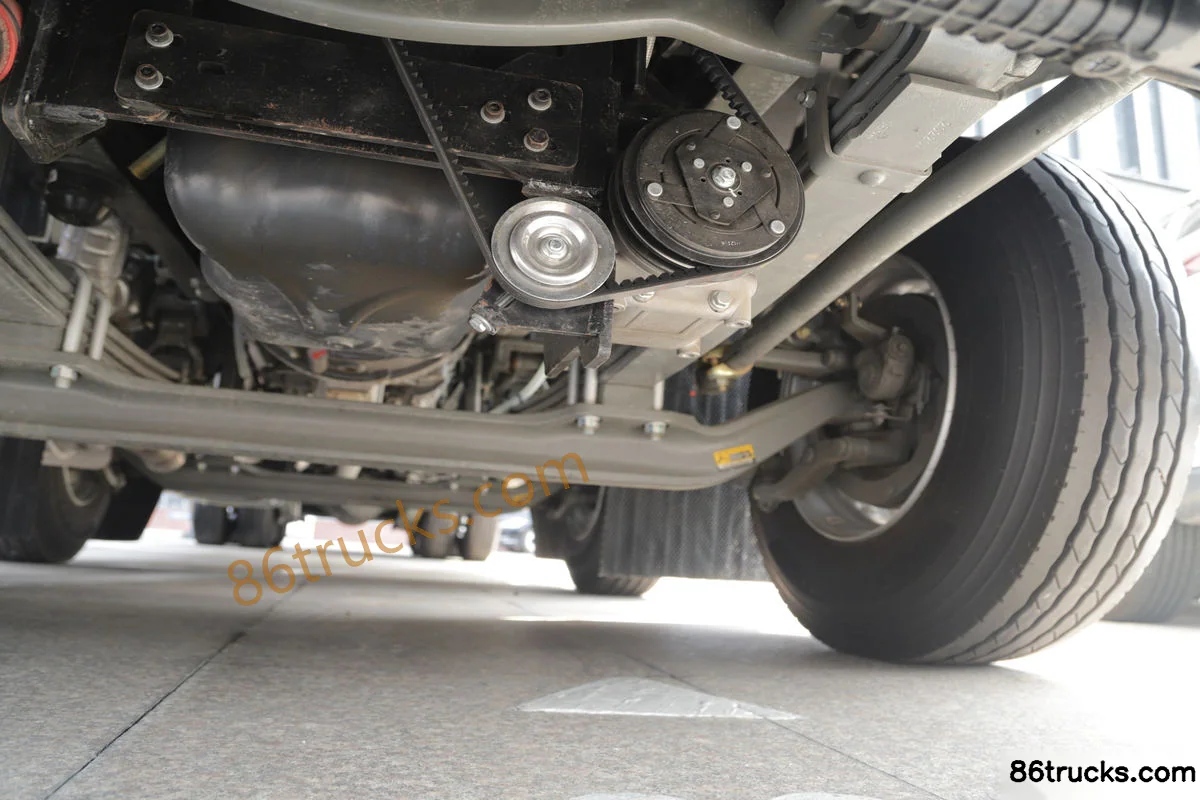

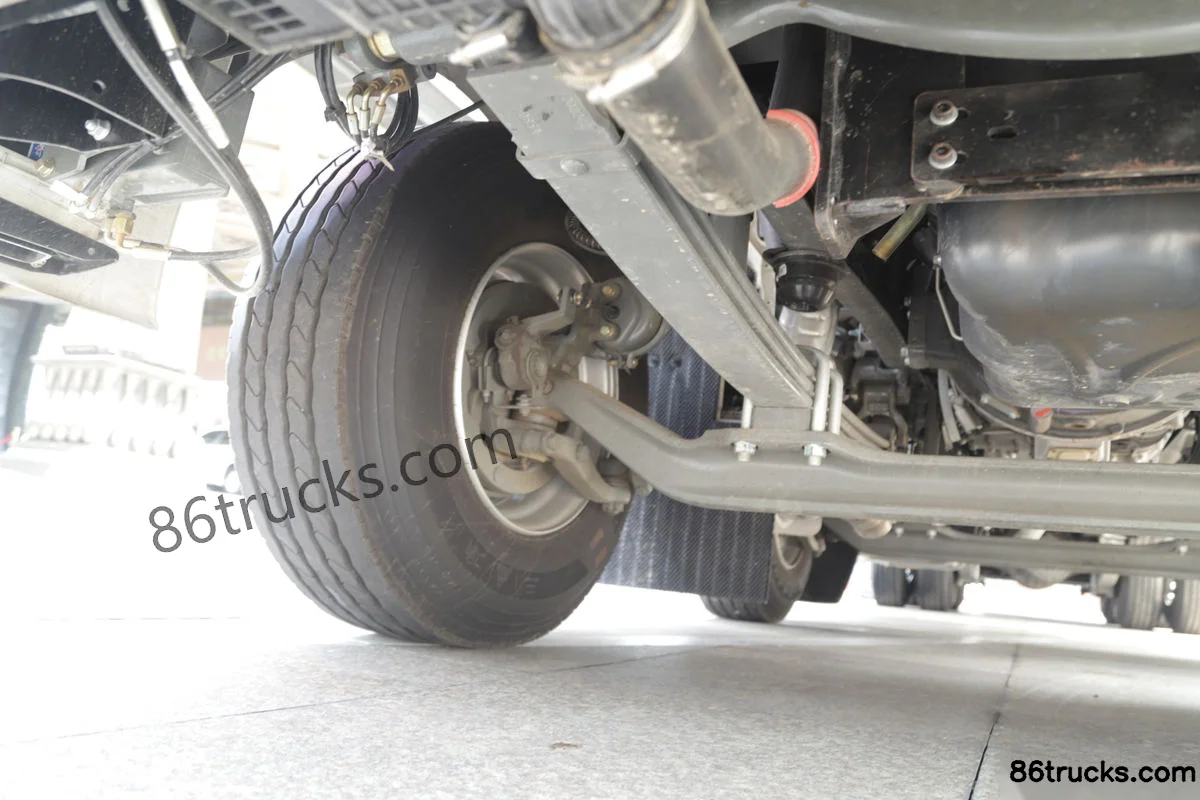

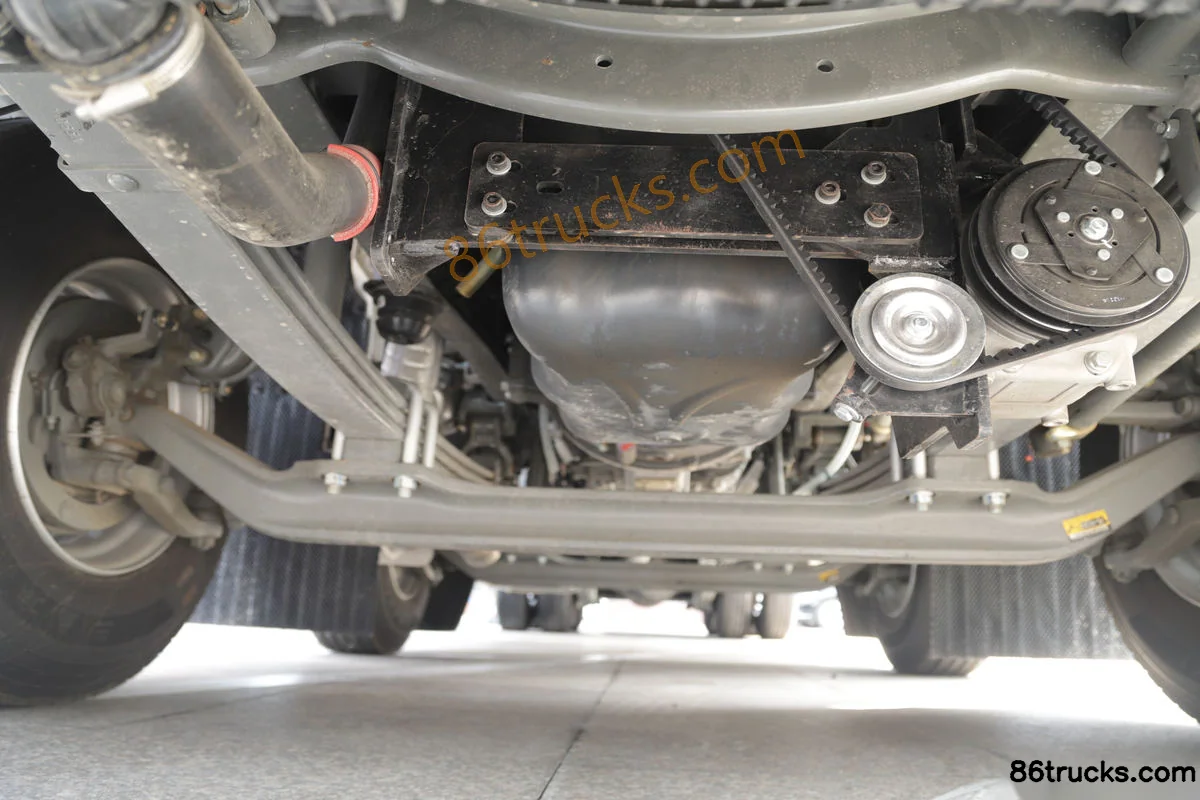

Chassis3

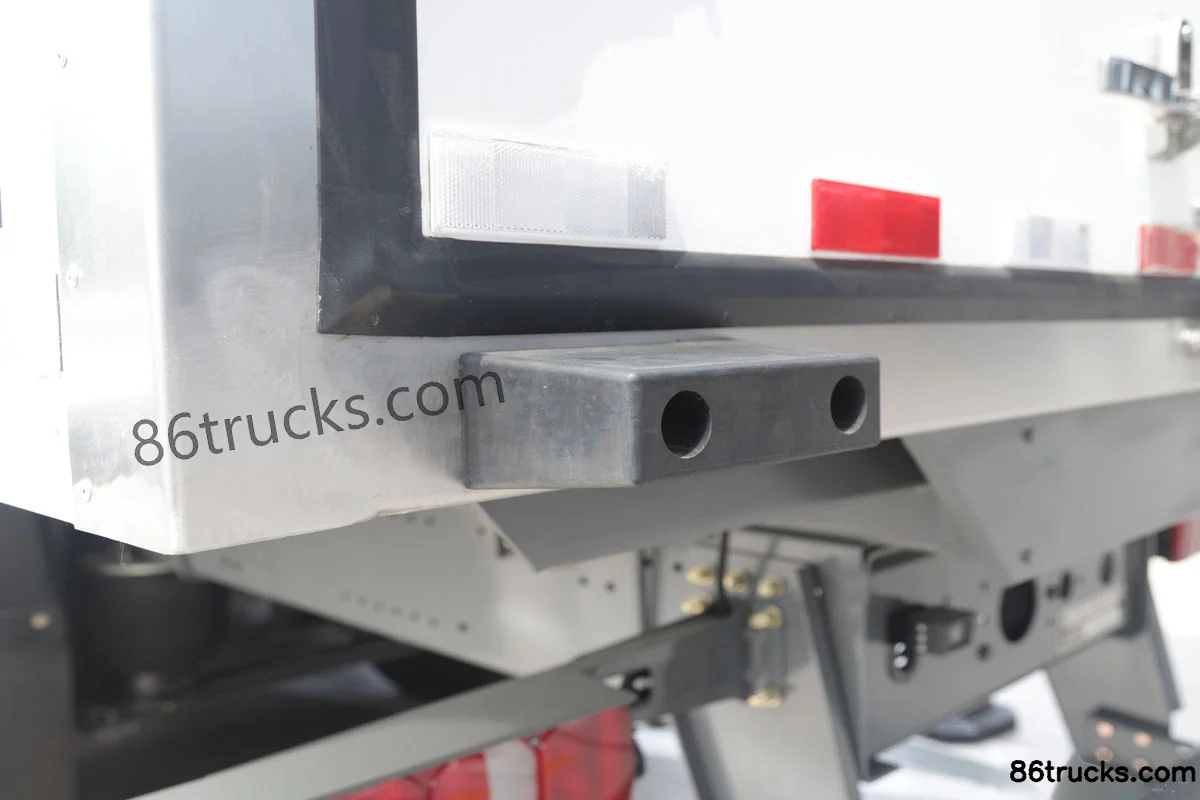

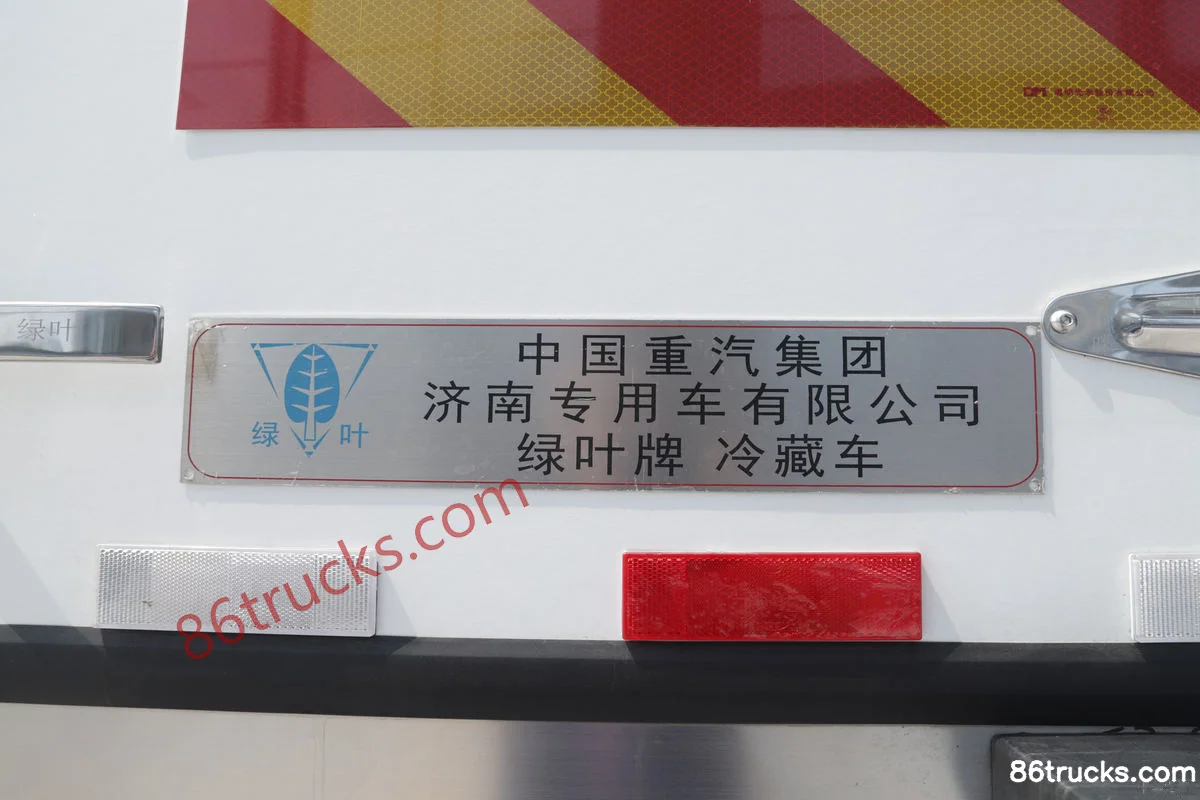

Body3

12 photos

FAQ

What emission standard does Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck?

Key specs of Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck: Drive: 8x4; Horsepower: 490 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck suited for?

Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck differ from other variants in the same series?

Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck belongs to Sitrak G7S heavy truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak G7S 490hp 8X4(12 wheels) 9.45m AMT automatic refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
