Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Refrigerated Truck (Xiangfan Xinzhongchang - Zhongchang Brand)
EXW
Export quote
Xiangyang Xinzhongchang Dongfeng Commercial Vehicle
Main model photos
22 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Refrigerated Truck (Xiangfan Xinzhongchang - Zhongchang Brand) | 4x2 / 180hp / China IV | ||
| Dongfeng Tianjin 180 hp 4X2(6 wheels) Refrigerated Truck (Xiangfan Xinzhongchang - Zhongchang Brand) | 4x2 / 180hp / China IV |

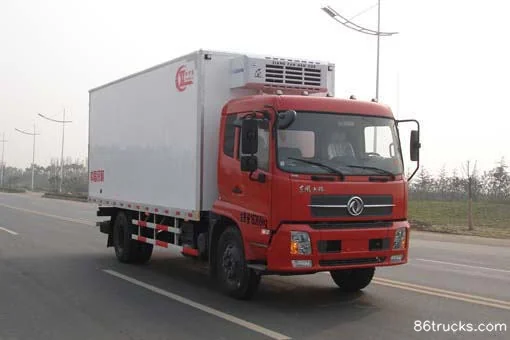

Dongfeng Tianjin 180 hp 4X2(6 wheels) Refrigerated Truck (Xiangfan Xinzhongchang - Zhongchang Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.4×2.28×2.4 / 8.91×2.5×3.86m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Xiangyang, Hubei
Wheelbase: 5600 / 4700mm
Front track width: 1880mm
rear track: 1800 / 1860,1800mm
Curb Weight: 16ton
Rated payload: 8 / 8.5ton
Max. speed: 110 / 90km/h
Front/rear suspension: 1.43/2.965 / 1.43/2.48m
Energy Type: Diesel
Engine parameters
Engine Model: DongfengEQH180-40 / DongfengISDe180 40
Number of cylinders: 4 / 6cylinder
Displacement: 4.752 / 4.5L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 650 / 700N·m
Rated speed: 2400 / 2500rpm
Engine Type: Inline / High-pressure common rail
Cargo box parameters
Box volume: 33m³
Cargo box dimensions: 9.995×2.5×3.87 / 6.4×2.28×2.3m
Cargo box width: 2.5 / 2.28m
Cargo box height: 3.87 / 2.3m
Body Parameters
Vehicle certification code: XZC5161XLC4 / XZC5160XLC4
Body Brand: Zhongchang Brand
Refrigeration unit:
Refrigeration temperature: -15°C
Chassis Specs
Chassis Series: Dongfeng Tianjin
Chassis Model: DFL5160XXYBX1A / DFL1160BX5
Front axle description: 4.5 / 5T
rear axle description: 9 / 8T
Leaf spring count: 7/9+6,8/10+8 / 8/10+8,7/9+6
Transmission Parameters
Number of gears: 8 / 6Gear
Transmission Model: Fast Gear / Dongfeng DF6S900
Tire
Tire Size: 9.00R20 / 10.00-20,10.00R20,9.00-20,9.00R20,275/80R22.5 16PR
Number of tires: 6pcs
FAQ
What kind of truck is Xiangyang Xinzhongchang Xiangyang Xinzhongchang Dongfeng Commercial Vehicle Chassis Refrigerated Truck?
Xiangyang Xinzhongchang Xiangyang Xinzhongchang Dongfeng Commercial Vehicle Chassis is an export-oriented Refrigerated Truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Xiangyang Xinzhongchang Dongfeng Commercial Vehicle cover?
Xiangyang Xinzhongchang Dongfeng Commercial Vehicle mainly covers: Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Xiangyang Xinzhongchang Dongfeng Commercial Vehicle?
For Xiangyang Xinzhongchang Dongfeng Commercial Vehicle: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Xiangyang Xinzhongchang Dongfeng Commercial Vehicle include?
Xiangyang Xinzhongchang Dongfeng Commercial Vehicle currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xiangyang Xinzhongchang Dongfeng Commercial Vehicle?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
