JMC Shunda Narrow Body 129 hp 4X2(6 wheels) 4.13m Refrigerated Truck
EXW
From $13,722
Export quote
JMC Shunda narrow-body light truck Refrigerated
Main model photos
563 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Narrow Body 129 hp 4X2(6 wheels) 4.13m Refrigerated Truck | 4x2 / 129hp / China VI | From $13,722 | |
| JMC Shunda Narrow Body 130hp 4X2(6 wheels) 4.16m Refrigerated Truck (Custom Box) | 4x2 / 129hp / China VI | From $28,750 | |
| JMC Shunda Narrow Body 130hp 4X2(6 wheels) 4.16m Refrigerated Truck | 4x2 / 129hp / China VI | From $19,972 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.13m refrigerated truck (China VI) | 4x2 / 116hp / China VI | From $27,222 |
JMC Shunda Narrow Body 130hp 4X2(6 wheels) 4.16m Refrigerated Truck (Custom Box)
EXW
From $28,750
Export quote
JMC Shunda Narrow Body 130hp 4X2(6 wheels) 4.16m Refrigerated Truck
EXW
From $19,972
Export quote
JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.13m refrigerated truck (China VI)
EXW
From $27,222
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Narrow Body 122hp 4X2(6 wheels) 4.13m Refrigerated Truck (China VI) | 4x2 / 122hp / China VI | From $22,194 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.13m Refrigerated Truck | 4x2 / 116hp / China V | From $25,000 | |
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 3m refrigerated truck | 4x2 / 116hp / China V | From $12,278 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 3.19m Refrigerated Truck | 4x2 / 116hp / China V | From $19,000 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck | 4x2 / 116hp / China V | From $16,917 |
JMC Shunda Narrow Body 122hp 4X2(6 wheels) 4.13m Refrigerated Truck (China VI)
EXW
From $22,194
Export quote
JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.13m Refrigerated Truck
EXW
From $25,000
Export quote
JMC Shunda Narrow Body 116hp 4X2(6 wheels) 3m refrigerated truck
EXW
From $12,278
Export quote

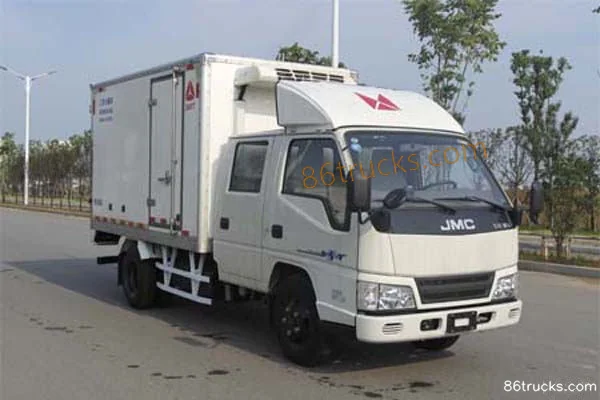

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 3.19m Refrigerated Truck
EXW
From $19,000
Export quote

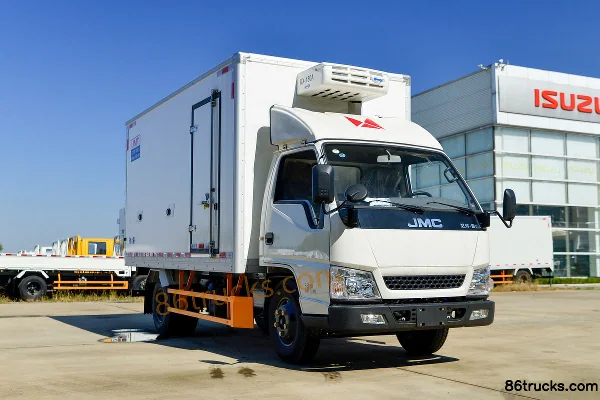

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck
EXW
From $16,917
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.05×2.88 / 5.965×2.052×3.045 / 5.565×1.88×2.02 / 4.825×2.052×2.89 / 5.945×2.052×3.025 / 5.945×2.052×3.035 / 5.995×2.08×2.9m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Nanchang, Jiangxi / Jinan, Shandong
Wheelbase: 3360 / 2490mm
Front track width: 1465 / 1385 / 1370mm
rear track: 1425mm
Curb Weight: 3.12 / 3.08 / 2.965 / 2.73 / 3.01 / 2.68 / 2.98ton
Rated payload: 1.245 / 1.285 / 1.4 / 1.33 / 1.16 / 1.495 / 1.385ton
GVWR: 4.495ton
Max. speed: 100 / 95km/h
Remarks: Optional 6.142 ratio.
Front/rear suspension: 1.075/1.56 / 1.075/1.53 / 1.065/1.57 / 1.065/1.27 / 1.065/1.52m
Energy Type: Diesel
Engine parameters
Engine Model: JMCJX493ZLQ6F / JMCJX4D30A6H / JMCJX4D30B6H / JMCJX493ZLQ6A / Nanchang JMC JX493ZLQ5
Number of cylinders: 4cylinder
Displacement: 2.499 / 2.892 / 2.771L
Emission standard: China VI / China V
Max output power: 95 / 85 / 90kW
Max hp: 129 / 116 / 122Horsepower
Max torque: 350 / 330 / 285N·m
Rated speed: 3600 / 3800rpm
Engine Type: High-pressure common rail / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / Inline
Cargo box parameters
Cargo box dimensions: 4.13×1.88×1.75 / 4.16×1.88×1.88 / 4.13×1.88×1.84 / 3×1.88×1.705 / 3.19×1.88×1.84 / 4.145×1.88×1.865 / 4.145×1.88×1.765m
Cargo box width: 1.88m
Cargo box height: 1.75 / 1.88 / 1.84 / 1.705 / 1.865 / 1.765m
Body Parameters
Vehicle certification code: JX5041XLCTG26 / JMT5040XLCXG26 / ZLQ5041XLC / JMT5040XLCXA2 / JMT5040XLCXSG2 / JMT5040XBWXG2 / JMT5040XLCXG2
Refrigeration unit: Kaixue KX-350
Body Brand: JMC / Shuangda Brand
Refrigeration temperature: 18°C
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda / Shunda Narrow Body
Chassis Model: JX1041TG26 / JX1041TGE26 / JX1041TG25 / JX1041TA25 / JX1041TSG25
Front axle description: Payload 1610 kg
rear axle description: Payload 2580kg
Axle ratio: 5.571
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Getrag 5MTI280S / 5-speed gearbox / 5-speed transmission / Getrag 5-speed
Cab parameters
Cab: 1695/single row
fuel tank
Fuel tank capacity: 83L
FAQ
What kind of truck is JMC JMC Shunda narrow-body light truck Refrigerated Truck?
JMC JMC Shunda narrow-body light truck is an export-oriented Refrigerated Truck lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JMC Shunda narrow-body light truck Refrigerated?
JMC Shunda narrow-body light truck Refrigerated export reference is about $12,278 – $28,750. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JMC Shunda narrow-body light truck Refrigerated cover?
JMC Shunda narrow-body light truck Refrigerated mainly covers: Drive: 4x2; Horsepower: 116 hp / 122 hp / 129 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JMC Shunda narrow-body light truck Refrigerated?
For JMC Shunda narrow-body light truck Refrigerated: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JMC Shunda narrow-body light truck Refrigerated include?
JMC Shunda narrow-body light truck Refrigerated currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JMC Shunda narrow-body light truck Refrigerated?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
