JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck

Export reference
From $16,917
MSRP ¥12.18M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.68ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 8PR
Cab dimensions:: 5.945×2.052×3.035m
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.145×1.88×1.865m
Horsepower 116

Overview

The JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck is a Refrigerated Truck featuring 4.145×1.88×1.865m cargo body, 1.495t payload, 5.945×2.052×3.035m cab and 3360mm wheelbase. On the powertrain side, it comes with 116 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.945×2.052×3.035m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3360mm
Vehicle origin: Nanchang, Jiangxi
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.68ton
Rated payload: 1.495ton
Max. speed: 100km/h
Front/rear suspension: 1.065/1.52m
Energy Type: Diesel
Engine parameters
Engine Model: Nanchang JMC JX493ZLQ5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Rated speed: 3800rpm
Engine Type: Inline
Cargo box parameters
Cargo box dimensions: 4.145×1.88×1.865m
Cargo box width: 1.88m
Cargo box height: 1.865m
Body Parameters
Vehicle certification code: JMT5040XBWXG2
Body Brand: JMC
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Narrow Body
Chassis Model: JX1041TG25
Leaf spring count: 7/6+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Getrag 5-speed
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

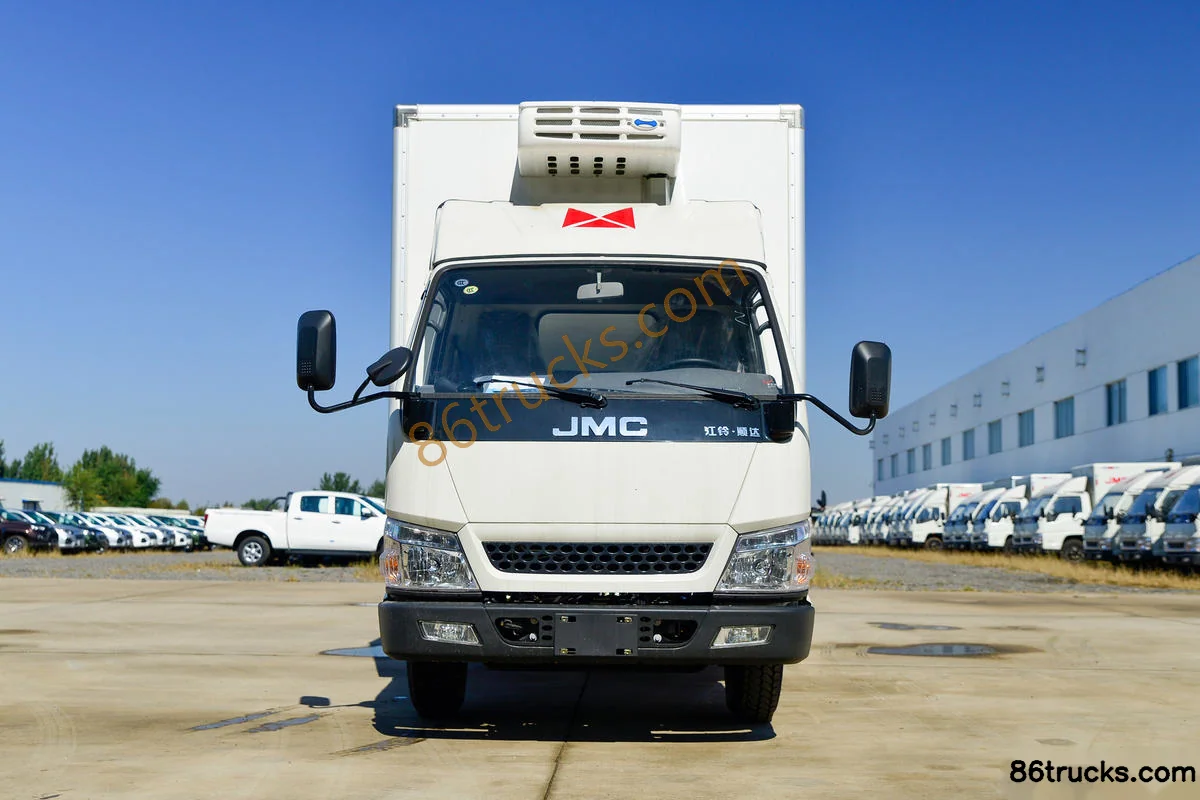

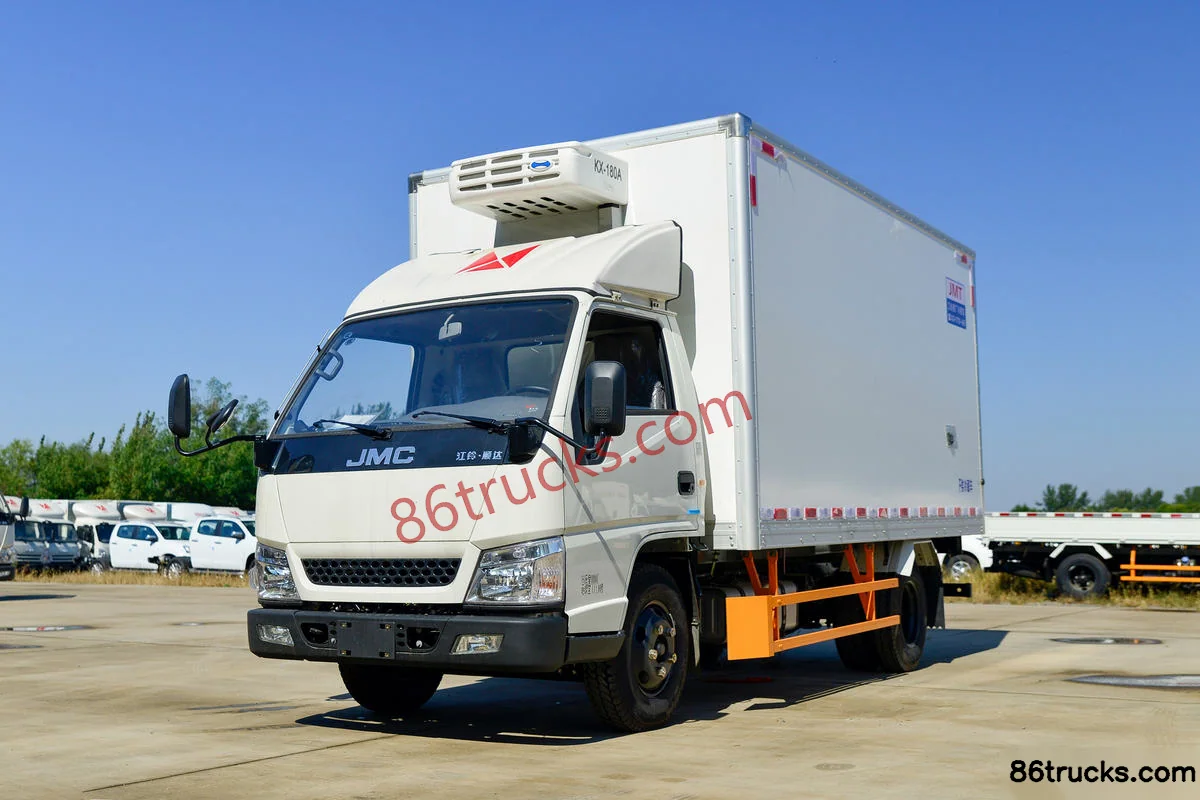

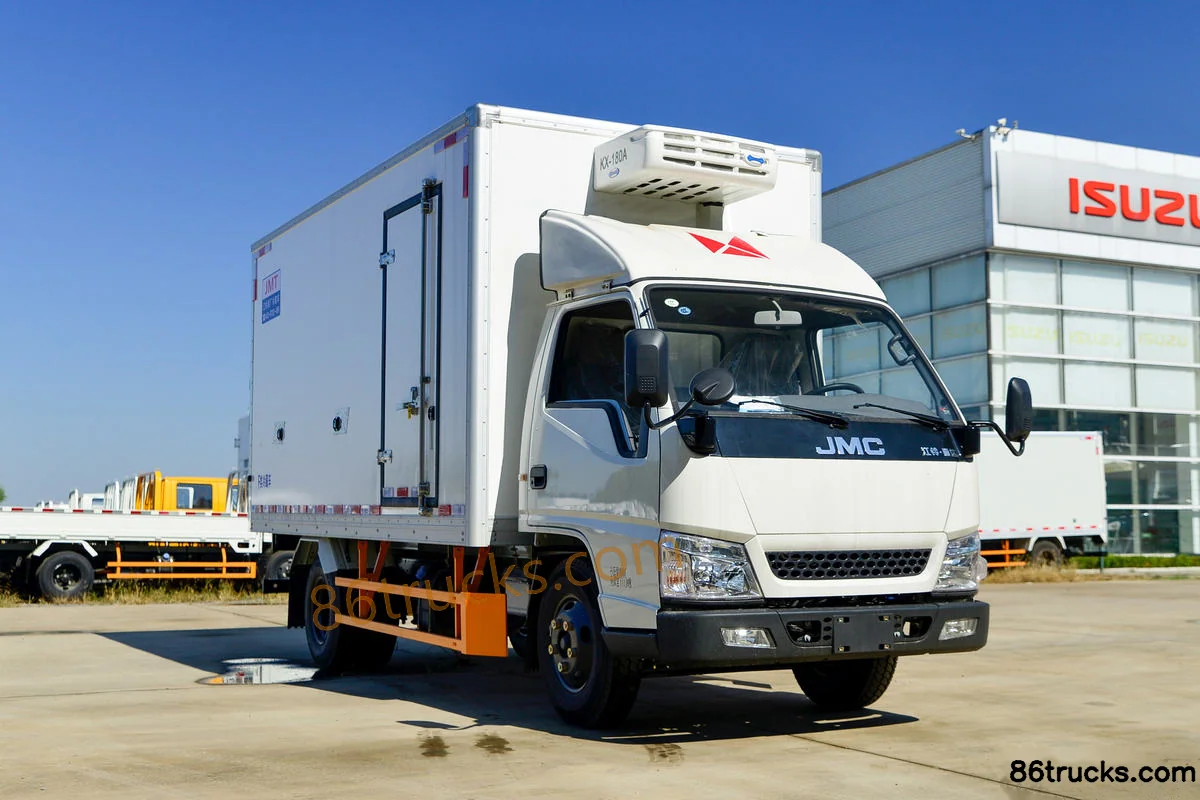

Exterior3

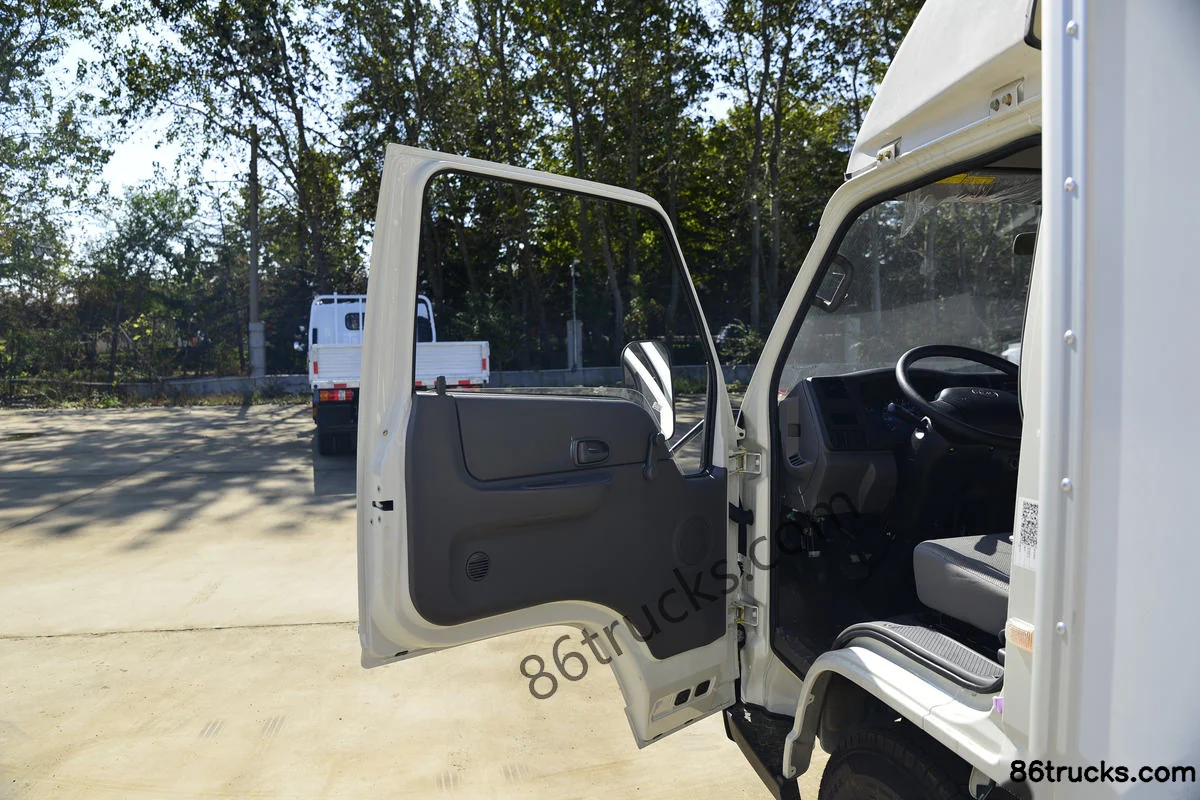

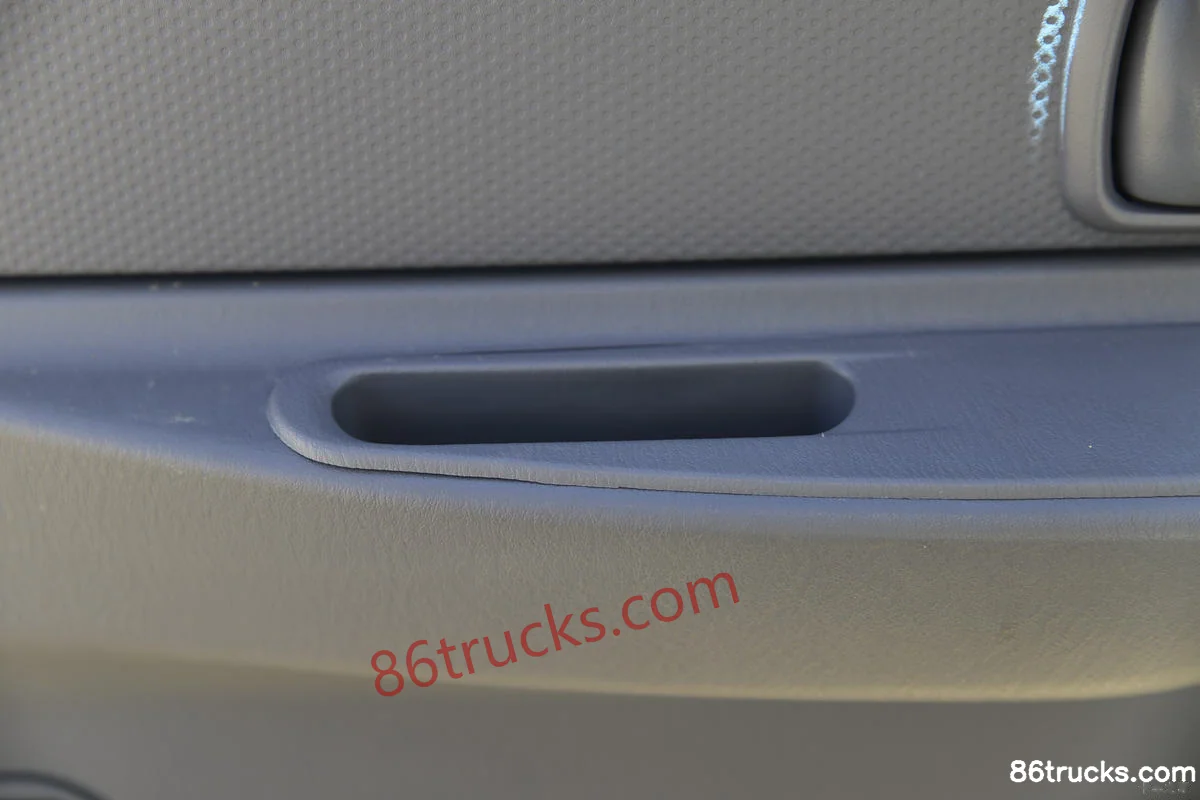

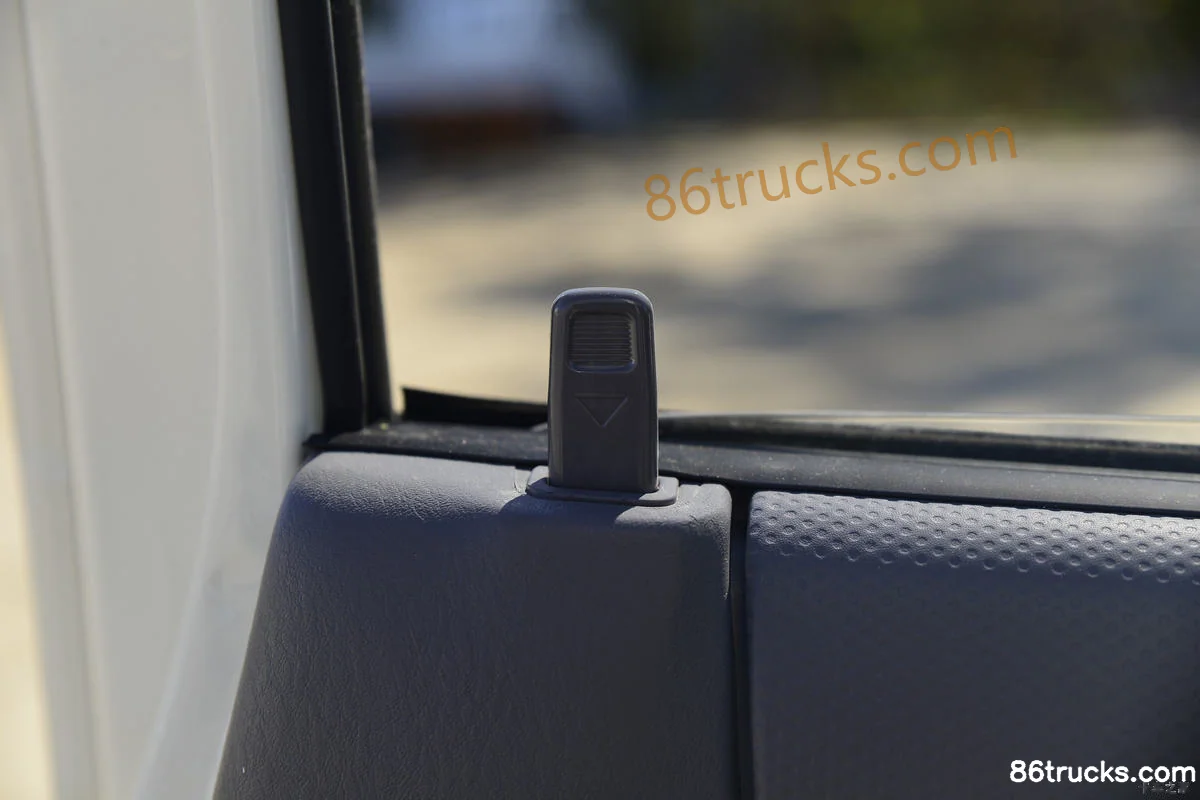

Cab3

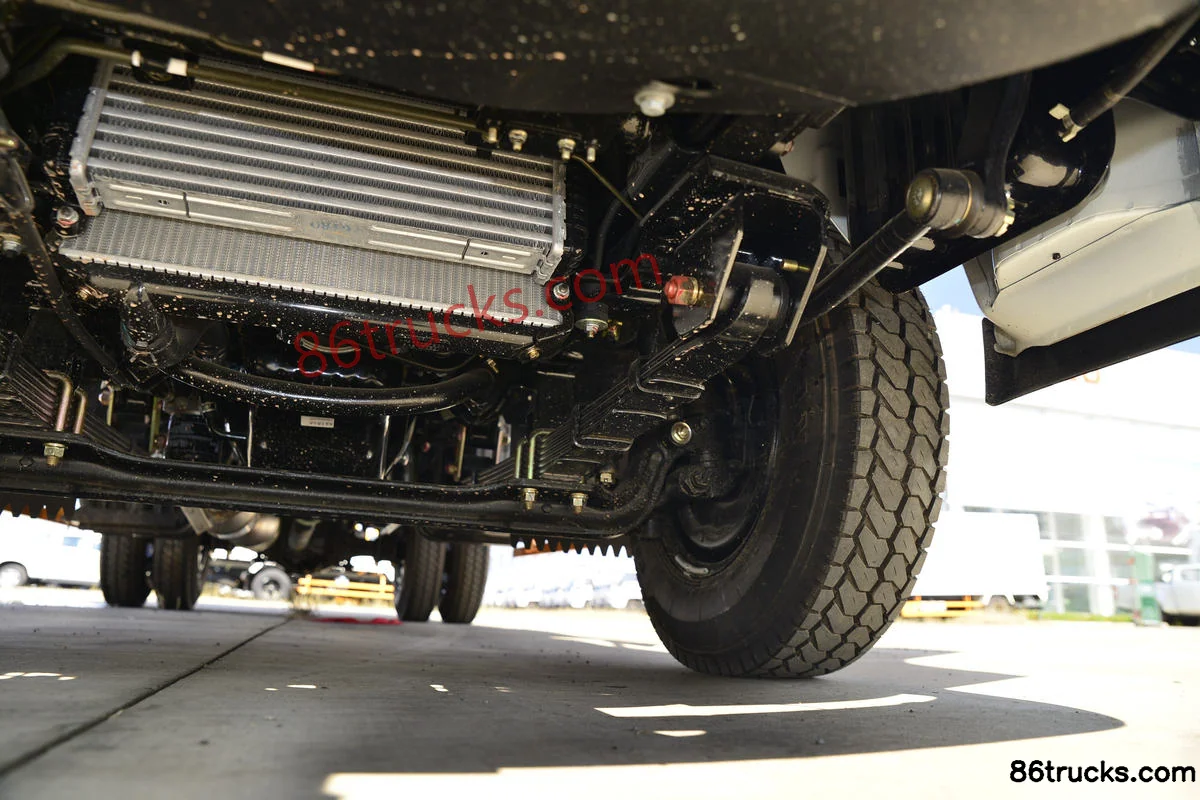

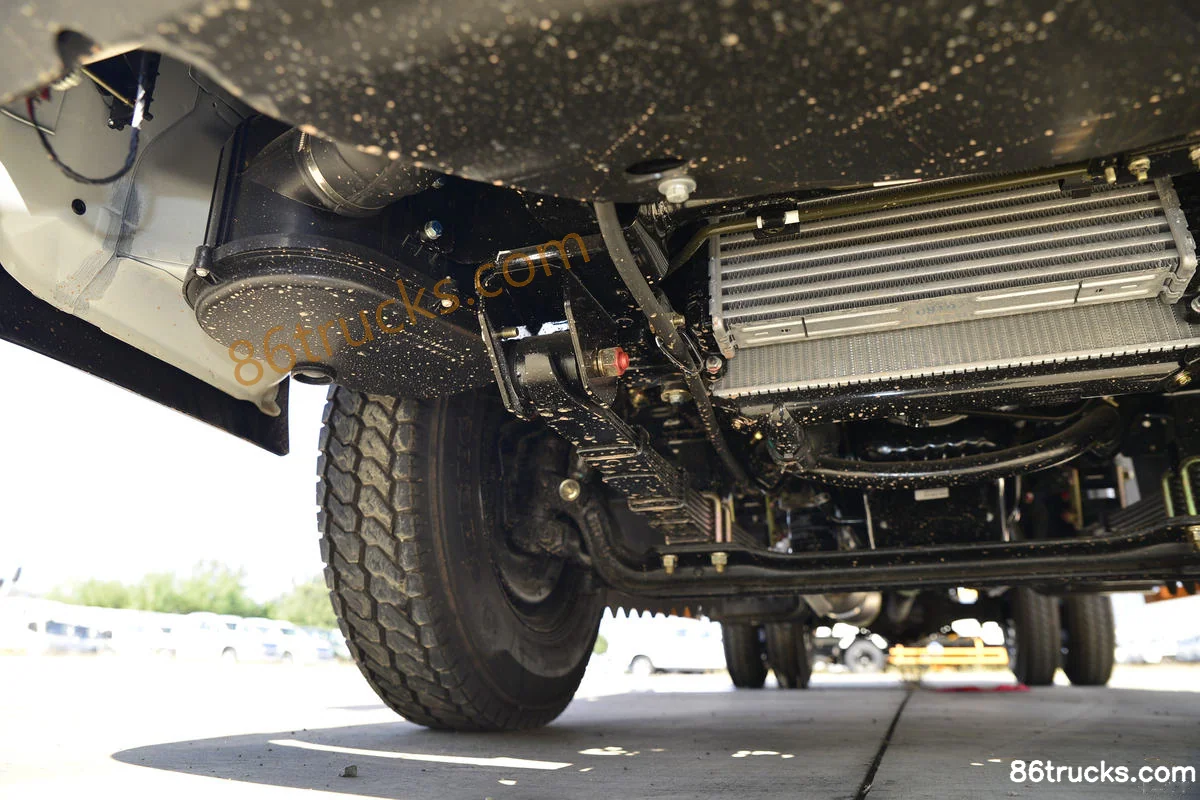

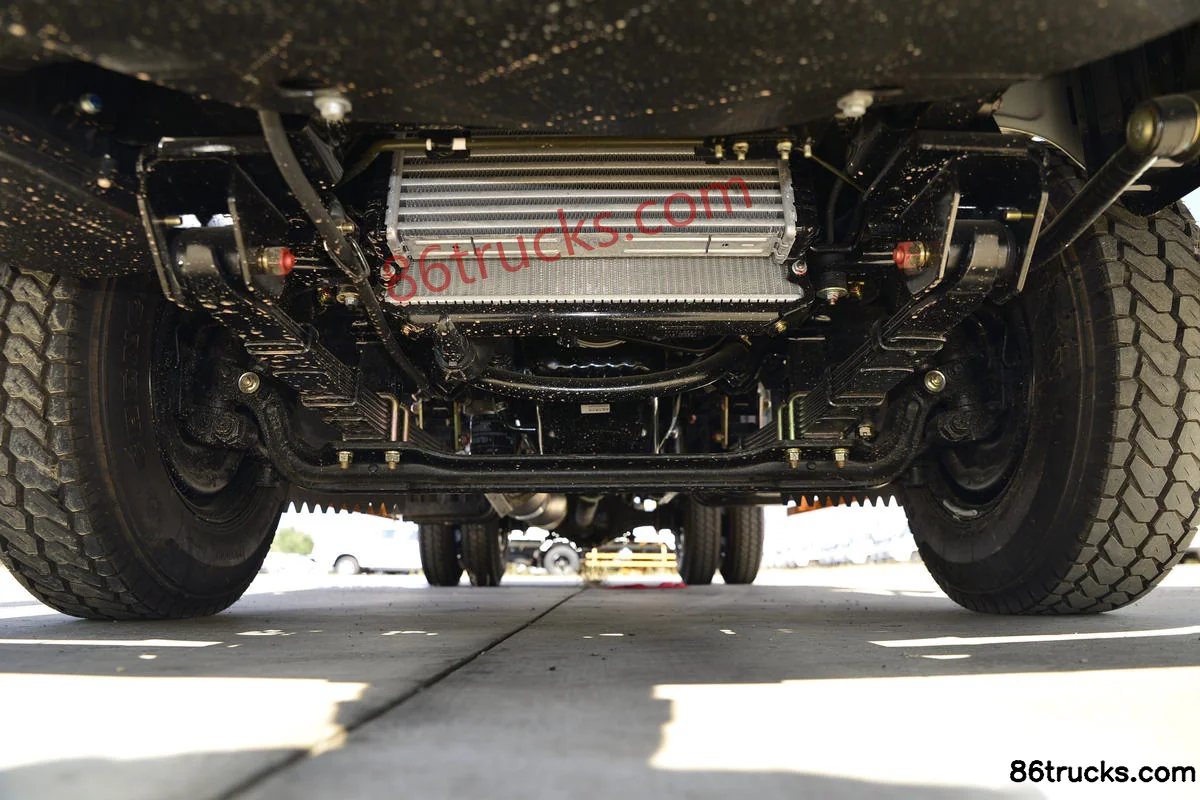

Chassis3

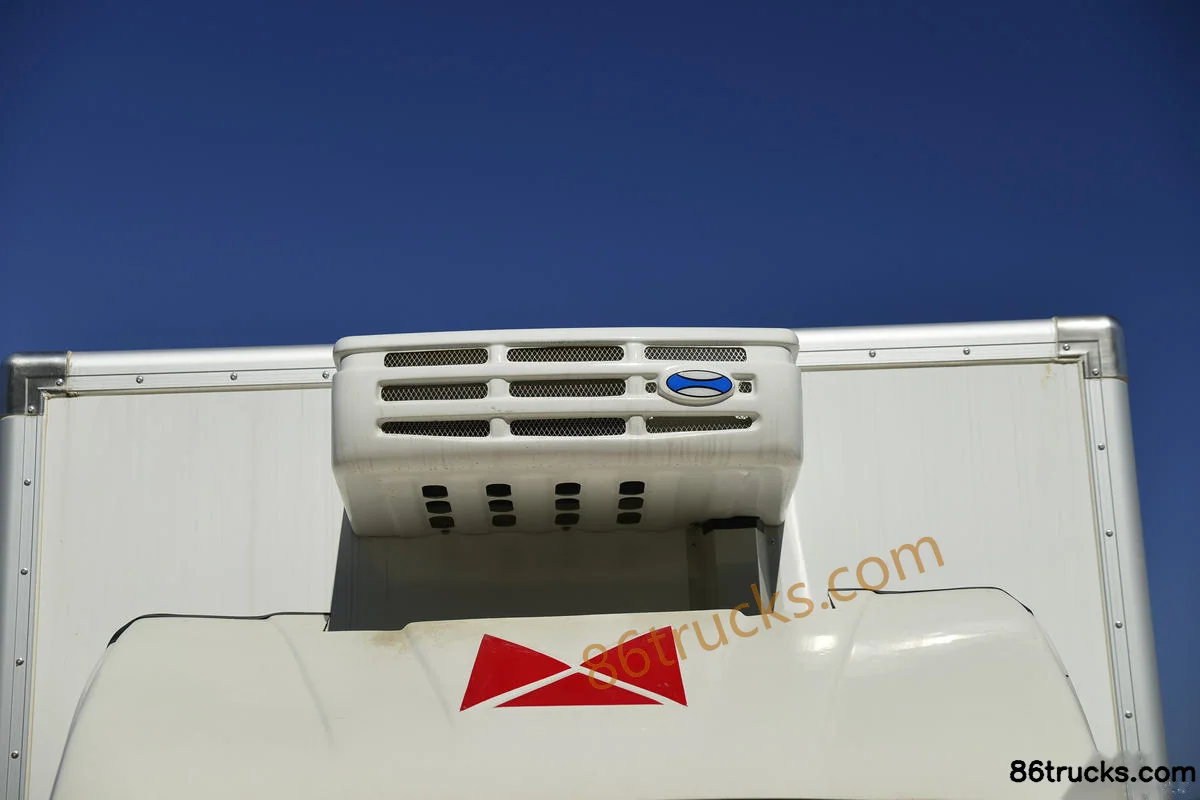

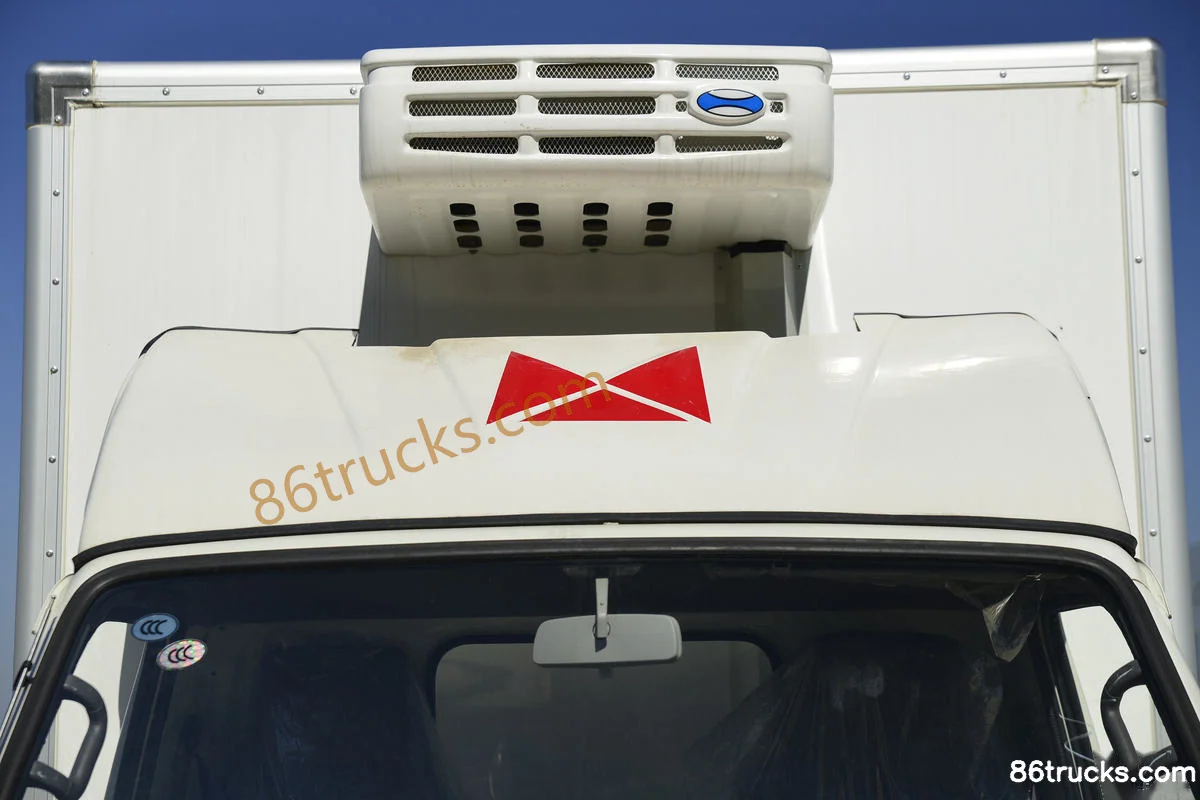

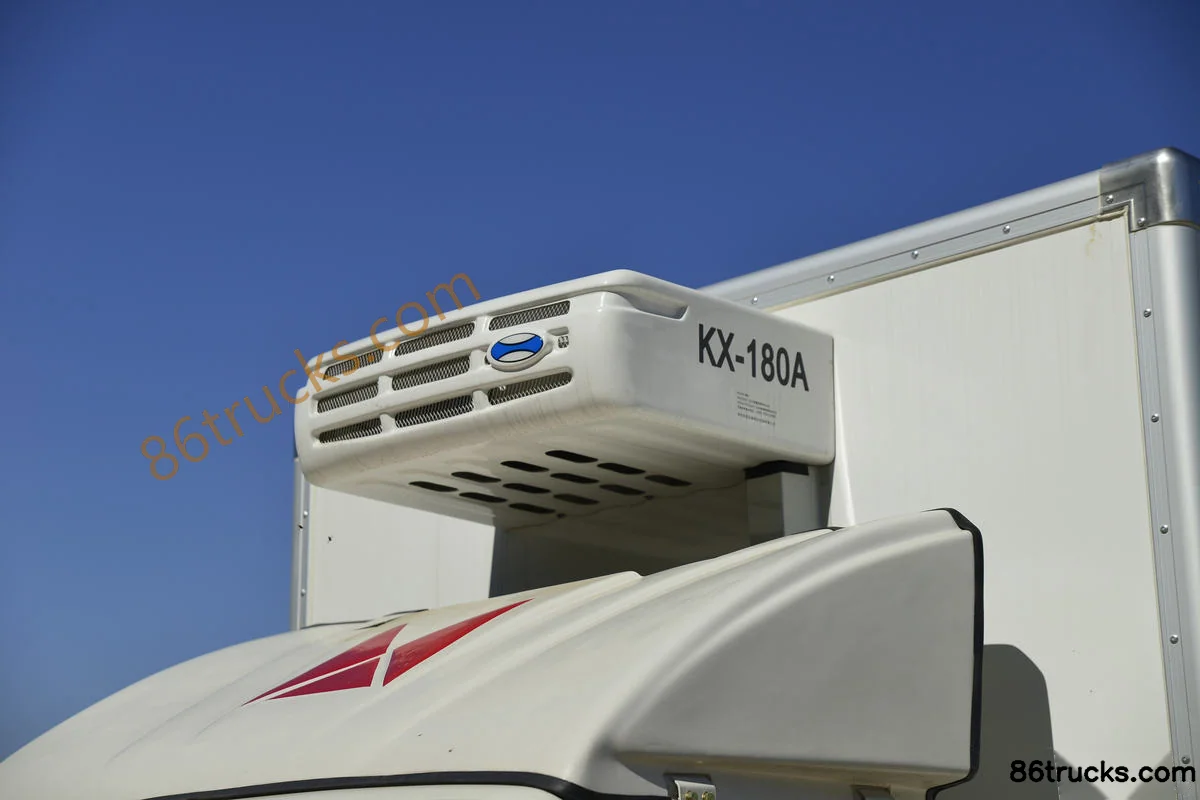

Body3

12 photos

FAQ

What is the export price of JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck, and what does it include?

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck export reference is about From $16,917; MSRP is ¥12.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck?

Key specs of JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck suited for?

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck differ from other variants in the same series?

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck belongs to JMC Shunda narrow-body light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.145m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
