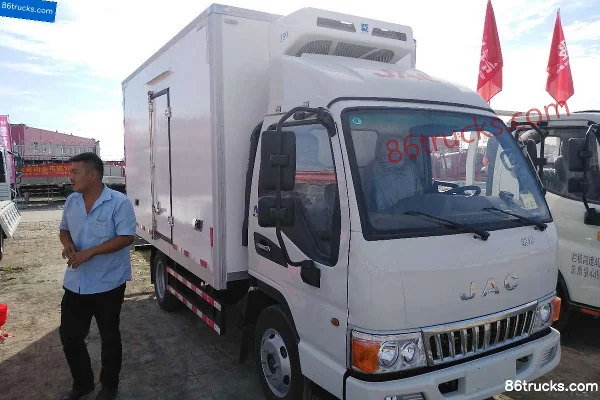

JAC Junling E3 109hp 4X2(6 wheels) 4.03m refrigerated truck
EXW
From $19,444
Export quote
JAC E3 Light Truck Refrigerated Truck
Main model photos
305 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Junling E3 109hp 4X2(6 wheels) 4.03m refrigerated truck | 4x2 / 109hp / China V | From $19,444 | |
| JAC Junling E3 102 hp 4X2(6 wheels) 3.7m Refrigerated Truck | 4x2 / 102hp / China V | ||
| JAC Junling E3 88 hp 4X2(6 wheels) 3.7m refrigerated truck | 4x2 / 88hp / China V | From $16,389 | |
| JAC Junling E3 120 hp 4X2(6 wheels) refrigerated truck | 4x2 / 120hp / China V | From $18,056 |
JAC Junling E3 102 hp 4X2(6 wheels) 3.7m Refrigerated Truck
EXW
Export quote
JAC Junling E3 88 hp 4X2(6 wheels) 3.7m refrigerated truck
EXW
From $16,389
Export quote
JAC Junling E3 120 hp 4X2(6 wheels) refrigerated truck
EXW
From $18,056
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.13×3.02 / 5.55×2.13×3.12 / 5.55×2.04×2.97 / 5.995×2.13×3.12m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3308 / 2850mm
Vehicle origin: Hefei, Anhui
Front track width: 1440 / 1395mm
rear track: 1395 / 1470mm
Curb Weight: 2.705 / 2.7ton
Rated payload: 1.495ton
Max. speed: 90km/h
Front/rear suspension: 1.09/1.597 / 1.09/1.61m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: Yunnei PowerD19TCIE11 / Yunnei PowerD19TCIE1 / Quanchai4A2-88C50 / JACHFC4DA1-2D
Number of cylinders: 4cylinder
Displacement: 1.91 / 1.912 / 2.27 / 2.771L
Emission standard: China V
Max output power: 80 / 75 / 65 / 88kW
Max hp: 109 / 102 / 88 / 120Horsepower
Max torque: 285 / 250 / 240N·m
Rated speed: 3200 / 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Cargo box parameters
Cargo box dimensions: 4.03×1.9×2 / 3.7×1.9×2 / 3.7×1.81×1.85m
Cargo box width: 1.9 / 1.81m
Cargo box height: 2 / 1.85m
Body Parameters
Vehicle certification code: HFC5041XLCP93K1C2V / HFC5040XLCP93K1B4V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Junling E3
Chassis Model: HFC1041P93K1C2V / HFC5040XLCP93K1B4V
Axle ratio: 3.5 / 4.875
Leaf spring count: 3/3+4 / 7/5+3 / 3/9+7,11/9+7
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Liuchi LC5T28 / Lu'an LC5T28
Cab parameters
Cab: Narrow cab / JACE3
Tire
Tire Size: 6.50R16LT 10PR / 6.50R16LT 8PR / 6.50R16 / 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR
Number of tires: 6pcs
FAQ
What kind of truck is JAC JAC E3 Light Truck Refrigerated Truck?
JAC JAC E3 Light Truck is an export-oriented Refrigerated Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC E3 Light Truck Refrigerated Truck?
JAC E3 Light Truck Refrigerated Truck export reference is about $16,389 – $19,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC E3 Light Truck Refrigerated Truck cover?
JAC E3 Light Truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 88 hp / 102 hp / 109 hp / 120 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC E3 Light Truck Refrigerated Truck?
For JAC E3 Light Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC E3 Light Truck Refrigerated Truck include?
JAC E3 Light Truck Refrigerated Truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC E3 Light Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
