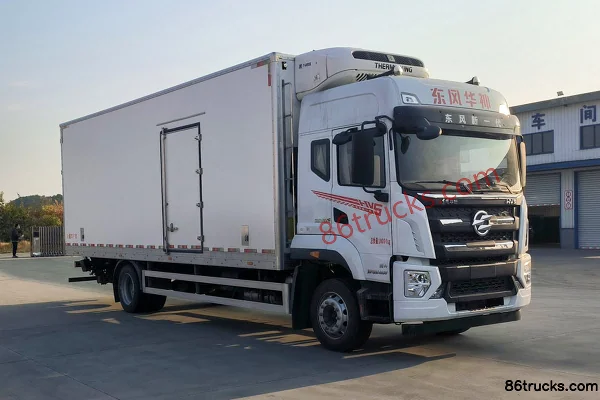

Dongfeng HV5 350hp 6X2(8 wheels) 9.6m Refrigerated Truck
EXW
From $34,431
Export quote
DongfengHV5 Refrigerated Truck
Main model photos
44 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng HV5 350hp 6X2(8 wheels) 9.6m Refrigerated Truck | 6x2 / 350hp / China VI | From $34,431 | |
| Dongfeng HV5 270hp 6X2(8 wheels) 9.6m Refrigerated Truck | 6x2 / 270hp / China VI | From $27,931 | |
| Dongfeng HV5 270 hp 4X2(6 wheels) 6.8m refrigerated truck | 4x2 / 270hp / China VI | From $22,611 | |
| Dongfeng HV5 240 hp 4X2(6 wheels) 6.8m refrigerated truck | 4x2 / 240hp / China VI | From $19,208 | |
| Dongfeng HV5 220hp 4X2(6 wheels) 6.8m refrigerated truck | 4x2 / 220hp / China VI | From $17,736 |
Dongfeng HV5 270hp 6X2(8 wheels) 9.6m Refrigerated Truck
EXW
From $27,931
Export quote
Dongfeng HV5 270 hp 4X2(6 wheels) 6.8m refrigerated truck
EXW
From $22,611
Export quote
Dongfeng HV5 240 hp 4X2(6 wheels) 6.8m refrigerated truck
EXW
From $19,208
Export quote
Dongfeng HV5 220hp 4X2(6 wheels) 6.8m refrigerated truck
EXW
From $17,736
Export quote
Series Specs
Basic Info
Cab dimensions: 11.992×2.55×3.95 / 9.23×2.55×3.95 / 12×2.55×3.95m
Truck Type: Refrigerated Truck
Drive type: 6X2 / 4X2
Vehicle origin: Shiyan, Hubei
Wheelbase: 1900+5300 / 5250 / 7150mm
Front track width: 1930/1930 / 1910mm
rear track: 1860 / 1820mm
Curb Weight: 11 / 8.66 / 9.23ton
Rated payload: 13.87 / 9.21 / 8.64ton
GVWR: 25 / 18ton
Max. speed: 88km/h
Front/rear suspension: 1.41/3.36 / 1.41/2.37 / 1.41/3.44m
Energy Type: Diesel
Engine parameters
Engine Model: YuchaiYCK08350-60 / YuchaiYCS06270-60 / DongfengD4.5NS6B240 / YuchaiYCS04220-61A / YuchaiYCK05240-60
Number of cylinders: 6 / 4cylinder
Displacement: 7.7 / 6.23 / 4.5 / 4.295 / 5.13L
Emission standard: China VI
Max output power: 257 / 199 / 176 / 162kW
Max hp: 350 / 270 / 240 / 220Horsepower
Max torque: 1450 / 1050 / 850 / 900N·m
Rated speed: 2200 / 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Cargo box parameters
Cargo box dimensions: 9.6×2.45×2.6 / 6.8×2.45×2.6 / 9.71×2.45×2.6m
Cargo box width: 2.45m
Cargo box height: 2.6m
Body Parameters
Vehicle certification code: DFD5256XLCL6D23 / DFD5186XLCL6D11 / DFD5186XLCL6D31
Body Brand: Huashen Brand
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Huashen HV5
Chassis Model: DFD1256GL6DJ2 / DFD1186GL6DJ1 / DFD1186GL6DJ3
Front axle description: 3.6T
Frame Dimensions: 250*8 / 230 single-layer / 250*7 / 230*7mm
rear axle description: 11.5T Hande axle / 10THande / 9THande
Axle ratio: 4.11 / 4.333 / 4.111 / 3.909
Leaf spring count: 10/10/10+8 / 10/10+8
Transmission Parameters
Number of gears: 12 / 8Gear
Transmission Model: Fast Gear12JSD160TA / Fast Gear8JS105TA / Fast Gear8JS85TE-C / Fast Gear8JS85E-C / Fast Gear8JS95TE-C
Cab parameters
Cab: High roof double bunk flat floor / High-roof flat floor
fuel tank
Fuel tank capacity: 650 / 400 / 610L
Tire
Tire Size: 295/80R22.5 18PR / 275/80R22.5 18PR / 295/60R22.5 18PR
FAQ
What kind of truck is Dongfeng DongfengHV5 Refrigerated Truck?
Dongfeng DongfengHV5 is an export-oriented Refrigerated Truck lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for DongfengHV5 Refrigerated Truck?
DongfengHV5 Refrigerated Truck export reference is about $17,736 – $34,431. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does DongfengHV5 Refrigerated Truck cover?
DongfengHV5 Refrigerated Truck mainly covers: Drive: 4x2 / 6x2; Horsepower: 220 hp / 240 hp / 270 hp / 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DongfengHV5 Refrigerated Truck?
For DongfengHV5 Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does DongfengHV5 Refrigerated Truck include?
DongfengHV5 Refrigerated Truck currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DongfengHV5 Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
