Foton Auman R-Series 245hp 4X2(6 wheels) 7.61m refrigerated truck (Xinfei brand)
EXW
From $36,694
Export quote
Henan Xinfei Foton chassis Refrigerated Truck
Main model photos
13 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman R-Series 245hp 4X2(6 wheels) 7.61m refrigerated truck (Xinfei brand) | 4x2 / 245hp / China VI | From $36,694 | |
| Foton Auman R-Series 245hp 4X2(6 wheels) 7.8m refrigerated truck (Xinfei brand) | 4x2 / 245hp / China VI | From $36,694 | |
| Foton Auman R-Series 220hp 4X2(6 wheels) 7.61m refrigerated truck (Xinfei brand) | 4x2 / 220hp / China VI | From $36,694 | |
| Foton Auman R Series 220 hp 4X2(6 wheels) 7.8m refrigerated truck (Xinfei brand) | 4x2 / 220hp / China VI | From $36,694 | |
| Foton Auman R-Series 190hp 4X2(6 wheels) 6.61m refrigerated truck (Xinfei brand) | 4x2 / 190hp / China VI | From $36,417 |
Foton Auman R-Series 245hp 4X2(6 wheels) 7.8m refrigerated truck (Xinfei brand)
EXW
From $36,694
Export quote
Foton Auman R-Series 220hp 4X2(6 wheels) 7.61m refrigerated truck (Xinfei brand)
EXW
From $36,694
Export quote
Foton Auman R Series 220 hp 4X2(6 wheels) 7.8m refrigerated truck (Xinfei brand)
EXW
From $36,694
Export quote

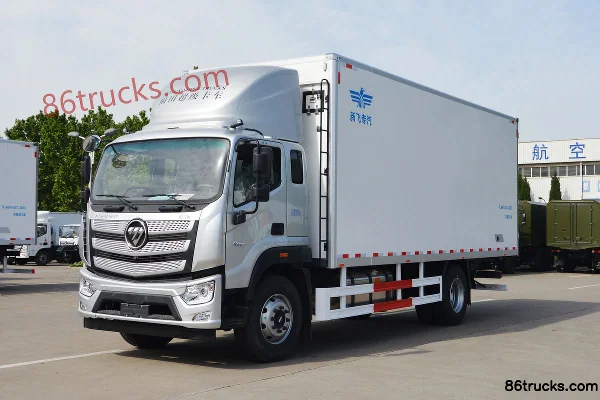

Foton Auman R-Series 190hp 4X2(6 wheels) 6.61m refrigerated truck (Xinfei brand)
EXW
From $36,417
Export quote
Series Specs
Basic Info
Cab dimensions: 10.07×2.6×3.8 / 10.22×2.6×3.8 / 9×2.6×3.83m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 5750 / 5150mm
Vehicle origin: Xinxiang, Henan
Front track width: 1995 / 1922mm
rear track: 1840 / 1800mm
Curb Weight: 7.62 / 7.5ton
Rated payload: 10.25 / 10.37ton
Max. speed: 105 / 100km/h
Front/rear suspension: 1.27/3.2 / 1.27/2.58m
Energy Type: Diesel
Engine parameters
Engine Model: DongfengB6.2NS6B245 / FotonF4.5NS6B220 / FotonF4.5NS6B190 / DongfengB6.2NS6B230
Number of cylinders: 6 / 4cylinder
Displacement: 6.2 / 4.5L
Emission standard: China VI
Max output power: 180 / 162 / 140 / 169kW
Max hp: 245 / 220 / 190 / 230Horsepower
Max torque: 1000 / 820 / 700 / 950N·m
Rated speed: 2300rpm
Cargo box parameters
Cargo box dimensions: 7.61×2.4×2.4 / 7.8×2.4×2.4 / 6.61×2.4×2.41m
Cargo box width: 2.4m
Cargo box height: 2.4 / 2.41m
Body Parameters
Vehicle certification code: XKC5181XLC6B / XKC5180XLC6B
Body Brand: Xinfei Brand
Chassis Specs
Chassis Brand: Foton
Chassis Series: R Series
Chassis Model: BJ5186XXY-1A / BJ1186VKPFK-1M
Front axle description: 3.6T
rear axle description: 8T/9T
Axle ratio: 4.111 / 4.875
Leaf spring count: 3/4+3,10/10+8 / 0/10+8,3/4+3,10/8+8 / 10/10+8,3/4+3,10/8+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85T / Fast Gear8JS85TE
Tire
Tire Size: 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR
Number of tires: 6pcs
FAQ
What kind of truck is Henan Xinfei Henan Xinfei Foton chassis Refrigerated Truck?
Henan Xinfei Henan Xinfei Foton chassis is an export-oriented Refrigerated Truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Henan Xinfei Foton chassis Refrigerated Truck?
Henan Xinfei Foton chassis Refrigerated Truck export reference is about $36,417 – $36,694. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Henan Xinfei Foton chassis Refrigerated Truck cover?
Henan Xinfei Foton chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 190 hp / 220 hp / 245 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Henan Xinfei Foton chassis Refrigerated Truck?
For Henan Xinfei Foton chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Henan Xinfei Foton chassis Refrigerated Truck include?
Henan Xinfei Foton chassis Refrigerated Truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Henan Xinfei Foton chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
