Dayun Yuntu 120hp 4X2(6 wheels) Truck-Mounted Crane (Ratio: 4.875)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 4400mm
Cab dimensions:: 7.995×2.4×3.56m
Type:: truck-mounted crane
GVWR:: 11.995ton
Front/rear suspension:: 1.3/2.295m
Drive 4X2 (6 wheels)
Horsepower 120
Rated mass: 4.5ton
Emission China IV

Overview

The Dayun Yuntu 120hp 4X2(6 wheels) Truck-Mounted Crane (Ratio: 4.875) is a truck-mounted crane featuring 11.995t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 120 hp, China IV emissions and Diesel fuel.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.995×2.4×3.56m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4400mm
Rated mass: 4.5ton
GVWR: 11.995ton
Front/rear suspension: 1.3/2.295m
Energy Type: Diesel
Body Parameters
Other special notes: Fuel tank capacity 160L, cargo box size: 4.8*2.2*0.55m
Vehicle certification code: DYQ5120JSQ1
Body Brand: Dayun
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA120-40
fuel type: Diesel
Displacement: 2.982L
Emission standard: China IV
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 345N·m
Max torque speed: 1600-2400rpm
Rated speed: 2800rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: Yuntu
Chassis Model: CGC1120HVD44D
rear axle description: 145 shortened
Axle ratio: 4.875
Leaf spring count: 9/11+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLY 6-speed
Cab parameters
Cab: Yuntu D912
Tire
Tire Size: 8.25-20,8.25R20,9.00-20 14PR,9.00R20 14PR
Number of tires: 6pcs

Photos

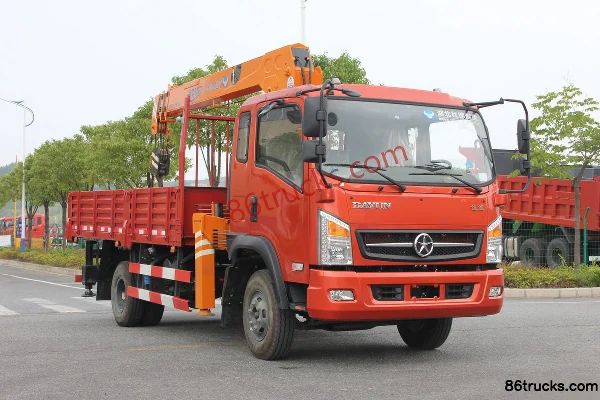

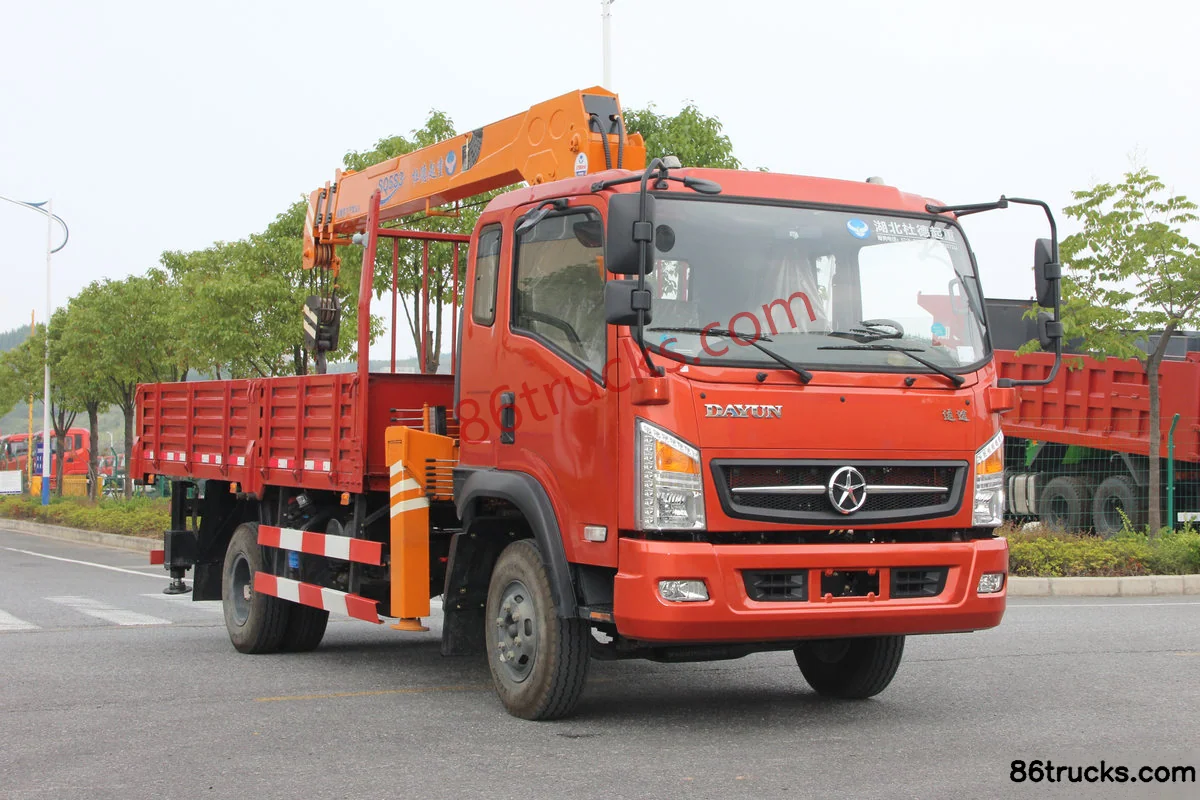

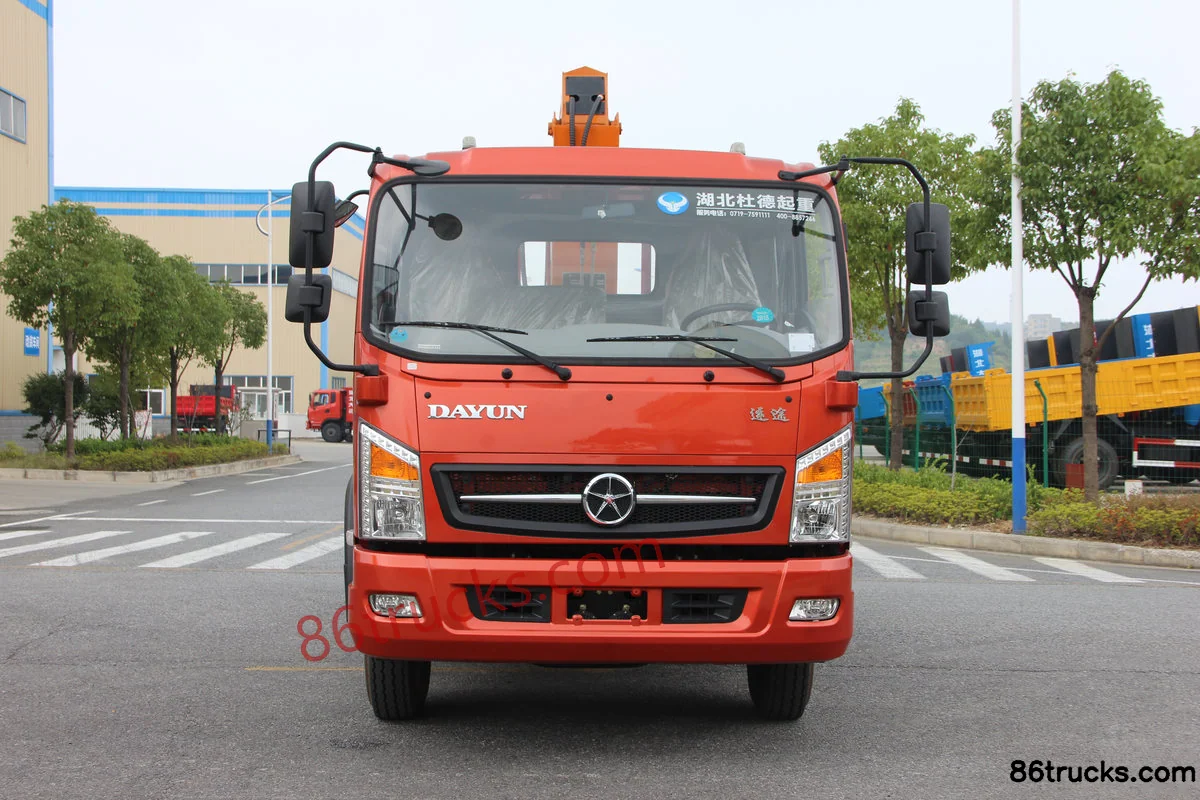

Exterior3
