Doosan DH220-9E Crawler Excavator

Export reference
MSRP N/A
Model:: DH220-9E
Engine Model:: crawler excavator
Bucket capacity:: 0.93cubic meter
boom length:: 5700mm
Arm Length:: 2900mm
Machine dimensions:: 9.645×2.99×3.025mm
Doosan DH220-9E Crawler Excavator exterior
View more photos (3)
Operating weight: 22ton
Bucket type: backhoe
Fuel Tank Capacity: 310L
Product power: Conventional Power

Overview

The Doosan DH220-9E Crawler Excavator is a excavator featuring 22ton GVW, backhoe bucket capacity, 310L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: DH220-9E
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 22ton
Bucket capacity: 0.93cubic meter
Operating weight: 22ton
boom length: 5700mm
Arm Length: 2900mm
Machine dimensions: 9.645×2.99×3.025mm
Track shoe width: 600mm
Counterweight ground clearance: 1105mm
Min ground clearance: 480cm
Rear Overhang Radius: 2840mm
performance specs
Travel speed: 3.1-5.4km/h
Bucket digging force: 136.2/144.1kN
Arm Digging Force: 100/104.9kN
Oil capacity
Fuel Tank Capacity: 310L
coolant: 42L
hydraulic oil tank: 135L
Engine Oil Capacity: 32L
hydraulic system
Working hydraulic circuit: 32.4
travel hydraulic circuit: 32.4Mpa
Swing Hydraulic Circuit: 27.5Mpa
Operating Range
Max digging radius: 9965mm
Max digging depth: 6655mm
Max digging height: 9660mm
Max unloading height: 6800mm
Max vertical digging depth: 5980mm
Engine parameters
Max output power: 110kW

Photos

Exterior3

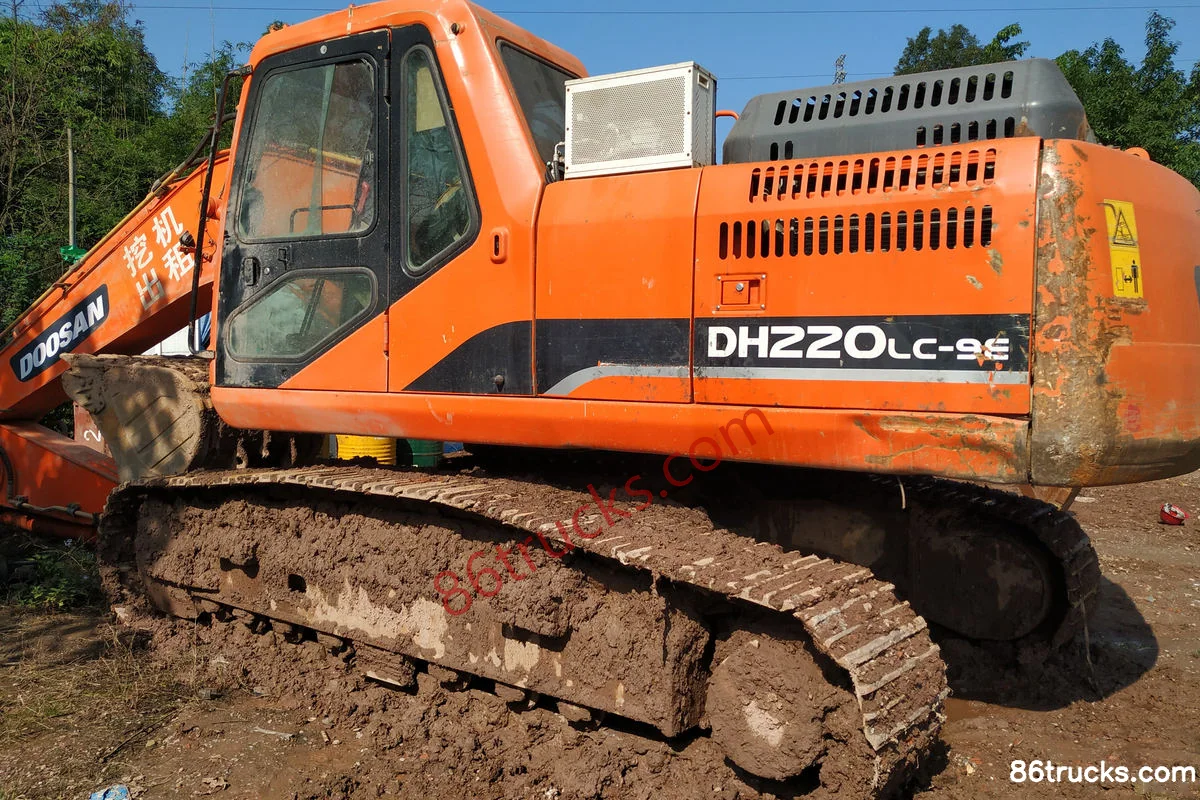

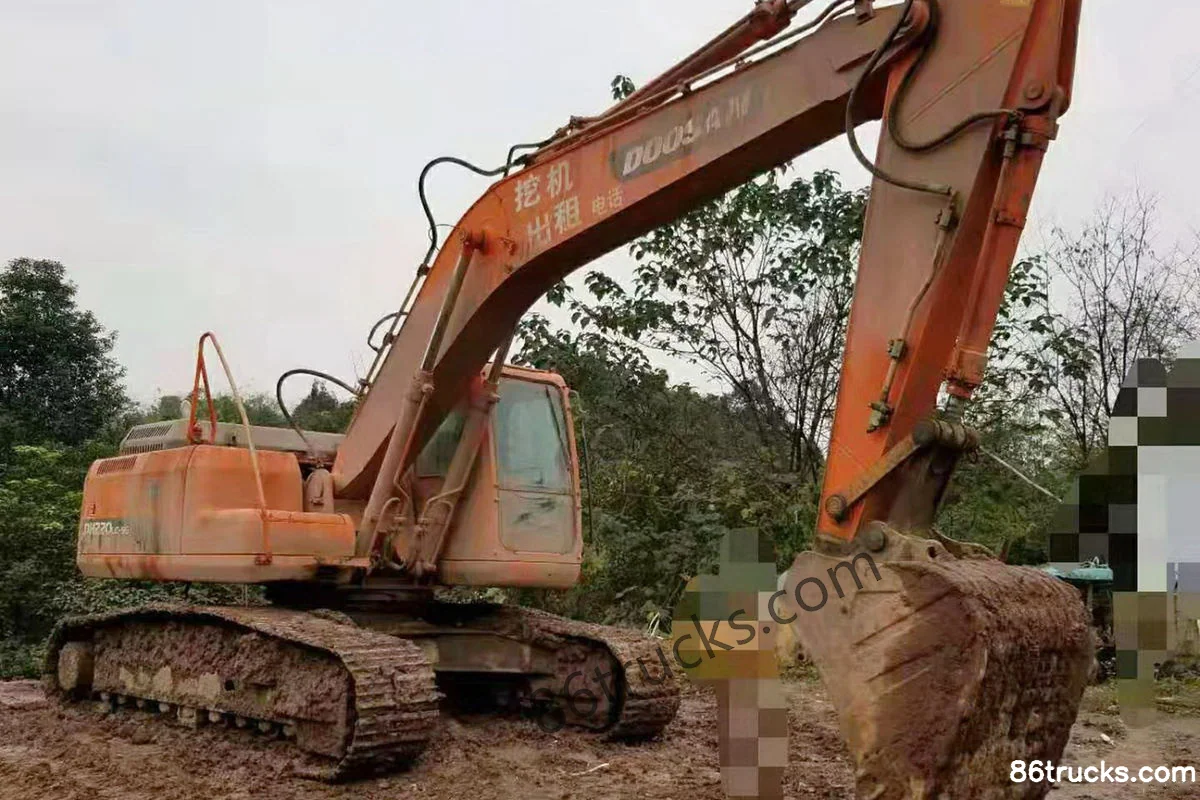

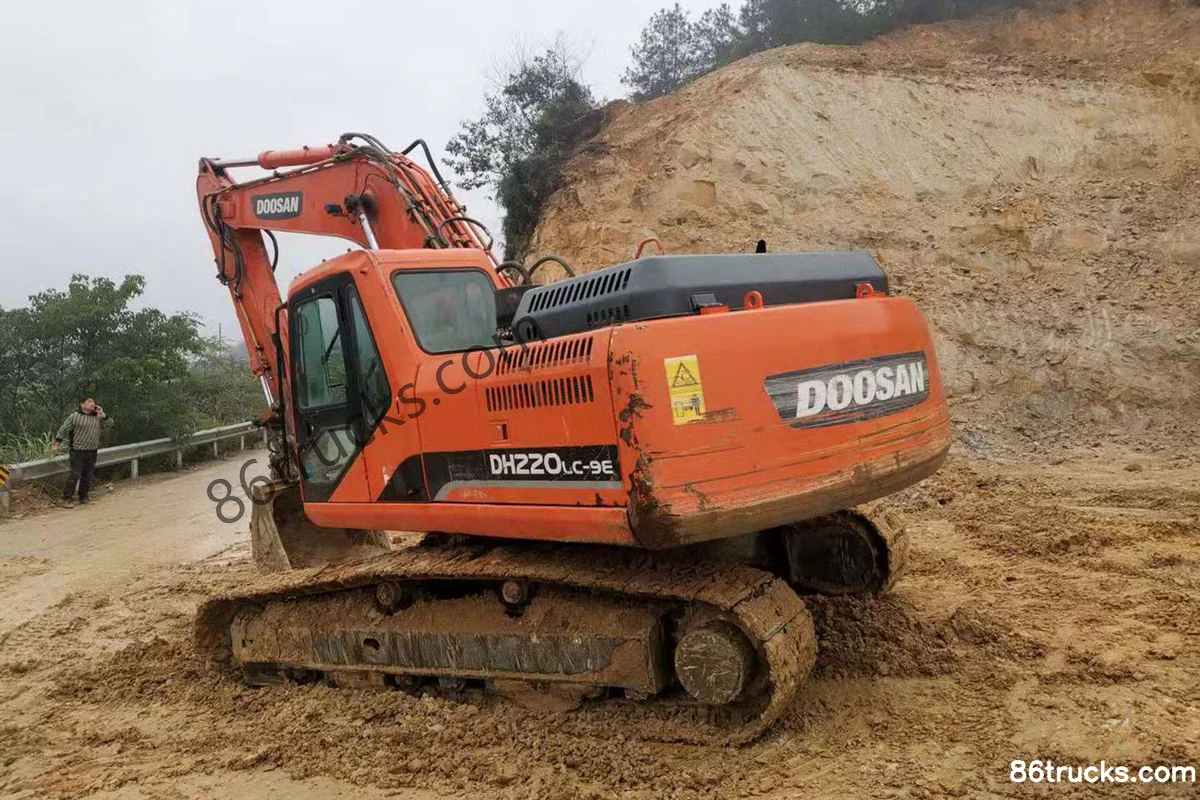

Doosan DH220-9E Crawler Excavator Exterior (1) | 86Trucks Doosan DH220-9E Crawler Excavator Exterior (2) | 86Trucks Doosan DH220-9E Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Doosan DH220-9E Crawler Excavator suited for?

Doosan DH220-9E Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Doosan DH220-9E Crawler Excavator differ from other variants in the same series?

Doosan DH220-9E Crawler Excavator belongs to Doosan Doosan Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Doosan DH220-9E Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Doosan DH220-9E Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
