Volvo EC240B Crawler Excavator
EXW
Export quote
Volvo crawler excavator
Main model photos
24 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Volvo EC240B Crawler Excavator | — | ||
| Volvo EC210BLC Crawler Excavator | — | ||
| Volvo EC480DL Crawler Excavator | — | ||
| Volvo EC380DL Crawler Excavator | — | ||
| Volvo EC380D Crawler Excavator | — |

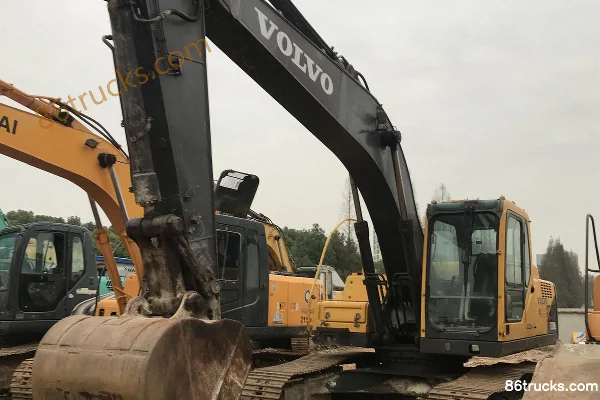

Volvo EC210BLC Crawler Excavator
EXW
Export quote
Volvo EC480DL Crawler Excavator
EXW
Export quote
Volvo EC380DL Crawler Excavator
EXW
Export quote
Volvo EC380D Crawler Excavator
EXW
Export quote
Series Specs
Basic Info
Model: EC240B / EC210BLC / EC480DL / EC380DL / EC380D / EC350D / EC300DL / EC250D
Engine Model: crawler excavator / VolvoD7D / CumminsB5.9-C / D13F / VolvoVolvo D13H-D / Volvo D8K / D7E
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 24 / 21 / 48 / 38 / 35 / 30 / 25ton
Operating weight: 24.3 / 21 / 41 / 38.7 / 30.04 / 28ton
Bucket capacity: 1.98 / 1.25 / 3.8 / 3 / 2.53 / 1.4 / 1.85cubic meter
boom length: 6000 / 5700 / 6450 / 6200mm
Arm Length: 2970 / 2900 / 2600 / 2550mm
Machine dimensions: 10.02×2.99×3.04 / 9.69×2.99×3 / 11.63×3.34×3.257 / 11.33×3.34×3.59 / 11.19×3.19×3.23 / 10.64×3.19×3.09 / 10.26×2.99×3.02mm
Track shoe width: 600mm
Track gauge: 2390 / 2740 / 2590mm
Counterweight ground clearance: 1080 / 1275 / 1210 / 1180 / 1135mm
Min ground clearance: 470 / 550 / 500 / 480cm
Rear Overhang Radius: 2940 / 3880 / 3560 / 4120 / 3070mm
hydraulic system
Max flow of main pump: 230×2+20 / 2 x 358 / 300×2+25.5 / 2×288 / 2 x 263 / 2 x 240L/min
Working hydraulic circuit: 31.4 / 35.3 / 33.3/36.3
travel hydraulic circuit: 34.3 / 32.4 / 35.3 / 33.3 / 36.3Mpa
Swing Hydraulic Circuit: 26.5 / 25.8 / 27.9Mpa
Oil capacity
Fuel Tank Capacity: 380 / 685 / 620 / 580 / 470L
coolant: 44 / 60 / 41L
hydraulic oil tank: 190 / 270 / 227 / 215 / 195L
Engine Oil Capacity: 32 / 42L
performance specs
Travel speed: 3.2/5.5 / 3.1 / 5.1 / 3.4/5.3 / 3.4/5.53 / 3.3/5.1 / 3.4/5.4km/h
Bucket digging force: 160.8 / 221.7 / 186kN
Arm Digging Force: 111.1 / 144.4 / 161kN
Max tractive force: 261 / 247kN
Operating Range
Max digging radius: 10260 / 9940 / 10930 / 10550 / 10190mm
Max digging depth: 6980 / 6730 / 6580 / 6850 / 11110mm
Max digging height: 9690 / 9450 / 10600 / 10170 / 10330 / 9660mm
Max unloading height: 6800 / 6650 / 6970 / 7090 / 7250 / 6670mm
Max vertical digging depth: 5970 / 5830 / 5990 / 5350 / 5890 / 5730mm
Engine parameters
Max output power: 134 / 107 / 265 / 215 / 197 / 170 / 138kW
FAQ
What kind of truck is Volvo Volvo crawler excavator excavator?
Volvo Volvo crawler excavator is an export-oriented excavator lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is excavator typically used for?
excavator specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Volvo crawler excavator include?
Volvo crawler excavator currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Volvo crawler excavator?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
