Volvo EC380DL Crawler Excavator

Export reference
MSRP N/A
Model:: EC380DL
Engine Model:: crawler excavator
Tonnage:: 38ton
Bucket capacity:: 3cubic meter
boom length:: 6450mm
Arm Length:: 2600mm
Volvo EC380DL Crawler Excavator exterior
View more photos (3)
Operating weight: 41ton
Bucket type: backhoe
Fuel Tank Capacity: 620L
Product power: Conventional Power

Overview

The Volvo EC380DL Crawler Excavator is a excavator featuring 41ton GVW, backhoe bucket capacity, 620L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: EC380DL
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 38ton
Bucket capacity: 3cubic meter
Operating weight: 41ton
boom length: 6450mm
Arm Length: 2600mm
Machine dimensions: 11.33×3.34×3.59mm
Track gauge: 2740mm
Counterweight ground clearance: 1210mm
Rear Overhang Radius: 3560mm
Min ground clearance: 500cm
hydraulic system
Max flow of main pump: 300×2+25.5L/min
Working hydraulic circuit: 35.3
travel hydraulic circuit: 35.3Mpa
Swing Hydraulic Circuit: 27.9Mpa
performance specs
Travel speed: 3.4/5.3km/h
Bucket digging force: 221.7kN
Arm Digging Force: 144.4kN
Oil capacity
Fuel Tank Capacity: 620L
coolant: 60L
hydraulic oil tank: 227L
Engine Oil Capacity: 42L
Operating Range
Max digging radius: 10550mm
Max digging depth: 6850mm
Max digging height: 10170mm
Max unloading height: 7090mm
Max vertical digging depth: 5350mm
Engine parameters
Engine Model: VolvoVolvo D13H-D
Max output power: 215kW

Photos

Exterior3

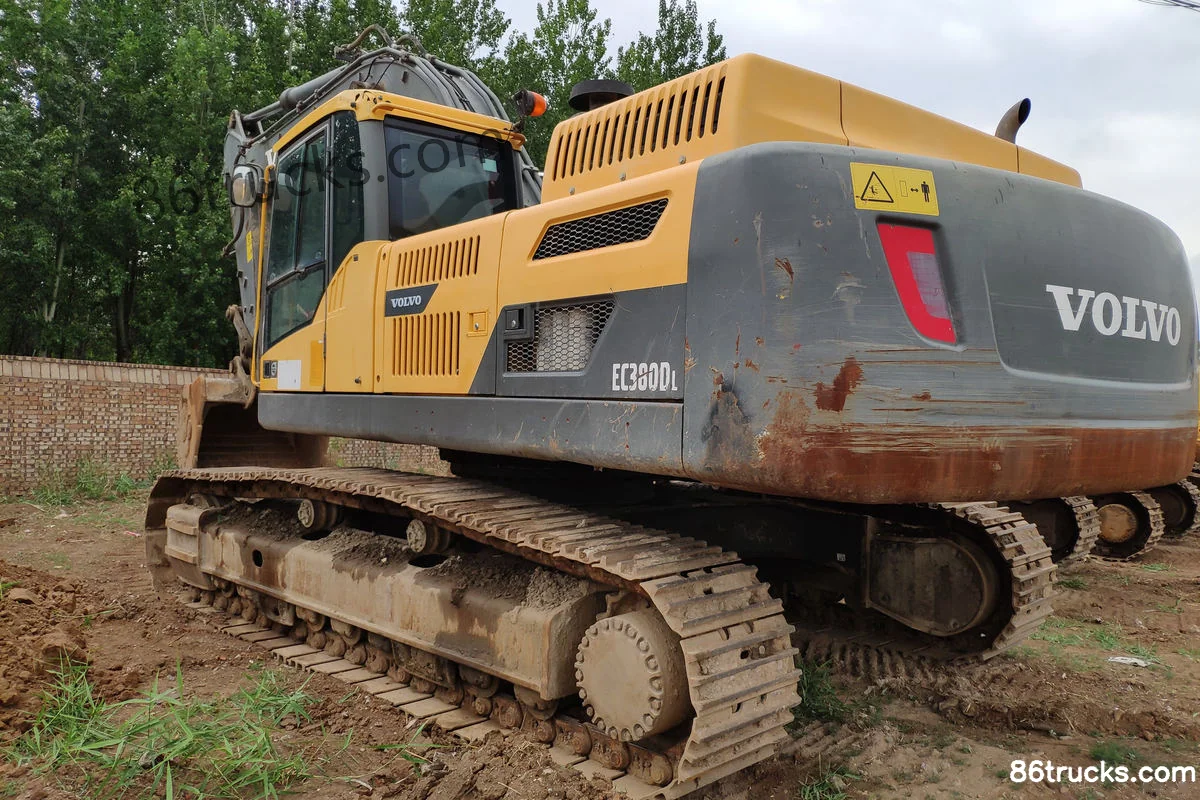

Volvo EC380DL Crawler Excavator Exterior (1) | 86Trucks Volvo EC380DL Crawler Excavator Exterior (2) | 86Trucks Volvo EC380DL Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Volvo EC380DL Crawler Excavator suited for?

Volvo EC380DL Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Volvo EC380DL Crawler Excavator differ from other variants in the same series?

Volvo EC380DL Crawler Excavator belongs to Volvo crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo EC380DL Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo EC380DL Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
