ZOOMLION ZE420 Crawler Excavator
EXW
Export quote
ZOOMLION Crawler Excavator
Main model photos
12 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| ZOOMLION ZE420 Crawler Excavator | — | ||
| ZOOMLION ZE260E Crawler Excavator | — | ||
| ZOOMLION ZE230E Crawler Excavator | — | ||
| ZOOMLION ZE205E Crawler Excavator | — |

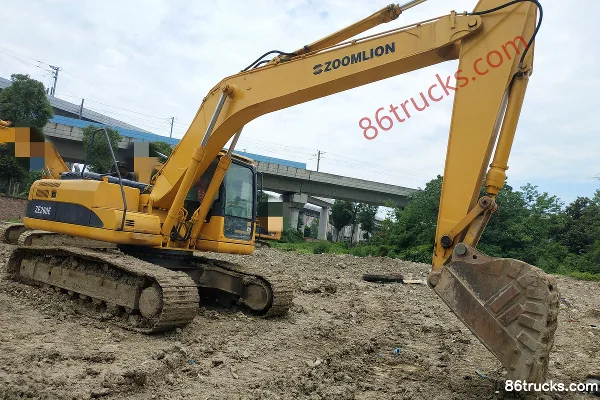

ZOOMLION ZE260E Crawler Excavator
EXW
Export quote

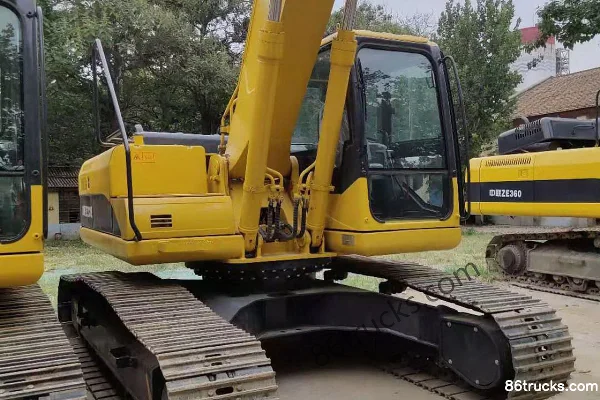

ZOOMLION ZE230E Crawler Excavator
EXW
Export quote
ZOOMLION ZE205E Crawler Excavator
EXW
Export quote
Series Specs
Basic Info
Model: ZE420 / ZE260E / ZE230E / ZE205E
Engine Model: crawler excavator / cummins qsm11 / CumminsB5.9-C / Cummins B5.9-C（150hp）
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 42 / 26 / 23 / 20ton
Operating weight: 39.313 / 24.5 / 22.8 / 20.3ton
Bucket capacity: 1.8 / 1.4 / 1.3 / 0.85cubic meter
boom length: 5700mm
Arm Length: 2925mm
Machine dimensions: 10×3.19×3.19 / 9.755×2.99×3.22 / 9.5×2.8×3.02mm
Track shoe width: 600mm
Track gauge: 2590 / 2390 / 2200mm
Counterweight ground clearance: 1050 / 1070 / 1085mm
Min ground clearance: 450 / 440cm
Rear Overhang Radius: 2920 / 2840mm
hydraulic system
Max flow of main pump: 2×220 / 2×206L/min
Working hydraulic circuit: 32.1
travel hydraulic circuit: 35Mpa
Swing Hydraulic Circuit: 25.2Mpa
Oil capacity
Fuel Tank Capacity: 340L
coolant: 30L
hydraulic oil tank: 180L
Engine Oil Capacity: 26L
performance specs
Travel speed: 3.3-5.2 / 3. 1/5.6 / 3.4/5.2 / 5.5/3.3km/h
Bucket digging force: 227 / 173 / 155 / 140kN
Arm Digging Force: 125 / 124 / 100kN
Max tractive force: 350 / 215 / 195 / 192kN
Operating Range
Max digging radius: 10190 / 10180 / 9855mm
Max digging depth: 6870 / 6860 / 6625mm
Max digging height: 10000 / 10250 / 9715mm
Max unloading height: 7080 / 7260 / 6865mm
Max vertical digging depth: 5880 / 5980mm
Engine parameters
Max output power: 250 / 133 / 112kW
FAQ
What kind of truck is ZOOMLION ZOOMLION Crawler Excavator excavator?
ZOOMLION ZOOMLION Crawler Excavator is an export-oriented excavator lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is excavator typically used for?
excavator specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does ZOOMLION Crawler Excavator include?
ZOOMLION Crawler Excavator currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Crawler Excavator?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
