Volvo EC240B Crawler Excavator

Export reference
MSRP N/A
Model:: EC240B
Engine Model:: crawler excavator
Tonnage:: 24ton
Bucket capacity:: 1.98cubic meter
boom length:: 6000mm
Arm Length:: 2970mm
Volvo EC240B Crawler Excavator exterior
View more photos (3)
Operating weight: 24.3ton
Bucket type: backhoe
Fuel Tank Capacity: 380L
Product power: Conventional Power

Overview

The Volvo EC240B Crawler Excavator is a excavator featuring 24.3ton GVW, backhoe bucket capacity, 380L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: EC240B
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 24ton
Operating weight: 24.3ton
Bucket capacity: 1.98cubic meter
boom length: 6000mm
Arm Length: 2970mm
Machine dimensions: 10.02×2.99×3.04mm
Track shoe width: 600mm
Track gauge: 2390mm
Counterweight ground clearance: 1080mm
Min ground clearance: 470cm
Rear Overhang Radius: 2940mm
hydraulic system
Max flow of main pump: 230×2+20L/min
Working hydraulic circuit: 31.4
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 26.5Mpa
Oil capacity
Fuel Tank Capacity: 380L
coolant: 44L
hydraulic oil tank: 190L
Engine Oil Capacity: 32L
performance specs
Travel speed: 3.2/5.5km/h
Bucket digging force: 160.8kN
Arm Digging Force: 111.1kN
Operating Range
Max digging radius: 10260mm
Max digging depth: 6980mm
Max digging height: 9690mm
Max unloading height: 6800mm
Max vertical digging depth: 5970mm
Engine parameters
Engine Model: VolvoD7D
Max output power: 134kW

Photos

Exterior3

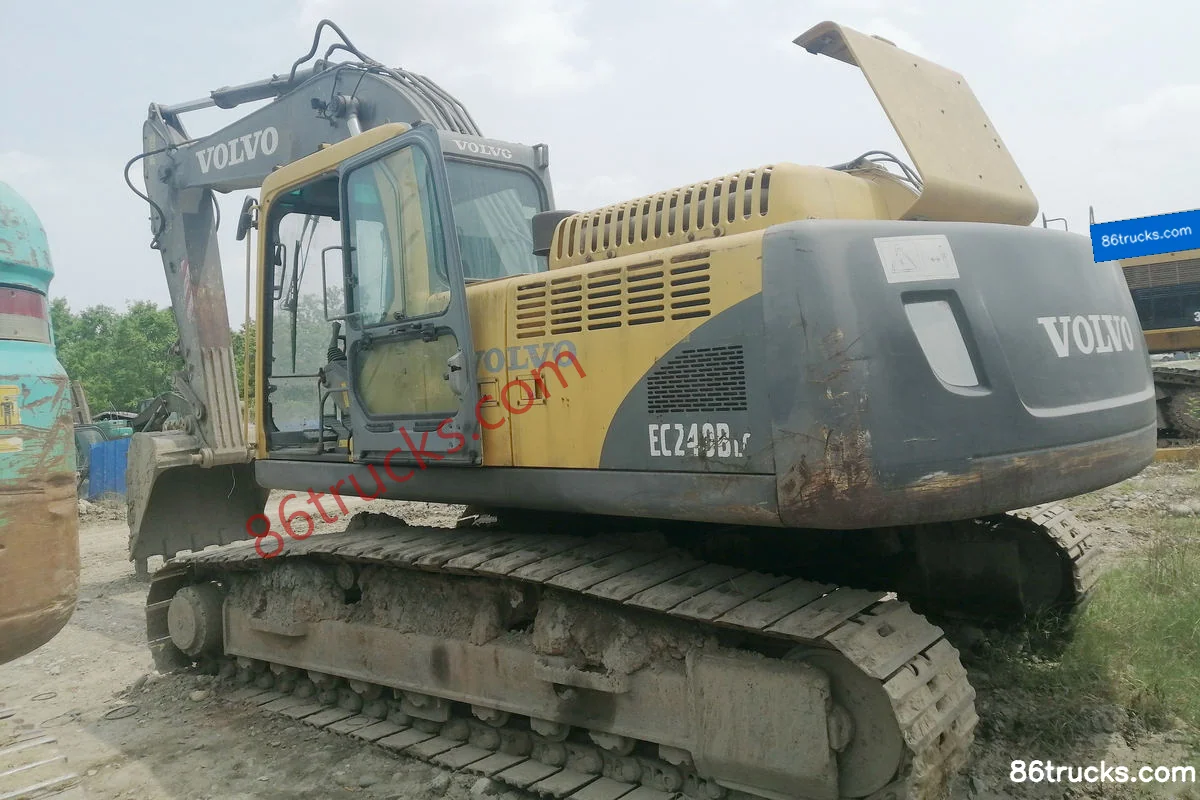

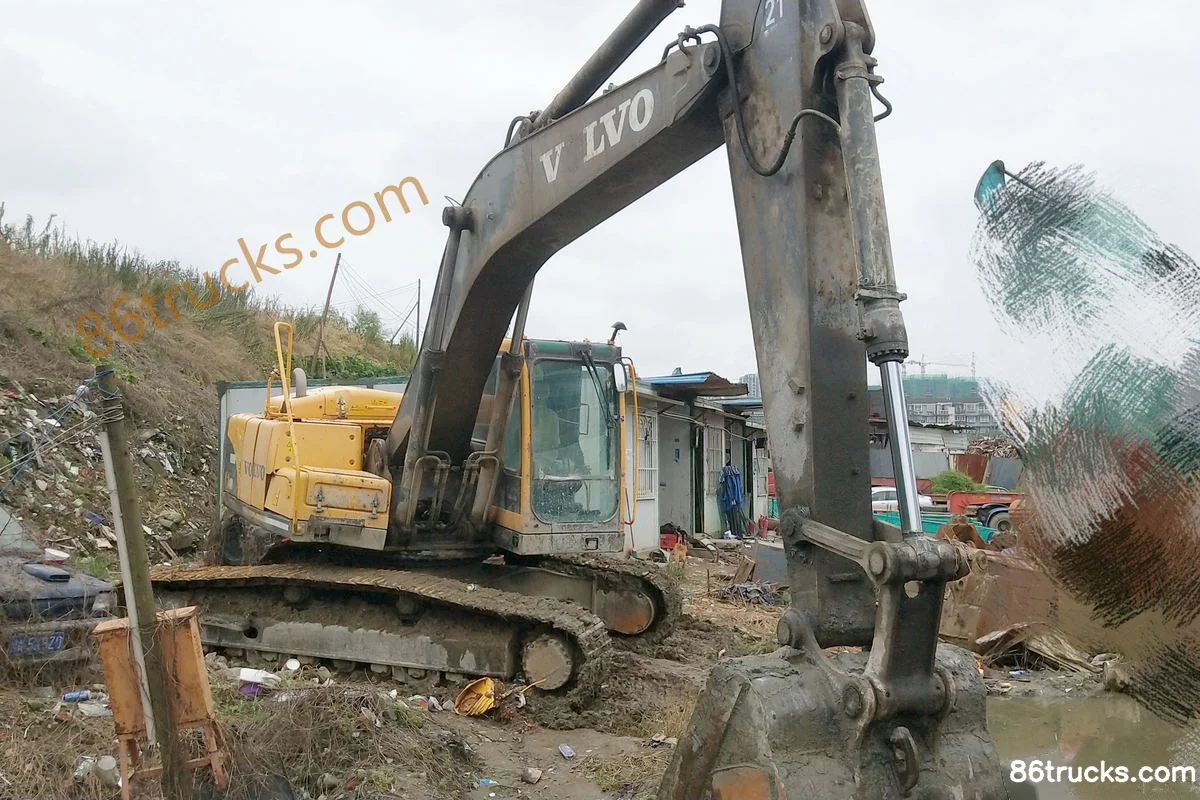

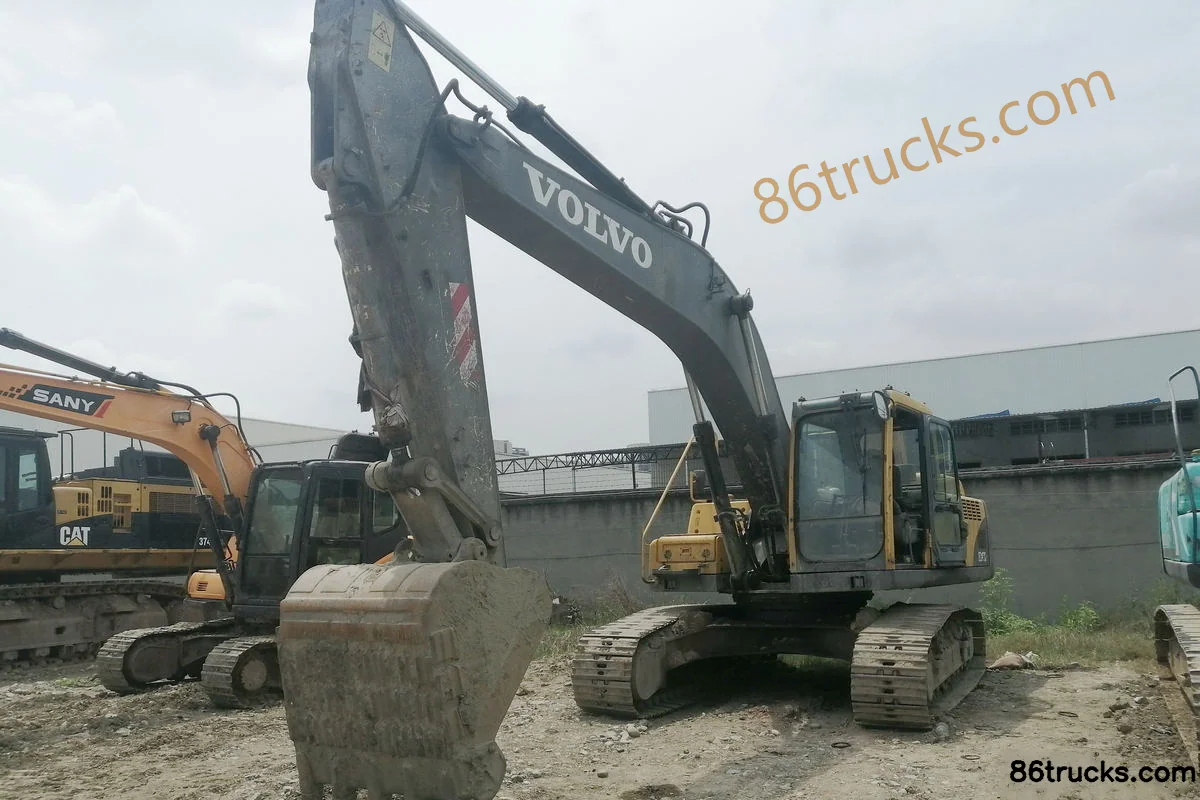

Volvo EC240B Crawler Excavator Exterior (1) | 86Trucks Volvo EC240B Crawler Excavator Exterior (2) | 86Trucks Volvo EC240B Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Volvo EC240B Crawler Excavator suited for?

Volvo EC240B Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Volvo EC240B Crawler Excavator differ from other variants in the same series?

Volvo EC240B Crawler Excavator belongs to Volvo crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo EC240B Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo EC240B Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
