Yuchai YC85-8 Crawler Excavator
EXW
Export quote
Yuchai Excavator
Main model photos
9 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yuchai YC85-8 Crawler Excavator | — | ||
| Yuchai YC85-6 Crawler Excavator | — | ||
| Yuchai YC60-8 Crawler Excavator | — |

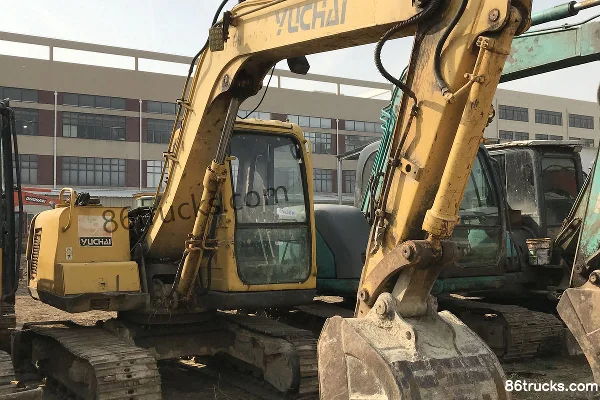

Yuchai YC85-6 Crawler Excavator
EXW
Export quote

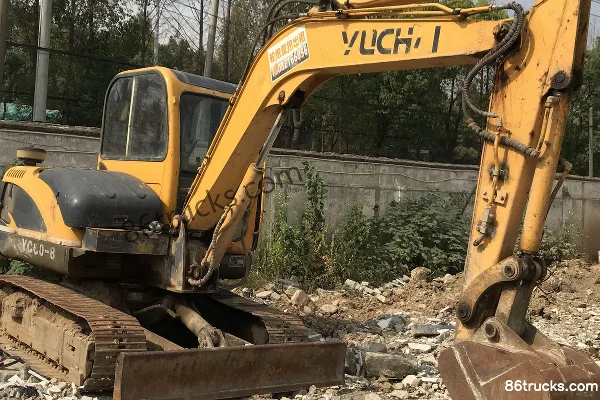

Yuchai YC60-8 Crawler Excavator
EXW
Export quote
Series Specs
Basic Info
Model: YC85-8 / YC85-6 / crawler excavator
Engine Model: crawler excavator / YuchaiYuchai
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 8 / 6ton
Bucket capacity: 0.32 / 0.22cubic meter
Operating weight: 8 / 8.1 / 5.89ton
Machine dimensions: 6.425×2.09×2.595 / 6.425×2.185×2.595 / 6.05×1.925×2.605mm
Track shoe width: 600 / 400mm
Track gauge: 1640 / 2200 / 1520mm
Counterweight ground clearance: 820 / 670mm
Rear Overhang Radius: 1829 / 1865 / 1680mm
Min ground clearance: 380 / 352cm
hydraulic system
Max flow of main pump: 198+20.9 / 2×44+13.2+5.9L/min
Working hydraulic circuit: 27.5/19.5 / 24.5
Swing Hydraulic Circuit: 27.5/19.5 / 20.7Mpa
Oil capacity
Fuel Tank Capacity: 120L
hydraulic oil tank: 152 / 88L
performance specs
Travel speed: 5.5/4.1 / 2.8/4.5 / 4.6/5.1km/h
Bucket digging force: 56/40 / 50.15 / 42kN
Max tractive force: 56kN
Arm Digging Force: 41/29 / 27kN
Operating Range
Max digging radius: 6631 / 6595 / 6475mm
Max digging depth: 4160 / 4125 / 3935mm
Max digging height: 7140 / 6965 / 5900mm
Max unloading height: 5100 / 5135 / 4030mm
Max vertical digging depth: 3608 / 3370mm
Engine parameters
Max output power: 60 / 56 / 45kW
FAQ
What kind of truck is Yuchai Yuchai Excavator excavator?
Yuchai Yuchai Excavator is an export-oriented excavator lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is excavator typically used for?
excavator specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Yuchai Excavator include?
Yuchai Excavator currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yuchai Excavator?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
