SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 34.55ton
Wheelbase:: 3915mm
Tire Size:: 315/80R22.5 18PR,315/60R22.5 18PR
Front axle allowable load:: 6500kg
Displacement:: 12.88L
Drive 4X2 (6 wheels)
Horsepower 520
Emission China V
Transmission ZF

Overview

The SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 520 hp, 18t GVW and China V emissions. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanF3HCE611G*L engine, ZF transmission and Diesel fuel.

China V 520 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4186HYVG391
Drive type: 4X2
Wheelbase: 3915mm
engine: SAIC Fiat Powertrain HongyanF3HCE611G*L
transmission: ZFZF12TX2621TD
Cab length: 6.36m
Cab width: 2.55m
Cab height: 3.93m
Front track width: 2006mm
rear track: 1850mm
Gross Trailer Weight: 34.55ton
Curb Weight: 7.25ton
GVWR: 18ton
Max. speed: 80km/h
Origin: Chongqing
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanF3HCE611G*L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.88L
Emission standard: China V
Max hp: 520Horsepower
Transmission Parameters
Transmission Model: ZFZF12TX2621TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 1200L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: HY469
rear axle allowable load: 11500kg
Leaf spring count: 3/-,2/-
Tire
Tire Size: 315/80R22.5 18PR,315/60R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Disc brake

Photos

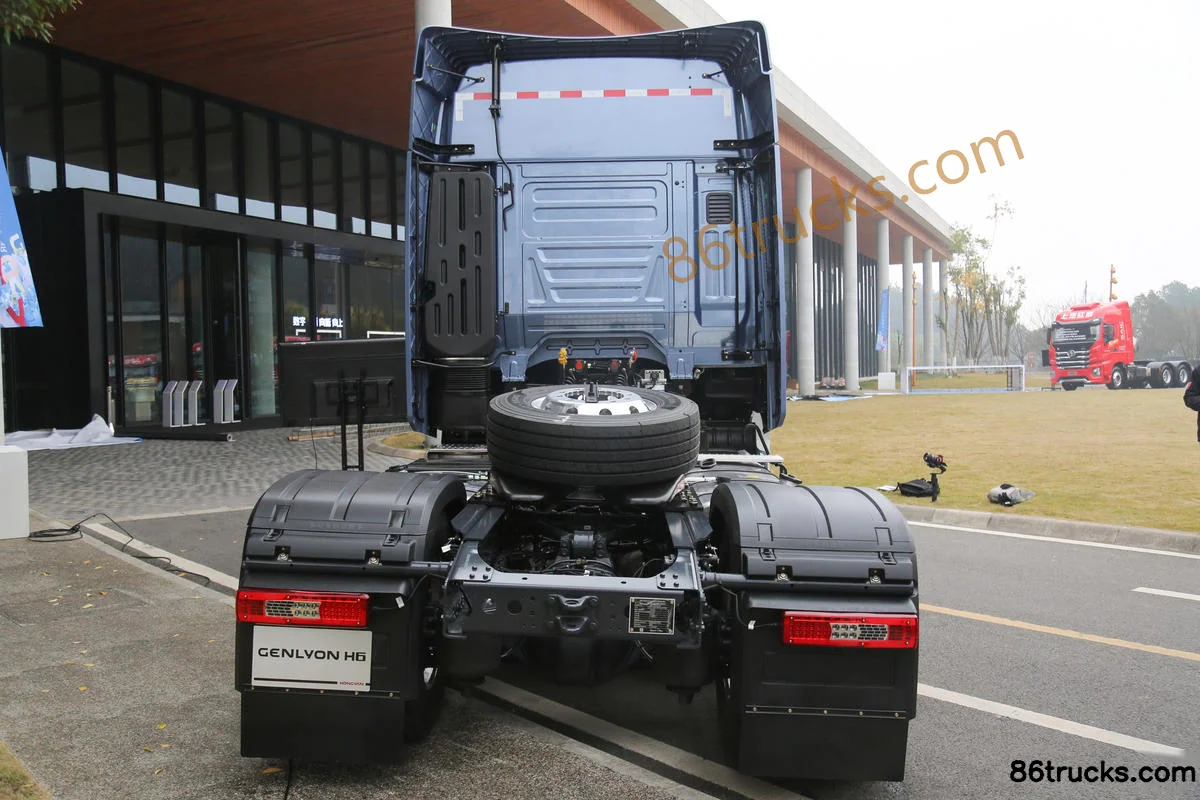

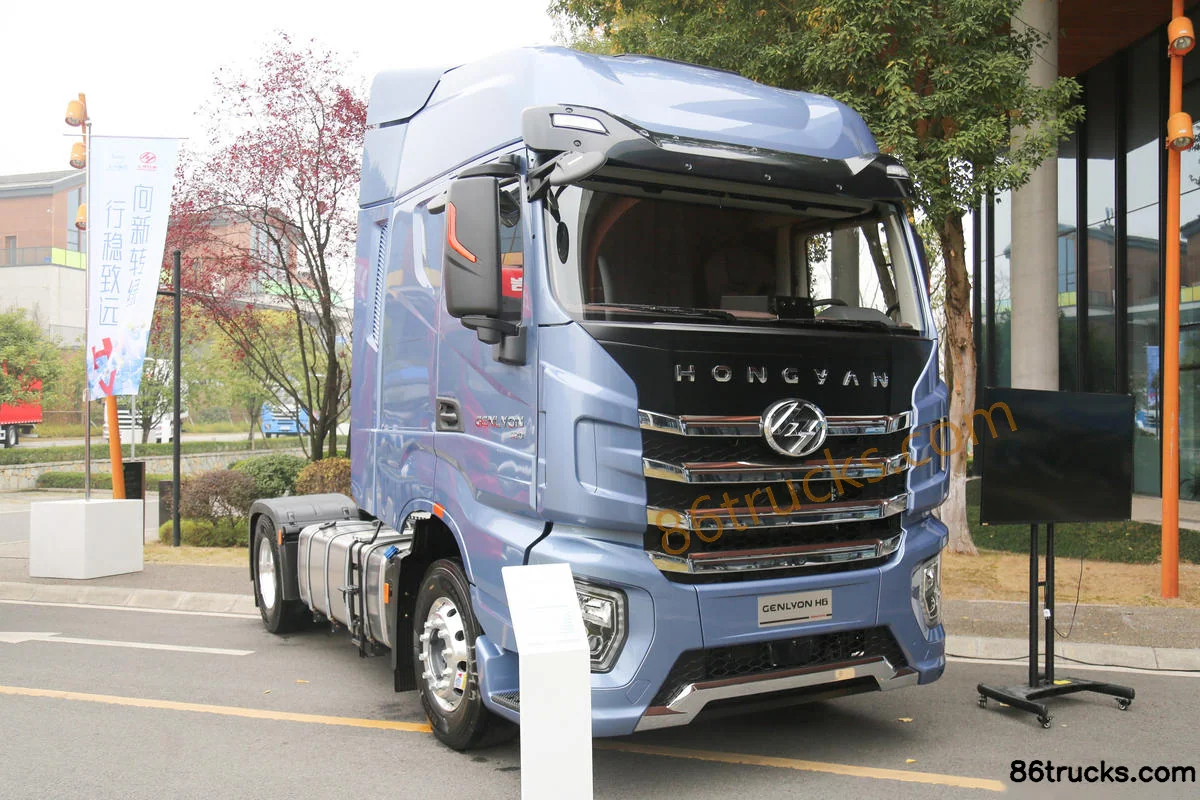

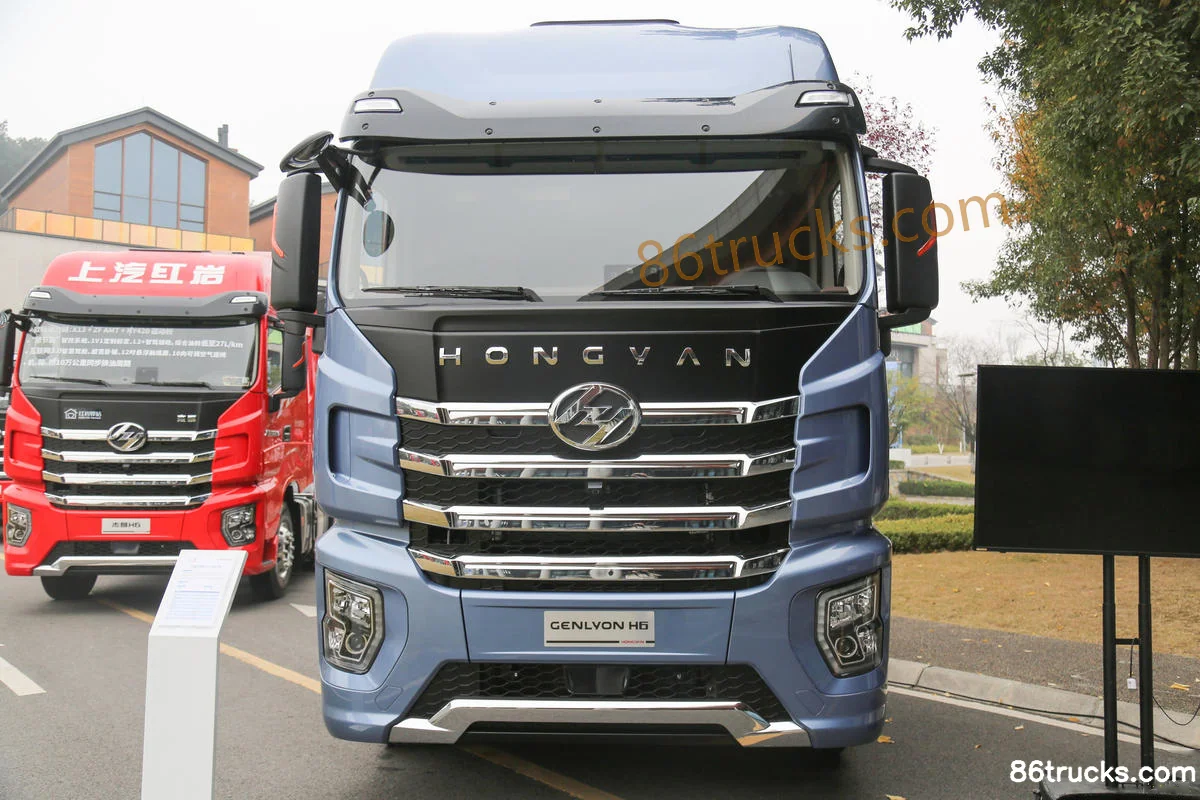

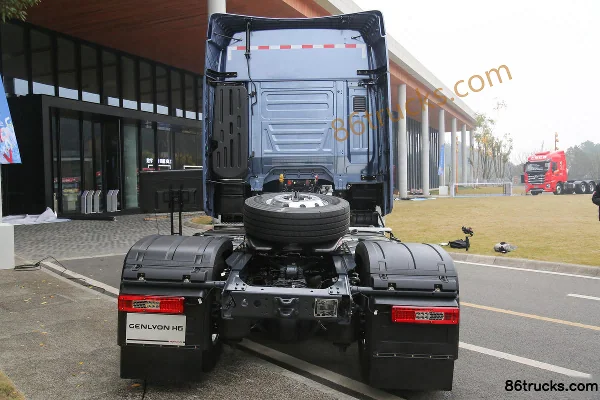

Exterior3

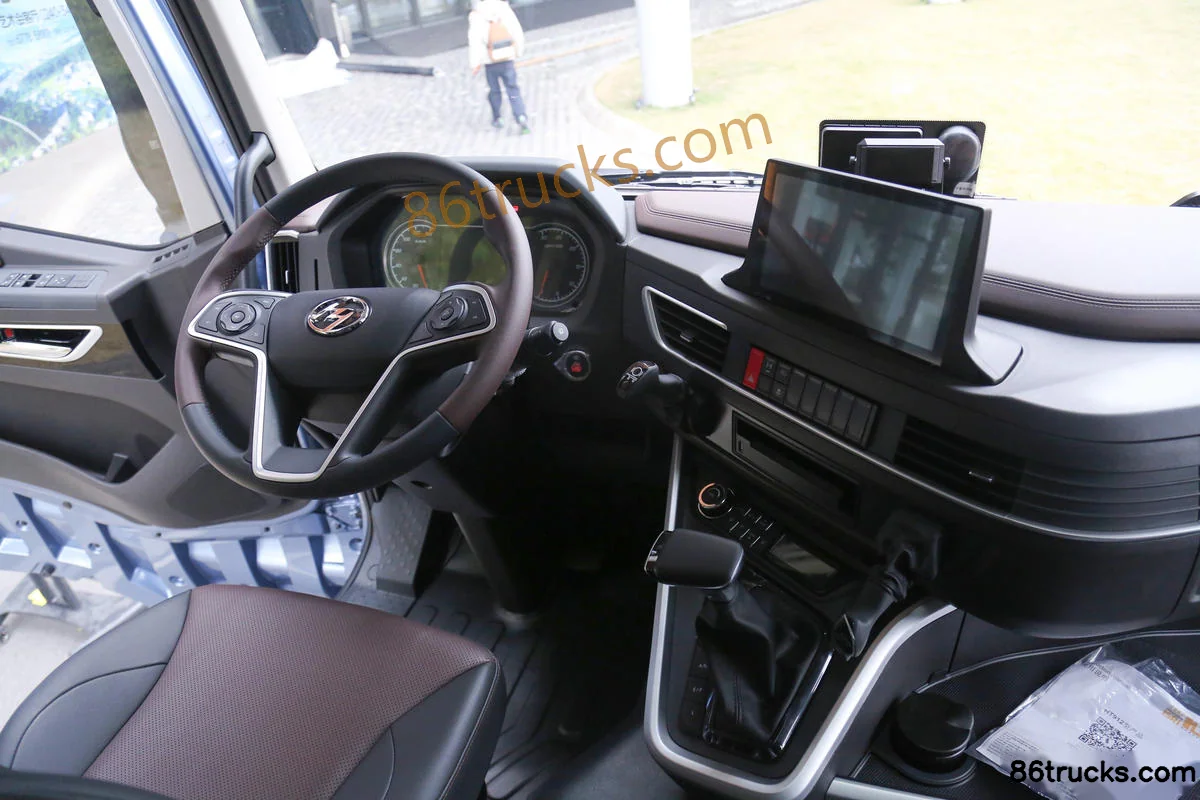

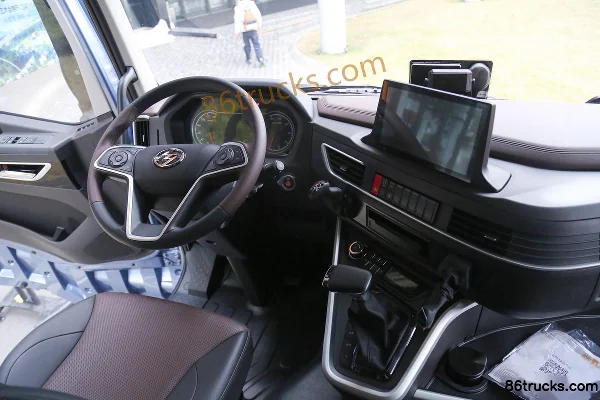

Cab1

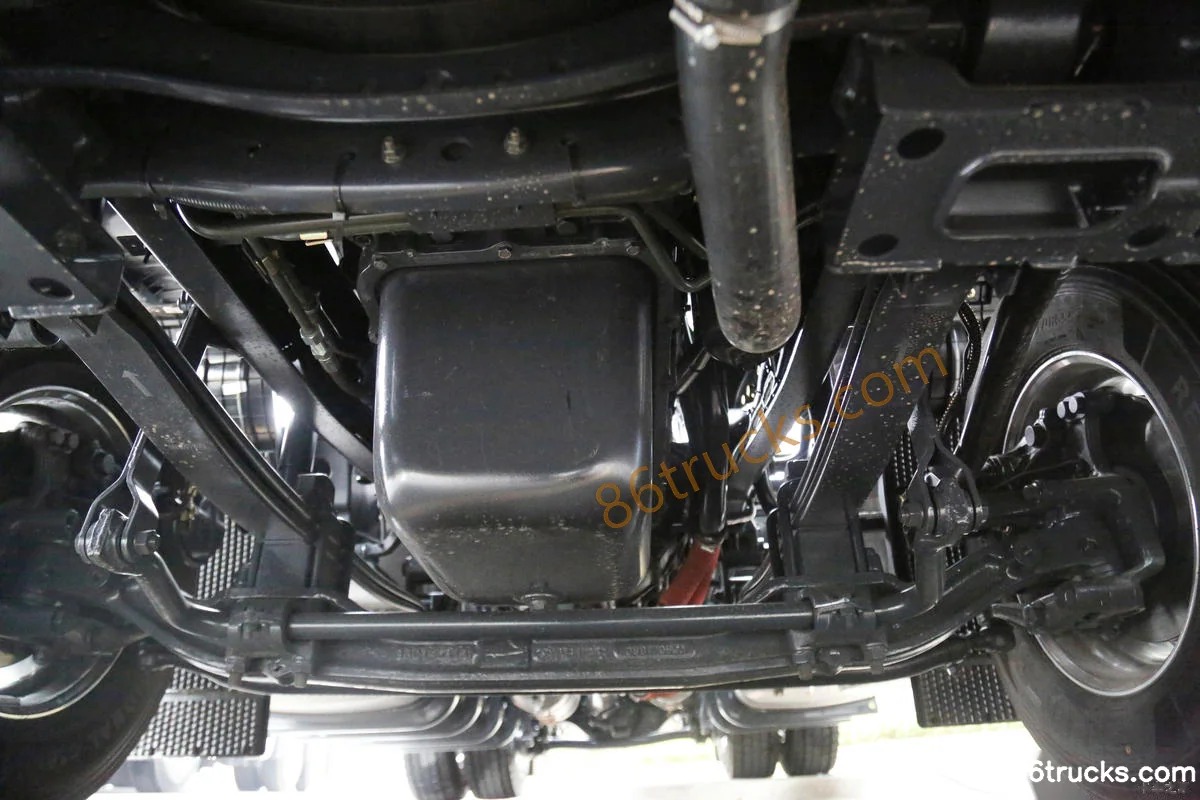

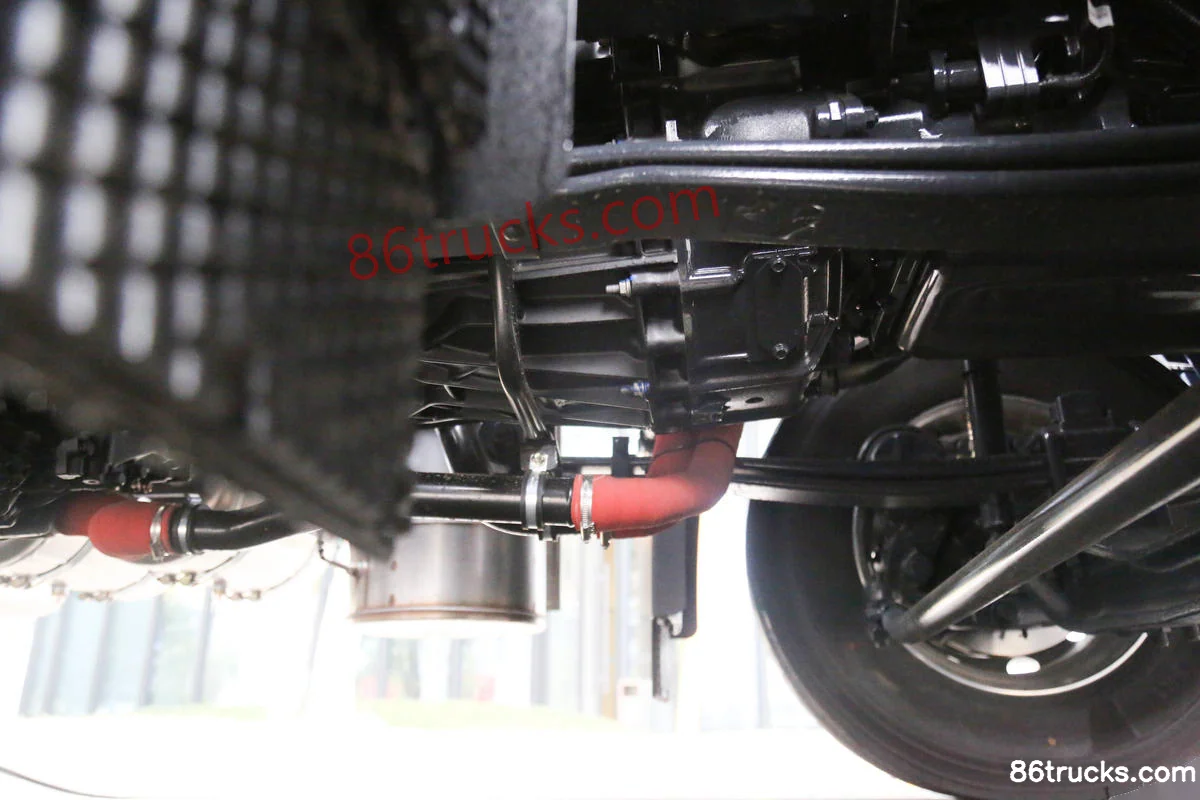

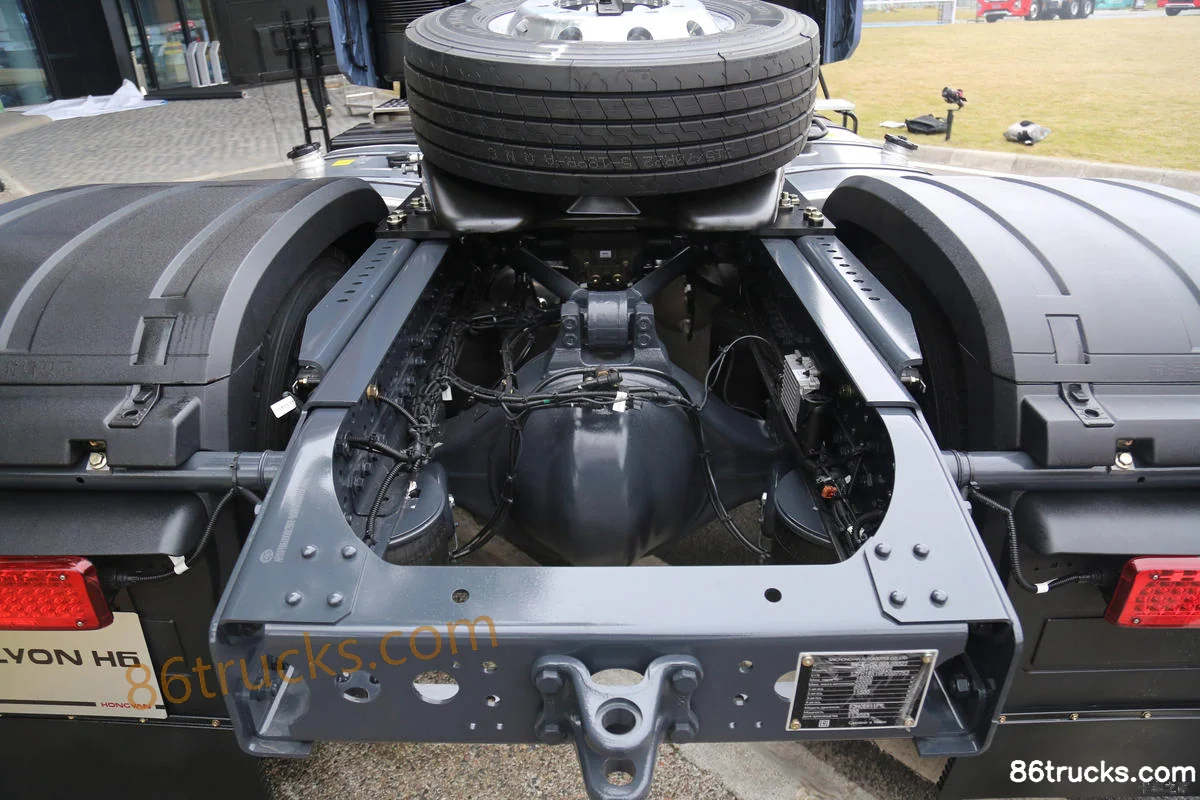

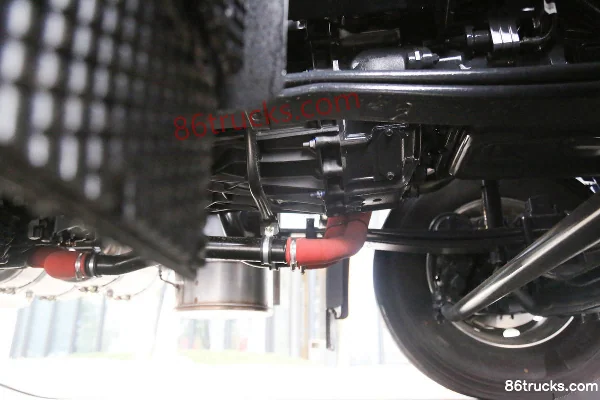

Chassis3

7 photos

FAQ

What emission standard does SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck?

Key specs of SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck: Drive: 4x2; Horsepower: 520 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck suited for?

SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck differ from other variants in the same series?

SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck belongs to SAIC Hongyan Genlyon H6 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon H6 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
