SHACMAN Delong M5000C Longji 9.9L Diesel 480hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck
EXW
Export quote
SHACMAN Delong M5000 Tractor Trucks
Main model photos
66 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong M5000C Longji 9.9L Diesel 480hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck | 6x4 / 480hp | ||
| SHACMAN Delong M5000 12.5L LNG 530hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck | 6x4 / 530hp / China VI | ||
| SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck | 6x4 / 480hp / China VI |

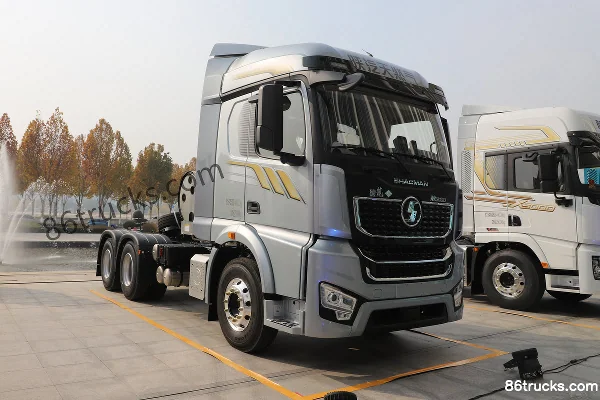

SHACMAN Delong M5000 12.5L LNG 530hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck
EXW
Export quote
SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck
EXW
Export quote
Series Specs
Basic Info
Drive type: 6X4
Wheelbase: 3300+1350mm
Engine Model: CumminsM10NS6B480 / WeichaiWP13NG530E61 / CumminsM10NSB480 / M10NS6B480 / WP13NG530E61 / M10NSB480
Transmission Model: Fast GearSQ12MO / SQ12MO
Rear Axle Ratio: 3.7
Cab length: 6.935 / 7.41m
Cab width: 2.55 / 2.5m
Cab height: 3.9 / 4m
Gross Trailer Weight: 40ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Remarks: ESC, Tianxingjian Smart Edition, side tool box, electric window regulator / Tianxingjian Smart Edition, ESC, side tool box, electric windows
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Cummins / Weichai
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 9.92 / 12.54L
Emission standard: China VI
Max output power: 353 / 390kW
Max hp: 480 / 530Horsepower
Max torque: 2200 / 2300N·m
Max torque speed: 900-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1000 / 1350L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: Hande 5.5t maintenance-free front axle
Front axle allowable load: 7000kg
rear axle description: Hande 11t single reduction axle / Hande 11.5t single reduction axle
FAQ
What kind of truck is SHACMAN SHACMAN Delong M5000 Tractor Trucks?
SHACMAN SHACMAN Delong M5000 is an export-oriented Tractor Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SHACMAN Delong M5000 Tractor Trucks cover?
SHACMAN Delong M5000 Tractor Trucks mainly covers: Drive: 6x4; Horsepower: 480 hp / 530 hp; Emission: China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong M5000 Tractor Trucks?
For SHACMAN Delong M5000 Tractor Trucks: 1) confirm destination emission; 2) pick drive by payload/route (long-haul heavy often 6×4); 3) choose horsepower; 4) compare reference price and photos. Then open a model for engine/gearbox and request a quote.
What is Tractor Trucks typically used for?
Tractor Trucks units mainly pull semi-trailers for line-haul, port and long-distance work. Focus on horsepower, drive and emission for your trailer and route.
How many models does SHACMAN Delong M5000 Tractor Trucks include?
SHACMAN Delong M5000 Tractor Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong M5000 Tractor Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
