SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 9.92L
Drive 6X4 (10 wheels)
Horsepower 480
Emission China VI
Transmission Fast Gear

Overview

The SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 480 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a CumminsM10NSB480 engine, Fast Gear transmission and Diesel fuel.

China VI 480 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: CumminsM10NSB480
transmission: Fast GearSQ12MO
Rear Axle Ratio: 3.7
Cab length: 6.935m
Cab width: 2.5m
Cab height: 4m
Gross Trailer Weight: 40ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Cummins
Engine Model: M10NSB480
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.92L
Emission standard: China VI
Max output power: 353kW
Max hp: 480Horsepower
Max torque: 2200N·m
Max torque speed: 900-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: SQ12MO
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1000L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

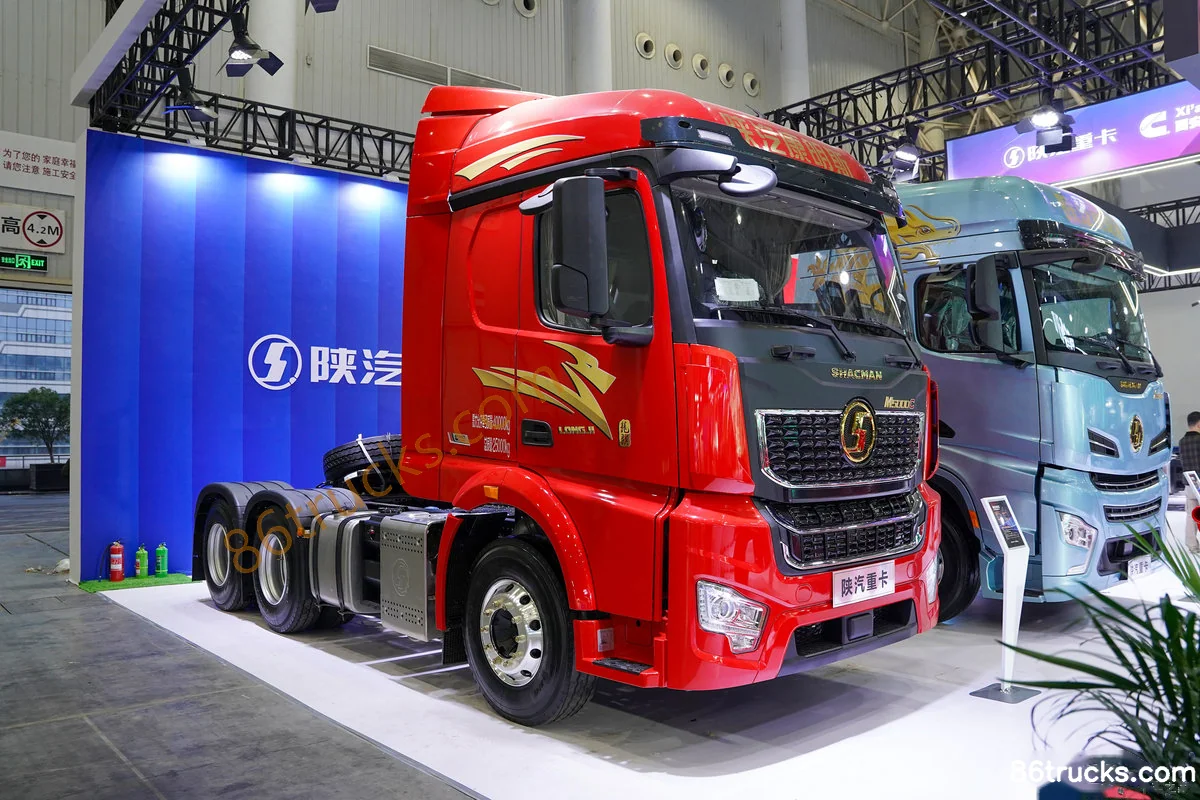

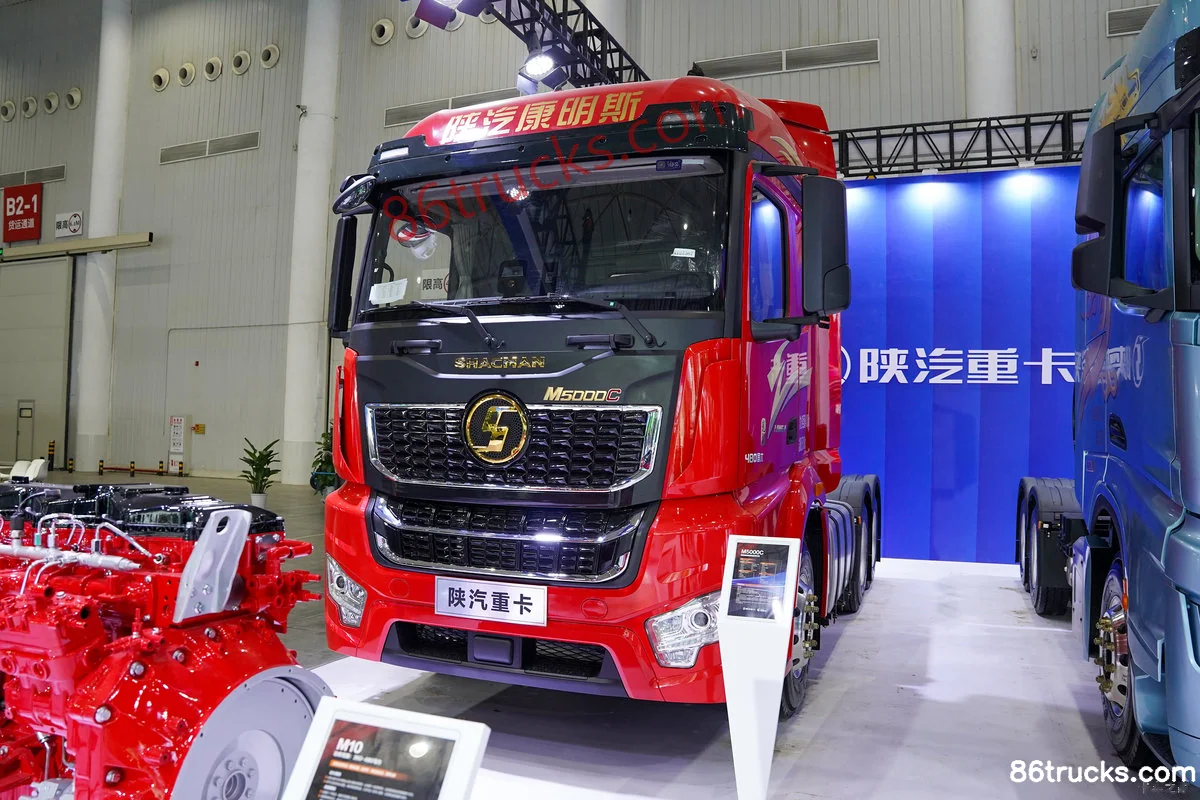

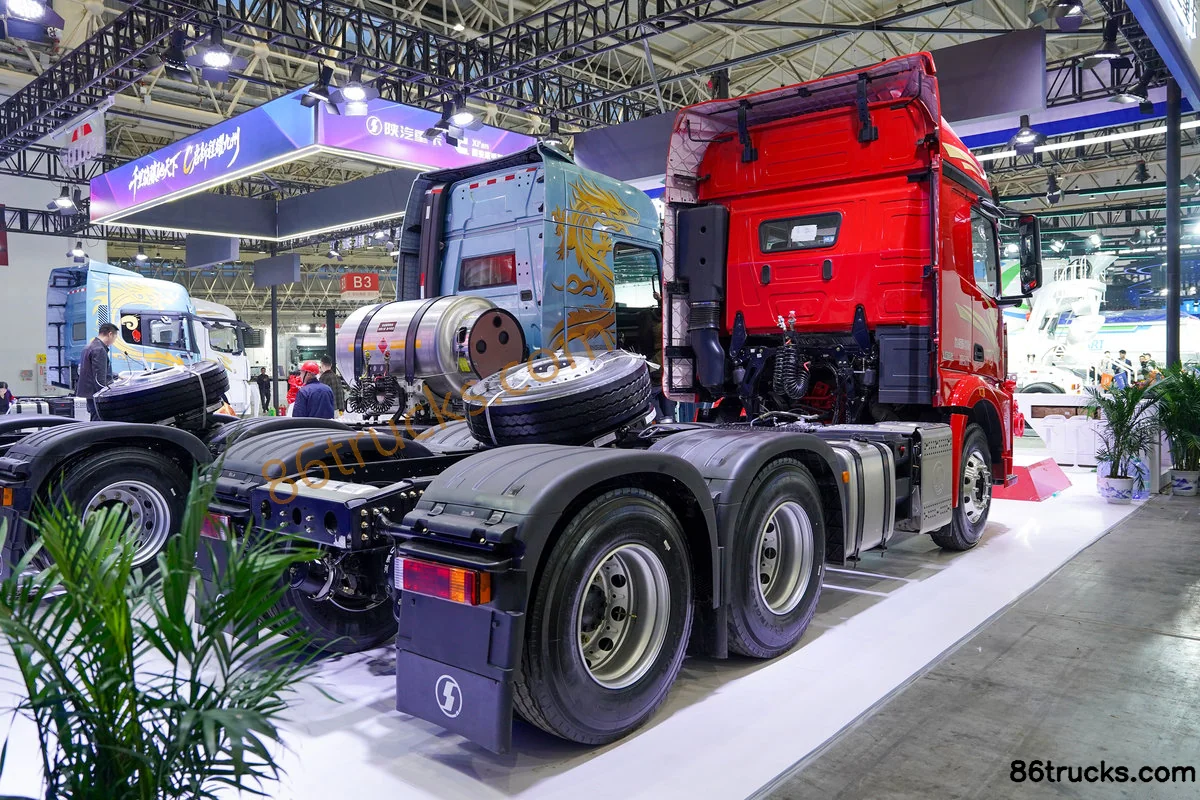

Exterior3

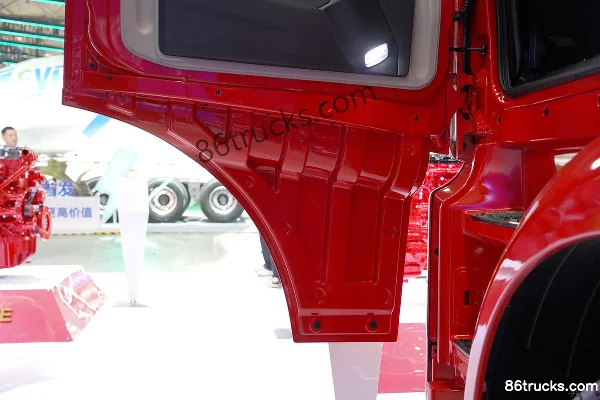

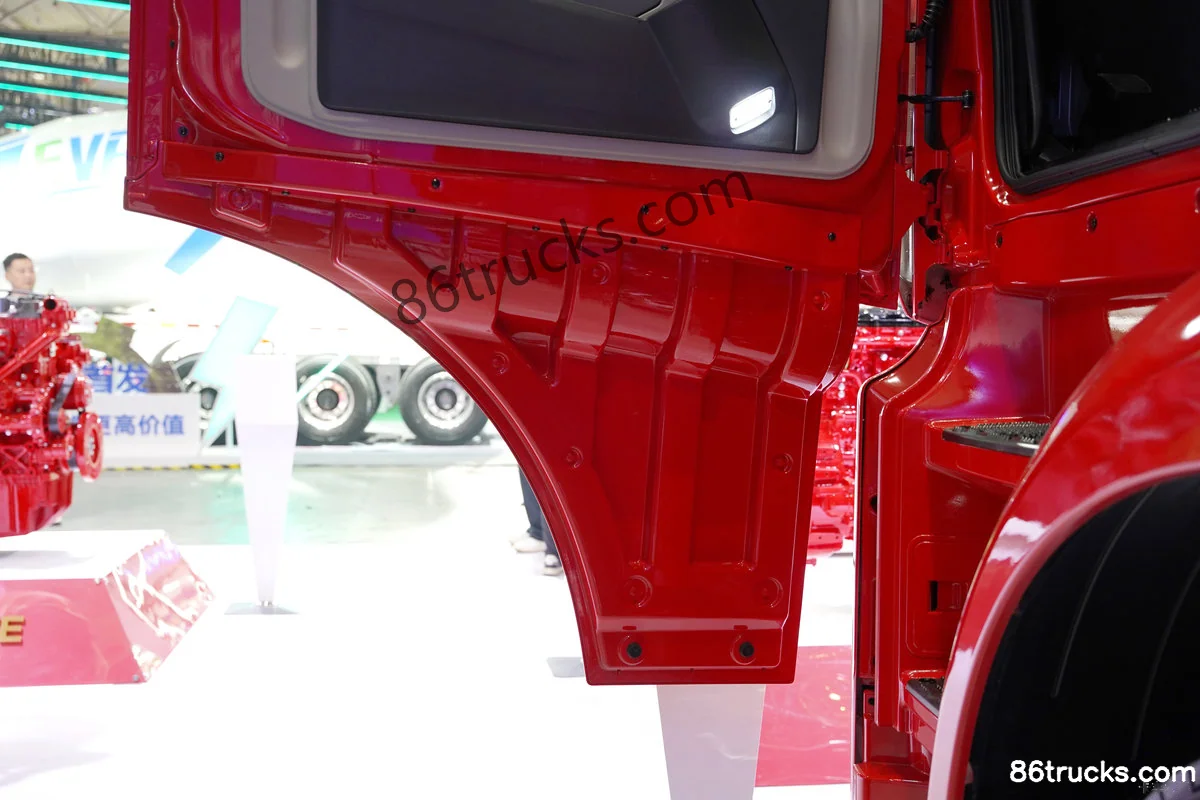

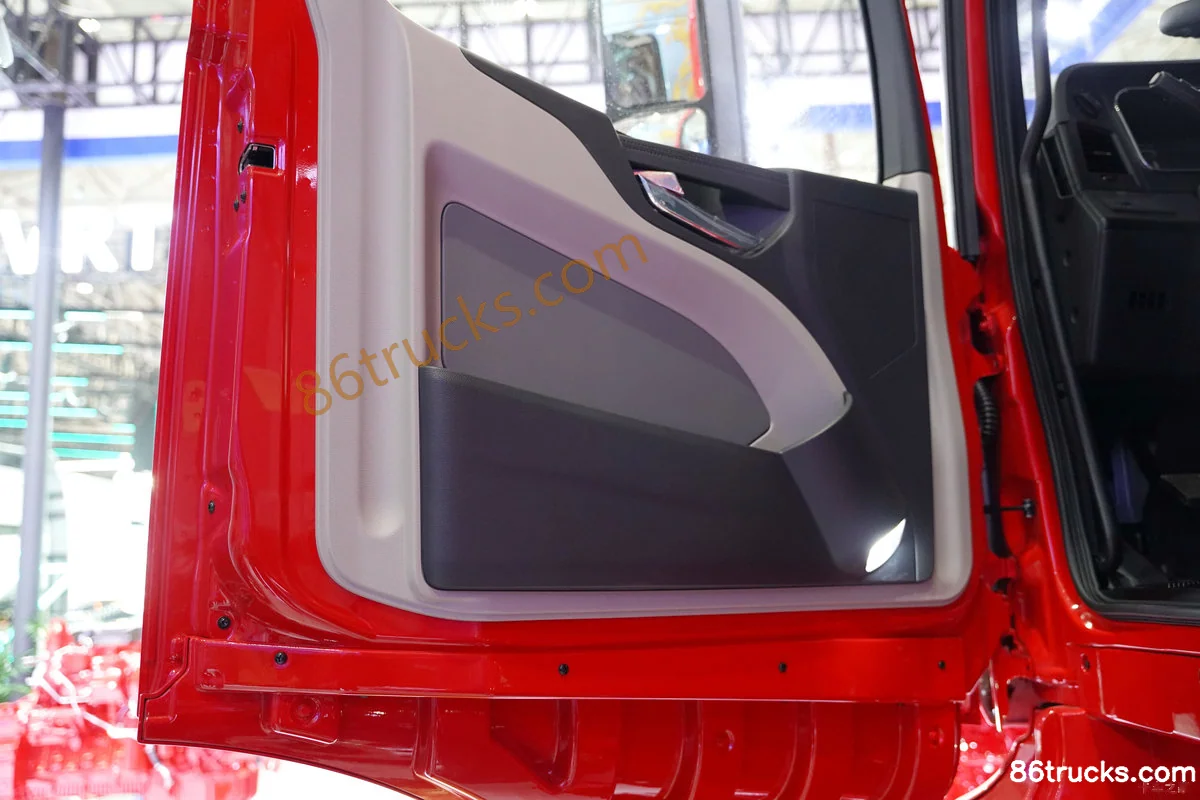

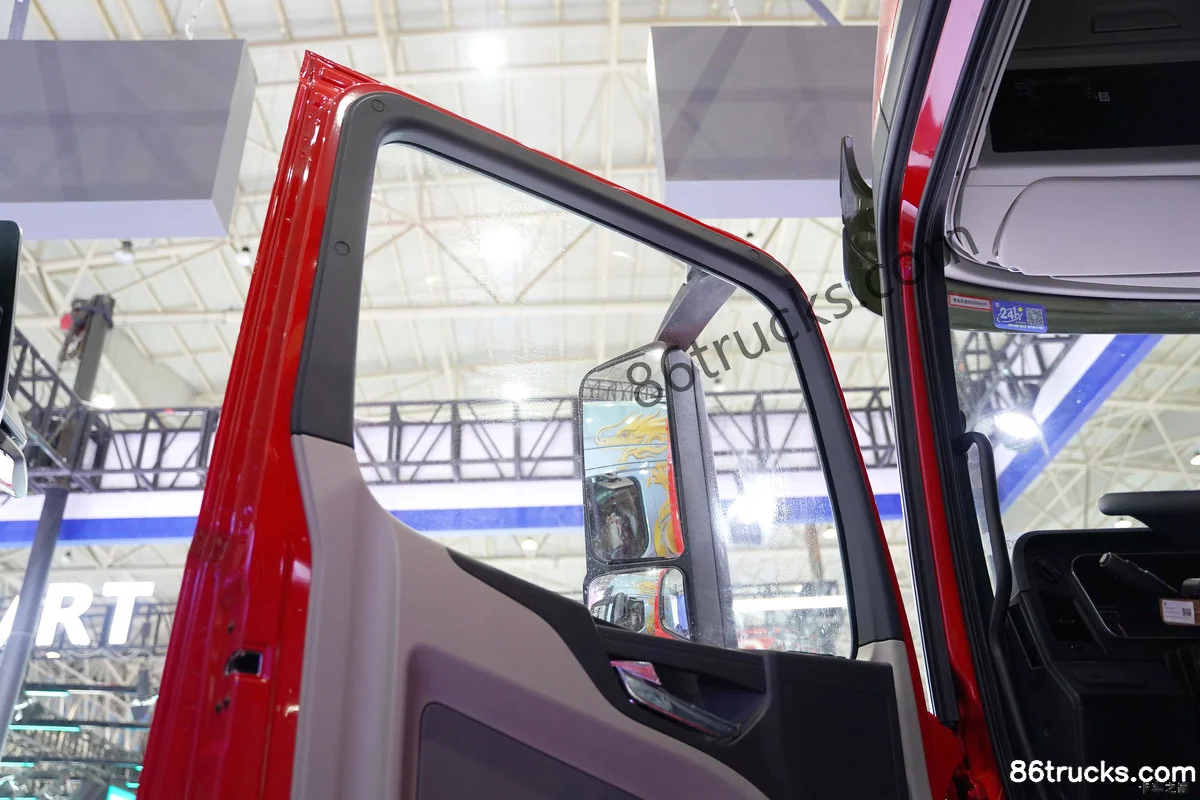

Cab3

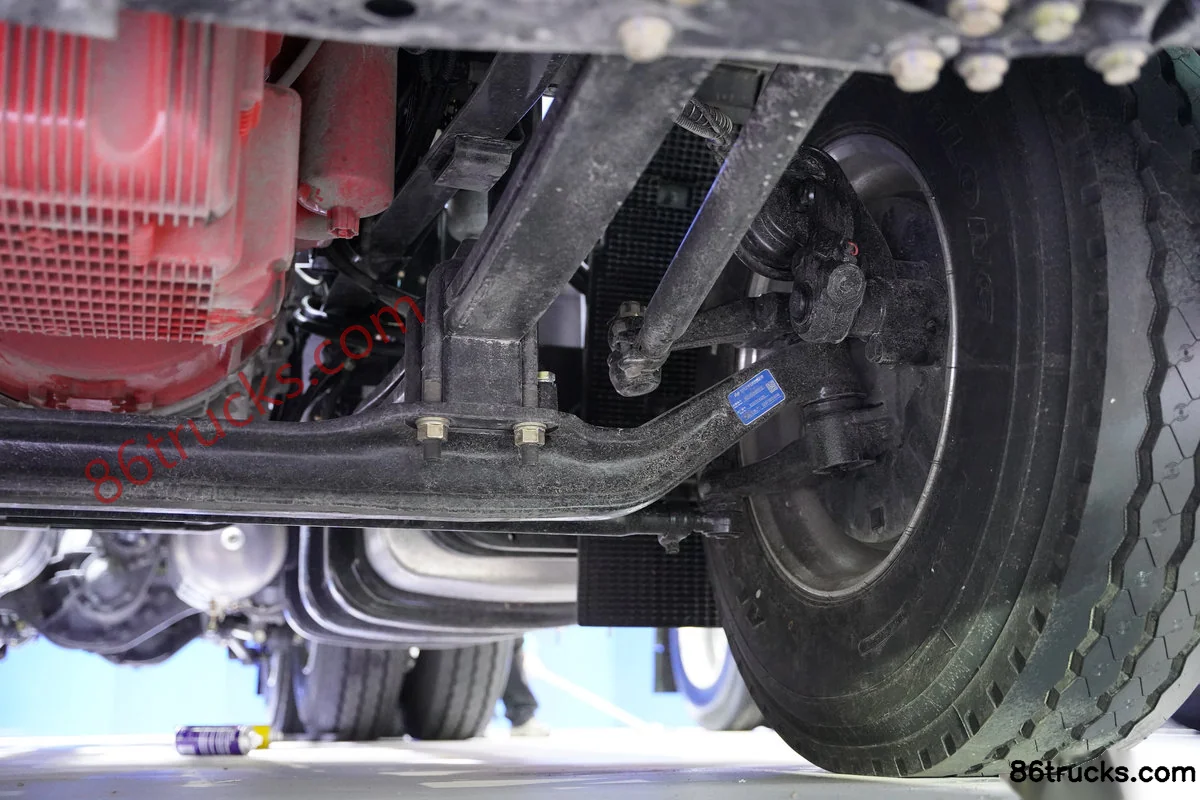

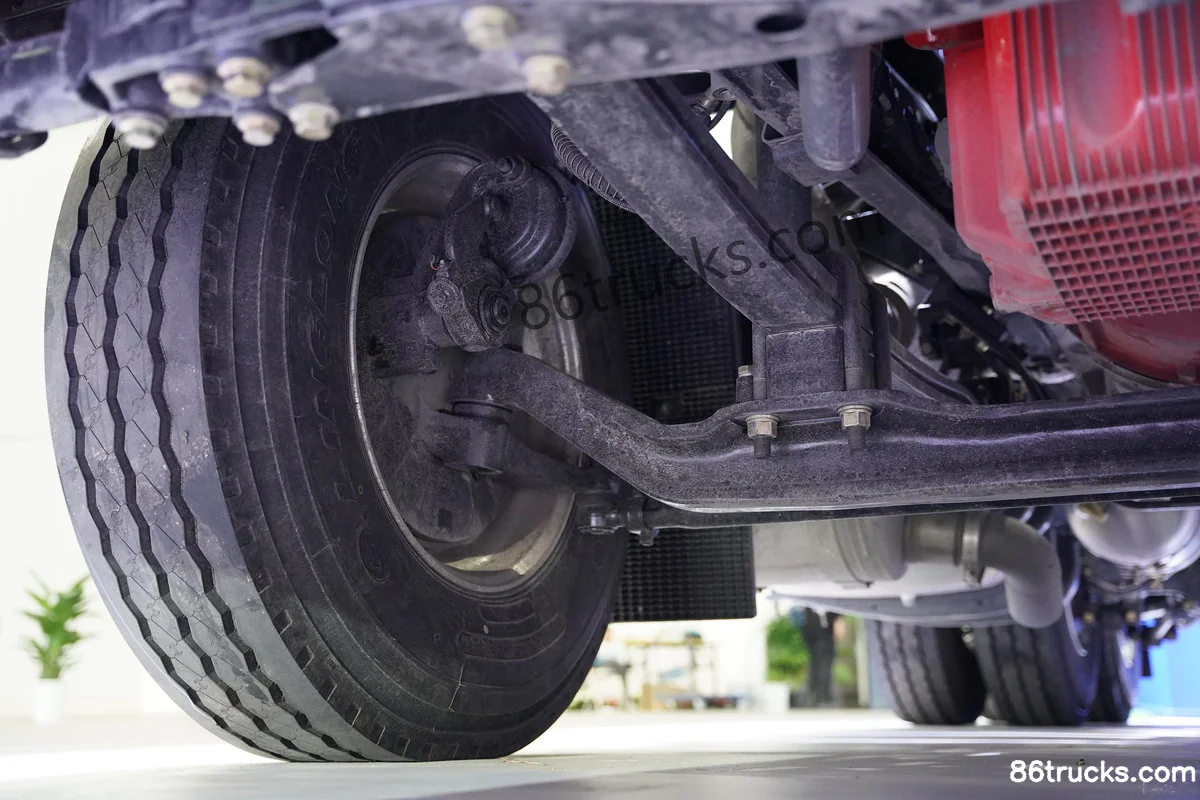

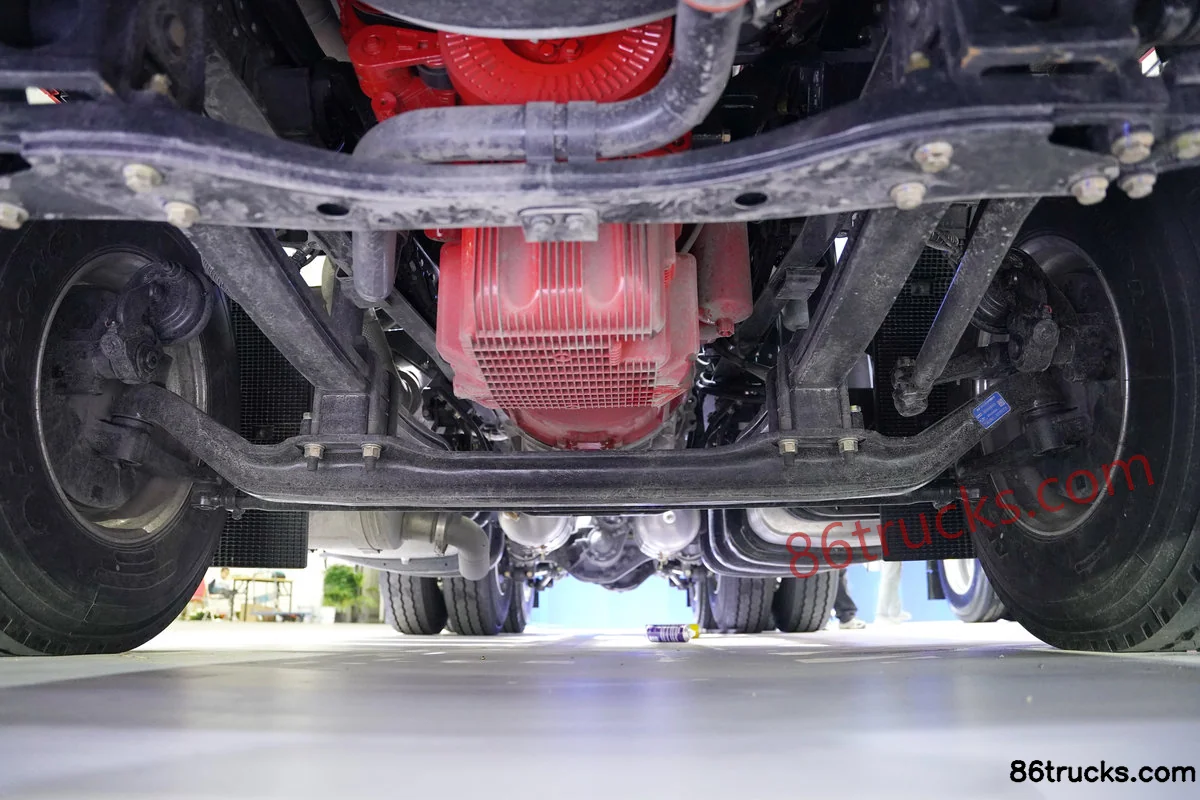

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck?

Key specs of SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck: Drive: 6x4; Horsepower: 480 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck suited for?

SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck differ from other variants in the same series?

SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck belongs to SHACMAN Delong M5000 (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M5000C 9.9L Diesel 480 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
