FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels)

Export reference
From $25,611
MSRP ¥18.44M CNY
Curb Weight:: 3.2ton
Rated payload:: 1.1ton
Wheelbase:: 3300mm
Cargo box type:: stake body
Emission: China VI
Model code (announced):: CA1040P40K51L2BE6PHEVA84
Drive 4X2 (6 wheels)
Battery Brand: 盟固利
Motor 1 Brand: CRRC Zhuzhou
Horsepower 140

Overview

The FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels) is a Light Truck featuring 盟固利 battery/range, CRRC Zhuzhou motor, 4X2 (6 wheels) drive and 1.1t payload. On the powertrain side, it comes with 140 hp.

China VI 140 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1040P40K51L2BE6PHEVA84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.405m
Curb Weight: 3.2ton
Rated payload: 1.1ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Remarks: Standard: FAW Jiefang CA2TX045H transmission, 120L plastic fuel tank, digital instrument cluster, auto headlights
Energy Type: Hybrid
electric motor
Motor 1 Brand: CRRC Zhuzhou
Motor 1 Model: TZ180XS016A
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hybrid
total rated power: 40kW
Peak power: 60kW
Battery/Charging
Battery Brand: 盟固利
Battery type: NMC lithium battery pack
Battery capacity: 14.016kWh
Engine parameters
Engine Model: XichaiCA4DB1-14E68
Number of cylinders: 4cylinder
Displacement: 2.2L
Emission standard: China VI
Max output power: 100kW
Max hp: 140Horsepower
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.16m
Cargo box width: 2.1m
Cargo box height: 0.55m
Cab parameters
Cab: Mid-body flat top
Cab width: 1895mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle description: 1058 rear axle
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

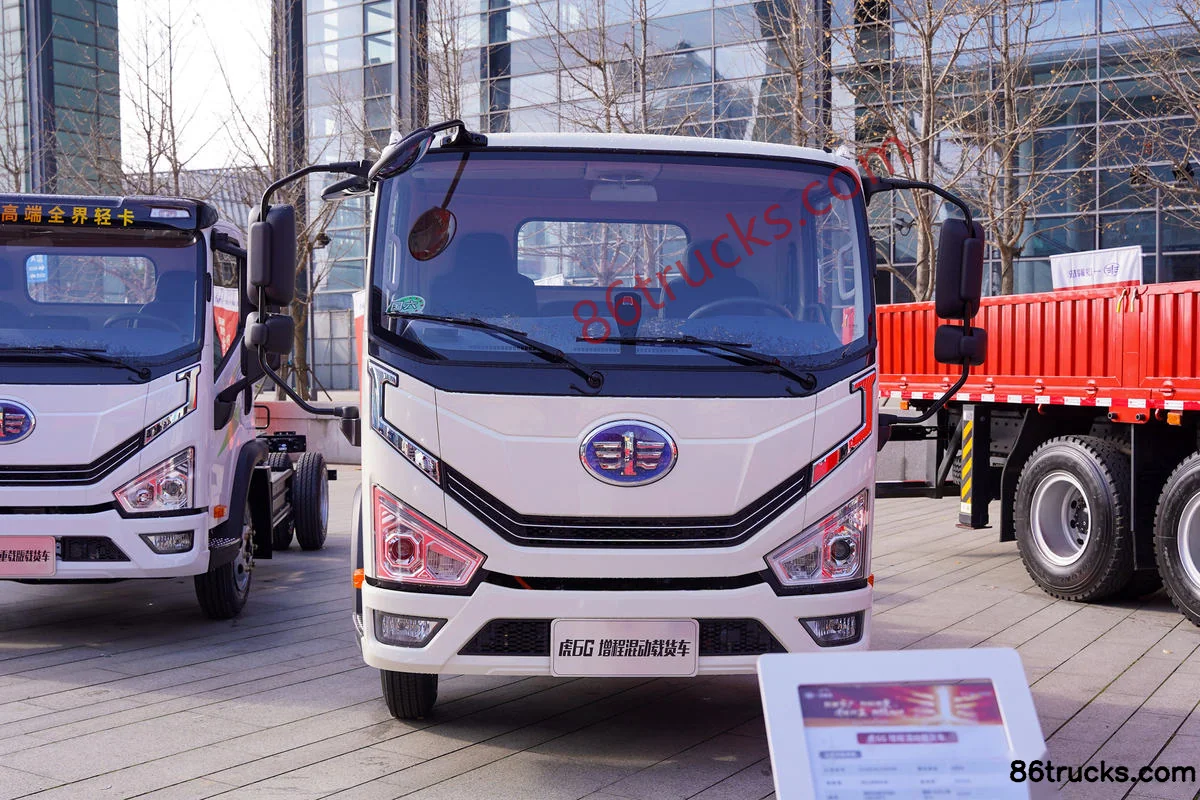

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels), and what does it include?

FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels) export reference is about From $25,611; MSRP is ¥18.44M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels)?

Key specs of FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 140 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels) suited for?

FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels) differ from other variants in the same series?

FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels) belongs to FAW Jiefang Hu 6G (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Tiger 6G 4.5T 4.16m Single Row Plug-in Hybrid Flatbed Light Truck 14.016kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
