Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels)

Export reference
From $65,278
MSRP ¥47M CNY
Tire Size:: 275/80R22.5 18PR
Cab dimensions:: 7.22×2.39×3.93m
Truck Type:: concrete mixer truck
Front/rear track width:: Front track: 1810mm; Rear track: 1750mm
Vehicle origin:: Chengdu, Sichuan
Max. speed:: 80km/h
Rated payload: 9.005ton
Drive 4X2 (6 wheels)
Curb Weight: 8.8ton
Wheelbase: 3600mm

Overview

The Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels) is a concrete mixer truck featuring 9.005t payload, 8.8ton GVW, 4X2 (6 wheels) drive and 7.22×2.39×3.93m cab.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.22×2.39×3.93m
Drive type: 4X2
Truck Type: concrete mixer truck
Wheelbase: 3600mm
Front/rear track width: Front track: 1810mm; Rear track: 1750mm
Vehicle origin: Chengdu, Sichuan
Curb Weight: 8.8ton
Rated payload: 9.005ton
Max. speed: 80km/h
Front/rear suspension: 1.28/2.34m
electric motor
Motor 1 Brand: Sinotruk王牌
Motor 1 Model: TZ380XSCDW08
Motor Type: Permanent magnet synchronous motor
total rated power: 120kW
Peak power: 185kW
Body Parameters
Vehicle certification code: CDW5184GJBK401EZABEV
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs

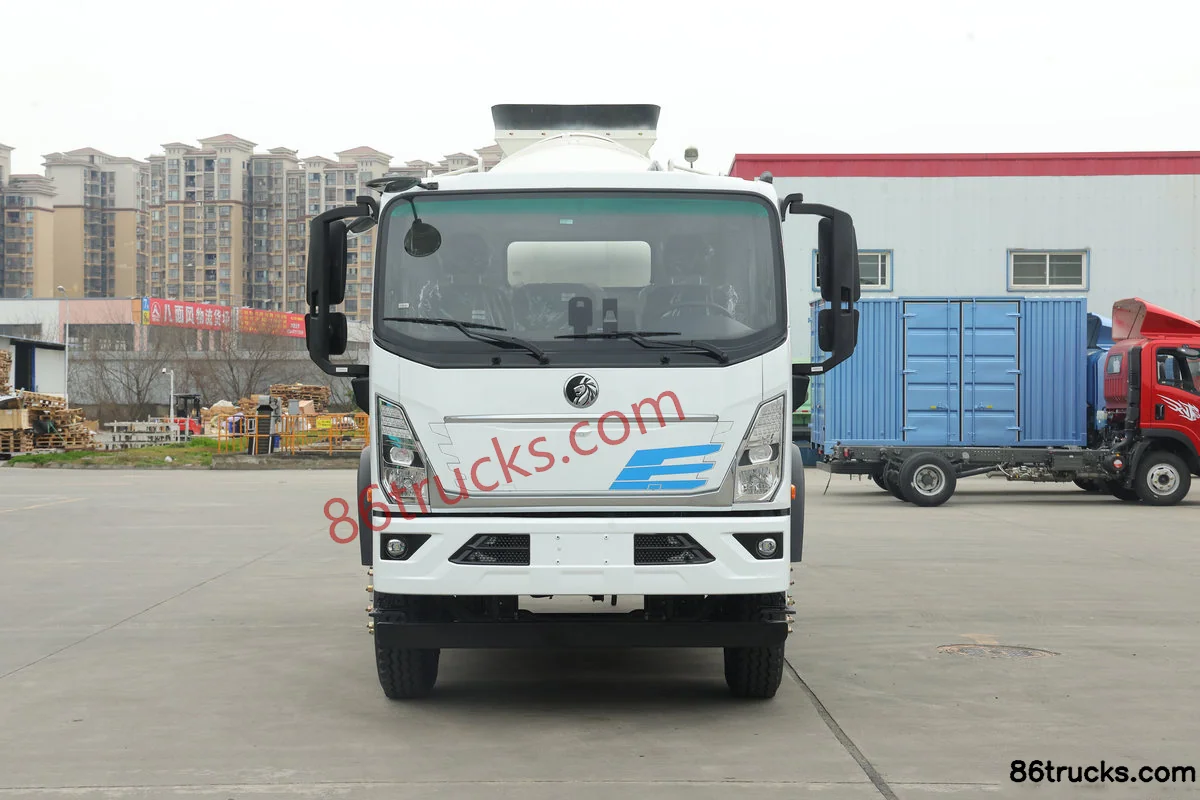

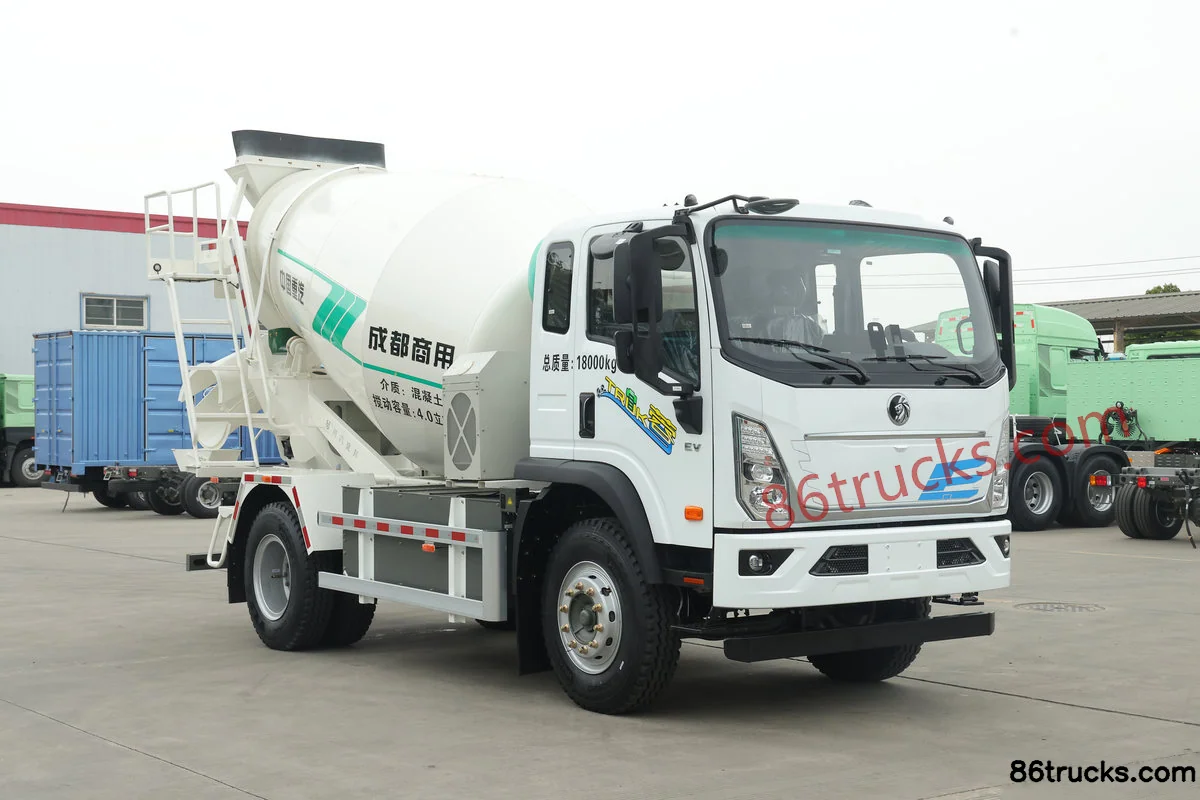

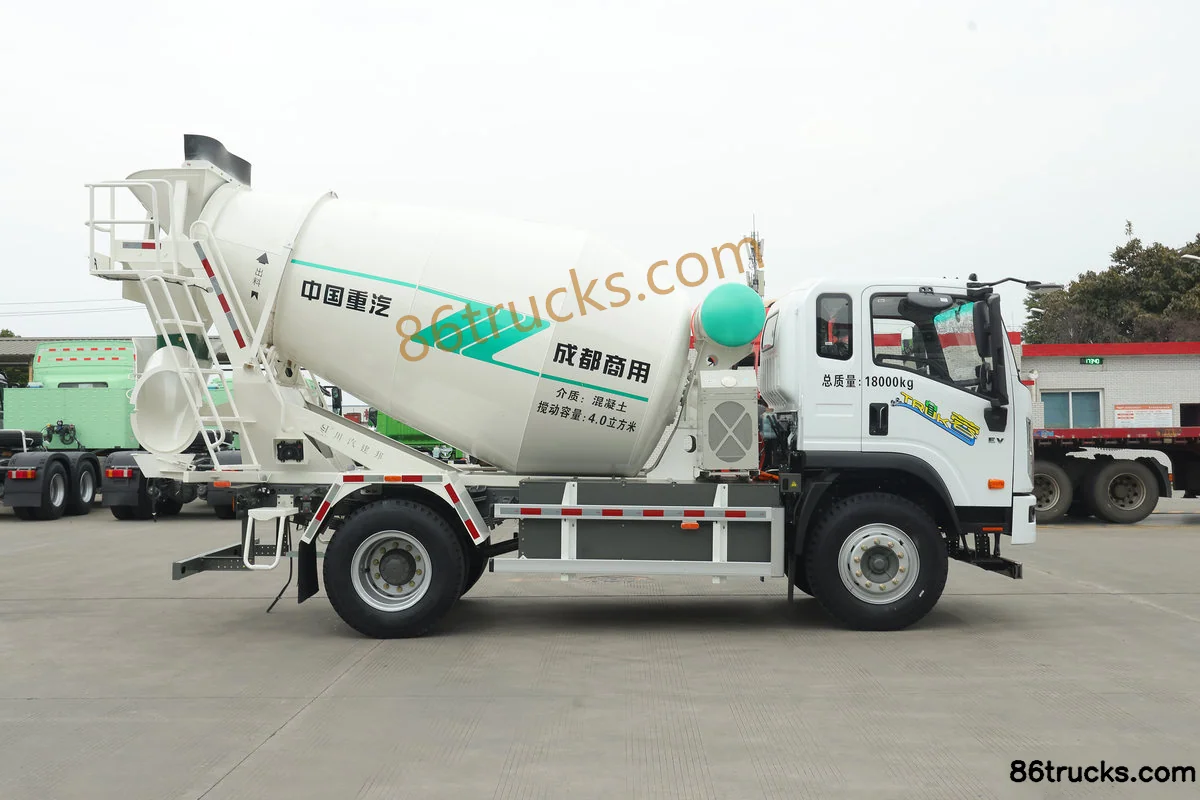

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels), and what does it include?

Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels) export reference is about From $65,278; MSRP is ¥47M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels)?

Key specs of Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels) suited for?

Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels) differ from other variants in the same series?

Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels) belongs to Sinotruk V Series (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V3 4m³ electric concrete mixer truck CATL 162kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
