Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels)

Export reference
From $18,333
MSRP ¥13.2M CNY
Rated payload:: 1.515ton
Wheelbase:: 3200mm
Cargo box type:: stake body
Model code (announced):: DFA1030S1BEVF
Type:: Cargo Trucks
Box length class:: 3.8m
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Yuchai Xinlan
Curb Weight: 1.85ton

Overview

The Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels) is a mini truck featuring 260km battery/range, Yuchai Xinlan motor, 4X2 (6 wheels) drive and 1.515t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFA1030S1BEVF
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3200mm
Box length class: 3.8m
Cab length: 5.79m
Cab width: 1.93m
Cab height: 2.06m
CLTC range: 260km
Curb Weight: 1.85ton
Rated payload: 1.515ton
GVWR: 3.495ton
Max. speed: 90km/h
Origin: Xiangyang, Hubei
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Yuchai Xinlan
Motor 1 Model: TZ180XS128
Motor Type: Permanent magnet synchronous motor
total rated power: 35kW
Peak power: 70kW
Battery/Charging
Charging method: DC fast charge / slow charge
Battery Brand: CALB
Battery type: Lithium Iron Phosphate Battery
fast charge time:
Battery capacity: 56.67kWh
Slow charge time: 11h
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.79m
Cargo box width: 1.83m
Cargo box height: 0.355m
Cab parameters
Cab width: 1800mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1295kg
rear axle description: 3T
rear axle allowable load: 2200kg
Tire
Tire Size: 185R15LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

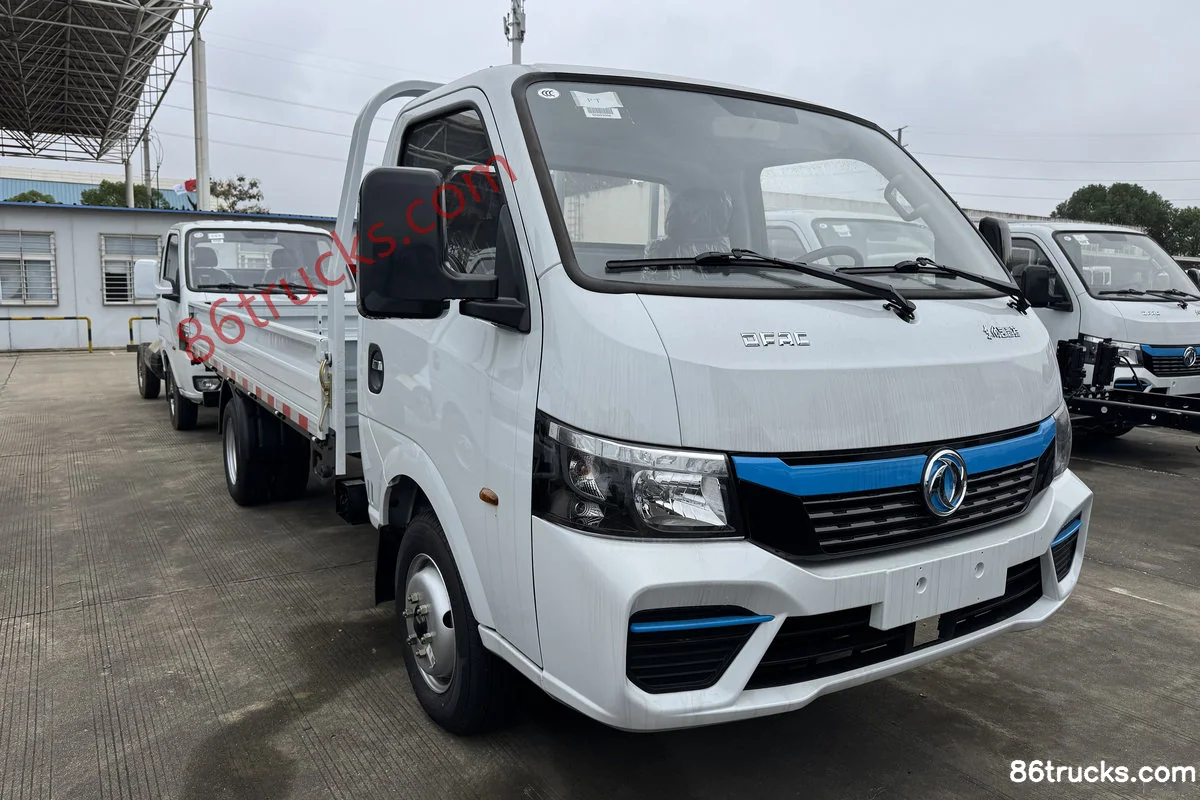

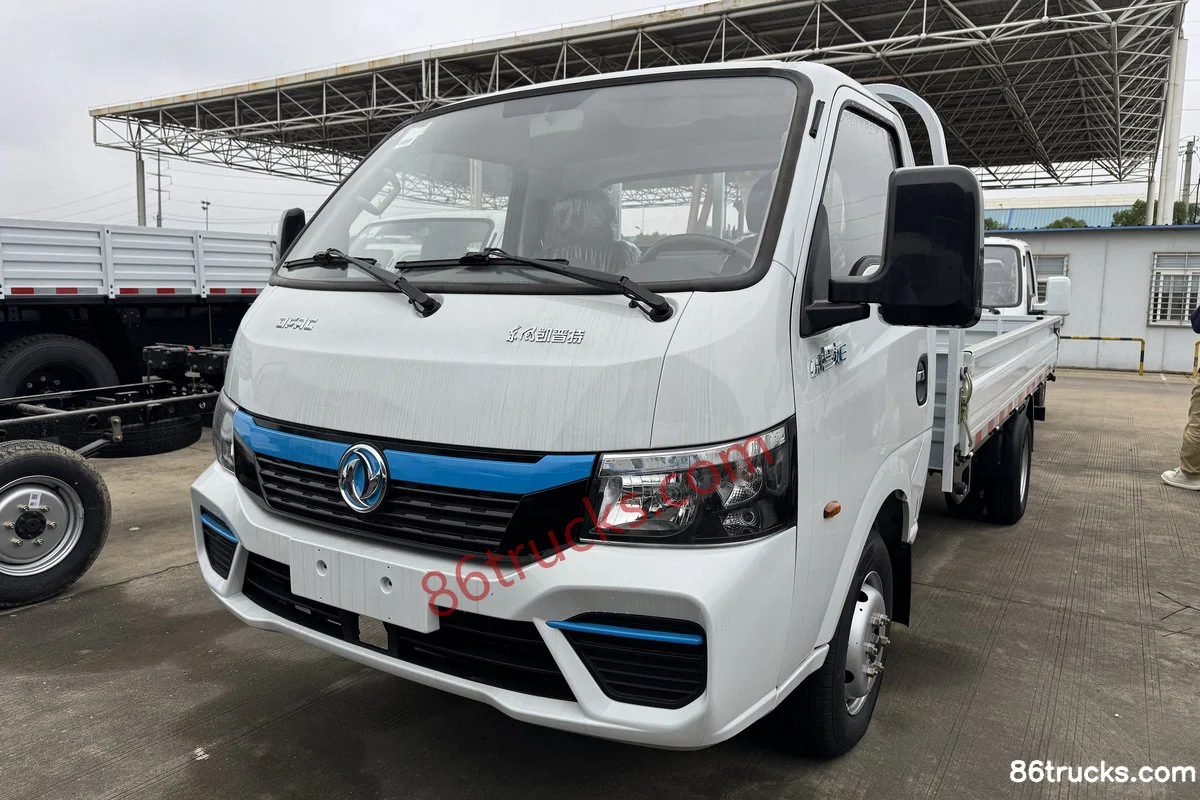

Exterior2

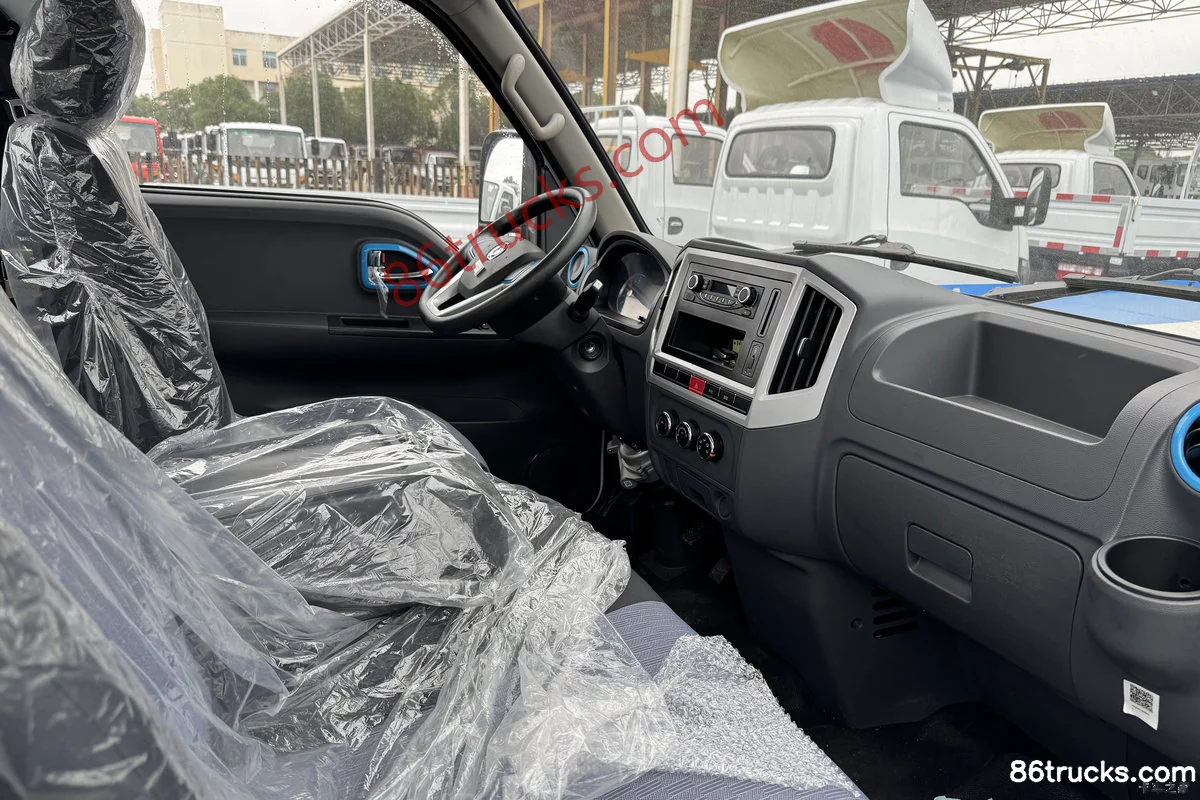

Cab1

3 photos

FAQ

What is the export price of Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels), and what does it include?

Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels) export reference is about From $18,333; MSRP is ¥13.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels)?

Key specs of Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels) suited for?

Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels) differ from other variants in the same series?

Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels) belongs to Dongfeng T5E mini truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T5E Hydraulic Brake 3.79m Single Row Pure Electric Panel Micro Truck CALB 56.67kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
